Classic Analog 系列 | 72 × 72mm

BTC-704
https://www.brainchildtw.com/web/image/product.template/77/image_1920?unique=062c7a5

類比溫度控制器

• 72×72mm 小型化面板安裝設計
• 類比旋鈕快速調整設定值
• 支援 PID 與 ON/OFF 控制模式切換
• 具偏差警報繼電器輸出功能
• 配備 3.5 位紅色 LED 製程顯示幕

此組合不存在。

特色功能

  • 72×72mm 面板安裝,深度僅 60mm
  • 可調電位器旋鈕進行設定值調整
  • 0.5 吋紅色 3.5 位數 LED 顯示製程數據
  • 具紅色警報狀態顯示燈(LED)
  • 偏差警報繼電器輸出(2A/240VAC)
  • 感測器輸入可選熱電偶或 RTD
  • 支援 J/K 型熱電偶與 PT100 RTD
  • 控制模式可選 PID 或 ON/OFF(跳線設定)
  • 熱電偶輸入具冷端補償功能
  • 內建感測器斷線上飄保護設計
  • 電源支援 100–240VAC 寬電壓輸入
  • 適用於空間有限的工業控制面板應用

BTC-704 精巧型類比溫度控制器

PID 或 ON/OFF 控制模式,搭配 LED 顯示與警報功能

BTC-704 為一款 72×72 mm 精巧型類比溫度控制器,專為空間有限的控制應用設計,兼具效率與節省空間的優勢。配備清晰的紅色 3.5 位數 LED 顯示器、類比設定旋鈕與偏差警報繼電器輸出。使用者可依製程需求輕鬆切換 PID 或 ON/OFF 控制模式。支援通用感測器輸入,具備穩定可靠的控制效能,特別適合整合於工業控制面板中的溫度控制系統。

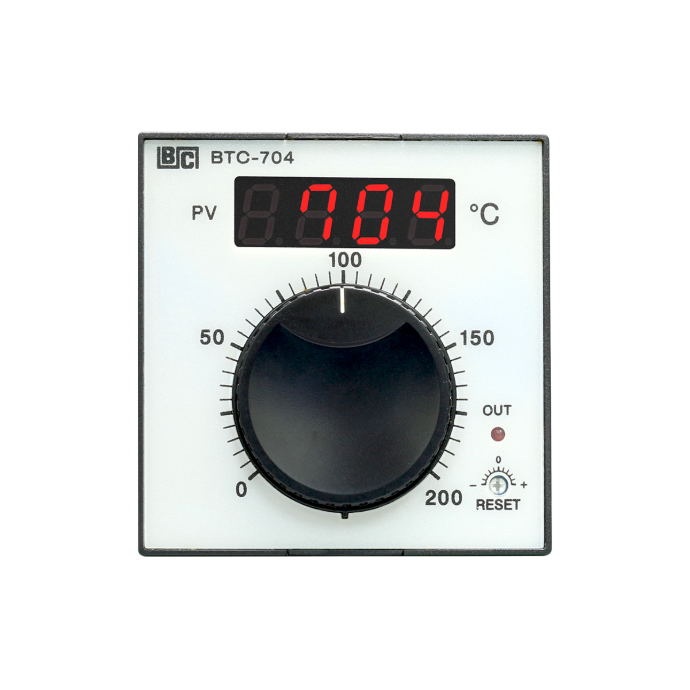

BTC-704 面板顯示與控制介面

紅色 LED 顯示搭配類比旋鈕與警報指示燈

BTC-704 面板配備 0.5 吋紅色 3.5 位數 LED 顯示器,清晰呈現製程溫度的即時數據。紅色 LED 警報指示燈在偏差超出限制時即刻提醒使用者。前面板的類比電位器旋鈕,讓設定點調整更精準直覺。此精簡化設計確保操作簡單,所需培訓極少,特別適合應用於整合型控制面板環境。

輸入相容性與精準度

支援熱電偶與 RTD,確保穩定精度

BTC-704 支援 J 型與 K 型熱電偶,以及 3 線式 PT100 RTD 感測器(DIN 或 JIS 標準)。輸入電路內建熱電偶冷端補償,並提供 ±1% 量程精度,確保在各種應用環境中皆能可靠且精準地進行溫度量測。

輸出類型與警報功能

提供繼電器、SSR 電壓輸出與警報繼電器

BTC-704 提供多樣化輸出格式,包括繼電器接點輸出(5A/240VAC)、SSR 電壓驅動(32VDC / 20mA),以及電流或電壓類比輸出(如 4–20mA 或 0–10V)。同時配備專用的偏差警報繼電器輸出(2A/240VAC),可即時反饋關鍵溫度限制,確保製程安全與可靠。

產業應用

產品規格


電源

額定值

90-264VAC, 50 / 60 Hz

電力消耗

低於 5VA

訊號輸入

熱電耦 (T/C)

 J, K 型

RTD

3線 PT 100 歐姆, DIN 或 JIS

範圍

參考訂購序號

精度

量程的1%

冷端補償

±0.1°C / 1°C

RTD線腳阻抗的抑制

( 0.1°C - PV值的0.025% ) / 歐姆

感應器斷路保護

高檔

外部阻抗

最大100 歐姆

正常模式抑制(Normal Mode Rejection)

60 dB

共通模式共模抑制(Common Mode Rejection)

120 dB

取樣速率

3 次 / 秒

控制

比例帶

量程的2.2%

ON-OFF 遲滯

量程的1%

比例周期

繼電器輸出20秒,
1秒用於脈衝電壓輸出,
線性電流或電壓輸出為0.02秒。

控制動作

反向動作

輸出​

控制

控制

繼電器, 5A/240V 最大阻抗負載

脈衝電壓

最大 20mA / 32VDC

電流輸出

4-20mA, 0-20mA, 最大負載 500 歐姆

電壓輸出

0- 10V, 最小負載 500 歐姆

警報

繼電器輸出, 2A / 240VAC 最大阻抗負載

設定值調整

設定點

單匝繞線電位器

警報

偏差警報, 量程的±10%可調

手動重置

可調範圍的2.6%

設定點分辨率

量程的0.2%

設定點精度

量程的±2%

設定點重複精度

量程的±0.1%

指示

過程指示器

10毫米 紅色 3-1 / 2 數位 LED顯示器

狀態指示燈

ON(紅色)LED指示燈

警報指示燈

ON(紅色)LED指示燈

工作環境和物理條件

工作溫度

0-50°C

濕度

0-90% RH (非凝結狀態)

絕緣阻抗

最小20M 歐姆(500VDC)

崩潰電壓

AC 2000V, 50 / 60Hz, 1 分鐘

耐震性

10-55Hz. 振幅1 mm

耐衝擊性

200 m/s2 (20g)

安裝固定

盤面固定

尺寸 (W*H*D) (mm)

72*72*78.2

盤面後深度 (mm)

65

開孔尺寸 (mm)

68*68

重量 (grams)

240

安全規範

安規

UL, CSA

EMC

CE

資源下載

前往下載中心查看更多的文件與工具。  前往

常見問答

BTC-704 可搭配哪些溫度感測器?

BTC-704 支援 J 型與 K 型熱電偶,以及 3 線式 PT100 RTD 感測器,兼容 DIN 與 JIS 標準。

BTC-704 是否具備 PID 控制功能?

是的,BTC-704 允許使用者透過跳線設定,在 PID 與 ON/OFF 控制模式之間進行選擇。

BTC-704 提供哪些輸出方式?

BTC-704提供繼電器輸出、SSR 電壓驅動,以及選配的類比輸出(4–20mA 或 0–10V)。同時內建偏差警報繼電器。

BTC-704 適合安裝於空間有限的控制面板嗎?

是的,BTC-704 採用 72×72 mm 面板尺寸,機身深度僅 60 mm,非常適合空間受限的工業控制機櫃。

BTC-704 是否具備 LED 顯示與警報指示功能?

是的,配備 3.5 位數紅色 LED 顯示器以顯示溫度,並設有紅色 LED 警報指示燈,用於偏差警報提醒。

訂購代碼

焊料間隙J1~J11的功能

位置

短路

開路

功能

J1

○



T/C 形式 J 或 K

J1



○

PT 100 ohms DIN 或 JIS

J2



○

反向控制

J2

○



前向控制

J3

○



100℃ span

J4

○



200℃ span

J5

○



300℃ span

J6

○



400℃ span

J7

○



460℃ span

J8

○



600℃ span

J9

○



800℃ span

J10

○



1200℃ span

J11

○



開關-控制

J11



○

時間比例控制

焊料間隙J12~J13的功能

J12

J12

循環時間

功能

短路​

短路​

 20 秒

繼電器輸出

開路​

短路​

1 秒

SSR 驅動

開路​

開路​

0.02 秒

線性電流 或 電壓輸出

 代碼: 範圍 / 選擇焊料間隙
 * 請參考完整的技術資訊中的詳細轉換
 代碼: 模式 /  焊料間隙
單獨的電子郵件地址用逗號區分.


PRMesh

Wireless Expansion Module for PR Paperless Recorders

PR Mesh works with SenseNode wireless sensor nodes to extend the wireless measurement capabilities of existing PR Paperless Recorders.

Features



Wireless  Measurement Expansion

Extend the wireless measurement capabilities of existing PR Paperless Recorders with PR Mesh, without replacing the entire recording system.

Distributed Signal Acquisition

Deploy SensNode near measurement points to acquire up to two analog inputs per unit, reducing long-distance sensor wiring to the recorder.

BrainChild Mesh
Connectivity

Powered by BrainChild Mesh wireless technology, SensNode transmits field measurement data to PR Mesh, connecting distributed measurement points with the PR recorder.

Seamless PR Integration

Installed inside a compatible PR recorder, PR Mesh integrates wireless measurement data into the existing system while preserving its familiar interface and operation.

Centralized Monitoring & Recording

Consolidate measurement data from distributed points in the PR recorder, retaining real-time displays, trend monitoring, alarm management, and historical data logging.

Scalable Monitoring Expansion

Add SensNode units as monitoring needs grow, extending measurement coverage while reducing wiring and installation work when expanding existing systems.


​

How it work

Extend Your PR with Flexible Wireless Measuremen





➊ Field Signal Acquisition

SenseNode acquires sensor signals near measurement points and wirelessly transmits the data using BrainChild Mesh technology.

➋ Wireless Data Reception & Integration

PR Mesh receives measurement data from SenseNode and integrates it into the existing PR recording system.

➌ Centralized Monitoring & Data Logging

The PR recorder provides centralized access to real-time measurements, historical trends, alarm information, and data logging.

Less Wiring. Greater Flexibility.

Traditional Wired Monitoring


Traditional wired monitoring systems require sensor signals to be connected directly to centralized recording equipment. When measurement points are widely distributed, located far from the recorder, or added to existing production lines, additional wiring and installation work can make system expansion and maintenance more complex.

Traditional Wired Monitoring


Traditional wired monitoring systems require sensor signals to be connected directly to centralized recording equipment. When measurement points are widely distributed, located far from the recorder, or added to existing production lines, additional wiring and installation work can make system expansion and maintenance more complex.

IV. Panel Studio

If Plus version 2 or 3 of Firmware is purchased, additional software Panel Studio is offered for editing custom display. The users can use it to edit specific displays on PC first, and then download it onto recorders. The custom edited displays will be additional pages to standard ones.

Edit it on PC

Download it onto Recorders
