Classic Performance 系列 | 96 x 96 mm

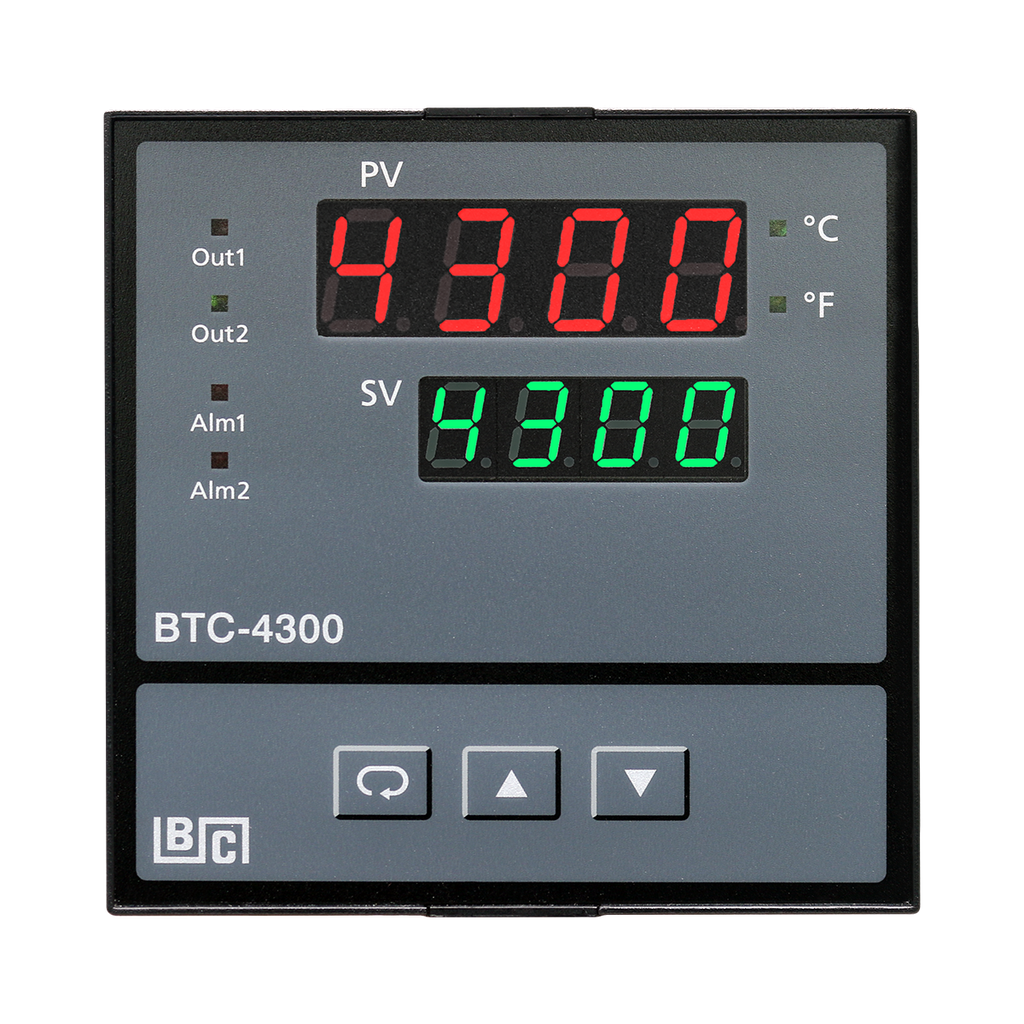

BTC-4300
https://www.brainchildtw.com/web/image/product.template/73/image_1920?unique=062c7a5

自動演算溫度控制器

• 大型 1/4 DIN 尺寸(96×96mm)
• 結合模糊邏輯與 PID 穩定控制
• 支援熱電偶、RTD、電壓與電流輸入
• 提供自動與手動整定雙模式
• LED 顯示搭配面板安裝設計

此組合不存在。

特色功能

  • 大型 1/4 DIN 尺寸(96×96mm)
  • 通用輸入:熱電偶、RTD、電壓與電流信號
  • 高解析度:18-bit A/D 與 15-bit D/A
  • 自動與自我整定功能,確保穩定控制
  • 支援模糊邏輯與 PID 雙模式控制
  • 可支援類比訊號再傳輸功能
  • 具加熱器斷線、迴路斷線、感測器異常警報
  • 內建可編程數位濾波功能
  • 端子與外殼具 IP20 防護等級

  • 支援事件輸入切換控制模式與目標值
  • 具緩啟動與保溫定時器功能
  • 快速取樣速率:每秒 5 次
  • 可選擇 RS-485 或 RS-232 通訊介面
  • 可接收遠端設定點類比輸入
  • 通過 CE、UL、CSA 認證,符合國際安全規範

1/4 DIN 尺寸
模糊 PID 製程控制器

萬用輸入與彈性輸出, DIN 面板設計適用多場域

本產品為 DIN 尺寸的模糊邏輯 PID 製程控制器,專為溫度與製程應用中的精確穩定控制所設計。支援熱電偶、RTD、電壓與電流等萬用輸入,具備良好相容性,可搭配各類工業感測器使用。輸出選項涵蓋繼電器、SSR 脈衝電壓與類比訊號(mA/V),適用於多種控制邏輯。內建模糊控制強化、自動整定與手動微調功能,並可選配 RS-232/RS-485 通訊模組,確保能穩定整合至各種現代自動化系統。面板操作簡便、警報功能可程式化,適用於多樣化的工業現場環境。

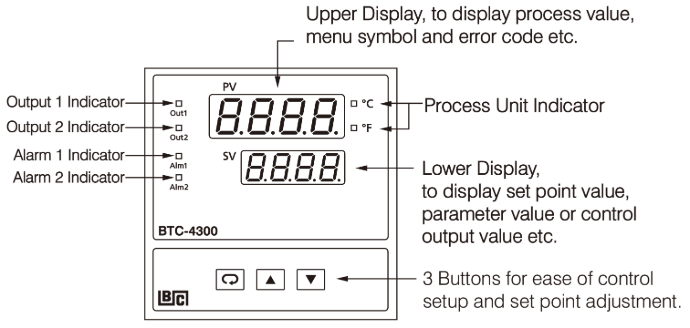

清晰 LED 顯示與三鍵操作,輕鬆完成設定

本產品配備高亮度、高對比的 4 位數 LED 顯示幕,可清楚顯示即時製程數值、目標設定值與各項參數,提升操作直覺性。三鍵操作介面設計簡潔,使用者可輕鬆進入功能選單、快速設定控制參數、啟動自動整定或切換運轉模式。輸出、警報、手動模式等清楚標示的指示燈,能即時反映設備狀態,協助操作人員快速判讀。面板佈局簡明,降低學習曲線,適用於講求效率的工業產線。按鍵回饋靈敏、導引結構清晰,能有效降低誤操作風險,確保各種應用環境下的穩定運行。

相容多種訊號輸入,彈性應用廣泛

本產品支援多種通用輸入類型,包括熱電偶(T/C)、測溫電阻(RTD)、電壓及電流訊號,並可透過前面板輕鬆設定輸入類型與量測範圍,廣泛應用於溫度與製程控制。

多樣輸出選擇,實現精準控制

提供多種輸出選項,包括繼電器、SSR 驅動、類比電壓與電流輸出,具備高解析度與隔離設計。部分機型支援雙輸出或再傳送功能,滿足各種控制應用需求。

Fuzzy(模糊邏輯) PID 控制技術

聰明穩定又快速,讓控制更勝一籌

模糊邏輯與傳統 PID 控制結合,實現更智慧且具適應性的溫度調節功能。
相較於傳統 PID 控制器需針對每個應用手動微調參數,模糊 PID 能根據實際製程變化即時動態調整控制反應。其優勢在於加快系統穩定速度、降低過衝幅度,並提升對干擾的耐受性,特別適用於對「精度」與「反應速度」要求極高的應用場域。

專用程式連接埠,快速完成離線設定

觸點式埠搭配專用線材進行離線自動設定

本控制器配備 專用觸點式程式連接埠,須搭配 CC91-1 專用程式線材 使用。透過此埠可與電腦或 ATE(自動測試設備)連接,進行快速且可靠的 離線參數設定、自動校正與測試流程,無需開啟接線端子或拆裝設備。

為保障系統穩定性,此程式埠僅供設定與測試期間使用,在控制器正常運行時應拔除。若需轉為 RS-232 通訊,也可搭配 SNA12A 智慧轉接器使用,進行資料傳輸或測試介面轉換。

專業設定軟體 BC-SET Pro,快速完成控制器參數調整

快速完成參數設定、備份與韌體升級操作

BC-SET Pro 是 BrainChild 推出的官方參數設定軟體,專為超限保護控制器應用設計,具備直覺化的操作介面與高效的設定流程。使用者可透過 USB 程式連接線將裝置連接至電腦,快速完成參數調整與設定。此軟體支援設定複製功能,可將一台設備的參數套用至多台控制器,並提供韌體升級功能,確保設備運作穩定、功能保持最新狀態。BC-SET Pro 同時支援離線編輯,允許儲存多組設定檔,方便用於工廠設定、生產部署或現場維護等情境。無論是全新裝機或既有系統調整,都能透過此工具有效簡化流程、縮短設定時間,提升多設備管理的一致性與效率。

批次讀寫功能

BC-SET 可同時連接多台相同型號的控制器,僅需設定節點範圍,即可一次性批次讀取與寫入參數,有效提升量產或系統部署效率。

清晰的系統選單與操作介面

操作選單包含常用功能如重新掃描(F5)、讀取資料(F6)、寫入資料(F7)、寫入多筆(F8)與通訊參數設定(F9),搭配快捷鍵提升操作流暢度。

通訊參數設定

通訊設定畫面提供埠號、傳輸速率、奇偶校驗、資料位元與停止位元等項目,並具備「預設值」,降低設定錯誤風險。

專屬可視化編輯器

針對具備程序控制功能的溫度控制器,BC-SET提供可視化編輯器,分段管理溫控曲線參數,可直接讀取/寫入控制器資料,方便測試與驗證使用。

產業應用

產品規格


電源

90-264 VAC, 47-63Hz, 15VA, 7W 最大

1-26 VAC/VDC, 15VA, 7W 最大

訊號輸入 1

分辨率

18 Bits

採樣速率

5 次 / 秒

額定值

最小 -2VDC , 最大 12VDC

溫度效應

mA輸入: 3.0µV /°C,其它輸入: 1.5µV /°C

傳感器導線阻抗效應

T/C: 0.2μV / ohm
3線RTD: 2.6℃/兩根導線阻抗歐姆值的差
2線RTD: 2.6℃/兩根導線阻抗歐姆值的和
易燃電流: 200nA

共模抑制比(CMRR)

120 dB

常模抑制比(NMRR)

55dB

傳感器斷裂偵測

TC, RTD, mV 輸入: 感知器呈開路(OPEN)狀態;
RTD 輸入短路 4-20mA 輸入: 小於1mA狀態;
1-5V 輸入: 小於0.25V狀態;
其它輸入不適用

傳感器斷裂反應時間

TC、RTD、mV 輸入:4秒內, 1-5V/4-20mA 輸入:0.1秒

輸入特性

 類別

範圍

精度 @ 25°C

輸入阻抗

J

-120°C  ~ 1000°C( -184°F ~ 1,832°F)

±2°C

2.2 MΩ

K

-200°C ~ 1370°C (-328°F ~ 2498°F)

±2°C

2.2 MΩ

T

-250°C ~ 400°C ( -418°F ~  752°F )

±2°C

2.2 MΩ

E

-100°C ~ 900°C( -148°F ~ 1652°F )

±2°C

2.2 MΩ

B

0°C ~ 1800°C( 32°F ~  3272°F )

±2°C( 200°C ~ 1800°C )

2.2 MΩ

R

0°C ~ 1767.8°C( 32°F ~ 3214°F )

±2°C

2.2 MΩ

S

0°C ~ 1767.8°C( 32°F ~ 3214°F )

±2°C

2.2 MΩ

N

-250°C ~ 1300°C( -418°F ~ 2372°F)

±2°C

2.2 MΩ

L

 -200°C ~ 900°C( -328°F ~ 1652°F )

±2°C

2.2 MΩ

PT100(DIN)

-210°C ~ 700°C( -346°F ~ 1292°F )

±0.4°C

1.3KΩ

PT100(JIS)

-200°C ~ 600°C( -328°F ~ 1112°F )

±0.4°C

1.3KΩ

mV

-8mA  ~ 70mA

±0.05%

2.2MΩ

mA

-3mA  ~ 27mA

±0.05%

70.5Ω

V

-1.3V  ~ 11.5V

±0.05%

650KΩ

訊號輸入 2

分辨率

18 bits

採樣速率

1.66 次/秒

額定值

最小-2 VDC, 最大12 VDC (電壓模組承受電流 mA 訊號輸入最多不超過一分鐘)

感知器導線阻抗效應

 mA輸入 ±0.3μV / ℃
其它輸入 ±1.5μV / ℃

傳感器導線阻抗效應

T/C: 0.2μV / ohm
3線RTD: 2.6℃/兩根導線阻抗歐姆值的差
2線RTD: 2.6℃/兩根導線阻抗歐姆值的和
易燃電流: 200nA

共模抑制比(CMRR)

120dB

常模抑制比(NMRR)

55dB

傳感器斷裂偵測

Below 1 mA for 4-20 mA input, below 0.25V for 1 - 5V input, unavailable for other inputs.

傳感器斷裂反應時間

0.5 second

特點

類別

範圍

 精度 @ 25 °C

輸入阻抗

CT94-1

0-50.0 A

±2% of Reading ±0.2A

302K

mA

-3 mA-27 D156mA

±0.05%

70.5 + 0.8V /input current

V

-1.3 V-11.5 V

±0.05%

302K

訊號輸入 3

低邏輯位准

最小-10V , 最大0.8V

高邏輯位准

最小2V , 最大10V

外部失效阻抗

最大 400 KΩ

外部生效阻抗

最小 1.5 MΩ

功能選項

選擇以 SP2 或 PID2 替代原 SP1 或 PID1,或同時以 SP2 及 PID2 替代;
也可 Reset 第一點警報或第二點警報,或同時 Reset 第一及第二點警報;
關閉第一點輸出或第二點輸出,或同時關閉一、二點輸出;
遙控鎖定保護等。

第一組輸出 /第二組輸出

繼電器額定值

額定電流2A, 240V AC,壽命周期200000次

脈衝電壓

5V, 電流阻抗限制66Ω

輸入特性

類別

零位誤差容許範圍

輸出範圍誤差容許範圍

負載能力

4 ~ 20 mA

3.6 ~ 4 mA

20 ~ 21 mA

最大 500Ω

0 ~ 20 mA

0 mA

20 ~ 21 mA

最大 500Ω

0 ~ 5 V

0 V

5 ~ 5.25 V

最小 10KΩ

1 ~ 5 V

0.9 ~ 1 V

5 ~ 5.25 V

最小 10KΩ

0 ~ 10 V

0 V

10 ~10.5 V

最小 10KΩ

線性輸出

分辨率

15 Bits

輸出調節

滿載時變化少於0.02%

輸出設定時間

 0.1 秒 ( 穩定度達 99.9%)

隔離失效電壓

1000 VAC

溫度效應

範圍值的±0.01%/ °C

Triac ( SSR ) 輸出

額定值

1A / 240 VAC

侵入電流

20A for 1 cycle

最小電流負載

50 mA rms

最大關斷狀態的漏電流

3 mA rms

最大導通狀態電壓

1.5V rms

絕緣阻抗

最小1000Mohms(以500 VDC測定)

耐壓性

2500VAC, 一分鐘

線性輸出規格

類別

誤差

最大輸出電流

脈動電壓(峰值)

隔離層

20V

±1.0 V

25mA

0.2Vp-p

500VAC

12V

±0.6V

40mA

0.1Vp-p

500VAC

5V

±0.25V

80mA

0.05Vp-p

500VAC

警報輸出(Alarm1/Alarm2-安裝於Output2)

第一點警報-繼電器

C接點型式

第一點警報-額定值

2A, 240VAC, 使用壽命200000次

第二點警報-繼電器

A接點型式

第二點警報-額定值

2A, 240VAC, 使用壽命200000次

警報功能

持溫計時(倒數);
偏差高/低警報;
偏差帶外/內警報;
輸入實際值第一點(PV1)高/低限警報;
輸入實際值第二點(PV2)高/低警報;
PV1 與 PV2 高/低警報;
PV1-PV2高/低警報;
系統異常警報;
感知器斷線警報。

警報模式

常態警報, 栓鎖警報, 限制警報, 栓鎖限制警報

持溫計時

0 ~ 6553.5 分鐘

通信功能

介面

RS-232(1台), RS-485(可連到247台)

通訊協議

Modbus RTU (Slave 模式)

地址

1 ~ 247

傳輸速率

0.3 ~ 38.4 Kbits/sec

資料位元

7 or 8 Bits

檢查位

無 (None), 偶數同位 (Even), 奇數同位(Odd)

停止位

1 或 2 Bits

通訊緩衝存儲器

50 Bytes

模擬再傳送

功能選項

PV1, PV2, PV1-PV2, PV2-PV1, SP值,
MV1, MV2, PV-SV, 偏差值

輸出訊號

4-20 mA, 0-20 mA, 0-1V, 0-5V, 1-5V, 0-10V

分辨率

15 bits

精度

±0.05% 範圍值 ±0.0025% / ℃

負載阻抗

電流輸出 0-500 Ω  (電流輸出)
電壓輸出 最小 10 KΩ (電壓輸出)

輸出調節

滿載時變化少於 0.01%

輸出設定時間

0.1秒(穩定度達99.9%)

隔離失效電壓

1000 VAC 最小

積分線性誤差

±範圍值的0.005%

溫度效應

±0.0025 % 範圍值/ °C

低飽和點

0 mA ( 或 0V )

高飽和點

22.2 mA ( 或 5.55V, 11.1V min. )

線性輸出範圍

0-22.2mA ( 0-20mA or 4-20mA ),
0-5.55V ( 0-5V, 1-5V ),
0-11.1 V ( 0-10V )

使用接口

按鍵

3個操作鍵 ( 循環鍵、增加鍵、減少鍵 )

顯示類型

4 位數 雙 LED 顯示器

顯示數目

2

上方顯示尺吋

0.55”(14㎜)

下方顯示尺吋

0.4” (10㎜)

電腦連接埠

可用來自動設定、校準、測試

通訊埠

與電腦或控制主機連結

控制模式

第一組輸出

反向 (制熱) 或 正向 (制冷) 控

第二組輸出

PID制冷控制,制冷比例帶 1-255% 的PB值

ON-OFF控制

可設定遲滯帶之值 0.1-55.6(℃)(PB要設定為0)

比例控制(P 或 PD)

可調整輸出補償量0 - 100.0 %

PID控制

FFuzzy邏輯修正
比例帶 0-500.0 °C
積分時間 0-1000 秒
微分時間 0-360.0 秒

比例周期

0.1 ~ 100.0 Seconds

手動控制

制熱(MV1) 和 制冷(MV2)

自動演算調整

冷啟動或熱機時均可執行

錯誤模式

傳感器斷線或A-D轉換功能故障時可自動切換到手動模式

斜率控制

0-500.0℃/分鐘 或 0-500.0℃ / 小時

睡眠模式

開啟或關閉

輸出限制

0-100%第一點與第二點輸出

泵浦/壓力控制

提供精密控制功能

遙控設定

以電壓或電流輸入,可遙控設定SP

差異控制

以PV1-PV2差異為SP

數位濾波

功能

一階

濾波時間常數

可設定0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 秒

工作環境和物理條件

工作溫度

-10°C ~ 50°C

儲藏溫度

-40°C ~ 60°C

濕度

0 ~ 90 % RH (無凝結狀態)

絕緣阻抗

最小20MΩ (@500VDC時)

耐壓性

一分鐘2000VAC, 50/60 Hz

抗震性

兩小時10 ~ 55 Hz, 10m/s2

抗衝擊性

200 公尺 / 秒²(20g)

外殼

耐燃級聚碳酸酯

安裝固定

盤面固定

尺寸 (W*H*D) (mm)

96*96*66

盤面後深度 (mm)

53

開孔尺寸 (mm)

92*92

重量 (grams)

255

安全規範

安規

UL 61010-1, 3rd Edition.CAN/CSA-C22.2 No. 61010-1(2012-05), 3rd Edition.

防護等級

IP20外殼與端子座

EMC

EN61326

Download

前往下載中心查看更多的文件與工具。  前往

常見問答

支援哪些類型的輸入訊號?

支援熱電偶(T/C)、RTD、毫伏電壓與電流(mA)等萬用輸入,可由面板設定選擇。

是否可用此控制器驅動固態繼電器(SSR)?

可以。本系列提供 SSR 專用脈衝電壓輸出(通常為 5V 或 12V),可直接驅動。

控制器是否支援自動與手動整定功能?

支援。可從前面板啟動自動整定(Auto-tuning),並提供手動調整 PID 參數的功能。

當感測器斷線或異常時會發生什麼?

系統會觸發感測器斷線警報(Sensor Break),並可設定自動切換至手動模式,確保製程安全。

BTC-4300 面板具防水功能嗎?防護等級是多少?

  不具備。BTC-4300 的防護等級為 IP20,可防止手指觸碰與一般固體物侵入,但不具防水功能。

訂購代碼

 第一點輸入 - Universal input
 熱電偶: J,K,T,E,B,R,S,N,L
 RTD: PT100
 電流: 4~20mA, 0~20mA
 電壓: 0~1V, 0~5V, 1~5V, 0~10V
第二點輸入 - **
 CT: 0 ~ 50Amp, AC電流轉換
 類比: 4~20mA, 0~20mA, 0~1V, 0~5V, 1~5V, 0~10V
第三點輸入 - 事件輸入EI

**表示第二點輸入與RS232只能二選一。
*表示範圍可由按鍵設定。
  *表示範圍可由按鍵設定。
*表示範圍可由按鍵設定。
** 表示第二點輸入與RS232只能二選一。
Protected by reCAPTCHA, Privacy Policy & Terms of Service apply.

Features



PRMesh

Wireless Expansion Module for PR Paperless Recorders

PR Mesh works with SenseNode wireless sensor nodes to extend the wireless measurement capabilities of existing PR Paperless Recorders.

SenseNode
Signal Acquisition & Transmission

PRMesh
Wireless Reception & Integratione

PR Paperless Recorders
Monitoring & Data Logging

Wireless  Measurement Expansion

Extend the wireless measurement capabilities of existing PR Paperless Recorders with PR Mesh, without replacing the entire recording system.

Distributed Signal Acquisition

Deploy SensNode near measurement points to acquire up to two analog inputs per unit, reducing long-distance sensor wiring to the recorder.

BrainChild Mesh
Connectivity

Powered by BrainChild Mesh wireless technology, SensNode transmits field measurement data to PR Mesh, connecting distributed measurement points with the PR recorder.

Seamless PR Integration

Installed inside a compatible PR recorder, PR Mesh integrates wireless measurement data into the existing system while preserving its familiar interface and operation.

Centralized Monitoring & Recording

Consolidate measurement data from distributed points in the PR recorder, retaining real-time displays, trend monitoring, alarm management, and historical data logging.

Scalable Monitoring Expansion

Add SensNode units as monitoring needs grow, extending measurement coverage while reducing wiring and installation work when expanding existing systems.

The PR30 includes an easy-to-use tree layout configuration, convenient handwriting message input, a circular display for better visibility, and both standard and plus firmware versions for enhanced flexibility and performance across various applications.

Configuration in tree layout is easy for operation

The tree layout configuration simplifies operation, allowing users to easily navigate and manage settings on the recorder.

Handwriting messages are handy users

Handwriting messages offer users a convenient and quick way to input notes directly on the recorder.

Circular display

Handwriting messages offer users a convenient and quick way to input notes directly on the recorder.

Standard version of Firmware
  • Al:  Analog input is offered various log speed in 1 00ms, 1, 2, 5, 10, 20, 30 Sec, 1, 2 Min/Dot.
  • DI:  Digital input is offered either normal Logic or high frequency Pulse.
  • AO:  In analog output, mA or V and its Expression can be defined.
  • DO:  Digital output/relay output can be enabled. Each DO card has 6 relays.
  • Display:  Various display speeds are available in 1 00ms, 1, 2, 5, 10, 20, 30 Sec/Dot, or 1, 2, 10, 30 Min/Page, 1, 2, 4, 8, 12 Hour/Page, or 1 Day/Page.
  • Timer:  Timer in Countdown, Repeat Countdown, Daily, Weekly or Monthly base, and various jobs can be defined.
  • Clock:  Date Style of MM/dd/yy or dd/MM/yy, Time Synchronize via Internet, and Summer Saving Time can be defined.
  • Communication:  Web Server and Email functions are available in Communication in Stan­dard firmware.
  • Instrument:  Brightness adjustment and Screen Saver are available in Instrument.
  • Password:  If Normal Security is chosen, then only one password is offered. If high Security of CFR-21 is chosen, then 9 levels of password can  be defined.
  • Demo:  Enable or disable the demonstration.
  • Auto-output:  Automatic output can be set to specify the printer, to print Historical data & Report data in specified period of time.
  • System information:  It gives Firmware version number, Internal & External memory status, IP address, and 10 card status of each Slot.
  • Calibrate:  Sometimes the field calibration is required for high accuracy. In this case, a qualified engineer can do the necessary calibration.
  • Math:  Standard version includes mathematics.
Math: It includes Math, Counter & Totalizer.
Math Expression is keyed in an easy way.
Power Calculation: Calculating and recording the power usage,Formulas are ready for P1W2, P1W3, P3W3, P3W4*.
  • P1W2:single-phase two wires
  • P1W3:single-phase three wires
  • P3W3:three-phase three wires
  • P3W4:three-phase four wires

Marker:  Adding notifications on Real-Time View.Marker can be added by events like alarm or triggered by Operation

 Standard version of Firmware

Plus versions offer more features of External Channels, Custom Display, Batch, FDA 21 CFR part 11.

External Channels:

Besides Al & DI inputs, PR recorders accept inputs through communication called External Channels. PR10, PR20 & PR30 can work External Channels maximum up to 24, 48 & 96 respectively.

External Channels:

Besides Al & DI inputs, PR recorders accept inputs through communication called External Channels. PR10, PR20 & PR30 can work External Channels maximum up to 24, 48 & 96 respectively.

Batch:

Batch production record is constantly required for more strict production, for example food and drugs.

 FDA 21 CFR part 11:

This feature is complied with U.S. Food and Drug Administration with human health concern. All data should be avoided from manipulating after recording.

Powerful functions in PC Software

The PR series PC software offers powerful functions, including easy recorder configuration and historical trend analysis. It also provides features like real-time monitoring and custom display editing, giving users the flexibility to tailor displays and monitor live data as needed.

Free basic software

It consists of two parts, which are Configuration and Historical Viewer.

I. Configuration

It is Then, easy send to do the recorder configuration on PC. Then, send the configuration files from PC to recorder.

II. Historical Viewer

It can display historical trends, historical alarms, events, and then print it. It can search data by time, time period, tag, alarm, events and remarks. It also can export data in CSV format.

Extensive software Data Acquisition Studio

It consists of two parts, which are Configuration and Historical Viewer.

Ill. Real-time Viewer

Besides Configuration & Histor­ical Viewer, it offers additional software Real-time Viewer for real-time monitoring.

IV. Panel Studio

If Plus version 2 or 3 of Firmware is purchased, additional software Panel Studio is offered for editing custom display. The users can use it to edit specific displays on PC first, and then download it onto recorders. The custom edited displays will be additional pages to standard ones.

Edit it on PC

Download it onto Recorders

Applications

Specification


Product position

Big size and high-end one, good for sophisticated applications, for example power industry

Input numbers

6, 12, 18, 24, 30, 36, 42, 48 channels

True universal inputs

Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV

The fastest sampling rate

o reach 100 msec / dot, default setting at 1 sec / dot

Math, External channels, Batch,
Custom display, FDA 21 CFR part 11

Math in standard version, others in Plus versions

Display

12.1" TFT touch screen

Resolution

1024 x 768

MTBF backlight at 25°C

30,000 hrs

Backlight

LED

Screen saver, Email

Yes

A faster CPU

ARM Cortex-A8, 1Ghz

Internal flash memory

256 MB

RAM

256 MB

Ethernet

Modbus TCP/IP

RS-232/422/485

Optional RS-232 or RS-422/485 Modbus RTU

SD card slot, USB host x 2

Standard, one USB in the front, another USB in the back

Pulse input

Optional DI card offering either logic or high frequency pulse counter

START / STOP key

To start / stop record and to turn off the display only, not recorder itself so that a quick start possible

Calibration correction

On-site calibration possible, or using handy features of Offset and Gain for correction

Multilingual

Convenient for local users by offering 19 languages including English, Japanese,Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable

PC software Historical Viewer+ Configuration

Standard

Extensive software Data Acquisition Studio

Optional real-time monitoring

Power supply

90-250VAC or 11-36VDC

Outer dimensions (W x H x L mm)

288 x 288 x 189

Shorter mounting depth (mm)

171

DIN panel cutout (W x H mm)

 281 x 281

Protection

IP65 front, IP20 rear

Operating temperature

0°C to 50°C

Storage temperature

-30°C to 70°C

Safety standards

RoHS

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

Ordering Code

PR3006(6 analog inputs)
PR3012(12 analog inputs)
PR3018(18 analog inputs)
PR3024(24 analog inputs)
PR3030(30 analog inputs)
PR3036(36 analog inputs)
PR3042(42 analog inputs)
PR3048(48 analog inputs)
none
6 relays
12 relays
18 relays
24 relays
Digital inputs
6 channels
12 channels
18 channels
none
6 channels
12 channels
90-25 VAC,50/60 Hz
11-36 VDC
12 channels
standard Ethernet
Ethernet + RS232
Ethernet + RS-422/486
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
free basic software of Historical Viewer & Configuration
extensive software Data Acquisition Studio (RealTime Viewer + Historical Viewer + Configuration)
panel mount, no power cord, no power switch
panel mount, no power cord, power switch
portable, UL & CSA power cord, power switch
portable, VDE power cord, power switch
portable, SAA power cord, power switch
portable, BS power cord, power switch
portable, no power cord, power switch
panel mount, UL & CSA power cord, power switch
panel mount, VDE power cord, power switch
panel mount, SAA power cord, power switch
panel mount, BS power cord, power switch
Protected by reCAPTCHA, Privacy Policy & Terms of Service apply.
將其替換為您自己的 HTML 代碼
