Classic Premium 系列 | 48 x 48 mm

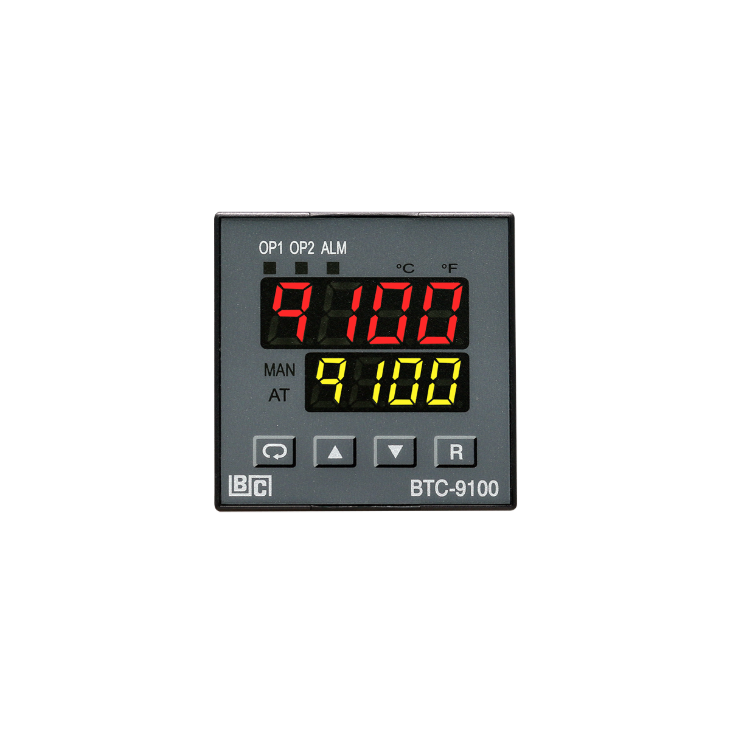

BTC-9100
https://www.brainchildtw.com/web/image/product.template/70/image_1920?unique=062c7a5

PID 溫度控制器

• 48 x 48 mm 面板尺寸
• 模糊邏輯 PID 控制搭配自動整定
• 支援熱電偶、RTD、mV、mA
• 支援 RS-485/RS-232 Modbus RTU 通訊
• 具升降斜率+保溫段程控功能

此組合不存在。

特色功能

  • 48 x 48 mm 面板尺寸
  • 通用輸入:熱電偶、RTD、mV、mA、電壓等
  • 雙 4 位數 LED 顯示:顯示製程值與設定值
  • 18 位 A/D 轉換器,提供高解析度輸入
  • 每秒 5 次快速取樣速率
  • 支援自動/手動模式切換不中斷輸出
  • 可調斜率的升降速控制功能(Ramping)
  • 內建模糊邏輯 PID 自動整定功能
  • 數位濾波功能穩定雜訊變動的輸入值
  • 支援冷啟動與熱啟動下的自動整定
  • 感測器斷線快速偵測,保障製程安全
  • 多層級參數鎖定機制,防止誤操作
  • 警報模式可選:高限、低限、區間、延時
  • 第二輸出可設定為維持計時器(Dwell)
  • 輸出類型可選:繼電器、SSR 或類比輸出
  • 內建 Modbus RTU,支援 RS-232/485 通訊
  • 具 USB 程式連接埠,支援電腦設定與測試

專為製程自動化打造的模組化 PID 控制器

模糊 PID、多輸出、RS-485 通訊與升降程控功能


這款緊湊型 PID 控制器專為各類工業應用中的溫度或製程控制而設計,兼具可靠性與智慧調節能力。具備 萬用輸入相容性、18 位元高解析 A/D 轉換器,並支援多種輸出型式(繼電器、SSR 電壓驅動或類比訊號),在基本控制與進階製程中皆能靈活應用。

控制器內建 模糊邏輯 PID 自動整定演算法,支援 RS-232/RS-485 Modbus RTU 通訊,並具備 升降斜率程控與保溫定時功能(Dwell Timer),適合應用於 OEM 設備、產線控制箱與需精準調節的自動化系統中。

LED 顯示面板搭配簡易按鍵操作

清晰狀態指示與操作按鍵,設定直覺快速

本控制器的前面板配備清晰明亮的 雙排 4 位數 LED 顯示器,可同時顯示 製程值(PV) 與 設定值(SV),提供即時視覺回饋。高對比顯示設計即使在昏暗的工業現場也能輕鬆辨識,確保資訊傳遞的穩定性與準確性。

面板上配置多組 狀態指示燈,排列清晰,能即時反映控制器當前運作狀況,包括:

  • 輸出狀態指示燈(Output)

  • 警報狀態指示燈(Alarm)

  • 自動整定狀態燈(AT)

  • 手動模式顯示燈(MAN)

  • 工程單位顯示燈(UNIT)

這些燈號有助於操作人員快速掌握設備狀態,減少操作錯誤與設定失誤,提高現場工作的準確性與效率。

操作區域配有四顆具明確回饋感的 功能鍵,分別為 捲動(Scroll)、上/下調整鍵 與 確認鍵(Enter)。每次按壓皆提供明顯觸感回饋,讓使用者在切換參數或調整設定時更加順暢。此直覺式的設計可有效提升操作效率,特別適合用於 面板空間受限或需高頻次操作的應用環境。

支援萬用輸入,精度高穩定性佳

相容熱電偶、RTD、電壓與電流類比輸入

本控制器支援多種 萬用輸入訊號,包括:

  • 熱電偶: J, K, T, E, N, R, S

  • RTD: Pt100 DIN / JIS

  • 類比訊號: 0–50 mV, 0–20 mA, 4–20 mA, 0–5V, 1–5V

輸入電路採用 18 位元高解析 A/D 轉換器,具備 快速取樣速率(5 次/秒) 與熱電偶 冷端補償(CJC)功能,確保量測精準穩定。搭配 數位濾波器 及 感測器斷線偵測保護機制,可有效提升在嚴苛製程環境中的安全與穩定性。


多樣化輸出選項,滿足各種控制需求

可選擇繼電器、SSR 或高精度類比輸出

本控制器具備多種 輸出選項,可對應不同控制與警報需求

  • 繼電器輸出: 250 VAC / 2A

  • SSR 電壓驅動: 12 VDC ±15%, 30 mA max

  • 類比輸出: 0–20 mA, 4–20 mA, 0–10 V, 1–5 V

類比輸出透過 15 位元 D/A 轉換器 提供高解析度訊號,支援 平滑輸出重送與精細調節控制。各通道可獨立設定為 PID 控制、警報邏輯或保溫定時(Dwell) 等功能,具高度整合彈性,適合應用於多樣化的工業系統。

Fuzzy(模糊邏輯) PID 控制技術

聰明穩定又快速,讓控制更勝一籌

模糊邏輯與傳統 PID 控制結合,實現更智慧且具適應性的溫度調節功能。
相較於傳統 PID 控制器需針對每個應用手動微調參數,模糊 PID 能根據實際製程變化即時動態調整控制反應。其優勢在於加快系統穩定速度、降低過衝幅度,並提升對干擾的耐受性,特別適用於對「精度」與「反應速度」要求極高的應用場域。

專用程式連接埠,快速完成離線設定

觸點式埠搭配專用線材進行離線自動設定

本控制器配備 專用觸點式程式連接埠,須搭配 CC91-1 專用程式線材 使用。透過此埠可與電腦或 ATE(自動測試設備)連接,進行快速且可靠的 離線參數設定、自動校正與測試流程,無需開啟接線端子或拆裝設備。

為保障系統穩定性,此程式埠僅供設定與測試期間使用,在控制器正常運行時應拔除。若需轉為 RS-232 通訊,也可搭配 SNA12A 智慧轉接器使用,進行資料傳輸或測試介面轉換。

專業設定軟體 BC-SET Pro,快速完成控制器參數調整

快速完成參數設定、備份與韌體升級操作

BC-SET Pro 是 BrainChild 推出的官方參數設定軟體,專為超限保護控制器應用設計,具備直覺化的操作介面與高效的設定流程。使用者可透過 USB 程式連接線將裝置連接至電腦,快速完成參數調整與設定。此軟體支援設定複製功能,可將一台設備的參數套用至多台控制器,並提供韌體升級功能,確保設備運作穩定、功能保持最新狀態。BC-SET Pro 同時支援離線編輯,允許儲存多組設定檔,方便用於工廠設定、生產部署或現場維護等情境。無論是全新裝機或既有系統調整,都能透過此工具有效簡化流程、縮短設定時間,提升多設備管理的一致性與效率。

批次讀寫功能

BC-SET 可同時連接多台相同型號的控制器,僅需設定節點範圍,即可一次性批次讀取與寫入參數,有效提升量產或系統部署效率。

清晰的系統選單與操作介面

操作選單包含常用功能如重新掃描(F5)、讀取資料(F6)、寫入資料(F7)、寫入多筆(F8)與通訊參數設定(F9),搭配快捷鍵提升操作流暢度。

通訊參數設定

通訊設定畫面提供埠號、傳輸速率、奇偶校驗、資料位元與停止位元等項目,並具備「預設值」,降低設定錯誤風險。

專屬可視化編輯器

針對具備程序控制功能的溫度控制器,BC-SET提供可視化編輯器,分段管理溫控曲線參數,可直接讀取/寫入控制器資料,方便測試與驗證使用。

產業應用

Specification

Panel Mount

Rail Mount

電源

90 ~ 250 VAC, 47 ~ 63 Hz, 最大 12VA, 5W

11 ~ 26 VAC / VDC, 最大 12VA, 5W

訊號輸入

分辨率

18 Bits

採樣速率

5 次 / 秒

額定值

最小 -2VDC , 最大 12VDC

溫度效應

mA輸入: 3.0µV /°C,其它輸入: 1.5µV /°C

傳感器導線阻抗效應

Thermocouple: 0.2 µV /°Ω;
3線 RTD: 2.6°C /兩根導線阻抗奧姆值的差
2線RTD: 2.6°C /兩根導線阻抗奧姆值的差

易燃電流

200nA

共模抑制比(CMRR)

120 dB

常模抑制比(NMRR)

55dB

傳感器斷裂偵測

TC,RTD輸入:傳感器呈開路狀態時, RTD輸入:傳感器呈短路狀態時, 4-20mA輸入:訊號輸入小於1mA時, 1-5V輸入:訊號輸入小於0.25V時, 其他輸入不適用

傳感器斷裂反應時間

TC、RTD、mV 輸入:4秒內, 1-5V/4-20mA 輸入:0.1秒

輸入特性

 類別

範圍

精度 @ 25°C

輸入阻抗

J

-120°C  ~ 1000°C( -184°F ~ 1,832°F)

±2°C

2.2 MΩ

K

-200°C ~ 1370°C (-328°F ~ 2498°F)

±2°C

2.2 MΩ

T

-250°C ~ 400°C ( -418°F ~  752°F )

±2°C

2.2 MΩ

E

-100°C ~ 900°C( -148°F ~ 1652°F )

±2°C

2.2 MΩ

B

0°C ~ 1800°C( 32°F ~  3272°F )

±2°C( 200°C ~ 1800°C )

2.2 MΩ

R

0°C ~ 1767.8°C( 32°F ~ 3214°F )

±2°C

2.2 MΩ

S

0°C ~ 1767.8°C( 32°F ~ 3214°F )

±2°C

2.2 MΩ

N

-250°C ~ 1300°C( -418°F ~ 2372°F)

±2°C

2.2 MΩ

L

 -200°C ~ 900°C( -328°F ~ 1652°F )

±2°C

2.2 MΩ

PT100(DIN)

-210°C ~ 700°C( -346°F ~ 1292°F )

±0.4°C

1.3KΩ

PT100(JIS)

-200°C ~ 600°C( -328°F ~ 1112°F )

±0.4°C

1.3KΩ

mV

-8mA  ~ 70mA

±0.05%

2.2MΩ

mA

-3mA  ~ 27mA

±0.05%

70.5Ω

V

-1.3V  ~ 11.5V

±0.05%

650KΩ

第一組輸出 /第二組輸出

繼電器額定值

額定電流2A, 240V AC,壽命周期200000次

脈衝電壓

5V, 電流阻抗限制66Ω

輸入特性

類別

零位誤差容許範圍

輸出範圍誤差容許範圍

負載能力

4 ~ 20 mA

3.6 ~ 4 mA

20 ~ 21 mA

最大 500Ω

0 ~ 20 mA

0 mA

20 ~ 21 mA

最大 500Ω

0 ~ 5 V

0 V

5 ~ 5.25 V

最小 10KΩ

1 ~ 5 V

0.9 ~ 1 V

5 ~ 5.25 V

最小 10KΩ

0 ~ 10 V

0 V

10 ~10.5 V

最小 10KΩ

線性輸出

分辨率

15 Bits

輸出調節

滿載時變化少於0.02%

輸出設定時間

 0.1 秒 ( 穩定度達 99.9%)

隔離失效電壓

1000 VAC

溫度效應

範圍值的±0.01%/ °C

Triac ( SSR ) 輸出

額定值

1A / 240 VAC

侵入電流

20A(1個週期)

最小電流負載

50 mA rms

最大關斷狀態的漏電流

3 mA rms

最大導通狀態電壓

1.5V rms

絕緣阻抗

最小1000Mohms(以500 VDC測定)

耐壓性

2500VAC, 一分鐘

警報輸出

繼電器類別

C式接點

額定值

2A, 240VAC, 使用壽命200000次

警報功能

持溫計時, 偏差高/低警報, 偏差帶外/內警報, 高/低限警報

警報模式

常態警報, 栓鎖警報, 限制警報, 栓鎖限制警報

持溫計時

0.1 ~ 4553.6分鐘

通信功能

介面

RS-232(1台), RS-485(可連到247台)

通訊協議

Modbus RTU (Slave 模式)

地址

1 ~ 247

傳輸速率

2.4KBPS ~ 38.4 KBPS

資料位元

7 or 8 Bits

檢查位

無 (None), 偶數同位 (Even), 奇數同位(Odd)

停止位

1 或 2 Bits

通訊緩衝存儲器

160 Bytes

模擬再傳送

輸出訊號

4 ~20 mA, 0 ~ 20 mA, 0 ~ 5V, 1 ~ 5V, 0 ~ 10V

分辨率

15 Bits

精度

範圍值的±0.05%  ± 0.0025% / °C

負載阻抗

電流輸出:0 - 500Ω, 電壓輸出: 最小10KΩ

輸出調節

滿載時變化少於0.01%

使用接口

按鍵

4 鍵

顯示類型

4 位數 LCD 顯示

顯示數目

2

上方顯示尺吋

0.4" (10mm)

下方顯示尺吋

0.31"(8mm)

電腦連接埠

可用來自動設定、校準、測試

通訊埠

與電腦或控制主機連結

控制模式

第一組輸出

反向 (制熱) 或 正向 (制冷) 控

第二組輸出

PID制冷控制, 制冷比例帶 50 – 300% , 制冷分離帶 -36.0 - 36.0 %

ON-OFF控制

可設定遲滯帶之值0.1 - 90.0 (°F ) (PB要設定為0)

比例控制(P 或 PD)

可調整輸出補償量0 - 100.0 %

PID控制

模糊邏輯修正, 比例帶: 0.1 ~ 900.0°F, 積分時間: 0 – 3600 秒, 微分時間: 0 - 360.0 秒

比例周期

0.1 ~ 90.0 秒

手動控制

制熱(MV1) 和 制冷(MV2)

自動演算調整

冷啟動或熱機時均可執行

錯誤模式

傳感器斷線或A-D轉換功能故障時可自動切換到手動模式

斜率控制

0 - 900.0°F/分鐘 或  0 - 900.0°F/小時

數位濾波

功能

一階

濾波時間常數

可設定0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 秒

工作環境和物理條件

工作溫度

-10°C ~ 50°C

儲藏溫度

-40°C ~ 60°C

濕度

0 ~ 90 % RH (無凝結狀態)

高度限制

最大2000公尺

污染級數

2級

絕緣阻抗

最小20MΩ (@500VDC時)

耐壓性

一分鐘2000VAC, 50/60 Hz

抗震性

兩小時10 ~ 55 Hz, 10m/s2

抗衝擊性

200 公尺 / 秒²(20g)

外殼

耐燃級聚碳酸酯

安裝固定

Panel / DIN Rail mount

尺寸 (W*H*D) (mm)

48*48*116

盤面後深度 (mm)

105

開孔尺寸 (mm)

45*45

重量 (grams)

150

安全規範

安規

UL61010C-1, CSA C22.2 No.24-93, EN61010-1 ( IEC1010-1 )

防護等級

可選配IP65 面板, 標準配備IP50 面板, 外殼與端子座IP20

EMC

EN61326

資源下載

前往下載中心查看更多的文件與工具。   前往

常見問答

支援哪些類型的輸入訊號?

本控制器支援熱電偶(J、K、T、E、N、R、S)、RTD(Pt100 DIN/JIS)以及 mV、mA、電壓等類比輸入訊號(如 0–5V、1–5V)。

IP65 前面板是標配還是選配?

標準出廠為 IP50 防護,若加裝防潑水橡膠框可選配升級為 IP65 面板。

程式連接埠可以在控制器運行時連接嗎?

不可以。程式連接埠僅供離線設定與測試使用,運行中請務必拔除以確保安全。

有哪些通訊介面可選擇?

可選配 RS-232 或 RS-485 Modbus RTU 通訊功能,支援多機連線與上位機整合。

是否具備升降斜率(Ramp/Soak)控制功能?

有。控制器支援多段式升降斜率程控(Ramp/Soak),並具備保溫定時器(Dwell Timer)功能,適用於高精度製程應用。
