打點式記錄器 | 137 x 137mm

CR06
https://www.brainchildtw.com/web/image/product.template/4/image_1920?unique=062c7a5

• 6 通道打點式記錄器
• 機身厚度只有150mm
• 具有IP-65防塵防水等級
• 採用RS-232標準通信介面
• 適合通用輸入及範圍

    此組合不存在。

    特色功能

    • 最多可支援6通道多點記錄輸入
    • 多色列印顯示,通道對應顏色清晰可辨
    • 支援熱電偶、RTD、電壓與電流輸入
    • 可設定記錄紙速度(0~1500 mm/h)
    • 配備數位列印功能,可列印即時/警報數據
    • 內建警報判斷與繼電器輸出功能(選配)
    • 顯示螢幕具RUN與ALM狀態指示燈
    • 提供RS-232C(標準)與RS-485(選購)通訊
    • 適用於工業現場記錄監控與數據留存
    • 支援外部DI訊號觸發手動列印(選購)
    • 滿足IP65防護等級(需正確安裝墊圈)
    • 設定與資料可透過面板按鍵快速操作

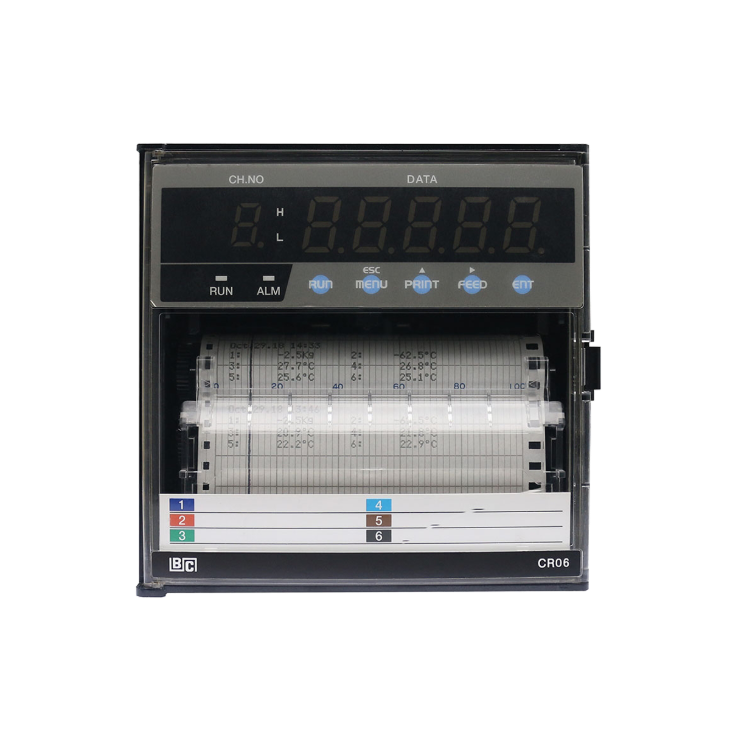

    CR06 打點式記錄器

    精準掌握每一筆關鍵數據

    從溫度、壓力到電流電壓,CR06 一機搞定!支援多達六通道輸入,搭配多色打點技術,讓數據清楚分層、即時掌握。相容熱電偶、RTD 與各類類比訊號,靈活對應各種工業測量場景,準確紀錄、快速反應,全面提升現場監控效率。

    操作直覺,設定快速

    專為現場設計的友善介面

    CR06 採用直覺式面板設計與功能指示燈,即使在高壓環境下也能快速設定、即時掌握運作狀態。使用者可透過前面板輕鬆調整參數、控制列印,操作簡單無需繁瑣流程

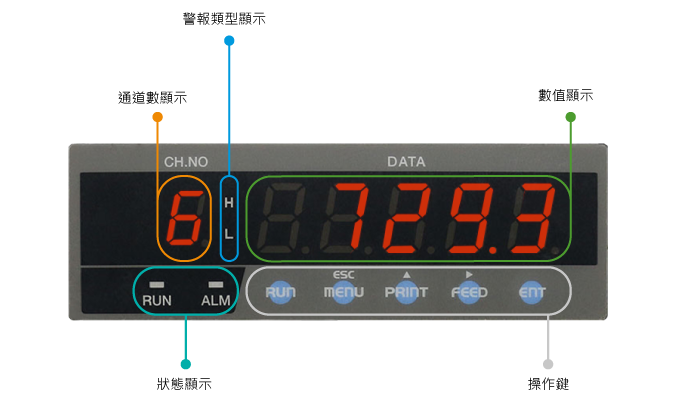

    通道數顯示

    以橘色燈顯示通道編號

    警報類型顯示

    紅燈顯示警報狀態:"H" 為高限,"L" 為低限,無警報時不亮。

    數值顯示

    以橘色燈顯示製程變數、時間、設定畫面等資訊。

    操作鍵

    可用於參數設定及各項操作功能。

    狀態顯示​

    "RUN" 橘燈亮表示記錄中,閃爍表示校正中;"ALM" 紅燈亮表示警報啟動。

    多元輸入對應

    熱電偶、RTD、電壓電流-全部整合

    CR06 支援熱電偶、RTD、DC 電壓與電流輸入,通道可混合設定,靈活對應各式量測需求。最多支援 6 路輸入,每通道皆可獨立設定類型與範圍。搭配進階功能如比例換算(Scaling)、平方根運算、加總與差值處理,可精準對應各種工業應用情境。

    IP65 防護等級

    防塵防潑水,安心應對各種現場環境

    CR06 記錄器採用防潑水面板設計,搭配密封墊圈,整體機構可達 IP65 等級防護,有效防止粉塵與水氣滲入,適用於工廠、高濕、高粉塵等嚴苛作業環境。只需正確安裝於面板並加上隨附墊圈,即可達到完整密封效果。

    產業應用

    產品規格

    輸入

    輸入通道數

    6

    訊號取樣時間

    10s/6ch,最快

    輸入電壓訊號(直流)

    ±10mV, 0-20mV, 0-50mV, ±1V, 1-5V

    電流訊號(直流)

    4-20mA

    熱電偶

    K, T, J, E,B,S,R,G,C,N,PR40-20, PLII, L, Au-Fe

    RTD

    Pt100, Pt50, JPt100

    性能

    精度

    數位顯示 / 列印精度:±0.2% ±1 位數以內

    雜訊抑制

    NMRR:60dB (最小)

    CMRR

    140dB (最小)

    隔離阻抗

    端子/接地間絕緣阻抗:500VDC,最小 20MΩ

    介電強度

    電源輸入端子/接地間耐壓:1.5kVAC,1 分鐘

    訊號輸入 / 接地端子

    0.5kVAC, 1 分鐘

    警報

    繼電器輸出數目

    6 outs (Form A 觸點 ; 內建選擇)

    容量

    30VDC 3A (最大負載)

    通訊

    介面

    RS-232C (標配),RS-485 (Modbus RTU:選配)

    電源​

    電壓

    100-240VAC (50/60Hz)

    電力消耗

    最大25VA

    構造


    固定方式/外殼

    盤面固定式/前面盤防塵,防水(IP-65)

    尺寸

    144(W) x 144(H) x 150(D) mm

    重量

    1.5kg

    操作條件

    環境條件

    溫度 0-50°C,濕度 20-80%RH

    記錄/列印功能


    記錄

    循環(光柵Raster-scan)掃描、列印

    列印

    6色打點式列印

    記錄時間區間

    10.0秒/6通道

    記錄紙規格

    長16m,列印寬度100mm

    記錄紙送紙速度

    使用者可設定 28 段速度

    速度範圍

    10-1500mm/小時

    列印顏色

    紫、紅、綠、棕、黑、藍

    資源下載

    前往下載中心查看更多的文件與工具。  前往

    常見問答

    CR06 支援熱電偶(Thermocouple)、RTD、直流電壓(DC Voltage)與直流電流(DC Current)輸入。各通道可獨立設定並混合使用,靈活應對各類測量應用需求。

    CR06 最多支援 6 通道輸入,每個通道皆可獨立設定輸入類型與量測範圍。

    是的,CR06 提供手動列印、定時列印、清單列印與工程列印等功能,可即時輸出各通道數據與設定資訊

    適用於製程監控、環境記錄、冷鏈儲運、實驗數據收集等多種工業環境,尤其在需要紙本紀錄或警報監控的場合特別實用。

    標準配備 RS-232C,另可選配 RS-485 通訊模組,支援 Modbus RTU 協定,方便整合至上位監控系統。
