特色功能
- 1/4 DIN 外型：96×96mm，安裝深度僅 65mm
- 內建雷射修正 ASIC，穩定性高
- 支援 J/K 熱電偶與 PT100 熱電阻輸入
- ±1% 全量程精準度，控制穩定可靠
- 可選擇最高至 1200°C 的溫度量測範圍
- 支援 ON/OFF 或比例時間控制模式切換
- 多樣化輸出類型：繼電器、SSR、類比訊號
- 支援偏差警報，±10% 可調設定
- LED 狀態與警報指示燈清晰明確
- 0.5 吋紅色 LED 顯示，3.5 位數讀值清晰
- 具反向控制邏輯設定功能
- 寬電壓輸入範圍 90–264VAC 適應性強
- 感測器斷線保護，採 Upscale 模式處理
- 警報手動重置功能設計（選配）
- 通過 UL、CSA、CE 認證，符合國際安全規範
BTC-404 Compact PID Process Controller
1/4 DIN size, universal input, and stable control
The BTC-404 is a panel-mount fuzzy PID controller that delivers reliable temperature and process control in a compact 1/4 DIN (96×96 mm) format. It supports thermocouple (J/K) and RTD (PT100) inputs and offers ON/OFF or time-proportional control. With features such as deviation alarm, high-visibility LED display, and selectable output types (relay, SSR, or analog), this controller is ideal for integration into industrial heating, cooling, and automation systems.
BTC-404 Panel Interface and Display
Clear LED display and intuitive indicator lamps

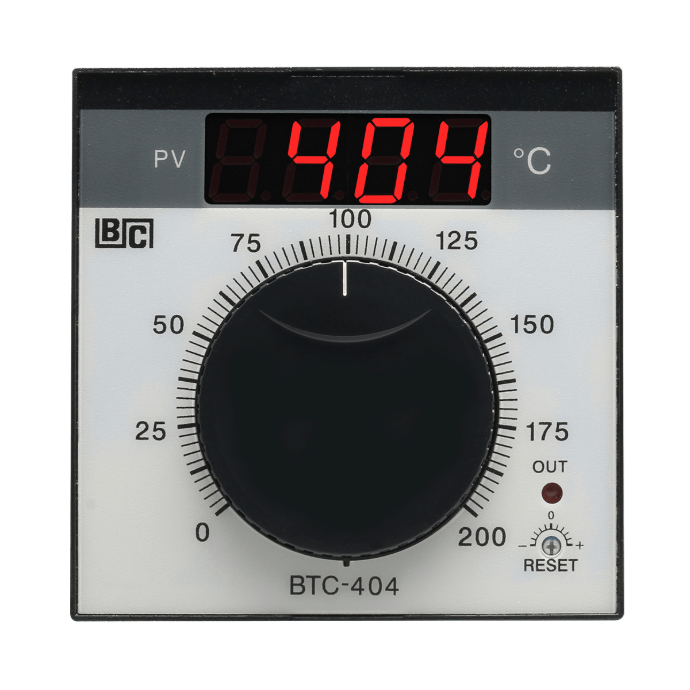

The BTC-404 features a 0.5-inch red 3-1/2 digit LED display, providing excellent readability of process values even in low-light industrial settings. The panel includes ON (red) LED lamps to indicate output status and alarm conditions, helping operators monitor real-time operation at a glance. A precise analog dial knob allows smooth adjustment of the control setpoint, ensuring accuracy and convenience during parameter setup. Designed with simplicity and reliability in mind, the BTC-404 panel interface reduces operator error and supports quick configuration without complex menus or programming steps. This design makes it ideal for OEM and system-integrated temperature control environments.
Wide Compatibility
Thermocouple and RTD support with high accuracy
BTC-404 supports Type J and K thermocouples as well as 3-wire PT100 RTDs (DIN or JIS standard). The input system features ±1% of span accuracy and cold junction compensation for thermocouples. It also includes upscale detection for sensor break and excellent noise immunity, ensuring stable performance in challenging industrial environments.
Flexible Control Choices
Relay, SSR drive, analog and alarm outputs
BTC-404 提供多樣控制輸出方式，包含：
-
繼電器輸出（5A/240VAC）
-
固態繼電器（SSR）驅動電壓輸出（32VDC / 20mA）
-
類比輸出：0–10VDC、0–20mA 或 4–20mA（最大負載 500Ω）
-
偏差設定用警報繼電器輸出（2A/240VAC）
這些輸出選項可靈活搭配各類製程設備與控制系統，滿足不同應用需求。
產業應用
產品規格
電源
訊號輸入
控制
輸出
設定值調整
指示
工作環境和物理條件
安全規範
資源下載
Visit Download Center to See More Documents & Tools of This Product. Visit
常見問答
BTC-404 supports Type J and K thermocouples, as well as 3-wire PT100 RTD sensors (DIN or JIS standard), making it suitable for a wide range of temperature control applications.
The controller offers relay output (5A/240VAC), SSR voltage drive (32VDC / 20mA), and analog outputs (0–10VDC / 4–20mA / 0–20mA). An additional alarm relay output (2A/240VAC) is also available.
Yes. BTC-404 supports both ON/OFF and PID control modes, with adjustable control parameters and fine-tuning via the front panel knob.
Yes. It is equipped with a 0.5" red 3.5-digit LED display, providing clear and reliable real-time readings for process monitoring.
BTC-404 is a 1/4 DIN panel-mount controller (96×96 mm) with a shallow depth of only 65mm, making it ideal for compact control panels.
