Classic Analog 系列 | 48 x 48 mm

BTC-901
https://www.brainchildtw.com/web/image/product.template/78/image_1920?unique=062c7a5

類比溫度控制器

• 緊湊型 1/16 DIN(48×48mm)尺寸設計
• 類比旋鈕設定溫度目標值
• 支援 ON/OFF 或時間比例控制
• 配備紅/綠 LED 狀態指示燈
• 內建偏差警報繼電器輸出

此組合不存在。

特色功能

  • 48×48mm 緊湊型面板安裝尺寸
  • 類比旋鈕快速調整設定溫度
  • 支援 ON/OFF 或時間比例控制模式
  • 支援熱電偶(J/K)與 RTD(PT100)輸入
  • 內建偏差警報繼電器輸出功能
  • 配備紅/綠 LED 狀態顯示燈號
  • 感測器斷線保護(輸出繼電器關閉)
  • 控制模式可透過跳線設定選擇
  • 電源為 100–240VAC,50/60Hz 通用電壓
  • 低功耗設計,適合嵌入控制面板
  • 支援可靠的固態輸出型式選擇
  • 適用於經濟實惠的溫控應用需求

BTC-901 類比溫度控制器

精巧 1/16 DIN 控制設計,搭配繼電器警報輸出

BTC-901 是一款具高性價比的類比溫度控制器,採用 1/16 DIN(48×48 mm)精巧外型。專為簡單可靠的控制而設計,配備易於操作的類比旋鈕,可選擇 ON/OFF 或時間比例控制,並具備繼電器警報輸出。支援熱電偶或 RTD 輸入,特別適合在緊湊型控制面板中,提供穩定且低成本的溫度調節應用。

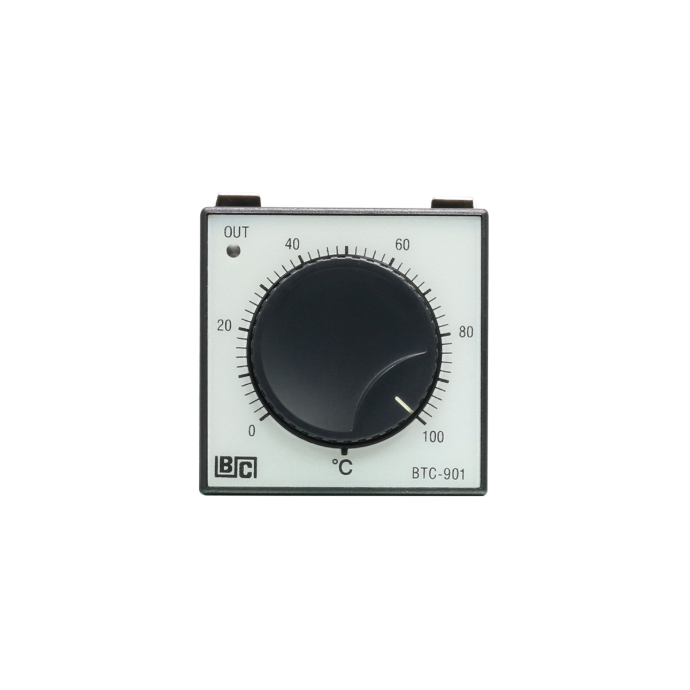

BTC-901 前面板與 LED 指示燈

清晰 LED 狀態指示搭配類比旋鈕控制

BTC-901 採用精巧的 48×48 mm 面板設計,前置類比電位器旋鈕可輕鬆調整設定值。面板上設有兩個 LED 狀態指示燈:紅色代表輸出啟動,綠色代表輸出關閉。此簡潔介面可即時提供控制狀態回饋,讓使用者無需複雜的選單或數位設定,即可快速監控與調整溫度。特別適合偏好觸感式操作的工業環境使用者。

感測器支援與高精度量測

BTC-901 支援熱電偶(J 型或 K 型)與 RTD PT100 感測器(DIN 或 JIS 標準)。使用者可透過內部跳線設定選擇感測器類型與量測範圍。針對熱電偶內建冷端補償,並具備穩定的 RTD 訊號處理功能,確保量測精準可靠。這種彈性設計,使 BTC-901 特別適用於各類加熱與溫度監測應用。


繼電器或 SSR 輸出,搭配內建警報功能

提供繼電器、SSR 電壓輸出與警報繼電器輸出

BTC-901 提供多種輸出格式:

  • 繼電器接點輸出(5A @ 250VAC
  • SSR 電壓驅動輸出(12VDC,20mA)

使用者可透過跳線選擇 ON/OFF 控制或時間比例控制模式。此外,內建的偏差警報繼電器輸出能在溫度超出設定允差時即刻發出警示,確保系統運行安全。

產業應用

產品規格


電源

額定值

100-130VAC 或 200-240VAC, 50/60Hz

電力消耗

低於 5VA

訊號輸入

熱電耦 (T/C)

 J, K 型

RTD

3線 PT 100 歐姆, DIN 或 JIS

範圍

參考訂購序號

精度

量程的1%

冷端補償

±0.1°C / 1°C

RTD線腳阻抗的抑制

( 0.1°C - PV值的0.025% ) / 歐姆

感應器斷路保護

高檔

外部阻抗

最大100 歐姆

正常模式抑制(Normal Mode Rejection)

60 dB

共通模式共模抑制(Common Mode Rejection)

120 dB

取樣速率

3 次 / 秒

控制

比例帶

量程的2.2%

ON-OFF 遲滯

量程的1%

比例周期

繼電器輸出20秒,
1秒用於脈衝電壓輸出,
線性電流或電壓輸出為0.02秒。

控制動作

反向動作

輸出​

控制

繼電器, 5A/240V 最大阻抗負載

脈衝電壓

最大 20mA / 32VDC

電流輸出

4-20mA, 0-20mA, 最大負載 500 歐姆

電壓輸出

0- 10V, 最小負載 500 歐姆

設定值調整

設定點

單匝繞線電位器

設定點分辨率

量程的0.2%

設定點精度

量程的±2%

設定點重複精度

量程的±0.1%

指示

過程指示器

無

狀態指示燈

ON (red) LED Lamp, OFF (green) LED Lamp

工作環境和物理條件

工作溫度

0-50°C

濕度

0-90% RH (非凝結狀態)

絕緣阻抗

最小20M 歐姆(500VDC)

崩潰電壓

AC 2000V, 50 / 60Hz, 1 分鐘

耐震性

10-55Hz. 振幅1 mm

耐衝擊性

200 m/s2 (20g)

安裝固定

盤面固定

尺寸 (W*H*D) (mm)

48*48*94

盤面後深度 (mm)

86

開孔尺寸 (mm)

45*45

重量 (grams)

240

安全規範

安規

UL, CSA

EMC

CE

資源下載

前往下載中心查看更多的文件與工具。  前往

常見問答

BTC-901 可搭配哪些感測器?

BTC-901 支援 J 型與 K 型熱電偶,以及 3 線式 PT100 RTD 感測器,兼容 DIN 與 JIS 標準。

如何設定 BTC-901 的目標溫度?

可透過前面板的類比旋鈕調整溫度設定點。

BTC-901 支援哪些控制模式?

使用者可透過跳線在 ON/OFF 控制與時間比例控制之間進行選擇。

BTC-901 是否具有警報功能?

是的,BTC-901 內建偏差警報繼電器輸出,可在超溫或低溫時發出警示。

BTC-901 適合用於空間有限的控制箱嗎?

是的,BTC-901 採用 1/16 DIN(48×48 mm)精巧尺寸與簡單的類比控制,非常適合安裝於空間受限的環境。

訂購代碼

焊料間隙J1~J11的功能

位置

短路

開路

功能

J1

○



T/C 形式 J 或 K

J1



○

PT 100 ohms DIN 或 JIS

J2



○

反向控制

J2

○



前向控制

J3

○



100℃ span

J4

○



200℃ span

J5

○



300℃ span

J6

○



400℃ span

J7

○



460℃ span

J8

○



600℃ span

J9

○



800℃ span

J10

○



1200℃ span

J11

○



開關-控制

J11



○

時間比例控制

焊料間隙J12~J13的功能

J12

J12

循環時間

功能

短路

短路

 20 秒

繼電器輸出

開路

短路

1 秒

SSR 驅動

開路

開路

0.02 秒

線性電流 或 電壓輸出

 代碼: 範圍 / 選擇焊料間隙
 * 請參考完整的技術資訊中的詳細轉換
 代碼: 模式 /  焊料間隙
單獨的電子郵件地址用逗號區分.

Features



PRMesh

Wireless Expansion Module for PR Paperless Recorders

PR Mesh works with SenseNode wireless sensor nodes to extend the wireless measurement capabilities of existing PR Paperless Recorders.

SenseNode
Signal Acquisition & Transmission

PRMesh
Wireless Reception & Integratione

PR Paperless Recorders
Monitoring & Data Logging

Wireless  Measurement Expansion

Extend the wireless measurement capabilities of existing PR Paperless Recorders with PR Mesh, without replacing the entire recording system.

Distributed Signal Acquisition

Deploy SensNode near measurement points to acquire up to two analog inputs per unit, reducing long-distance sensor wiring to the recorder.

BrainChild Mesh
Connectivity

Powered by BrainChild Mesh wireless technology, SensNode transmits field measurement data to PR Mesh, connecting distributed measurement points with the PR recorder.

Seamless PR Integration

Installed inside a compatible PR recorder, PR Mesh integrates wireless measurement data into the existing system while preserving its familiar interface and operation.

Centralized Monitoring & Recording

Consolidate measurement data from distributed points in the PR recorder, retaining real-time displays, trend monitoring, alarm management, and historical data logging.

Scalable Monitoring Expansion

Add SensNode units as monitoring needs grow, extending measurement coverage while reducing wiring and installation work when expanding existing systems.

The PR30 includes an easy-to-use tree layout configuration, convenient handwriting message input, a circular display for better visibility, and both standard and plus firmware versions for enhanced flexibility and performance across various applications.

Configuration in tree layout is easy for operation

The tree layout configuration simplifies operation, allowing users to easily navigate and manage settings on the recorder.

Handwriting messages are handy users

Handwriting messages offer users a convenient and quick way to input notes directly on the recorder.

Circular display

Handwriting messages offer users a convenient and quick way to input notes directly on the recorder.

Standard version of Firmware
  • Al:  Analog input is offered various log speed in 1 00ms, 1, 2, 5, 10, 20, 30 Sec, 1, 2 Min/Dot.
  • DI:  Digital input is offered either normal Logic or high frequency Pulse.
  • AO:  In analog output, mA or V and its Expression can be defined.
  • DO:  Digital output/relay output can be enabled. Each DO card has 6 relays.
  • Display:  Various display speeds are available in 1 00ms, 1, 2, 5, 10, 20, 30 Sec/Dot, or 1, 2, 10, 30 Min/Page, 1, 2, 4, 8, 12 Hour/Page, or 1 Day/Page.
  • Timer:  Timer in Countdown, Repeat Countdown, Daily, Weekly or Monthly base, and various jobs can be defined.
  • Clock:  Date Style of MM/dd/yy or dd/MM/yy, Time Synchronize via Internet, and Summer Saving Time can be defined.
  • Communication:  Web Server and Email functions are available in Communication in Stan­dard firmware.
  • Instrument:  Brightness adjustment and Screen Saver are available in Instrument.
  • Password:  If Normal Security is chosen, then only one password is offered. If high Security of CFR-21 is chosen, then 9 levels of password can  be defined.
  • Demo:  Enable or disable the demonstration.
  • Auto-output:  Automatic output can be set to specify the printer, to print Historical data & Report data in specified period of time.
  • System information:  It gives Firmware version number, Internal & External memory status, IP address, and 10 card status of each Slot.
  • Calibrate:  Sometimes the field calibration is required for high accuracy. In this case, a qualified engineer can do the necessary calibration.
  • Math:  Standard version includes mathematics.
Math: It includes Math, Counter & Totalizer.
Math Expression is keyed in an easy way.
Power Calculation: Calculating and recording the power usage,Formulas are ready for P1W2, P1W3, P3W3, P3W4*.
  • P1W2:single-phase two wires
  • P1W3:single-phase three wires
  • P3W3:three-phase three wires
  • P3W4:three-phase four wires

Marker:  Adding notifications on Real-Time View.Marker can be added by events like alarm or triggered by Operation

 Standard version of Firmware

Plus versions offer more features of External Channels, Custom Display, Batch, FDA 21 CFR part 11.

External Channels:

Besides Al & DI inputs, PR recorders accept inputs through communication called External Channels. PR10, PR20 & PR30 can work External Channels maximum up to 24, 48 & 96 respectively.

External Channels:

Besides Al & DI inputs, PR recorders accept inputs through communication called External Channels. PR10, PR20 & PR30 can work External Channels maximum up to 24, 48 & 96 respectively.

Batch:

Batch production record is constantly required for more strict production, for example food and drugs.

 FDA 21 CFR part 11:

This feature is complied with U.S. Food and Drug Administration with human health concern. All data should be avoided from manipulating after recording.

Powerful functions in PC Software

The PR series PC software offers powerful functions, including easy recorder configuration and historical trend analysis. It also provides features like real-time monitoring and custom display editing, giving users the flexibility to tailor displays and monitor live data as needed.

Free basic software

It consists of two parts, which are Configuration and Historical Viewer.

I. Configuration

It is Then, easy send to do the recorder configuration on PC. Then, send the configuration files from PC to recorder.

II. Historical Viewer

It can display historical trends, historical alarms, events, and then print it. It can search data by time, time period, tag, alarm, events and remarks. It also can export data in CSV format.

Extensive software Data Acquisition Studio

It consists of two parts, which are Configuration and Historical Viewer.

Ill. Real-time Viewer

Besides Configuration & Histor­ical Viewer, it offers additional software Real-time Viewer for real-time monitoring.

IV. Panel Studio

If Plus version 2 or 3 of Firmware is purchased, additional software Panel Studio is offered for editing custom display. The users can use it to edit specific displays on PC first, and then download it onto recorders. The custom edited displays will be additional pages to standard ones.

Edit it on PC

Download it onto Recorders

Applications

Specification


Product position

Big size and high-end one, good for sophisticated applications, for example power industry

Input numbers

6, 12, 18, 24, 30, 36, 42, 48 channels

True universal inputs

Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV

The fastest sampling rate

o reach 100 msec / dot, default setting at 1 sec / dot

Math, External channels, Batch,
Custom display, FDA 21 CFR part 11

Math in standard version, others in Plus versions

Display

12.1" TFT touch screen

Resolution

1024 x 768

MTBF backlight at 25°C

30,000 hrs

Backlight

LED

Screen saver, Email

Yes

A faster CPU

ARM Cortex-A8, 1Ghz

Internal flash memory

256 MB

RAM

256 MB

Ethernet

Modbus TCP/IP

RS-232/422/485

Optional RS-232 or RS-422/485 Modbus RTU

SD card slot, USB host x 2

Standard, one USB in the front, another USB in the back

Pulse input

Optional DI card offering either logic or high frequency pulse counter

START / STOP key

To start / stop record and to turn off the display only, not recorder itself so that a quick start possible

Calibration correction

On-site calibration possible, or using handy features of Offset and Gain for correction

Multilingual

Convenient for local users by offering 19 languages including English, Japanese,Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable

PC software Historical Viewer+ Configuration

Standard

Extensive software Data Acquisition Studio

Optional real-time monitoring

Power supply

90-250VAC or 11-36VDC

Outer dimensions (W x H x L mm)

288 x 288 x 189

Shorter mounting depth (mm)

171

DIN panel cutout (W x H mm)

 281 x 281

Protection

IP65 front, IP20 rear

Operating temperature

0°C to 50°C

Storage temperature

-30°C to 70°C

Safety standards

RoHS

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

Ordering Code

PR3006(6 analog inputs)
PR3012(12 analog inputs)
PR3018(18 analog inputs)
PR3024(24 analog inputs)
PR3030(30 analog inputs)
PR3036(36 analog inputs)
PR3042(42 analog inputs)
PR3048(48 analog inputs)
none
6 relays
12 relays
18 relays
24 relays
Digital inputs
6 channels
12 channels
18 channels
none
6 channels
12 channels
90-25 VAC,50/60 Hz
11-36 VDC
12 channels
standard Ethernet
Ethernet + RS232
Ethernet + RS-422/486
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
free basic software of Historical Viewer & Configuration
extensive software Data Acquisition Studio (RealTime Viewer + Historical Viewer + Configuration)
panel mount, no power cord, no power switch
panel mount, no power cord, power switch
portable, UL & CSA power cord, power switch
portable, VDE power cord, power switch
portable, SAA power cord, power switch
portable, BS power cord, power switch
portable, no power cord, power switch
panel mount, UL & CSA power cord, power switch
panel mount, VDE power cord, power switch
panel mount, SAA power cord, power switch
panel mount, BS power cord, power switch
