Classic Analog 系列 | 48 x 48 mm

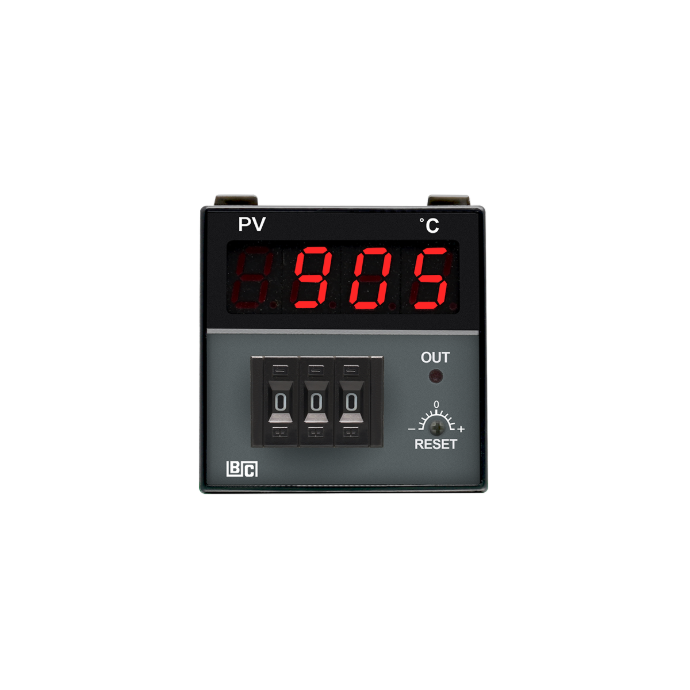

BTC-905
https://www.brainchildtw.com/web/image/product.template/79/image_1920?unique=062c7a5

類比溫度控制器

• 緊湊型 1/16 DIN(48×48mm)機構設計
• 透過三位數 DIP 開關設定溫度
• 支援 J/K 熱電偶與 PT100 RTD 感測器
• 可選擇 ON/OFF 或時間比例控制模式
• 提供繼電器、SSR 或類比輸出選項

此組合不存在。

特色功能

  • 48×48mm 緊湊型面板安裝尺寸
  • DIN 面板安裝設計,後端接線方便
  • 透過三位數 DIP 開關精確設定溫度
  • 可透過跳線簡易設定輸出模式
  • 可選擇熱電偶或 RTD 感測器輸入
  • 提供繼電器、SSR 或類比輸出選項
  • 支援 ON/OFF 或時間比例控制邏輯
  • LED 指示燈顯示控制輸出狀態
  • 內建偏差警報繼電器輸出功能
  • 感測器異常保護功能,輸出自動關閉
  • 電源輸入為 100–240VAC 通用電壓
  • 結構簡單,快速部署上線
  • 適用工業用途,穩定耐用
  • 適用於 OEM 與小型控制系統整合
  • 通過 CE 認證,符合國際規範

BTC-905 1/16 DIN 數位溫度控制器

精準的 DIP 開關設定,支援繼電器或 SSR 輸出

BTC-905 是一款精巧的 1/16 DIN 數位溫度控制器,專為需要穩定控制與簡易設定的應用而設計。配備三位數 DIP 開關,可直接進行設定點調整,無需進入選單操作。支援 J/K 熱電偶與 PT100 RTD 感測器,可選擇 ON/OFF 或時間比例控制模式,並提供繼電器、SSR 或類比輸出選項。其堅固外殼、偏差警報輸出以及 100–240VAC 通用電源輸入,使其非常適合 OEM 整合與空間受限的工業系統使用。

面板顯示與指示燈

清晰紅色 LED 顯示與狀態指示

BTC-905 的操作面板專為簡潔易讀的溫度監控而設計,配備 3.5 位數、0.4 吋紅色 LED 顯示器,可清楚呈現製程數值。紅色狀態指示燈可顯示輸出動作,讓使用者一眼辨識控制狀態。面板內部提供 DIP 開關設定介面,用於數字設定點調整。整體配置精簡,支援 DIN 面板安裝,非常適合安裝空間受限的工控設備。

支援 J/K 熱電偶與 PT100 RTD 輸入

BTC-905 支援多種溫度感測器,可用於各類監測與控制應用。相容 J 型與 K 型熱電偶,以及 PT100 RTD 感測器,提供廣泛的製程適用性。其輸入信號經由高穩定度處理,確保長期量測的精準可靠,適用於各式工業加熱或冷卻系統。

可選擇繼電器、SSR 電壓輸出或類比輸出

BTC-905 提供彈性多樣的輸出配置,以因應不同控制策略需求。使用者可選擇繼電器接點輸出、適用於 SSR 驅動的電壓輸出(5V/30mA),或選配類比輸出以達成更精準的控制。輸出模式可透過跳線設定調整,並支援 ON/OFF 或時間比例控制邏輯,適用於電阻式或比例加熱等多種工業應用情境。

產業應用

產品規格


電源

額定值

90-264VAC, 50 / 60 Hz

電力消耗

低於 5VA

訊號輸入

熱電耦 (T/C)

 J, K 型

RTD

3線 PT 100 歐姆, DIN 或 JIS

範圍

參考訂購序號

精度

量程的1%

冷端補償

±0.1°C / 1°C

RTD線腳阻抗的抑制

( 0.1°C - PV值的0.025% ) / 歐姆

感應器斷路保護

高檔

外部阻抗

最大100 歐姆

正常模式抑制(Normal Mode Rejection)

60 dB

共通模式共模抑制(Common Mode Rejection)

120 dB

取樣速率

3 次 / 秒

控制

比例帶

量程的2.2%

ON-OFF 遲滯

量程的1%

比例周期

繼電器輸出20秒,
1秒用於脈衝電壓輸出,
線性電流或電壓輸出為0.02秒。

控制動作

反向動作

輸出​

控制

繼電器, 5A/240V 最大阻抗負載

脈衝電壓

最大 20mA / 32VDC

電流輸出

4-20mA, 0-20mA, 最大負載 500 歐姆

電壓輸出

0- 10V, 最小負載 500 歐姆

設定值調整

設定點

三位數 或 四位數數位開關

手動重置

可調範圍的2.6%

設定點分辨率

1 LSD(最低有效位)

設定點精度

範圍值的±1%

設定點重複精度

±1 LSD

指示

過程指示器

3-1 / 2位數字, 0.4英寸紅色LED顯示屏

狀態指示燈

紅色LED燈

工作環境和物理條件

工作溫度

0-50°C

濕度

0-90% RH (非凝結狀態)

絕緣阻抗

最小20M 歐姆(500VDC)

崩潰電壓

AC 2000V, 50 / 60Hz, 1 分鐘

耐震性

10-55Hz. 振幅1 mm

耐衝擊性

200 m/s2 (20g)

安裝固定

盤面固定

尺寸 (W*H*D) (mm)

48*48*94

盤面後深度 (mm)

86

開孔尺寸 (mm)

45*45

重量 (grams)

190

安全規範

安規

UL, CSA

EMC

CE

資源下載

前往下載中心查看更多的文件與工具。  前往

常見問答

BTC-905 支援哪些感測器類型?

BTC-905 支援 J 型、K 型熱電偶及 PT100 RTD 感測器,適用於各式溫度監測應用場景。

如何設定 BTC-905 的溫度目標值?

溫度設定點透過面板內部的三位數 DIP 開關進行設定,可直接輸入數值,無需按鍵操作或進入選單。

BTC-905 提供哪些輸出類型?

BTC-905 提供繼電器接點輸出、SSR 電壓輸出(5V/30mA)或選配類比輸出,並可透過內部跳線設定進行配置。

BTC-905 是否具備警報輸出功能?

BTC-905 內建偏差警報繼電器輸出,當製程值偏離超過預設範圍時,警報輸出即會動作。

BTC-905 的電源輸入需求為何?

控制器支援 100–240VAC 通用電源輸入,適用於全球各類工業電源系統。

訂購代碼

  代碼: 範圍 / 選擇焊料間隙
* 請參考完整的技術資訊中的詳細轉換
  代碼: 模式 /  焊料間隙
