Classic Analog Series | 48 x 48 mm

BTC-905
https://www.brainchildtw.com/web/image/product.template/79/image_1920?unique=062c7a5

Analog Temperature Controller

• Compact 1/16 DIN (48×48mm) design
• Temperature set via 3-digit DIP switch
• Supports J/K thermocouple & PT100 RTD
• ON/OFF or time proportional control
• Relay, SSR or analog output options

This combination does not exist.

Features

  • 48×48mm compact panel mount size
  • DIN panel mount with rear terminal access
  • 3-digit DIP switch for precise setpoint
  • Easy jumper-based output mode setup
  • Thermocouple or RTD input selectable
  • Selectable relay, SSR or analog output
  • ON/OFF or time proportional control logic
  • LED indicator for control output status
  • Built-in deviation alarm relay output
  • Sensor break protection shuts output off
  • 100–240VAC universal power input
  • Simple design with fast deployment
  • Durable and stable for industrial use
  • Ideal for OEM and compact control systems
  • CE certified for global market compliance

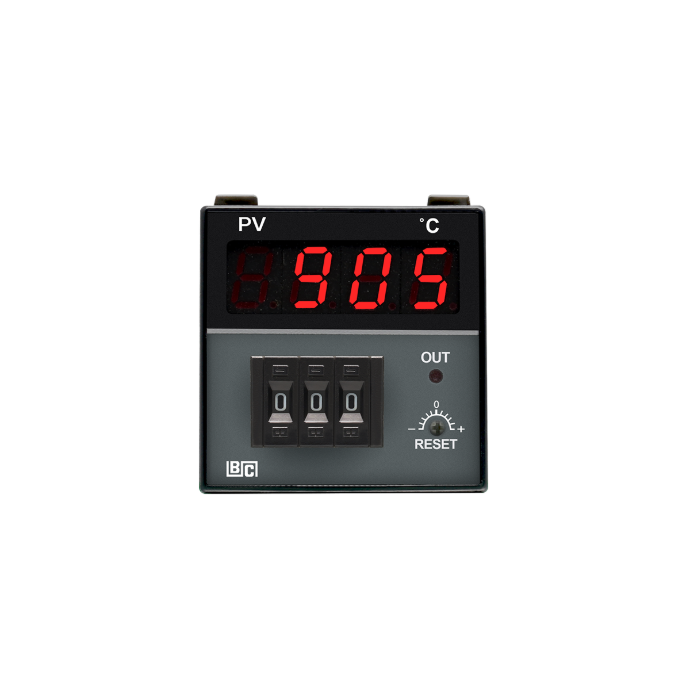

BTC-905 1/16 DIN Digital Setting Temperature Controller

Precise DIP switch setting with relay or SSR output

The BTC-905 is a compact 1/16 DIN digital temperature controller designed for applications that require stable control with a simple setup. It features a 3-digit DIP switch for direct setpoint configuration, eliminating the need for menu navigation. Compatible with J/K thermocouples and PT100 RTD sensors, the BTC-905 supports ON/OFF or time proportional control, with selectable relay, SSR, or analog output. Its robust housing, deviation alarm output, and universal 100–240VAC input make it ideal for OEM integration and space-constrained industrial systems.

Panel Display and Indicators

Clear red LED readout with status indicators

The BTC-905 control panel is designed for simple and efficient monitoring of temperature status. It features a 3-1/2 digit, 0.4-inch red LED display, providing clear readout of process values. A red status LED indicates output activity, allowing users to instantly identify control status at a glance. The panel also includes a DIP switch setting interface, which is accessed internally for numeric setpoint configuration. Its compact layout supports DIN panel mounting, ideal for limited space environments.

Supports J/K thermocouples and PT100 RTD input

The BTC-905 supports universal sensor input for temperature monitoring and control. It is compatible with J-type and K-type thermocouples, as well as PT100 RTD sensors. This wide input compatibility allows the controller to be deployed in a variety of industrial heating or cooling systems. The input signal is processed with high stability to ensure accurate readings over time.

Selectable relay, SSR voltage, or analog output

The BTC-905 offers flexible output configuration to match various control strategies. Users can select from relay contact output, voltage output for SSR drive (5V/30mA), or optional analog output for precise control. Output mode can be configured via jumper settings. The unit supports ON/OFF or time proportional control logic, making it adaptable to resistive or proportional heating applications

Applications

Specification


 Power

Rating

90-264VAC, 50 / 60 Hz

Consumption

Less than 5VA

Input

Thermocouple (T/C)

Type J, K

RTD

3-wires PT 100 ohms, DIN or JIS

Range

See ordering information

Accuracy

±1% of span (BTC-404)

Cold Junction Compensatin

±0.1°C / 1°C

Rejection of RTD Lead Resistance

( 0.1°C - 0.025% of PV reading) / ohm

Sensor Break Protection

Upscale

External Resistance

100 ohms max.

Normal Mode Rejection

60 dB

Common Mode Rejection

120 dB

Sample Rate

3 times / second

Control

Proportion Band

2.2% of span

ON-OFF Hysteresis

1 % of span

Cycle Time

20 seconds for relay output,
1 second for pulsed voltage output,
0.02 second for linear current or voltage output.

Control Action

Reverse action

Output

Control

Relay 5A / 240V max. resistive load

Pulsed Voltage

20mA / 32VDC max.

Current

4-20mA, 0-20mA, max. load 500 ohms

Voltage

0- 10V, min. load 500k ohms

Adjustment

Set point

3-dight or 4-dight switch

Manuel Reset

Adjustable 2.6% of span

Resolution of set point

1 LSD (Least Significant Digit)

Accuracy of set point

±1% of span

Repeatability of set point

±1 LSD

Indication

Process Indicator

3-1 / 2 digit, 0.4" red LED display

Status Indicator

Red LED Lamp

 Environmental and Physical Specifications

Operating Temperature

0-50°C

Humidity

0 to 90% RH (non-codensing)

Insulation

20M ohms min. (500VDC)

Breakdown

AC2000V,50/60Hz,1 minute

Vibraton

10-55Hz,amplitude 1mm

Shock

200 m/s2 (20g)

Mounting

Panel

Dimensions (W*H*D) (mm)

48*48*94

Depth Behind Panel (mm)

86

Cut Out Dimensions (mm)

45*45

Weight (grams)

190

Approval Standards

Safety

UL, CSA

EMC

CE

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

What types of sensors are supported by BTC-905?

BTC-905 supports J-type, K-type thermocouples and PT100 RTD sensors, making it suitable for a wide range of temperature monitoring applications.

How is the temperature setpoint adjusted?

The temperature setpoint is configured via a 3-digit DIP switch, located inside the panel. This allows direct numeric input without using buttons or menus.

What are the available output types?

BTC-905 offers relay contact output, SSR voltage output (5V/30mA), or optional analog output, configurable through internal jumper settings.

Does BTC-905 support alarm output?

Yes, it includes a deviation alarm relay output, which activates when the process value deviates beyond the preset range.

What is the power input requirement for BTC-905?

The controller supports a universal power input of 100–240VAC, making it suitable for global industrial power systems.

Ordering Code

 Code: Range / Selected Solder GAP
 * Please refer detailed conversion from full technical information.
 Code: Mode /  Solder GAP
單獨的電子郵件地址用逗號區分.


PRMesh

Wireless Expansion Module for PR Paperless Recorders

PR Mesh works with SenseNode wireless sensor nodes to extend the wireless measurement capabilities of existing PR Paperless Recorders.

Features



Wireless  Measurement Expansion

Extend the wireless measurement capabilities of existing PR Paperless Recorders with PR Mesh, without replacing the entire recording system.

Distributed Signal Acquisition

Deploy SensNode near measurement points to acquire up to two analog inputs per unit, reducing long-distance sensor wiring to the recorder.

BrainChild Mesh
Connectivity

Powered by BrainChild Mesh wireless technology, SensNode transmits field measurement data to PR Mesh, connecting distributed measurement points with the PR recorder.

Seamless PR Integration

Installed inside a compatible PR recorder, PR Mesh integrates wireless measurement data into the existing system while preserving its familiar interface and operation.

Centralized Monitoring & Recording

Consolidate measurement data from distributed points in the PR recorder, retaining real-time displays, trend monitoring, alarm management, and historical data logging.

Scalable Monitoring Expansion

Add SensNode units as monitoring needs grow, extending measurement coverage while reducing wiring and installation work when expanding existing systems.


​

How it work

Extend Your PR with Flexible Wireless Measuremen





➊ Field Signal Acquisition

SenseNode acquires sensor signals near measurement points and wirelessly transmits the data using BrainChild Mesh technology.

➋ Wireless Data Reception & Integration

PR Mesh receives measurement data from SenseNode and integrates it into the existing PR recording system.

➌ Centralized Monitoring & Data Logging

The PR recorder provides centralized access to real-time measurements, historical trends, alarm information, and data logging.

Less Wiring. Greater Flexibility.

Traditional Wired Monitoring


Traditional wired monitoring systems require sensor signals to be connected directly to centralized recording equipment. When measurement points are widely distributed, located far from the recorder, or added to existing production lines, additional wiring and installation work can make system expansion and maintenance more complex.

Traditional Wired Monitoring


Traditional wired monitoring systems require sensor signals to be connected directly to centralized recording equipment. When measurement points are widely distributed, located far from the recorder, or added to existing production lines, additional wiring and installation work can make system expansion and maintenance more complex.

IV. Panel Studio

If Plus version 2 or 3 of Firmware is purchased, additional software Panel Studio is offered for editing custom display. The users can use it to edit specific displays on PC first, and then download it onto recorders. The custom edited displays will be additional pages to standard ones.

Edit it on PC

Download it onto Recorders

Applications

Specification


Product position

Big size and high-end one, good for sophisticated applications, for example power industry

Input numbers

6, 12, 18, 24, 30, 36, 42, 48 channels

True universal inputs

Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV

The fastest sampling rate

o reach 100 msec / dot, default setting at 1 sec / dot

Math, External channels, Batch,
Custom display, FDA 21 CFR part 11

Math in standard version, others in Plus versions

Display

12.1" TFT touch screen

Resolution

1024 x 768

MTBF backlight at 25°C

30,000 hrs

Backlight

LED

Screen saver, Email

Yes

A faster CPU

ARM Cortex-A8, 1Ghz

Internal flash memory

256 MB

RAM

256 MB

Ethernet

Modbus TCP/IP

RS-232/422/485

Optional RS-232 or RS-422/485 Modbus RTU

SD card slot, USB host x 2

Standard, one USB in the front, another USB in the back

Pulse input

Optional DI card offering either logic or high frequency pulse counter

START / STOP key

To start / stop record and to turn off the display only, not recorder itself so that a quick start possible

Calibration correction

On-site calibration possible, or using handy features of Offset and Gain for correction

Multilingual

Convenient for local users by offering 19 languages including English, Japanese,Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable

PC software Historical Viewer+ Configuration

Standard

Extensive software Data Acquisition Studio

Optional real-time monitoring

Power supply

90-250VAC or 11-36VDC

Outer dimensions (W x H x L mm)

288 x 288 x 189

Shorter mounting depth (mm)

171

DIN panel cutout (W x H mm)

 281 x 281

Protection

IP65 front, IP20 rear

Operating temperature

0°C to 50°C

Storage temperature

-30°C to 70°C

Safety standards

RoHS

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

Ordering Code

PR3006(6 analog inputs)
PR3012(12 analog inputs)
PR3018(18 analog inputs)
PR3024(24 analog inputs)
PR3030(30 analog inputs)
PR3036(36 analog inputs)
PR3042(42 analog inputs)
PR3048(48 analog inputs)
none
6 relays
12 relays
18 relays
24 relays
Digital inputs
6 channels
12 channels
18 channels
none
6 channels
12 channels
90-25 VAC,50/60 Hz
11-36 VDC
12 channels
standard Ethernet
Ethernet + RS232
Ethernet + RS-422/486
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
free basic software of Historical Viewer & Configuration
extensive software Data Acquisition Studio (RealTime Viewer + Historical Viewer + Configuration)
panel mount, no power cord, no power switch
panel mount, no power cord, power switch
portable, UL & CSA power cord, power switch
portable, VDE power cord, power switch
portable, SAA power cord, power switch
portable, BS power cord, power switch
portable, no power cord, power switch
panel mount, UL & CSA power cord, power switch
panel mount, VDE power cord, power switch
panel mount, SAA power cord, power switch
panel mount, BS power cord, power switch
