Features
- Configure BrainChild controllers easily
- Supports RS232, RS485, and programming port
- Configure multiple controllers at once
- Windows XP or later with .NET required
- Real-time parameter read and write
- Easy profile editing for programmable models
- Auto node scan for quick device connection
- Save/load parameter files for batch setup
- Direct communication via USB adapter
- Fast installation with Setup Wizard
- Supports read/write by controller range
- Built-in communication diagnostics

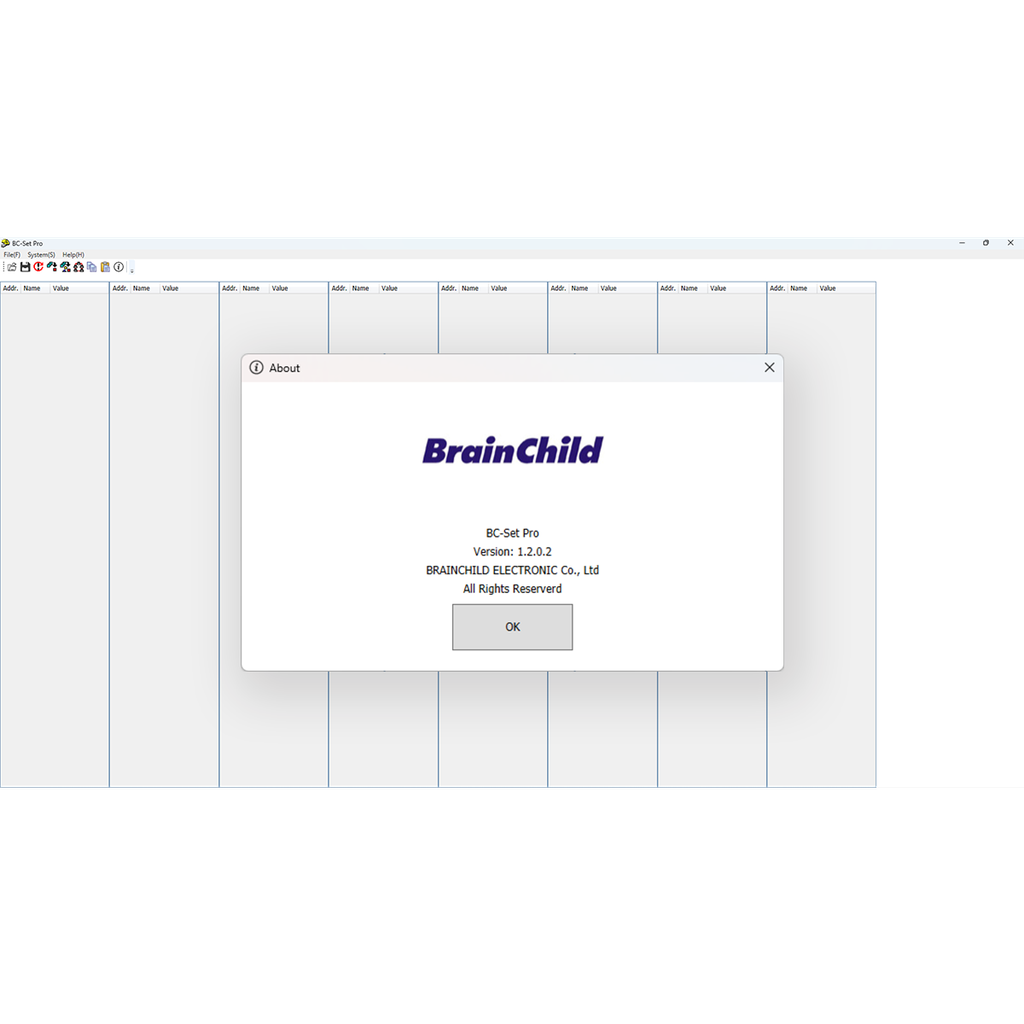

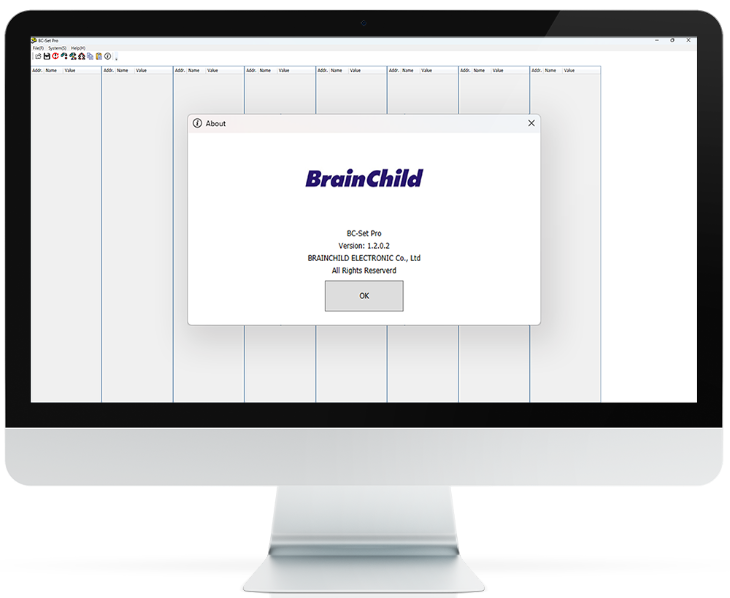

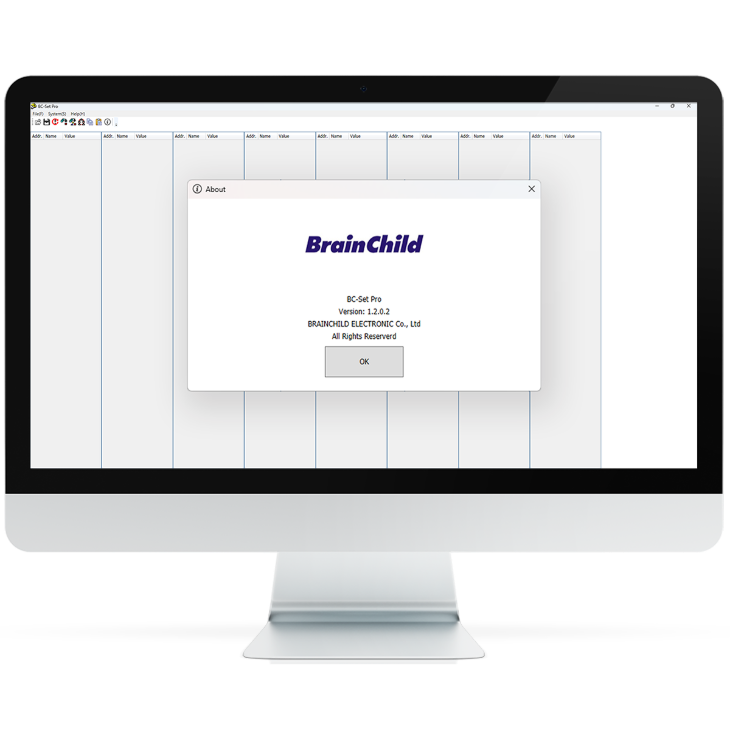

BC-SET Pro
Configuration Software for Controllers
Easily configure and manage multiple BrainChild controllers

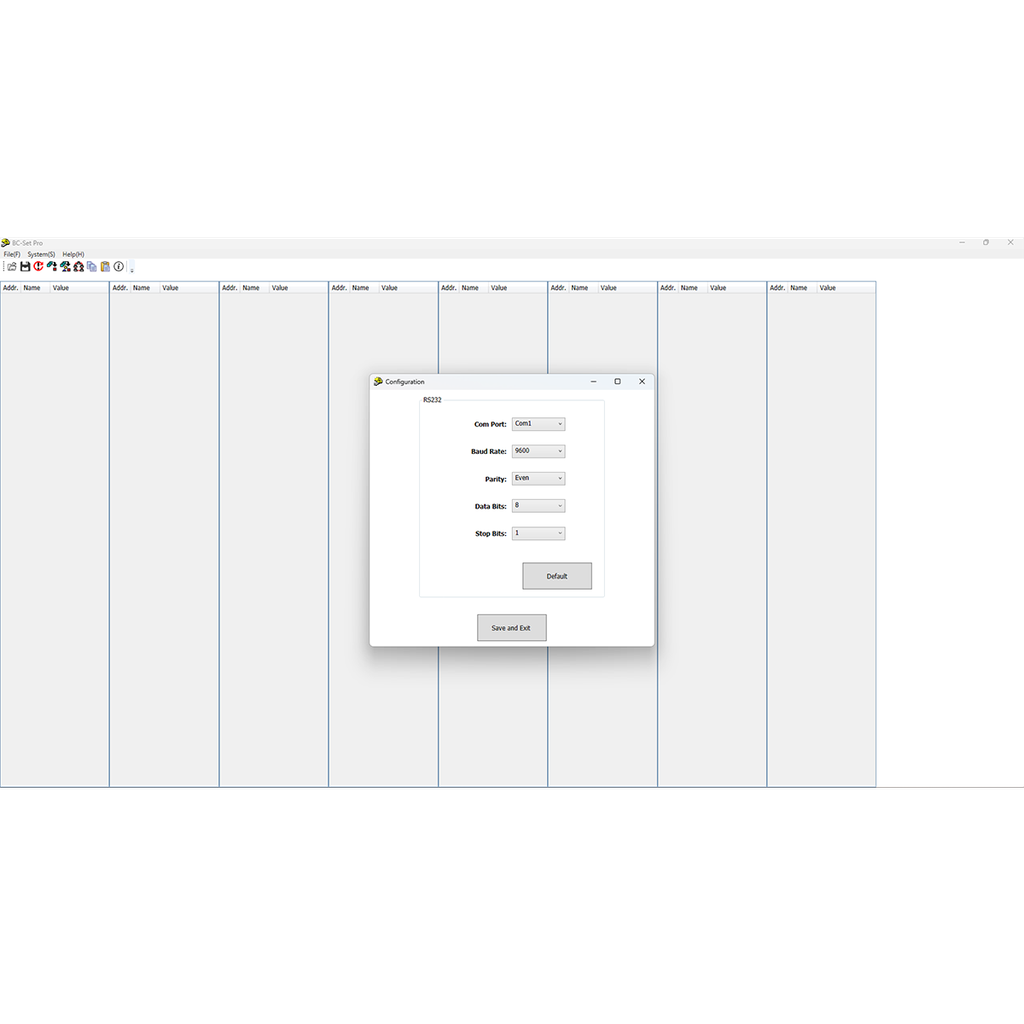

BC-SET Configuration Software is a temperature controller configuration tool developed by BrainChild. Through programming port, RS232, or RS485 communication interfaces, controller parameters can be read, modified, and written directly from a PC. The software provides a centralized environment for controller configuration and parameter management, helping simplify device setup, process adjustment, and system maintenance.
BC-Set Pro Supported Models and Firmware Requirements
BC-Set Pro is the advanced configuration software by BrainChild, compatible with the following models and required firmware versions:
- Classic Performance Series
Firmware above V48R6 required - BTC-4300 / BTC-2500 / BTC-8300 / BTC-9300 - Classic Premium Series
Firmware above V31 - BTC-9100 / BTC-4100 / BTC-7100 / BTC-8100
Firmware above V33 - C91 / C21 - Select Series
Ramp & Soak Controllers (above V36) - P41 / P91
Limit Controllers - L41 (above V15) ; L91 (above V22) ; L22 / L42 / L62 (above V01) - Core Series
C62 / B62 / C22 / R22 (above V16) ; C42 / C72 / C82 / C83 (above V08R2) ; C42-P / C72-P / C82-P / C83-P (above V7.0) - Specialty Series
RSC (above V4.0)
Fast Temperature Controller Parameter Setup

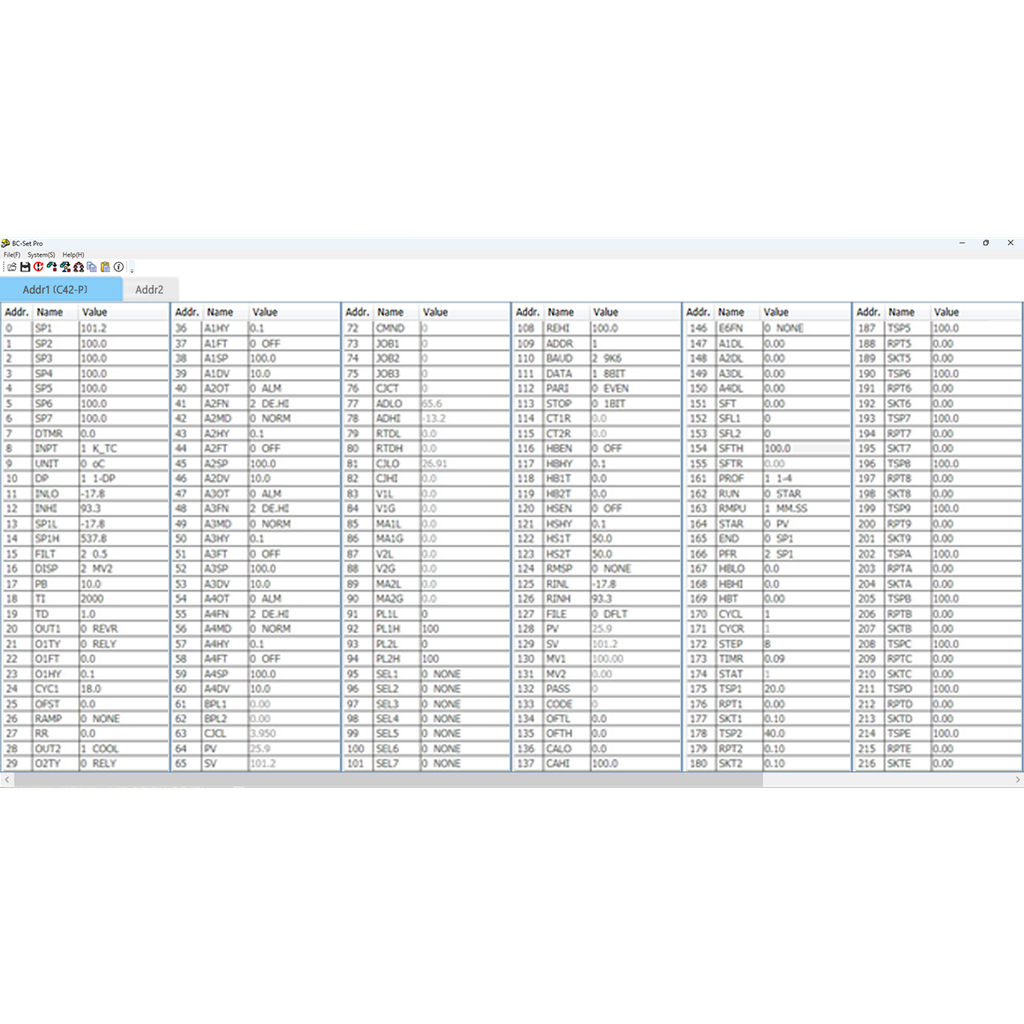

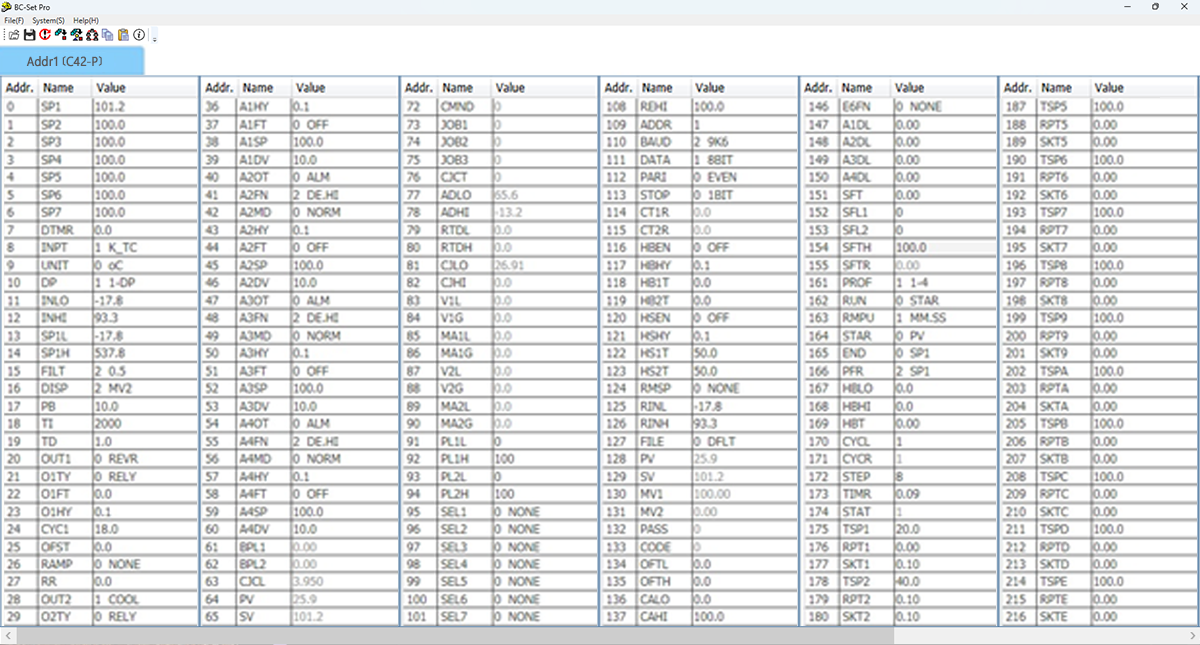

BC-SET Pro provides an intuitive interface for configuring temperature controller parameters directly from a PC. Controller settings such as temperature setpoints, alarm parameters, and control modes are displayed in a clear list format for quick review and adjustment, replacing manual panel operations and significantly improving configuration efficiency while reducing the risk of setup errors.
Multi-Controller Batch Configuration
BC-SET Pro supports simultaneous communication with multiple controllers and displays device parameters within a centralized interface, allowing users to monitor and configure multiple devices efficiently. Controller data can be quickly read and written across multiple devices, enabling fast batch configuration for multi-zone temperature control systems, manufacturing equipment, and OEM machine integration.
Fast Temperature Controller Parameter Setup
BC-SET Pro provides an intuitive interface for configuring temperature controller parameters directly from a PC. Controller settings such as temperature setpoints, alarm parameters, and control modes are displayed in a clear list format for quick review and adjustment, replacing manual panel operations and significantly improving configuration efficiency while reducing the risk of setup errors.
