Features
- Real-time process monitoring and data visualization
- Supports up to 2048 data channels (tags)
- Multiple data logging modes (Instant/Average/Min/ Max)
- Flexible data recording interval configuration
- Real-time trend display and graphical monitoring interface

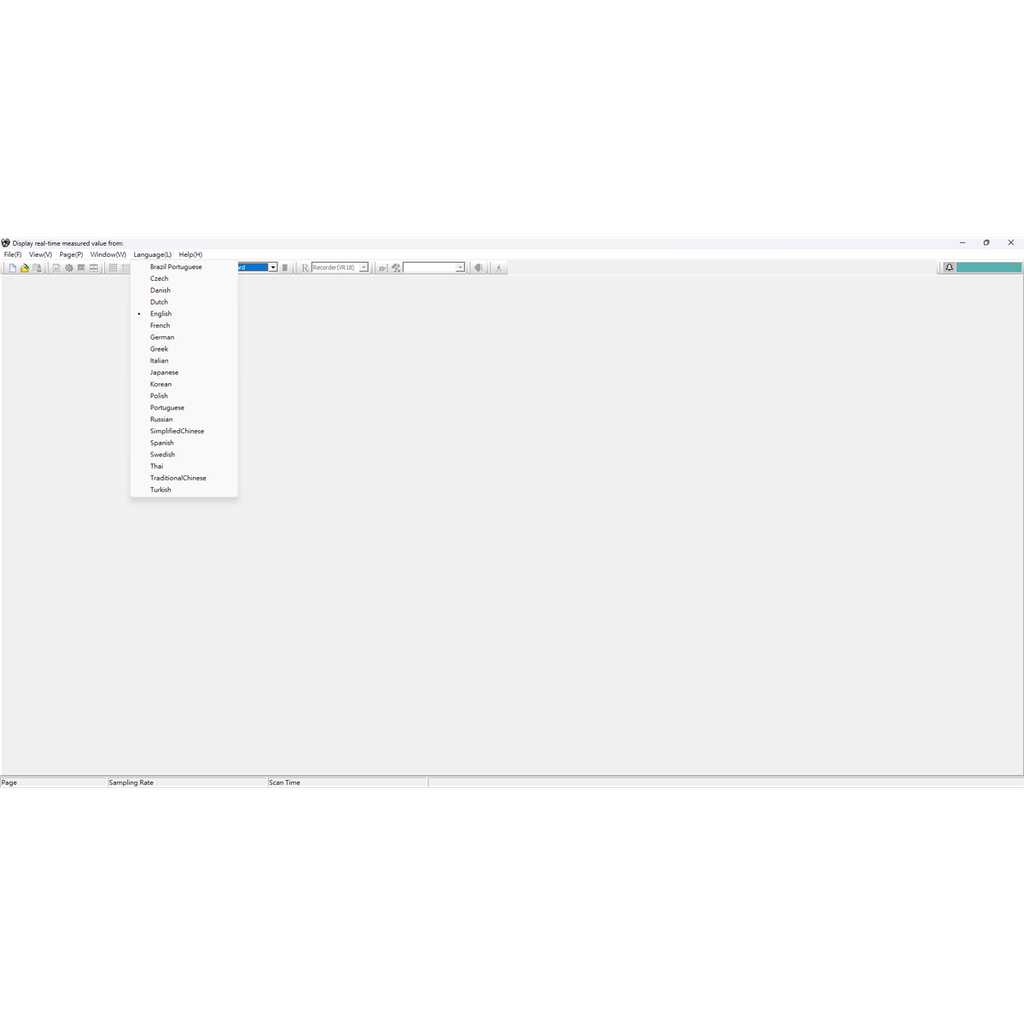

- Multilingual user interface support
- Built-in historical trend analysis tools
- Comprehensive alarm and event management system
- Email alarm notification support
-
Supports RS232, RS485 and Ethernet communication
-
Supports Modbus RTU and Modbus TCP protocols
- Integrates with IO modules, controllers, and recorders
- Data export capability for CSV and Excel formats
- Provides process data reporting and analysis
- Enables centralized industrial equipment monitoring

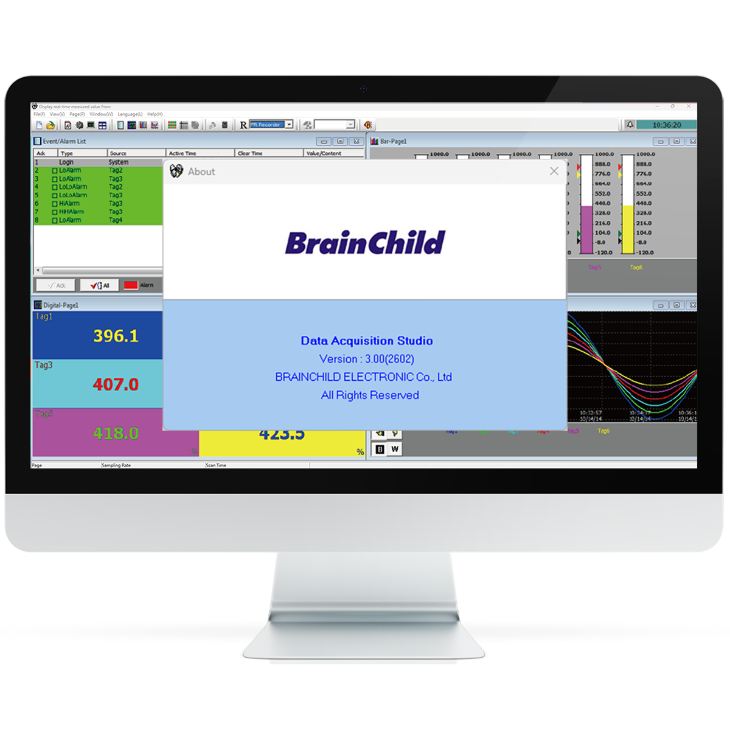

Data Acquisition Studio
Industrial Data Acquisition and Monitoring Software

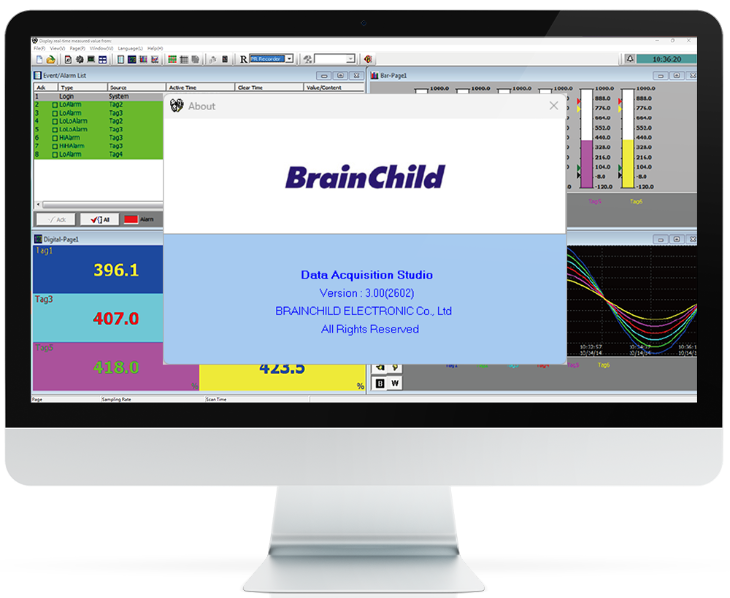

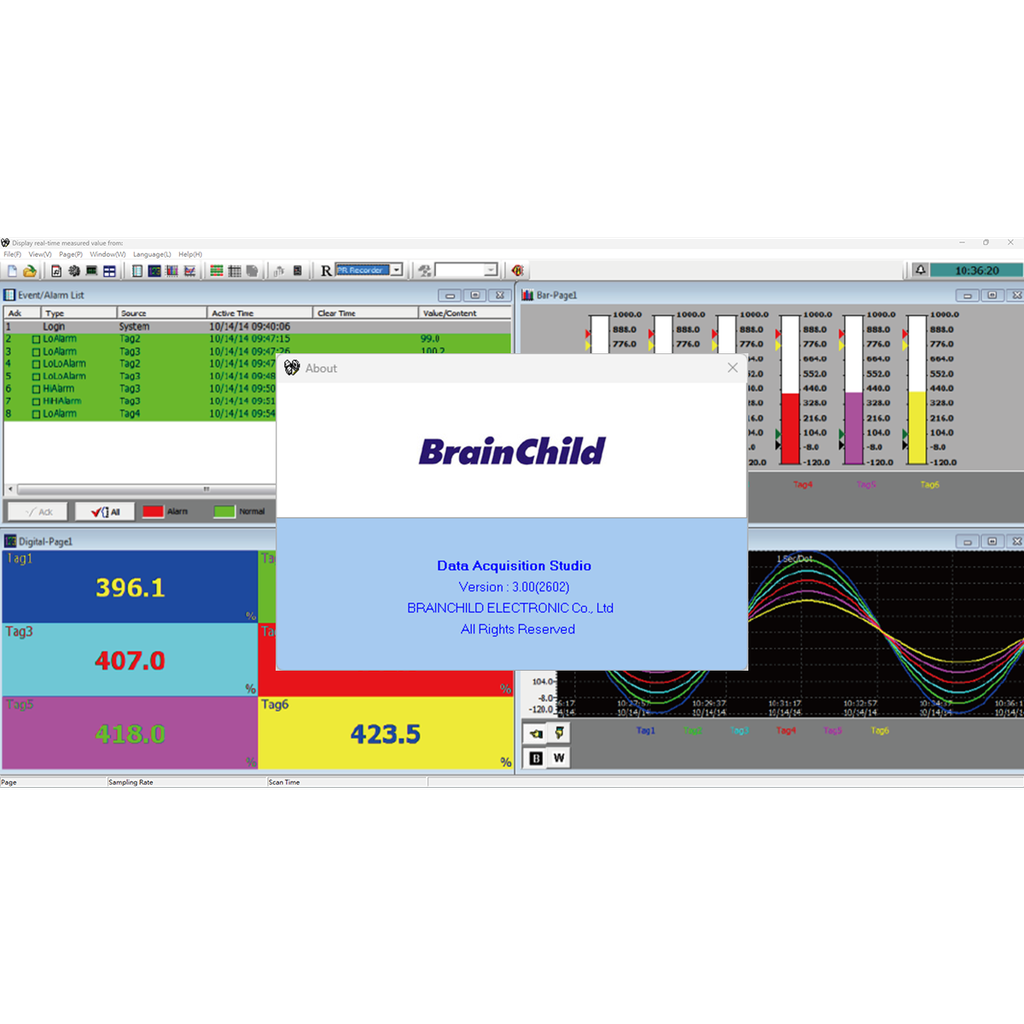

Data Acquisition Studio is an industrial data acquisition and monitoring software platform developed by BrainChild. It enables real-time collection, monitoring, and recording of process data from various industrial devices.
Using Modbus RTU / Modbus TCP industrial communication protocols, the DAQ system integrates multiple industrial devices into a centralized monitoring platform.
DAQ Data Acquisition Studio consists of three main software modules designed for device integration, real-time monitoring, and historical data analysis.
- IO Studio : Device communication configuration and tag management.
- Real Time Viewer : Real-time process monitoring and data visualization.
- Historical Viewer
:
Historical data review and trend analysis.
Real-Time Data Acquisition and Monitoring

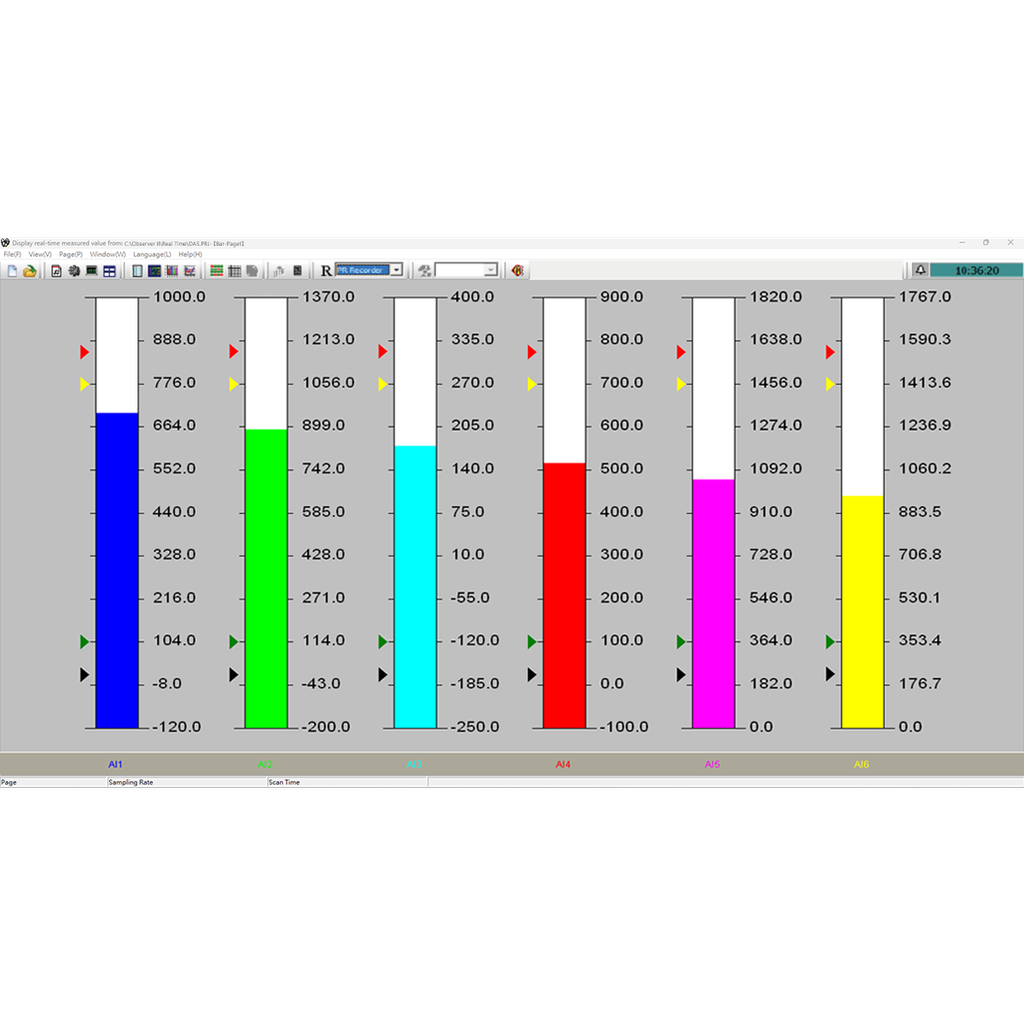

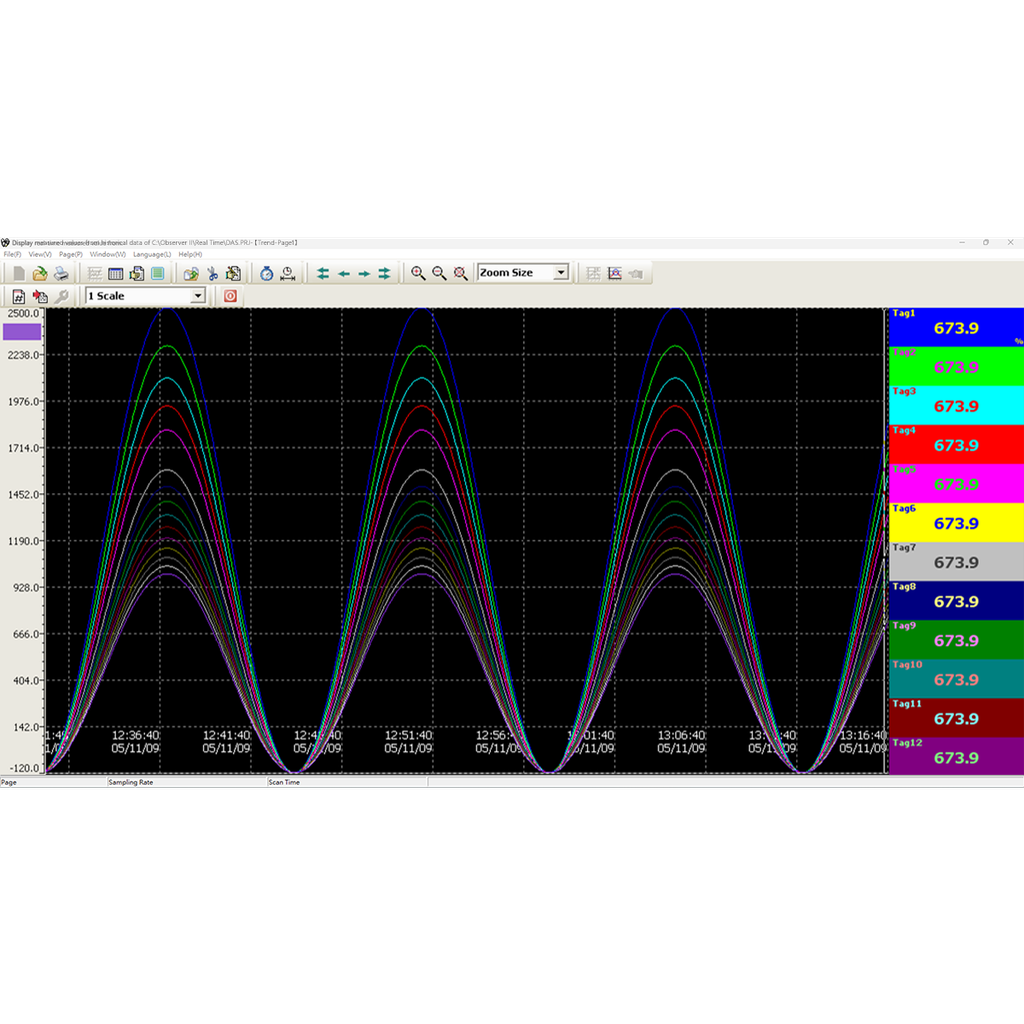

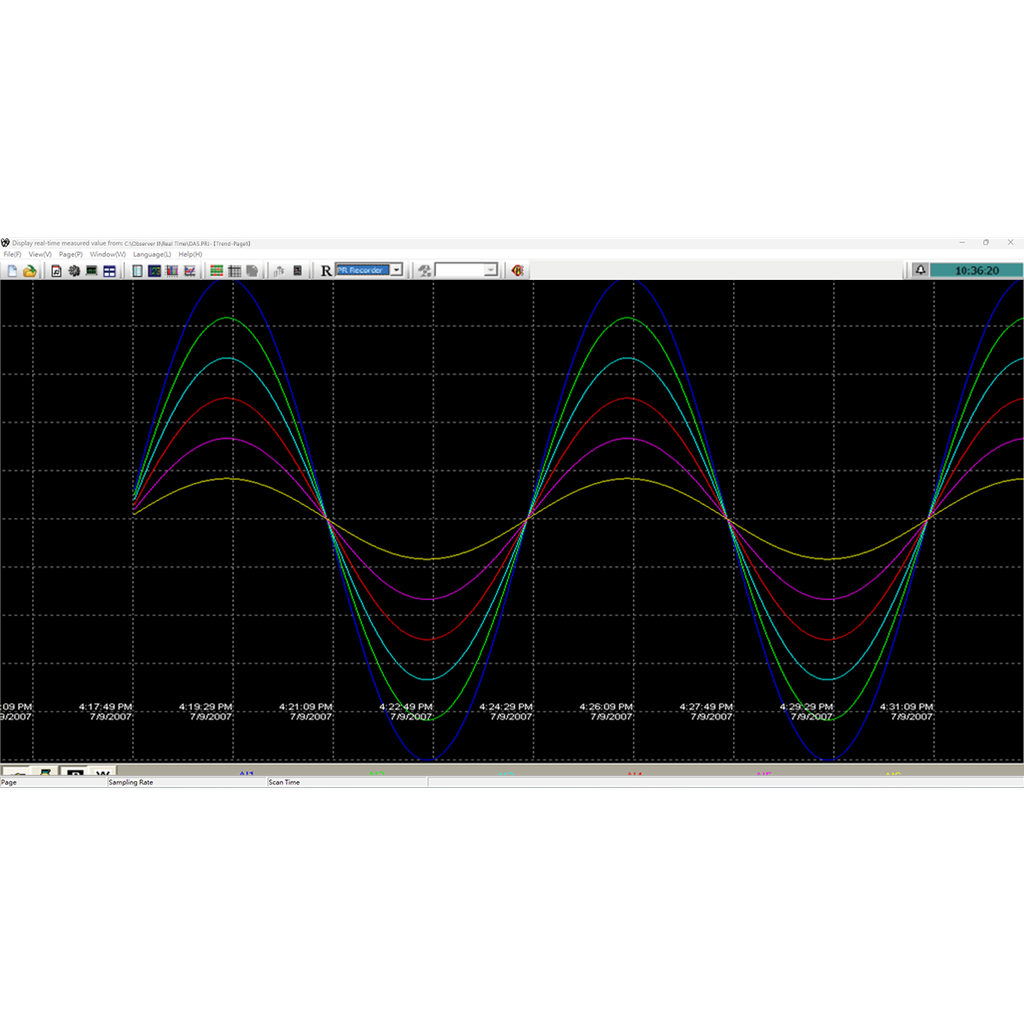

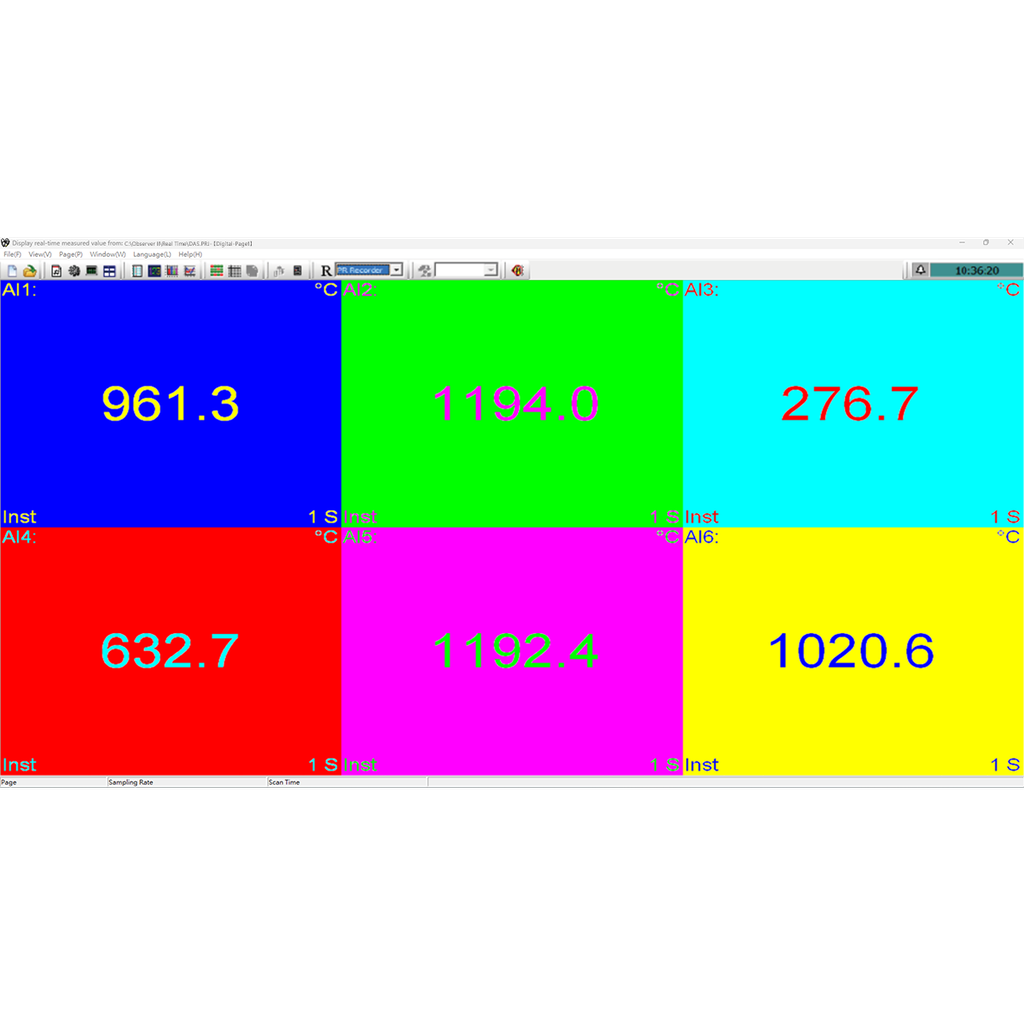

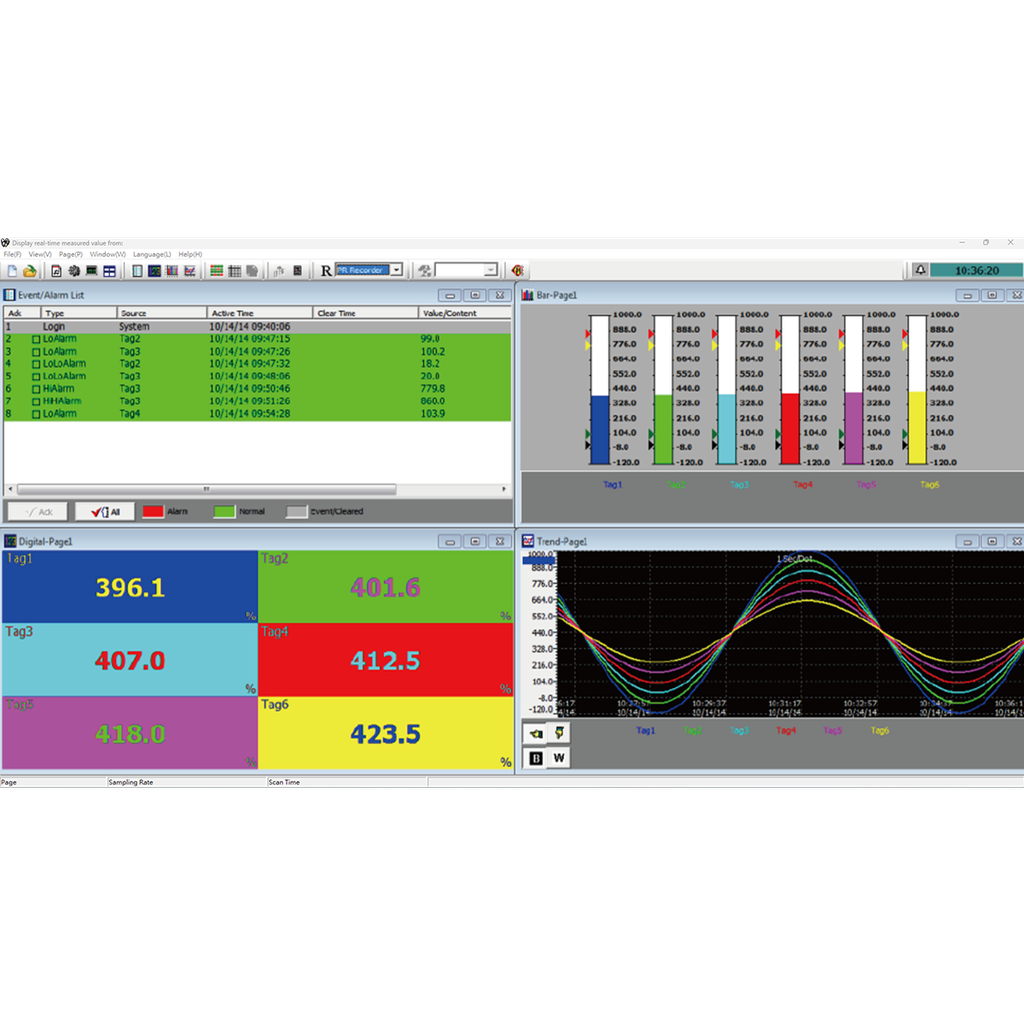

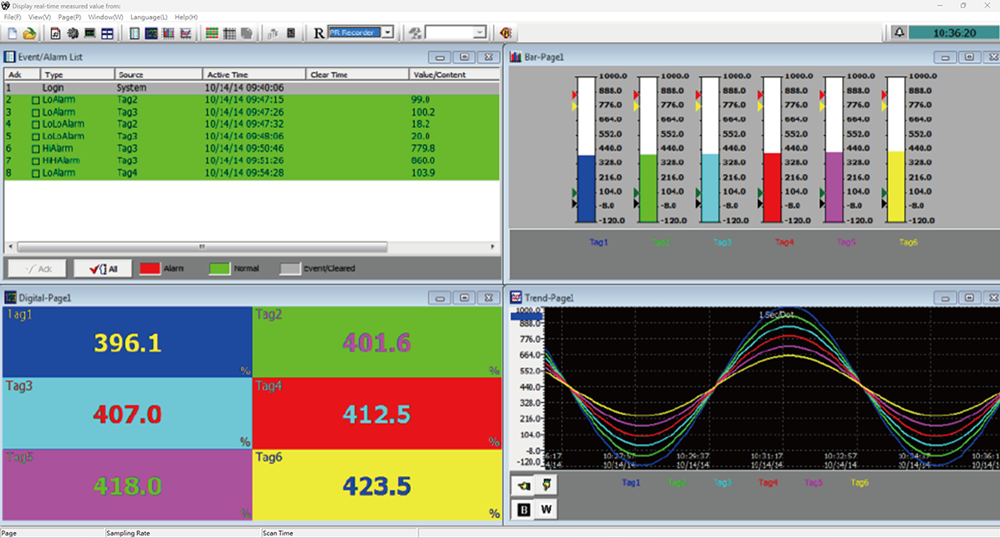

DAQ enables real-time collection and monitoring of industrial process data. The graphical monitoring interface displays equipment status, real-time values, and process changes. The system supports real-time trend charts, digital value displays, bar graphs, and alarm event lists to help engineers quickly understand equipment conditions.
Industrial Communication and Device Integration

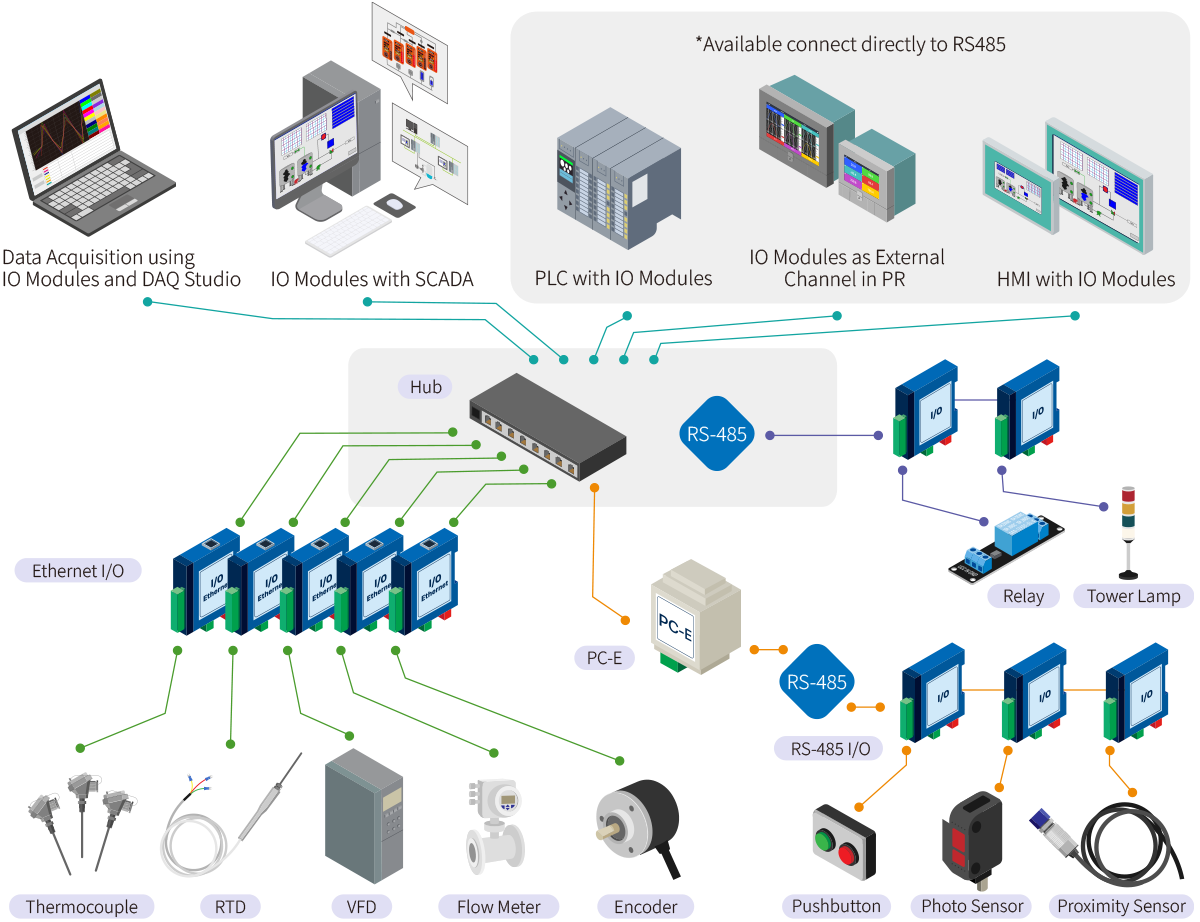

DAQ supports Modbus RTU and Modbus TCP industrial communication protocols, enabling integration with IO modules, controllers, paperless recorders, and other Modbus-enabled devices to build a complete industrial data acquisition and monitoring system.
High-Capacity Data Channel Management
The DAQ system supports up to 2048 data tags, enabling simultaneous monitoring of multiple devices and various process signals. Each tag can represent analog inputs, analog outputs, digital inputs, digital outputs, or calculated channels, making it suitable for large-scale industrial monitoring applications.
Industrial Data Logging and Historical Analysis

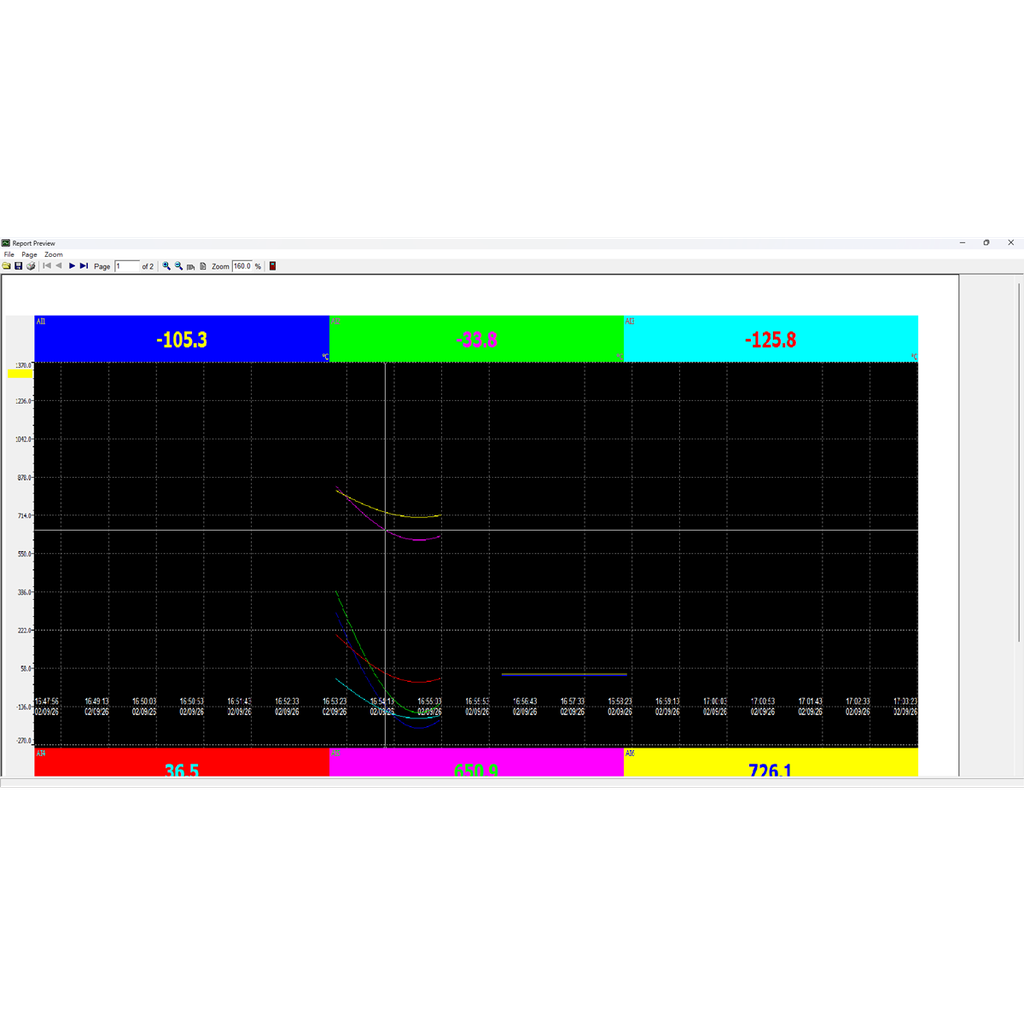

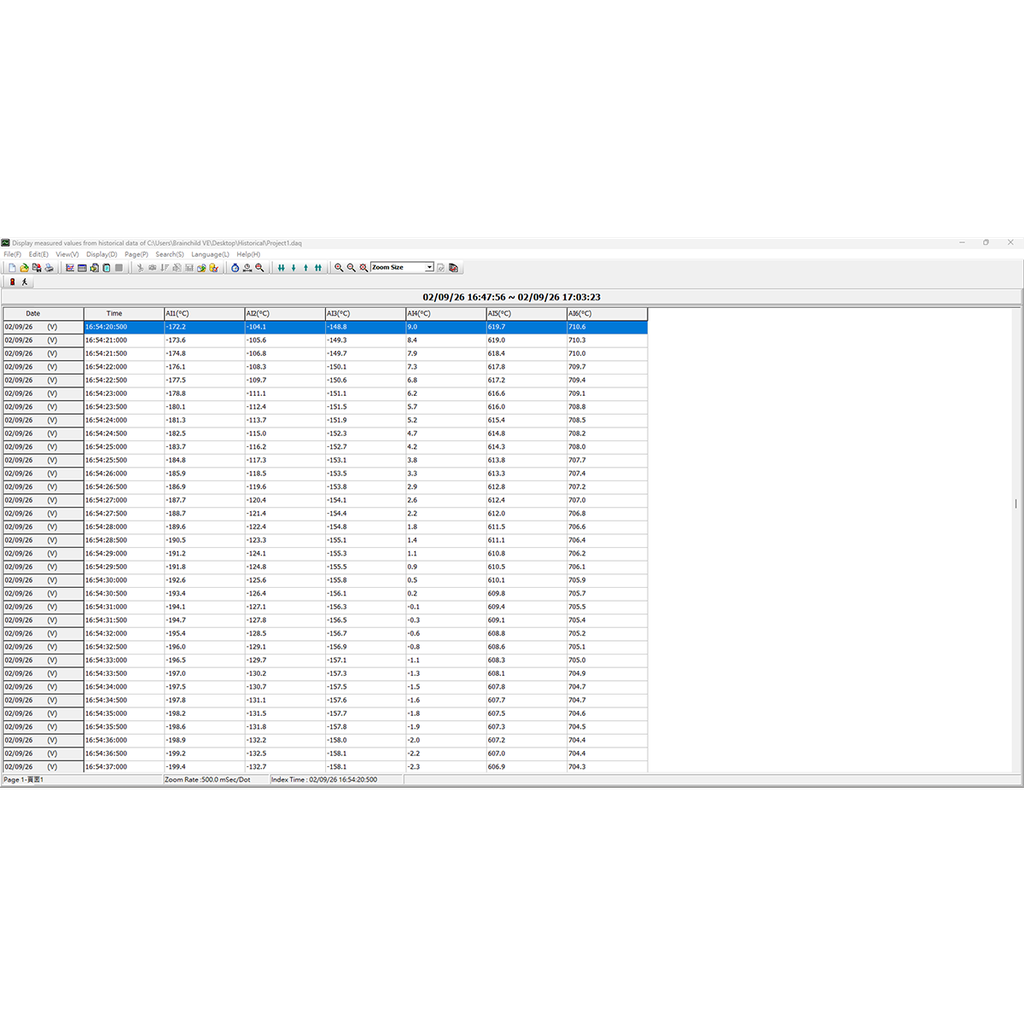

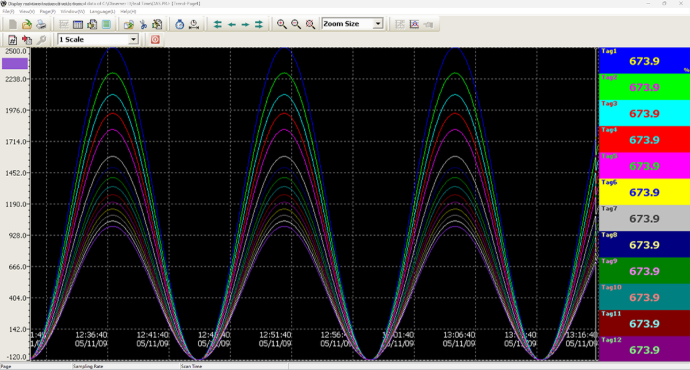

DAQ automatically records process data and builds a historical database for long-term storage. Users can view historical trends, search recorded data, and perform long-term analysis through the Historical Viewer to support process tracking and quality management.
Intelligent Alarm and Event Management

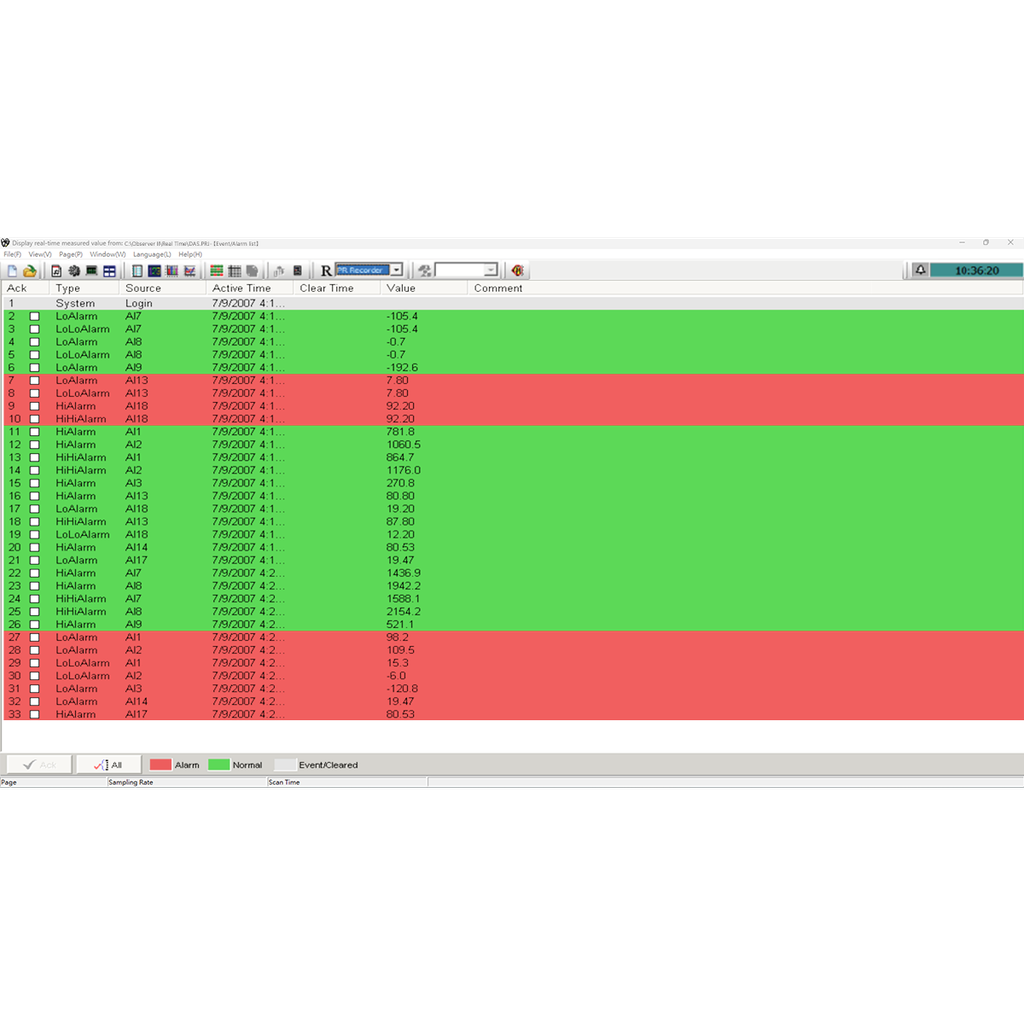

DAQ provides comprehensive alarm and event management functions. Users can configure multiple alarm conditions such as high alarms, low alarms, and rate-of-change alarms. When abnormal conditions occur, the system records events and provides alarm notifications to help operators respond quickly.
Applications
Chemical
Electronics & Semiconductor
Food
Lab
Logistics
Packaging
Pharmaceutical & Biotech
Plastics & Rubber
Textiles
Water & Wastewater
Specifications
*Note:IO Studio module requires Microsoft .NET Framework 2.0 to be installed. IO Studio does not support the following operating systems: Windows ME、Windows NT、Windows 2000.
FAQ
A Data Acquisition Studio (DAQ) collects, monitors, and records data from industrial devices such as sensors and controllers. The software platform allows users to visualize and analyze process data.
Data Acquisition Studio software monitors equipment data in real time, records process information, analyzes historical trends, and manages alarm events to improve industrial monitoring and process control.
BrainChild DAQ supports connection to various industrial devices through Modbus RTU or Modbus TCP, including IO modules, temperature controllers, paperless recorders, and other Modbus-enabled devices.
BrainChild DAQ supports up to 2048 data tags, enabling monitoring of multiple devices and process variables simultaneously.
Yes. The Realtime Viewer module allows users to monitor real-time trends, digital values, and device status.
Yes. The Historical Viewer module allows users to review historical data, analyze trends, and export records.
Yes. DAQ supports multiple alarm settings including high alarms, low alarms, and rate-of-change alarms, with event logging and notifications.
Yes. DAQ allows data export in CSV or Excel formats for further analysis and reporting.
DAQ focuses on data acquisition and monitoring, while SCADA systems typically include supervisory control and broader system management functions.
BrainChild DAQ is widely used in manufacturing, industrial automation, energy monitoring, environmental monitoring, and equipment monitoring applications.
Data Acquisition Studio help companies monitor equipment status, record process data, and analyze historical information to improve operational efficiency and equipment reliability.
BrainChild DAQ offers real-time monitoring, data logging, alarm management, and device integration with support for Modbus communication and up to 2048 data tags.
