Features
- Configure BrainChild controllers easily
- Supports RS232, RS485, and programming port
- Configure multiple controllers at once
- Windows XP or later with .NET required
- Real-time parameter read and write
- Easy profile editing for programmable models
- Auto node scan for quick device connection
- Save/load parameter files for batch setup
- Direct communication via USB adapter
- Fast installation with Setup Wizard
- Supports read/write by controller range
- Built-in communication diagnostics
BC-SET Configuration Software for Controllers
Easily configure and manage multiple BrainChild controllers
BC-SET Configuration Software
Easy parameter setup, backup and firmware upgrade
BC-SET is the official configuration software developed by BrainChild for its over-temperature protection controllers. With a streamlined and intuitive interface, the software allows users to connect via USB programming cable and quickly configure control parameters. It supports efficient parameter editing, setting duplication between devices, and firmware upgrades to maintain device performance and stability. BC-SET also enables offline configuration with the ability to save and manage multiple profiles, making it ideal for production environments, system deployment, and ongoing maintenance. Whether for new setup or existing system adjustment, this tool helps engineers and technicians simplify workflow, reduce setup time, and ensure consistent configuration across all devices.

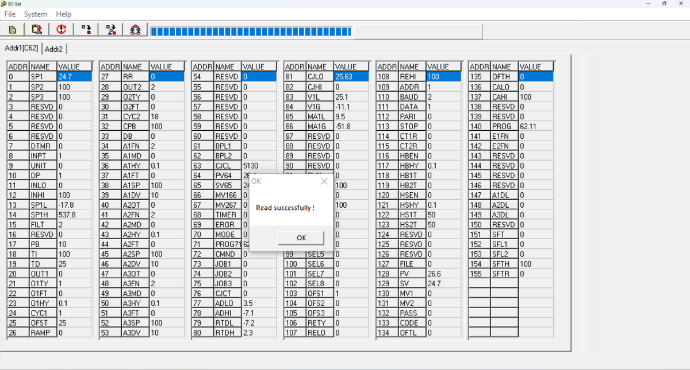

Batch Read/Write for Multiple Controllers
BC-SET allows users to connect multiple controllers of the same model and perform batch parameter read/write by defining a node address range. This feature significantly streamlines configuration in OEM or multi-device environments.
Clear and Accessible System Menu
The system menu offers quick access to key operations like Rescan (F5), Read Data (F6), Write Data (F7), Write Multiple (F8), and Communication Settings (F9). Built-in hotkeys support fast, efficient navigation.
Intuitive Communication Setup Interface
The communication settings window lets users define COM port, baud rate, parity, data bits, and stop bits — with a “Default” button for quick reset and “Save and Exit” to finalize setup. Designed to reduce setup errors.

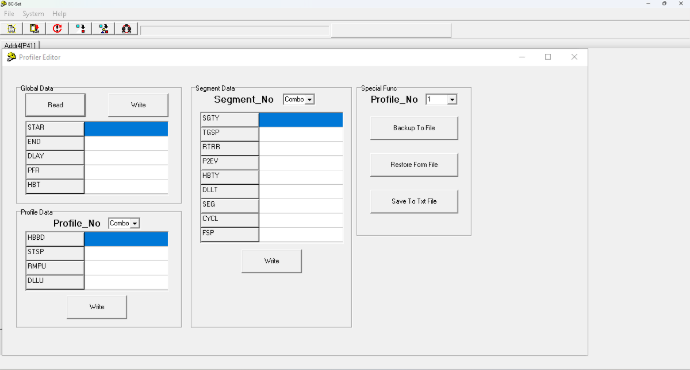

Visual Profile Editor for Programmable Controllers
For controllers with profile functionality, BC-SET provides a graphical editor to configure temperature ramp/soak segments. Users can easily read, modify, and write profile parameters for precise thermal process control.
BC-Set Pro Supported Models and Firmware Requirements
BC-Set Pro is the advanced configuration software by BrainChild, compatible with the following models and required firmware versions:
- Classic Performance Series
Firmware above V48R6 required - BTC-4300 / BTC-2500 / BTC-8300 / BTC-9300 - Classic Premium Series
Firmware above V31 - BTC-9100 / BTC-4100 / BTC-7100 / BTC-8100
Firmware above V33 - C91 / C21 - Select Series
Ramp & Soak Controllers (above V36) - P41 / P91
Limit Controllers - L41 (above V15) ; L91 (above V22) ; L22 / L42 / L62 (above V01) - Core Series
C62 / B62 / C22 / R22 (above V16) ; C42 / C72 / C82 / C83 (above V08R2) ; C42-P / C72-P / C82-P / C83-P (above V7.0) - Specialty Series
RSC (above V4.0)
BC-Set Compatible Controller Models
BC-SET is BrainChild's official configuration software designed for parameter setup and communication with the following controller models:
- Classic Performance Series
BTC-2500 / BTC-4300 / BTC-8300 / BTC-9300 - Classic Premium Series
BTC-9100 / BTC-4100 / BTC-7100 / BTC-8100 / C91 / C21 - Select Series
L91 / P41 / P91
