以太網路轉換器

• Modbus RTU 轉 TCP/IP 協定閘道器
• RS232/RS485 串列轉以太網路通訊
• 支援 4 組 socket 同步連線通訊
• 內建網頁式圖形化設定介面
• 精巧設計支援 DIN 導軌安裝

特色功能

支援 Modbus RTU 轉 Modbus TCP/IP 協定轉換
內建 RS232 與 RS485 串列埠，相容舊有設備
協助串列設備快速升級乙太網路應用
相容各式 PLC、HMI 與數據記錄設備
支援 4 組 TCP client/server socket 同時連線

內建 Web 設定介面，方便監控與設定
具備密碼保護設定權限安全機制
韌體可透過網頁介面升級
LED 狀態燈顯示電源、連線與資料傳輸
支援 DIN 導軌安裝，適用控制箱配置

體積小巧，安裝空間需求低
運作溫度範圍廣（-10°C ~ 60°C）
寬範圍 DC 12–24V 電源輸入
無風扇工業設計，耐高溫嚴苛環境
通過 FCC、CE、NCC 等無線通訊認證

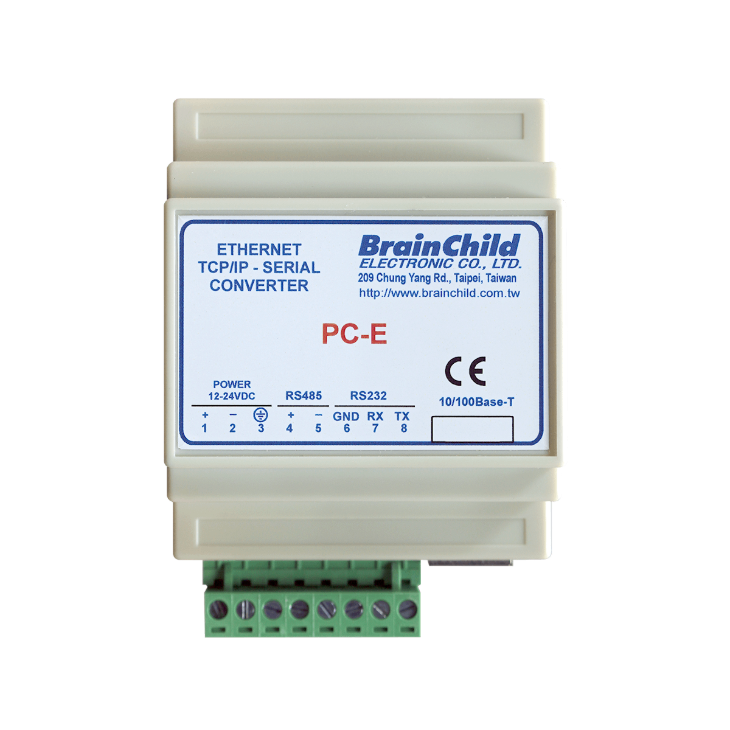

PC-E Modbus 乙太網路通訊轉換器

輕鬆整合 RS232/485 串列與 Modbus TCP/IP 網路

PC-E 是一款體積小巧、功能強大的 Modbus 乙太網路通訊轉換器，可協助將傳統串列設備快速導入現代化工業網路。產品支援 RS232 與 RS485 通訊介面，並可在 Modbus RTU 與 Modbus TCP/IP 協定間無縫轉換，適用於需要穩定安全資料交換的自動化系統。PC-E 具備直覺的 Web 設定介面、支援 DIN 導軌安裝，並能在寬溫環境中穩定運作，是工業整合升級的理想選擇。

PC-E 配線與指示燈狀態總覽

清晰呈現電源、以太網路與 LED 指示燈安裝說明

PC-E 通訊轉換器採用 DIN 導軌安裝設計，只需將電源分別接至端子 1（+12/24VDC）與端子 2（0V）即可啟動裝置。啟動後，電源指示燈會亮起，其他 LED 燈初始狀態為熄滅。

網路連接方面，PC-E 支援標準 RJ45 接頭，可直接連接至電腦或網路交換器，提供 Modbus TCP/IP 與 RTU 之間的穩定通訊橋接。

PC-E 面板上的多組 LED 指示燈可清楚顯示模組運作狀態，協助用戶快速進行診斷與故障排除，確保系統整合穩定運行。

產業應用

Pharmaceutical

Plastics & Rubber

Water

Electronics

Food

產品規格

電源供應	90mA @ 10VDC / 40mA @ 26VDC
以太網路	通訊速度	10/100Base-TX
Serial	RS232	三線式, TX(傳送), RX(接收), GND(接地)
	RS485	雙線多點式雙絞線傳輸
	傳輸速率(Baud Rate)	2400, 4800, 9600, 19200, 38400, 57600, 115200 BPS
	資料位元(Data Bit)	5, 6, 7, 8
	同位檢查(Parity)	無(None), 偶數(Even), 奇數(Odd)
	停止位元(Stop Bi元(Stop Bit))	1 或 2
保護機制	輸入錯誤保護高達 70VDC，具備 16KV HBM 靜電保護能力
尺寸 (LWH)	70 * 59.5 * 106 mm
連接端子	8Pin 螺絲式端子連接器
應用範圍	可透過 Ethernet（10/100 Base-T）將 RS-485 I/O 模組連接至電腦, 支援 Modbus RTU 轉 Modbus TCP、UDP 及透傳模式（Transparent Mode）
Socket 支援	多 Socket 模式，最多可同時與 4 個 Ethernet 主站共享資料
