Ethernet Converter

• Modbus RTU to TCP/IP Protocol Gateway
• RS232/RS485 to Ethernet Communication
• Supports 4 Concurrent Socket Connections
• Web-Based Configuration Interface
• Compact DIN Rail Mount Design

    This combination does not exist.

    Features

    • Supports Modbus RTU to Modbus TCP/IP conversion
    • RS232 and RS485 ports for legacy device support
    • Enables Ethernet integration for serial equipment
    • Compatible with PLCs, HMIs, and data loggers
    • Supports 4 TCP client/server socket connections
    • Built-in web server for configuration and monitoring
    • Password protection for configuration access
    • Firmware upgradeable via web interface
    • LED indicators for power, link, and data status
    • DIN rail mountable for industrial control cabinets
    • Compact size ideal for limited installation space
    • Operates in -10°C to 60°C wide temperature range
    • DC 12–24V wide power input range
    • Fanless design ideal for harsh environments
    • Certified for FCC, CE, NCC wireless compliance

    PC-E Ethernet Serial Converter for Modbus

    Seamlessly bridge RS232/485 to Modbus TCP/IP

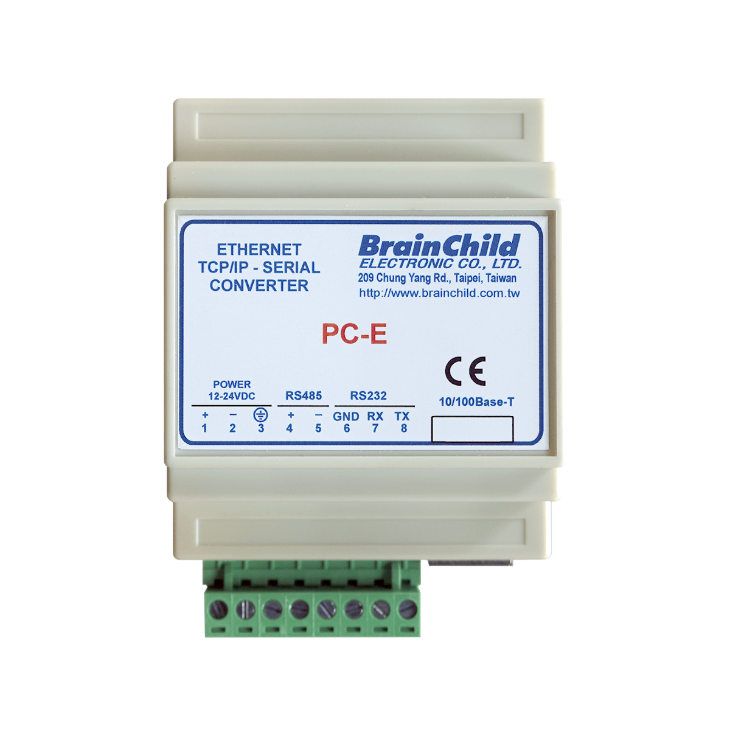

    PC-E is a compact and powerful Modbus Ethernet converter designed to integrate traditional serial devices into modern industrial networks. It supports RS232 and RS485 communication and seamlessly bridges Modbus RTU to Modbus TCP/IP protocols. Ideal for automation systems requiring reliable and secure data exchange, PC-E is equipped with user-friendly web configuration, DIN rail mounting, and wide operating temperature support.

    ​

    PC-E Connection & LED Status Overview

    Clear installation with power, Ethernet, and LED indicators

    The PC-E converter is designed for easy DIN rail installation. Connect power to terminal 1 (+12/24VDC) and terminal 2 (0V) to activate the device. The power LED will light up to confirm operation, while other LED indicators will remain off initially.

    For Ethernet communication, use a standard RJ45 connector to link the PC-E to a network or directly to a PC. The Ethernet port ensures stable Modbus TCP/IP communication with Modbus RTU devices.

    Multiple LED indicators on the PC-E front panel clearly reflect operational status, aiding in diagnostics and ensuring reliable system integration.

    Applications

    Specification

    Power Supply

    90mA @ 10VDC / 40mA @ 26VDC

    Ethernet

    Communication Speed

    10/100Base-TX

    Serial

    RS232

    3 Wire , TX,RX,GND



    RS485

    2 Wire Multi drop twisted pair



    Baud Rate

    2400, 4800, 9600, 19200, 38400, 57600, 115200 BPS



    Data Bit

    5, 6, 7, 8



    Parity

    None, Even, Odd



    Stop Bit

    1 or 2

    Protection

    Input fault protection to 70 VDC, 16 KV HBM protection

    Dimensions (L*W*H)

    70 * 59.5 * 106 mm

    Connector

    8 Way Screw Connector

    Application

    Connect RS-485 IO modules to the PC via Ethernet,
    10/100 Base-T Modbus RTU to Modbus TCP, UDP, Transparent Mode

    Sockets

    Multisocket, Share date to maximum 4 masters on the Ethernet side

    Download

    Visit Download Center to See More Documents & Tools of This Product.     Visit

    Ordering Code

    PC-E


    PRMesh

    Wireless Expansion Module for PR Paperless Recorders

    PR Mesh works with SenseNode wireless sensor nodes to extend the wireless measurement capabilities of existing PR Paperless Recorders.

    Features



    Wireless  Measurement Expansion

    Extend the wireless measurement capabilities of existing PR Paperless Recorders with PR Mesh, without replacing the entire recording system.

    Distributed Signal Acquisition

    Deploy SensNode near measurement points to acquire up to two analog inputs per unit, reducing long-distance sensor wiring to the recorder.

    BrainChild Mesh
    Connectivity

    Powered by BrainChild Mesh wireless technology, SensNode transmits field measurement data to PR Mesh, connecting distributed measurement points with the PR recorder.

    Seamless PR Integration

    Installed inside a compatible PR recorder, PR Mesh integrates wireless measurement data into the existing system while preserving its familiar interface and operation.

    Centralized Monitoring & Recording

    Consolidate measurement data from distributed points in the PR recorder, retaining real-time displays, trend monitoring, alarm management, and historical data logging.

    Scalable Monitoring Expansion

    Add SensNode units as monitoring needs grow, extending measurement coverage while reducing wiring and installation work when expanding existing systems.


    ​

    How it work

    Extend Your PR with Flexible Wireless Measuremen





    ➊ Field Signal Acquisition

    SenseNode acquires sensor signals near measurement points and wirelessly transmits the data using BrainChild Mesh technology.

    ➋ Wireless Data Reception & Integration

    PR Mesh receives measurement data from SenseNode and integrates it into the existing PR recording system.

    ➌ Centralized Monitoring & Data Logging

    The PR recorder provides centralized access to real-time measurements, historical trends, alarm information, and data logging.

    Less Wiring. Greater Flexibility.

    Traditional Wired Monitoring


    Traditional wired monitoring systems require sensor signals to be connected directly to centralized recording equipment. When measurement points are widely distributed, located far from the recorder, or added to existing production lines, additional wiring and installation work can make system expansion and maintenance more complex.

    Traditional Wired Monitoring


    Traditional wired monitoring systems require sensor signals to be connected directly to centralized recording equipment. When measurement points are widely distributed, located far from the recorder, or added to existing production lines, additional wiring and installation work can make system expansion and maintenance more complex.

    IV. Panel Studio

    If Plus version 2 or 3 of Firmware is purchased, additional software Panel Studio is offered for editing custom display. The users can use it to edit specific displays on PC first, and then download it onto recorders. The custom edited displays will be additional pages to standard ones.

    Edit it on PC

    Download it onto Recorders

    Applications

    Specification


    Product position

    Big size and high-end one, good for sophisticated applications, for example power industry

    Input numbers

    6, 12, 18, 24, 30, 36, 42, 48 channels

    True universal inputs

    Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
    RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV

    The fastest sampling rate

    o reach 100 msec / dot, default setting at 1 sec / dot

    Math, External channels, Batch,
    Custom display, FDA 21 CFR part 11

    Math in standard version, others in Plus versions

    Display

    12.1" TFT touch screen

    Resolution

    1024 x 768

    MTBF backlight at 25°C

    30,000 hrs

    Backlight

    LED

    Screen saver, Email

    Yes

    A faster CPU

    ARM Cortex-A8, 1Ghz

    Internal flash memory

    256 MB

    RAM

    256 MB

    Ethernet

    Modbus TCP/IP

    RS-232/422/485

    Optional RS-232 or RS-422/485 Modbus RTU

    SD card slot, USB host x 2

    Standard, one USB in the front, another USB in the back

    Pulse input

    Optional DI card offering either logic or high frequency pulse counter

    START / STOP key

    To start / stop record and to turn off the display only, not recorder itself so that a quick start possible

    Calibration correction

    On-site calibration possible, or using handy features of Offset and Gain for correction

    Multilingual

    Convenient for local users by offering 19 languages including English, Japanese,Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable

    PC software Historical Viewer+ Configuration

    Standard

    Extensive software Data Acquisition Studio

    Optional real-time monitoring

    Power supply

    90-250VAC or 11-36VDC

    Outer dimensions (W x H x L mm)

    288 x 288 x 189

    Shorter mounting depth (mm)

    171

    DIN panel cutout (W x H mm)

     281 x 281

    Protection

    IP65 front, IP20 rear

    Operating temperature

    0°C to 50°C

    Storage temperature

    -30°C to 70°C

    Safety standards

    RoHS

    Download

    Visit Download Center to See More Documents & Tools of This Product.     Visit

    FAQ

    Ordering Code

    PR3006(6 analog inputs)
    PR3012(12 analog inputs)
    PR3018(18 analog inputs)
    PR3024(24 analog inputs)
    PR3030(30 analog inputs)
    PR3036(36 analog inputs)
    PR3042(42 analog inputs)
    PR3048(48 analog inputs)
    none
    6 relays
    12 relays
    18 relays
    24 relays
    Digital inputs
    6 channels
    12 channels
    18 channels
    none
    6 channels
    12 channels
    90-25 VAC,50/60 Hz
    11-36 VDC
    12 channels
    standard Ethernet
    Ethernet + RS232
    Ethernet + RS-422/486
    standard version with mathematics
    Plus version 1 with external channels, batch & FDA 21 CFR part 11
    Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
    Plus version 3 including Plus version 1 +2 above
    standard version with mathematics
    Plus version 1 with external channels, batch & FDA 21 CFR part 11
    Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
    Plus version 3 including Plus version 1 +2 above
    free basic software of Historical Viewer & Configuration
    extensive software Data Acquisition Studio (RealTime Viewer + Historical Viewer + Configuration)
    panel mount, no power cord, no power switch
    panel mount, no power cord, power switch
    portable, UL & CSA power cord, power switch
    portable, VDE power cord, power switch
    portable, SAA power cord, power switch
    portable, BS power cord, power switch
    portable, no power cord, power switch
    panel mount, UL & CSA power cord, power switch
    panel mount, VDE power cord, power switch
    panel mount, SAA power cord, power switch
    panel mount, BS power cord, power switch
