串列通信產品 | 以太網路無線通訊

SW5502
https://www.brainchildtw.com/web/image/product.template/85/image_1920?unique=062c7a5

工業無線串列伺服器

• 支援串列轉無線 TCP/IP 資料傳輸
• 精巧設計適合空間受限的設備安裝
• 工業環境下穩定可靠長時間運作
• 相容 PLC、HMI、資料記錄器等設備
• 簡易設定流程,操作介面直覺易用

    此組合不存在。

    特色功能

    • 精巧工業級無線串列裝置伺服器
    • 相容 802.11a/b/g/n 雙頻無線網路
    • 5GHz 頻段降低 2.4GHz 裝置干擾風險
    • 雙天線設計提升無線涵蓋與穩定性
    • 電路板具防護塗層,耐濕防塵抗腐蝕
    • 支援網頁介面與 Serial Utility 軟體設定
    • 可透過網頁或序列埠進行韌體升級
    • 支援導軌或壁掛式安裝,彈性靈活
    • 通過 FCC、ETSI、NCC 各國無線認證
    • 堅固機殼適應惡劣工業環境應用
    • 採用 TCP/IP 協定確保資料傳輸安全
    • 相容 PLC、HMI、自動化設備應用
    • 寬溫操作範圍:-10°C 至 70°C
    • LED 指示燈即時顯示設備運作狀態
    • 為舊型串列設備提供穩定無線橋接方案

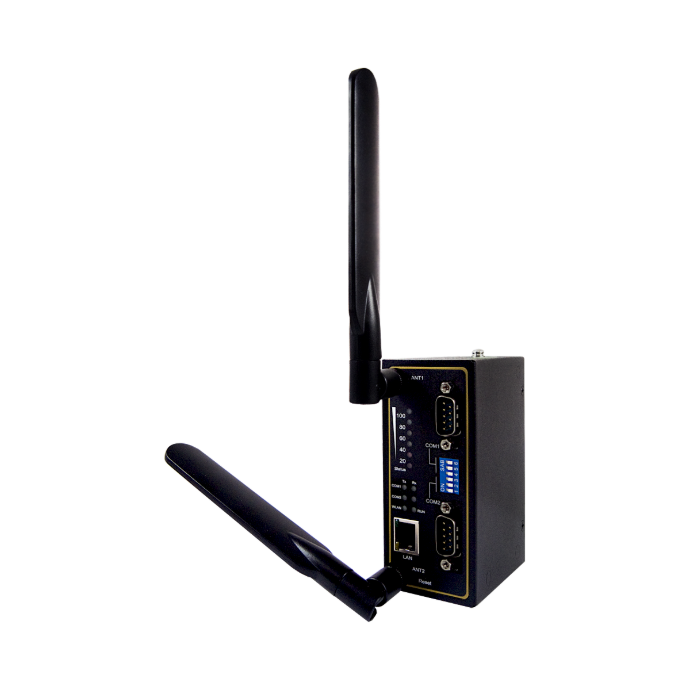

    SW5502 小型無線串列設備伺服器

    穩定串列轉無線網路,適用工業應用

    SW5502 是一款專為空間受限應用設計的工業級無線串列設備伺服器,具備小巧、堅固與高穩定的特性。其可將 RS-232/485 串列設備輕鬆導入無線 TCP/IP 網路,協助用戶將既有自動化設備快速整合至現代網路架構中。雙天線設計提升訊號穩定性,並支援 5 GHz 頻段,有效降低 2.4 GHz 常見頻道干擾。無論是 PLC、HMI 或資料記錄器,SW5502 都能提供穩定的無線連線、彈性的設定選項與簡易的部署流程。

    ​

    清晰配置,便於快速安裝與狀態監控

    SW5502 的前面板與電源面板採用以使用者為導向的設計,安裝與監控皆簡便快速。前面板整合了雙天線(ANT1、ANT2)、兩組 COM 端口(COM1、COM2)、LAN 網路端口、重置按鈕,以及多組 LED 指示燈,涵蓋系統電源、序列埠與無線連線狀態。垂直排列的訊號強度 LED 可即時顯示無線品質,從弱到強一目瞭然。

    電源側配置 3-pin 可鎖式端子座,支援穩定的電源輸入與接地,提供堅固安全的供電方式。此類結構緊湊且資訊豐富的面板設計,讓工程人員在狹小工控環境中也能迅速完成佈線與狀態判讀,極具實務效益。



    產業應用

    產品規格


    網路介面

    連接埠類型

    RJ-45

    傳輸速度

    IEEE802.3ab 10/100/1000Mbps

    串列通訊埠

    埠數

    1 組(端子台連接)

    RS-422

    RxD+ , RxD- ,TxD+ , TxD- .

    RS-485

    Data+ , Data-

    RS-422 , RS-485

    自動偵測

    RS-422 , RS-485

    具突波保護(Surge Protect)

    接收緩衝區

    576 Byte

    傳送緩衝區

    640 Byte

    傳輸速率(Baud Rate)

    300 ~ 230.4 K bps

    流控方式

    X-On / X-Off 或硬體流控(Hardware Flow Control)

    串列通訊介面

    連接埠類型

    D-Sub9 RS-232/422/485 軟體選擇
    5.08mm TB5 RS-232/422/485 軟體選擇(僅 TB 機型)
    5.08mm TB5 RS-422/485 軟體選擇(僅 Sis 機型)

    埠數

    SW5502: 2 埠

    傳輸速率(Baud Rate)

    110~921600Kbps

    奇偶校驗

    None, Odd, Even, 空格(Space), 標記(Mark)

    資料位元

    5,6,7,8

    停止位元

    1,2

    流控方式

    無, Xon/Xoff, RTS/CTS

    電源特性

    輸入電壓

    9VDC-48VDC

    輸入電流(9VDC時)

    0.65A

    消耗功率

    最大約 5.85 瓦

    反接保護

    有

    連接方式

    5.08mm 3-pin 可鎖式端子台



    機構規格

    尺寸(W x H x D)

    47 mm x 110 mm x 90mm

    安裝方式

    DIN 導軌安裝, 壁掛(選配)

    重置按鈕

    有

    重量

    500g

    環境限制

    工作溫度

    -10°C ~ 60°C (14°F ~ 140°F)

    儲藏溫度

    -40°C ~ 85°C (-40°F ~ 185°F)

    相對濕度

    5 ~ 95% RH, (非冷凝)

    軟體

    通訊協議

    IPv4, ICMP, TCP, UDP, DHCP Client, SNMP, SMTP, HTTP, DNS, NTP, RADIUS, RFC2217, WPS

    無線安全機制

    WEP, WPA, WPA2, TKIP, AES, 802.1x

    設定方式

    Serial Manager, Web UI

    虛擬 COM 支援

    Windows / Linux 重導軟體

    連線模式

    TCP 伺服器模式

    最多 4 個連線,支援虛擬 COM 或反向 Telnet

    TCP 客戶端模式

    支援兩個目標或虛擬 COM

    UDP 模式

    最多支援 4 組 IP 範圍

    保固

    5 年

    資源下載

    前往下載中心查看更多的文件與工具。  前往

    訂購代碼
