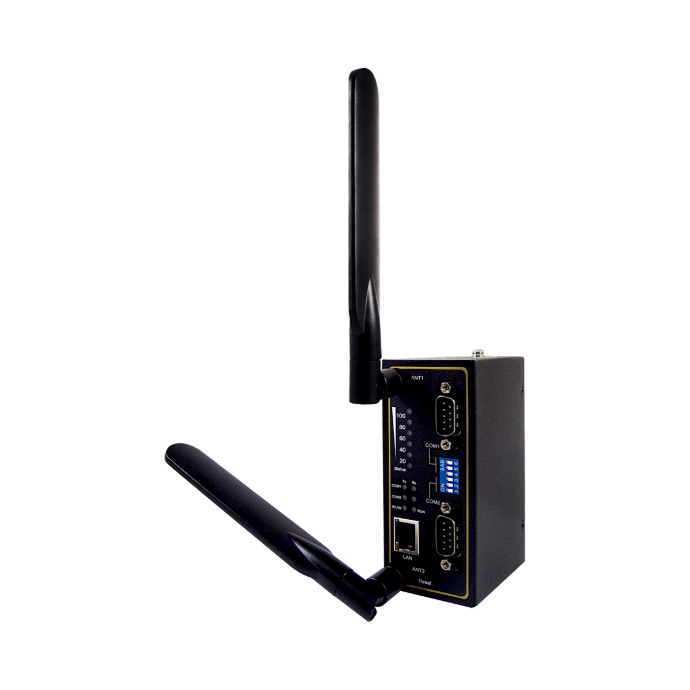

Industrial Wireless Serial Device Server

• Wireless serial-to-TCP/IP communication
• Compact design for space-limited installs
• Reliable in harsh industrial conditions
• Compatible with PLCs and automation gear
• Easy setup with intuitive config tools

    This combination does not exist.

    Features

    • Compact industrial-grade wireless device server
    • Supports 802.11a/b/g/n dual-band networks
    • 5 GHz reduces interference from 2.4 GHz devices
    • Dual antenna design enhances wireless coverage
    • Embedded conformal PCB coating for protection
    • Configuration via built-in Web Server or Serial Utility
    • Supports firmware upgrade via web or Serial Manager
    • DIN-rail or wall-mount for flexible installation
    • FCC, ETSI, NCC certified for global compliance
    • Robust housing for harsh industrial environments
    • Secure data transmission with TCP/IP protocols
    • Compatible with PLCs, HMIs, and automation systems
    • Wide operating temperature: -10°C to 70°C
    • Easy status monitoring with LED indicators
    • Reliable wireless bridge for legacy serial devices

    SW5502 Compact Wireless Serial Device Server

    Reliable wireless RS-232/422/485 to TCP/IP for industrial use

    The SW5502 is a compact and durable industrial wireless serial device server, optimized for space-limited applications. Designed to bring RS-232/485 serial equipment into wireless TCP/IP networks, it offers a seamless way to integrate existing automation devices with modern network infrastructure. Its dual-antenna design ensures stable signal transmission in harsh environments, while support for 5 GHz reduces interference from common 2.4 GHz channels. Whether paired with PLCs, HMIs, or data loggers, the SW5502 offers dependable wireless connectivity with flexible configuration options and easy deployment.

    ​

    Clear layout for quick installation and status monitoring

    The SW5502 features a user-oriented front and power panel layout designed for convenient installation and real-time monitoring. The front panel integrates key components such as dual antennas (ANT1, ANT2), COM ports (COM1, COM2), LAN port, reset button, and LED indicators for power, serial, and wireless activity. The vertical LED signal bars provide visual feedback on wireless signal strength, from poor to excellent. On the power side, a 3-pin terminal block is available for secure power input and grounding connection.

    Such a compact yet informative layout ensures technicians can quickly identify device status and execute wiring with minimal effort, making SW5502 ideal for field deployment in tight industrial spaces.



    Applications

    Specification


    Network Interface

    Connector

    RJ-45

    Speed

    IEEE802.3ab 10/100/1000Mbps

    Serial Port

    Port

    1 port ( Terminal Block )

    RS-422

    RxD+ , RxD- ,TxD+ , TxD- .

    RS-485

    Data+ , Data-

    RS-422 , RS-485

    Auto Detect

    RS-422 , RS-485

    Surge Protect

    Receive buffer

    576 Byte

    Transmit buffer

    640 Byte

    Baud Rate

    300 ~ 230.4 K bps

    Flow Control

    X-On / X-Off or Hardware

    Serial Interface

    Connector

    D-Sub9 RS-232/422/485 software selectable
    5.08mm TB5 RS-232/422/485 software selectable (TB models)
    5.08mm TB5 RS-422/485 software selectable (Sis models)

    Ports

    SW5502: 2 Ports

    Baud Rate

    110~921600Kbps

    Parity

    None, Odd, Even, Space, Mark

    Data Bits

    5,6,7,8

    Stop Bits

    1,2

    Flow Control

    None, Xon/Xoff, RTS/CTS

    Power Characteristics

    Input Voltage

    9VDC-48VDC

    Input Current(9VDC)

    0.65A

    Power Consumption

    Approx. 5.85W (max)

    Reverse Polarity Protection

    Yes

    Connection

    5.08mm 3-pin Lockable Terminal Block



     Mechanicals

    Dimensions(W x H x D)

    47 mm x 110 mm x 90mm

    Installation

    DIN Rail, Wall Mount (optional)

    Reset Button

    Yes

    Weight

    500g

     Environmental Limits

    Operating Temperature

    -10°C ~ 60°C (14°F ~ 140°F)

    Storage Temperature

    -40°C ~ 85°C (-40°F ~ 185°F)

    Ambient Relative Humidity

    5 ~ 95% RH, (non-condensing)

    Software

    Protocols

    IPv4, ICMP, TCP, UDP, DHCP Client, SNMP, SMTP, HTTP, DNS, NTP, RADIUS, RFC2217, WPS

    Wireless Security

    WEP, WPA, WPA2, TKIP, AES, 802.1x

    Configuration

    Serial Manager, Web UI

    Virtual COM

    Windows / Linux redirection software

    Link Modes

    TCP Server

    4 connections, Virtual COM, or Reverse Telnet

    TCP Client

    Dual destinations or Virtual COM

    UDP

    Up to 4 ranges of IPs

    Warranty

    5 years

    Download

    Visit Download Center to See More Documents & Tools of This Product.     Visit

    Ordering Code



    PRMesh

    Wireless Expansion Module for PR Paperless Recorders

    PR Mesh works with SenseNode wireless sensor nodes to extend the wireless measurement capabilities of existing PR Paperless Recorders.

    Features



    Wireless  Measurement Expansion

    Extend the wireless measurement capabilities of existing PR Paperless Recorders with PR Mesh, without replacing the entire recording system.

    Distributed Signal Acquisition

    Deploy SensNode near measurement points to acquire up to two analog inputs per unit, reducing long-distance sensor wiring to the recorder.

    BrainChild Mesh
    Connectivity

    Powered by BrainChild Mesh wireless technology, SensNode transmits field measurement data to PR Mesh, connecting distributed measurement points with the PR recorder.

    Seamless PR Integration

    Installed inside a compatible PR recorder, PR Mesh integrates wireless measurement data into the existing system while preserving its familiar interface and operation.

    Centralized Monitoring & Recording

    Consolidate measurement data from distributed points in the PR recorder, retaining real-time displays, trend monitoring, alarm management, and historical data logging.

    Scalable Monitoring Expansion

    Add SensNode units as monitoring needs grow, extending measurement coverage while reducing wiring and installation work when expanding existing systems.


    ​

    How it work

    Extend Your PR with Flexible Wireless Measuremen





    ➊ Field Signal Acquisition

    SenseNode acquires sensor signals near measurement points and wirelessly transmits the data using BrainChild Mesh technology.

    ➋ Wireless Data Reception & Integration

    PR Mesh receives measurement data from SenseNode and integrates it into the existing PR recording system.

    ➌ Centralized Monitoring & Data Logging

    The PR recorder provides centralized access to real-time measurements, historical trends, alarm information, and data logging.

    Less Wiring. Greater Flexibility.

    Traditional Wired Monitoring


    Traditional wired monitoring systems require sensor signals to be connected directly to centralized recording equipment. When measurement points are widely distributed, located far from the recorder, or added to existing production lines, additional wiring and installation work can make system expansion and maintenance more complex.

    Traditional Wired Monitoring


    Traditional wired monitoring systems require sensor signals to be connected directly to centralized recording equipment. When measurement points are widely distributed, located far from the recorder, or added to existing production lines, additional wiring and installation work can make system expansion and maintenance more complex.

    IV. Panel Studio

    If Plus version 2 or 3 of Firmware is purchased, additional software Panel Studio is offered for editing custom display. The users can use it to edit specific displays on PC first, and then download it onto recorders. The custom edited displays will be additional pages to standard ones.

    Edit it on PC

    Download it onto Recorders

    Applications

    Specification


    Product position

    Big size and high-end one, good for sophisticated applications, for example power industry

    Input numbers

    6, 12, 18, 24, 30, 36, 42, 48 channels

    True universal inputs

    Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
    RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV

    The fastest sampling rate

    o reach 100 msec / dot, default setting at 1 sec / dot

    Math, External channels, Batch,
    Custom display, FDA 21 CFR part 11

    Math in standard version, others in Plus versions

    Display

    12.1" TFT touch screen

    Resolution

    1024 x 768

    MTBF backlight at 25°C

    30,000 hrs

    Backlight

    LED

    Screen saver, Email

    Yes

    A faster CPU

    ARM Cortex-A8, 1Ghz

    Internal flash memory

    256 MB

    RAM

    256 MB

    Ethernet

    Modbus TCP/IP

    RS-232/422/485

    Optional RS-232 or RS-422/485 Modbus RTU

    SD card slot, USB host x 2

    Standard, one USB in the front, another USB in the back

    Pulse input

    Optional DI card offering either logic or high frequency pulse counter

    START / STOP key

    To start / stop record and to turn off the display only, not recorder itself so that a quick start possible

    Calibration correction

    On-site calibration possible, or using handy features of Offset and Gain for correction

    Multilingual

    Convenient for local users by offering 19 languages including English, Japanese,Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable

    PC software Historical Viewer+ Configuration

    Standard

    Extensive software Data Acquisition Studio

    Optional real-time monitoring

    Power supply

    90-250VAC or 11-36VDC

    Outer dimensions (W x H x L mm)

    288 x 288 x 189

    Shorter mounting depth (mm)

    171

    DIN panel cutout (W x H mm)

     281 x 281

    Protection

    IP65 front, IP20 rear

    Operating temperature

    0°C to 50°C

    Storage temperature

    -30°C to 70°C

    Safety standards

    RoHS

    Download

    Visit Download Center to See More Documents & Tools of This Product.     Visit

    FAQ

    Ordering Code

    PR3006(6 analog inputs)
    PR3012(12 analog inputs)
    PR3018(18 analog inputs)
    PR3024(24 analog inputs)
    PR3030(30 analog inputs)
    PR3036(36 analog inputs)
    PR3042(42 analog inputs)
    PR3048(48 analog inputs)
    none
    6 relays
    12 relays
    18 relays
    24 relays
    Digital inputs
    6 channels
    12 channels
    18 channels
    none
    6 channels
    12 channels
    90-25 VAC,50/60 Hz
    11-36 VDC
    12 channels
    standard Ethernet
    Ethernet + RS232
    Ethernet + RS-422/486
    standard version with mathematics
    Plus version 1 with external channels, batch & FDA 21 CFR part 11
    Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
    Plus version 3 including Plus version 1 +2 above
    standard version with mathematics
    Plus version 1 with external channels, batch & FDA 21 CFR part 11
    Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
    Plus version 3 including Plus version 1 +2 above
    free basic software of Historical Viewer & Configuration
    extensive software Data Acquisition Studio (RealTime Viewer + Historical Viewer + Configuration)
    panel mount, no power cord, no power switch
    panel mount, no power cord, power switch
    portable, UL & CSA power cord, power switch
    portable, VDE power cord, power switch
    portable, SAA power cord, power switch
    portable, BS power cord, power switch
    portable, no power cord, power switch
    panel mount, UL & CSA power cord, power switch
    panel mount, VDE power cord, power switch
    panel mount, SAA power cord, power switch
    panel mount, BS power cord, power switch
