US-101-485
https://www.brainchildtw.com/web/image/product.template/87/image_1920?unique=062c7a5

USB轉RS-422/485通訊轉換器

• USB 轉 RS-485 通訊轉換支援
• 即插即用的 USB 介面
• 內建 15KV ESD 靜電保護設計
• 無需外部電源即可運作
• 支援 Windows、Mac 與 Linux 系統

    此組合不存在。

    特色功能

    • 完全符合 USB V1.1 與 USB CDC V1.1 規範
    • 支援 RS-485 兩線式半雙工通訊
    • RS-485 傳輸自動方向控制功能
    • 支援 300 至 115200 bps 傳輸速率
    • 資料位元支援 5、6、7 或 8 位元設定
    • 支援無、偶數、奇數等同位檢查模式
    • 停止位元可選擇 1 或 2 位元
    • 操作溫度範圍:0–55°C
    • 由 USB 介面直接供電
    • 內建傳輸狀態指示燈(TX/RX)
    • 支援 DIN 軌道與壁掛式安裝
    • 符合 RoHS 規範,環保無毒

    智慧型 USB 轉序列通訊轉換器,打造工業級穩定傳輸

    US-101-485 工業用 USB 轉 RS-485 轉換器

    US-101-485 為一款專為工業應用設計的 USB 轉 RS-485 通訊轉換器,體積小巧、安裝簡便,內建自動資料方向控制功能,無需額外流控訊號即可順利進行 RS-485 半雙工通訊。產品具備 15 kV ESD 靜電放電保護,可有效提升在高雜訊與嚴苛電磁環境下的通訊穩定性。
    US-101-485 最高資料傳輸速率可達 1 Mbps,支援多站式(multi-drop)RS-485 通訊架構,適用於整合 PLC、HMI、感測器及各類既有 RS-485 工業設備。裝置採用 USB 直接供電設計,無需外接電源,並支援 Windows、Linux 與 macOS 等主流作業系統(使用前需安裝對應驅動程式),是工業自動化與系統整合應用的理想通訊轉換解決方案。

    ​

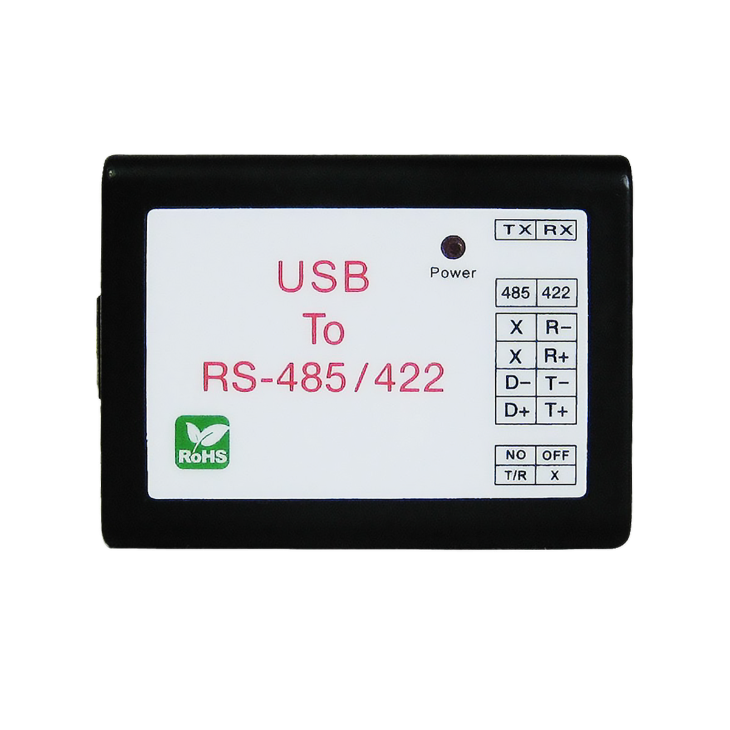

    USB to RS-485/422 接口配置與 LED 指示燈

    US-101-485 提供直覺式面板操作介面,包含 USB Type-A 接頭(作為資料傳輸與供電使用)、RS-485/422 串列 I/O 端子台、終端電阻開關與紅色 SYS 電源指示燈。裝置可直接由 USB 供電(5V、500mA),無需額外電源轉接器,安裝快速簡便。開啟終端電阻開關可提升長距離通訊穩定性,LED 指示燈則提供即時電源與連線狀態指示,適用於工業環境下快速部署與故障排除。

    產業應用

    產品規格

    USB

    晶片組

    Silicon Laboratories CP2102

    相容標準

    USB 1.0 , 1.1 , 2.0

    連接介面

    USB type A

    傳輸速率

     全速 12 Mbps

    序列埠規格

    通訊埠數量

    1 埠(端子台接線方式)

    RS-422

    RxD+ , RxD- ,TxD+ , TxD- .

    RS-485

    Data+ , Data-

    RS-422 , RS-485

    自動偵測功能

    RS-422 , RS-485

    突波保護(Surge Protect)

    接收緩衝區

    576 Byte

    傳送緩衝區

    640 Byte

    傳輸速率(Baud Rate)

    300 ~ 230.4 K bps

    流量控制(Flow Control)

    X-On / X-Off 或硬體控制(Hardware)

    驅動程式作業系統支援

    Windows -98SE / 2000 / XP / Server 2003 / Mac osx / os9 / Linux 2.4 / 2.6

    電源供應

    USB 匯流排供電( 5V )

    尺寸與重量

    尺寸

    55 * 40 * 25 mm ( W * D * H )

    重量

    35 gm

    環境條件

    工作溫度

    0~60℃

    儲藏溫度

    -20 to 85℃

    操作濕度

    5 ~ 95% 相對濕度(無凝結)

    安規認證

    EMC

    FCC Class A, CE Class A

    保固

    9 個月

    資源下載

    前往下載中心查看更多的文件與工具。 ​ Visit​

    訂購代碼
