USB to RS-422/485 converter

• USB to RS-485 Conversion Support
• Plug and Play USB Interface
• Built-in 15KV ESD Protection
• No External Power Supply Required
• Supports Windows, Mac, and Linux

    This combination does not exist.

    Features Applications Specification Download Ordering Code

    Features

    • Fully compliant with USB V1.1 and USB CDC V1.1
    • Supports RS-485 2-wire half-duplex communication
    • Automatic data direction control on RS-485
    • Baud rate support from 300 to 115200 bps
    • Data bit support for 5, 6, 7, or 8 bits
    • Supports None, Even, Odd parity modes
    • Stop bits: 1 or 2 selectable
    • Operating temperature: 0–55°C
    • USB bus-powered operation
    • LED indicator for TX and RX status
    • DIN-rail and wall mount installation optional
    • RoHS compliant for environmental safety

    Intelligent USB-to-Serial Converter for Reliable Industrial Communication

    US-101-485 USB to RS-485 Converter

    The US-101-485 is a compact industrial USB to RS-485 converter designed for reliable serial communication in industrial environments. Featuring automatic data direction control, it enables smooth RS-485 half-duplex communication without the need for additional flow control signals. Built-in 15 kV ESD protection ensures stable operation even in harsh and high-noise electromagnetic conditions.
    With data transmission speeds up to 1 Mbps, the US-101-485 supports multi-drop RS-485 network architectures and is well suited for integration with PLCs, HMIs, sensors, and other legacy RS-485 devices. Powered directly via USB with no external power required, it supports Windows, Linux, and macOS operating systems, making it an ideal communication solution for industrial automation and system integration applications.

    ​

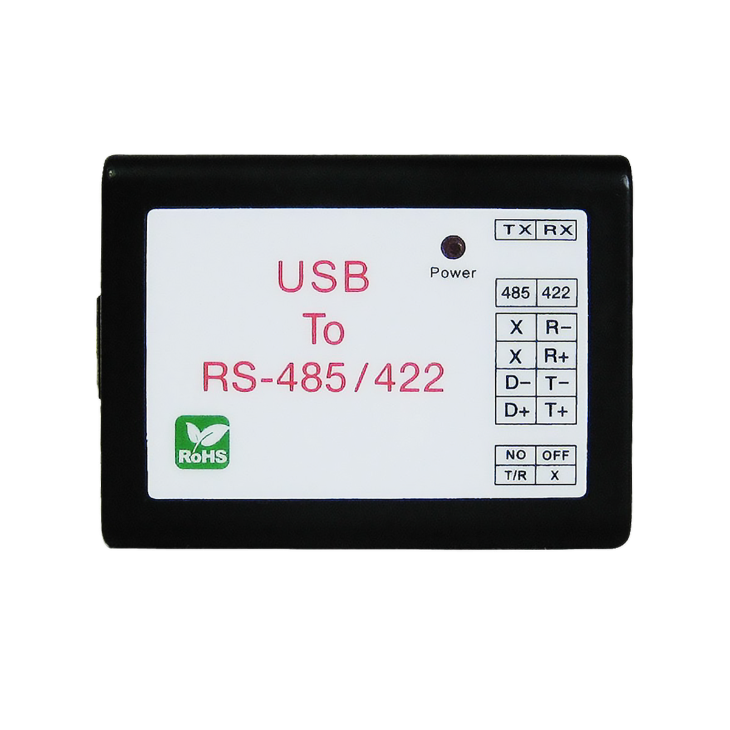

    USB to RS-485/422 port layout with LED indicators

    The US-101-485 features a user-friendly interface, including a USB Type-A port for data and power input, RS-485/422 serial I/O terminal block, termination DIP switches, and a red SYS LED power indicator. Powered directly via a 5V USB connection (500mA), it simplifies setup by eliminating the need for external adapters. The termination switch enhances long-distance communication stability, and the LED indicators provide immediate system status visibility.

    Applications

    Specification

    USB

    Chipset

    Silicon Laboratories CP2102

    Compliant

    USB 1.0 , 1.1 , 2.0

    Connector

    USB type A

    Baud Rates

     Full speed 12 Mbps
    Serial Port

    Port

    1 port ( Terminal Block )

    RS-422

    RxD+ , RxD- ,TxD+ , TxD- .

    RS-485

    Data+ , Data-

    RS-422 , RS-485

    Auto Detect

    RS-422 , RS-485

    Surge Protect

    Receive buffer

    576 Byte

    Transmit buffer

    640 Byte

    Baud Rate

    300 ~ 230.4 K bps

    Flow Control

    X-On / X-Off or Hardware
    Driver OS Support

    Windows -98SE / 2000 / XP / Server 2003 / Mac osx / os9 / Linux 2.4 / 2.6
    Power

    USB Bus Power ( 5V )
    Dimension

    Size

    55 * 40 * 25 mm ( W * D * H )

    Weight

    35 gm
    Environmental

    Operating Temperature

    0~60℃

    Storage Temperature

    -20 to 85℃

    Operating Humidity

    5~95 % RH
    Regulatory Approvals

    EMC

    FCC Class A, CE Class A

    WARRANTY

    9 months
