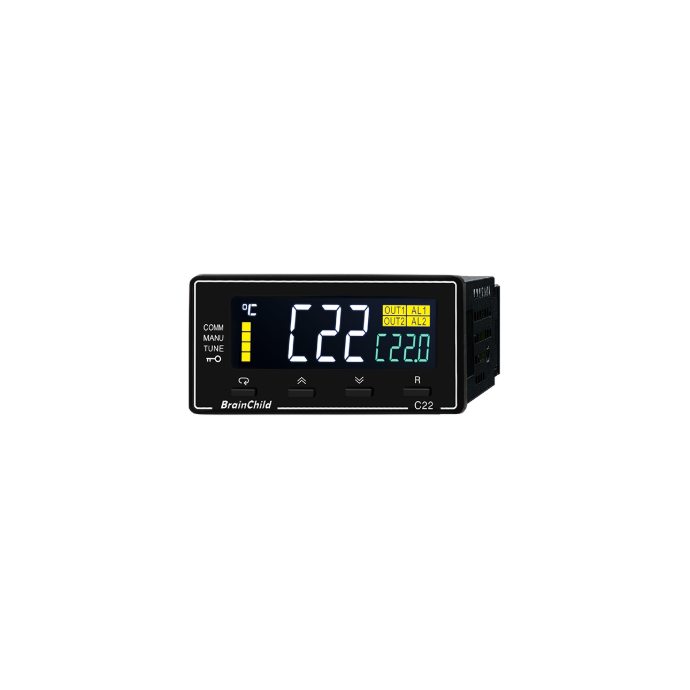

Core 系列 | 48 x 24mm

C22
https://www.brainchildtw.com/web/image/product.template/11/image_1920?unique=062c7a5

PID 溫度控制器

• 18 位元輸入解析,200ms 採樣速度
• 通用輸入:熱電偶、RTD、mA、V
• Fuzzy + PID 控制,具自動整定功能
• 可選配 RS-485 與類比再傳輸輸出
• 具軟啟動與感測器斷線自動切換平均應輸出量輸出

此組合不存在。

特色功能

  • 多彩 LCD 顯示,狀態辨識清晰
  • 4 鍵操作介面,雙 4 位數顯示設計
  • USB 接口,可快速設定與韌體更新
  • 支援兩路繼電器或類比輸出
  • 內建 CT 輸入,可偵測加熱器斷線
  • 具事件輸入,可外部觸發控制
  • 高精度線性輸出,誤差 ±0.05%
  • 軟啟動功能,防止初始溫度過衝
  • Bumpless Transfer on sensor failure
  • 具自動/手動模式,異常自動切換
  • 一階數位濾波器,可調整時間常數
  • 具感測器斷線偵測與快速反應
  • 支援 RS-485 Modbus RTU 通訊
  • 通過 UL、CE、RoHS 等國際認證
  • 面板安裝型,標準 48×24 mm 開孔尺寸

C22  高精度 PID 溫度控制器

小體積、大功能,精準掌控每一度

C22 是專為各類自動化設備設計的小型 PID 溫度控制器,具備 18 位元高解析輸入、200ms 快速取樣速度,以及支援熱電偶、RTD、電壓與電流等多種感測輸入,提供精準穩定的溫度控制效能。

適用於空間有限的設備,如烘烤爐、實驗室儀器與自動化機械,C22 結合模糊邏輯 + PID 控制、軟啟動功能與感測器斷線偵測,確保系統穩定可靠運作。可選配的 RS-485 Modbus RTU 通訊與類比輸出,讓其能無縫整合至各種工業控制系統中。

無論是升級舊有控制器,或設計新一代自動化設備,C22 都能提供現代熱製程應用所需的穩定性、彈性與精準控制能力。


清晰簡潔的面板設計,操作直覺明確

雙數位顯示 + 四鍵配置,精巧面板整合豐富資訊

C22 採用簡潔的四鍵操作設計,搭配上下雙視窗數字顯示,可同時呈現實際值與設定值,減少畫面切換次數,提升日常操作效率。介面邏輯清晰,按鍵回饋流暢,即使是首次使用者也能迅速上手,無需繁瑣學習,適用於高節奏生產線或現場設備快速設定需求。

多色高亮度 LCD 螢幕

彩色顯示,快速判讀系統狀態與異常警示

Core 系列產品搭載高亮度多色 LCD 顯示螢幕,即使在強光或工業現場環境中,也能清晰呈現關鍵資訊。螢幕內建多種色彩提示機制,不同顏色分別對應正常運作、警報異常、輸出啟動等狀態,使用者可一眼辨識系統狀況,有效提升操作效率並降低誤判風險。無論近距離操作或遠端目視,皆能迅速掌握設備狀態,確保即時應對與安全運行。

通用輸入設計,相容多種感測器訊號

支援熱電偶、RTD、電壓與電流訊號輸入

Core 系列控制器支援多種輸入類型,包括熱電偶(J/K/T/E 等)、白金電阻(PT100 DIN/JIS)、電壓(0–10 V)與電流(4–20 mA)訊號,能廣泛對應工業常用感測器,提升系統整合彈性與應用廣度。

彈性輸出選擇,支援控制與警報應用

支援繼電器、固態驅動與類比輸出

Core 系列控制器提供多種輸出選擇,包括繼電器、SSR 脈波電壓與類比輸出(4–20 mA 或 0–10 V),可依需求設定控制輸出或警報功能。部分型號亦支援 CT 輸入與事件觸發輸入,使整體系統更具即時反應能力與整合彈性。

Fuzzy(模糊邏輯) PID 控制技術

聰明穩定又快速,讓控制更勝一籌

模糊邏輯與傳統 PID 控制結合,實現更智慧且具適應性的溫度調節功能。
相較於傳統 PID 控制器需針對每個應用手動微調參數,模糊 PID 能根據實際製程變化即時動態調整控制反應。其優勢在於加快系統穩定速度、降低過衝幅度,並提升對干擾的耐受性,特別適用於對「精度」與「反應速度」要求極高的應用場域。

內建設定埠,快速完成參數調整與更新

採用 Micro USB 接口,輕鬆完成設定與韌體升級

Core 系列內建 Micro USB 設定埠,搭配專用參數設定線與軟體,即可直接透過電腦進行快速參數調整與韌體更新,無須經由系統配線供電即可執行,極大提升設定效率與工程便利性。此設計讓技術人員可在現場快速設定,也可預先離線配置,大幅簡化安裝流程並提升維護彈性。

專業設定軟體 BC-SET Pro,快速完成控制器參數調整

專為 Core 系列設計,支援參數設定與韌體更新

BC-SET Pro 是 偉林電子 Core系列溫度控制器專用的參數設定軟體,操作介面簡潔直覺。透過 USB 設定線(PA98-1 與 CC98-1),使用者可快速完成控制器的參數設定與韌體升級,並能將設定內容複製至多台設備,大幅提升設定效率。軟體支援離線配置與多組設定檔儲存,特別適用於 OEM 生產、自動化整合與現場工程維護作業。

批次讀寫功能

BC-SET 可同時連接多台相同型號的控制器,僅需設定節點範圍,即可一次性批次讀取與寫入參數,有效提升量產或系統部署效率。

清晰的系統選單與操作介面

操作選單包含常用功能如重新掃描(F5)、讀取資料(F6)、寫入資料(F7)、寫入多筆(F8)與通訊參數設定(F9),搭配快捷鍵提升操作流暢度。

通訊參數設定

通訊設定畫面提供埠號、傳輸速率、奇偶校驗、資料位元與停止位元等項目,並具備「預設值」,降低設定錯誤風險。

專屬可視化編輯器

針對具備程序控制功能的溫度控制器,BC-SET提供可視化編輯器,分段管理溫控曲線參數,可直接讀取/寫入控制器資料,方便測試與驗證使用。

產業應用

產品規格

含安裝夾具尺寸


 不含安裝夾具尺寸

電源

電源

90 ~ 250 VAC, 47 ~ 63 Hz ; 11 to 40 VDC / 20 ~ 28 VAC, 47 ~ 63 Hz

消耗功率

8VA, 最大4W

訊號輸入

類別

熱電偶(J、K、T、E、B、R、S、N、L、U、P、C、D)、RTD(PT100(DIN)、PT100(JIS))、電流(mA)、電壓(V)

分辨率

18 Bits

採樣速率

5 次 / 秒 (200毫秒)

額定值

最小 -2VDC , 最大 12VDC

輸入特性

 類別

範圍

精度 @ 25°C

輸入阻抗

J

-120°C ~ 1000°C( -184°F - 1,832°F)

±2°C

2.2 MΩ

K

-200°C ~ 1370°C (-328°F - 2498°F)

±2°C

2.2 MΩ

T

-250°C ~ 400°C ( -418°F - 752°F )

±2°C

2.2 MΩ

E

-100°C ~ 900°C( -148°F - 1652°F )

±2°C

2.2 MΩ

B

0°C ~ 1820°C( 32°F - 3308°F )

±2°C( 200°C ~ 1800°C )

2.2 MΩ

R

0°C ~ 1767.8°C( 32°F - 3214°F )

±2°C

2.2 MΩ

S

0°C ~ 1767.8°C( 32°F - 3214°F )

±2°C

2.2 MΩ

N

-250°C ~ 1300°C( -418°F - 2372°F)

±2°C

2.2 MΩ

L

-200°C ~ 900°C( -328°F - 1652°F )

±2°C

2.2 MΩ

U

-200°C ~ 600°C (-328°F - 1112°F)

±2°C

2.2 MΩ

P

0°C ~ 1395°C( 32°F - 2543°F )

±2°C

2.2 MΩ

C

0°C ~ 2300°C( 32°F - 4172°F )

±2°C

2.2 MΩ

D

0°C ~ 2300°C( 32°F - 4172°F )

±2°C

2.2 MΩ

PT100(DIN)

-200°C ~ 850°C( -328°F - 1562°F )

±0.4°C

1.3KΩ

PT100(JIS)

-200°C ~ 600°C( -328°F - 1112°F )

±0.4°C

1.3KΩ

mA

-3mA ~ 27mA

±0.05%

2.5Ω

V

-1.3V ~ 11.5V

±0.05%

1.5MΩ

溫度效應

mA輸入: 3.0µV /°C,其它輸入: 1.5µV /°C

傳感器導線阻抗效應

熱電偶(Thermocouple): 0.2 µV /Ω, 三線式 RTD: 兩條導線阻值差異造成 2.6°C /Ω 的誤差, 二線式 RTD: 兩條導線阻值總和造成 2.6°C /Ω 的誤差

易燃電流

200nA

共模抑制比(CMRR)

120 dB

常模抑制比(NMRR)

55dB

傳感器斷裂偵測

TC,RTD輸入:傳感器呈開路狀態時, RTD輸入:傳感器呈短路狀態時, 4-20mA輸入:訊號輸入小於1mA時, 1-5V輸入:訊號輸入小於0.25V時, 其他輸入不適用

傳感器斷裂反應時間

TC、RTD輸入:4秒內,1-5V/4-20mA輸入:0.1秒

遠程遙控值輸入

遠程遙控選項

無

事件輸入

事件輸入數量

1

低邏輯位准

最小-10V , 最大0.8V

高邏輯位准

最小2V , 最大10V

功能選項

請參考操作手冊

比流器(CT) 輸入

型號

CT98-1

精度

範圍值的±2% ,大誤差±1位數

輸入阻抗

294Ω

量測範圍

0 ~ 50 VAC

CT輸出

0 ~ 5 VDC

CT 安裝

螺裝式

採樣速率

1 次/秒

第一組輸出 /第二組輸出

類別

繼電器,脈衝電壓,線性輸出(電壓、電流)

繼電器額定值

額定電流2A, 240V AC,壽命周期200000次

脈衝電壓

5V, 電流阻抗限制66Ω

線性輸出分辨率

15 Bits

線性輸出調節

滿載時變化少於0.02%

線性輸出設定時間

0.1 秒 ( 穩定度達 99.9%)

隔離失效電壓

1000 VAC

溫度效應

範圍值的±0.01%/ °C

線性輸出負載能力

電流:最大500Ω, 電壓:最小10KΩ

警報

繼電器類別

A式接點

額定值

額定電流2A, 240V AC,壽命周期200000次

警報功能

持溫計時, 偏差高/低警報, 偏差帶外/內警報, 高/低限警報

警報模式

常態警報, 栓鎖警報, 限制警報, 栓鎖限制警報

持溫計時

0.1 ~ 4553.6分鐘

通信功能

介面

RS-485

通訊協議

Modbus RTU (Slave 模式)

地址

1 - 247

傳輸速率

2.8KBPS - 115.2 KBPS

檢查位

無 (None), 偶數同位 (Even), 奇數同位(Odd)

停止位

1 或 2 Bits

數據位

7 或 8 Bits

通訊緩衝存儲器

160 Bytes

模擬再傳送

輸出訊號

4-20 mA, 0-20 mA,0 - 10V

分辨率

15 Bits

精度

範圍值的±0.05%  ± 0.0025% / °C

負載阻抗

電流輸出:0 - 500Ω, 電壓輸出: 最小10KΩ

輸出調節

滿載時變化少於0.01%

輸出設定時間

0.1秒 (穩定度達 99.9%)

隔離失效電壓

最小1000VAC

積分線性誤差

範圍值的±0.005%

溫度效應

範圍值的±0.0025% /°C

低飽和點

0mA 或 0V

高飽和點

22.2 mA 或 5.55 V, 最小 11.1 V

線性輸出範圍

0 - 22.2mA (0 - 20mA/4 - 20mA), 0 - 5.55V (0 - 5V, 1 - 5V),0 - 11.1V (0 - 10V)

使用接口

按鍵

4 鍵

顯示類型

4 位數 LCD 顯示

顯示數目

2

上方顯示尺吋

0.4”(10mm)

下方顯示尺吋

0.19”(4.8mm)

程序端口

介面

Micro USB

計算機通訊功能

自動設定, 校正和韌體升級

控制模式

第一組輸出

反向 (制熱) 或 正向 (制冷) 控制

第二組輸出

PID制冷控制, 制冷比例帶 50 – 300% , 制冷分離帶 -36.0 - 36.0 %

ON-OFF控制

可設定遲滯帶之值0.1 - 90.0 (°F ) (PB要設定為0)

比例控制(P 或 PD)

可調整輸出補償量0 - 100.0 %

PID控制

模糊邏輯修正, 比例帶: 0.1 ~ 900.0°F, 積分時間: 0 – 3600 秒, 微分時間: 0 - 360.0 秒

比例周期

0.1 ~ 90.0 秒

手動控制

制熱(MV1) 和 制冷(MV2)

自動演算調整

冷啟動或熱機時均可執行

錯誤模式

傳感器斷線或A-D轉換功能故障時可自動切換到手動模式

斜率控制

0 - 900.0°F/分鐘 或  0 - 900.0°F/小時

數位濾波

功能

一階

濾波時間常數

可設定0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 秒

控制程序

功能可用性

無

程序數量

無

每個程序的段數 無
工作環境和物理條件

工作溫度

-10°C ~ 50°C

儲藏溫度

-40°C ~ 60°C

濕度

0 ~ 90 % RH (無凝結狀態)

高度限制

最大2000公尺

污染級數

2級

絕緣阻抗

最小20MΩ (@500VDC時)

耐壓性

一分鐘2000VAC, 50/60 Hz

抗震性

兩小時10 ~ 55 Hz, 10m/s2

抗衝擊性

200 公尺 / 秒²(20g)

外殼

耐燃級聚碳酸酯

安裝固定

盤面固定

尺寸 (W*H*D) (mm)

48*24*92

盤面後深度 (mm)

84

開孔尺寸 (mm)

45*22.2

重量 (grams)

120

安全規範

安規

UL61010-1, EN61010-1 (IEC1010-1), RoHS, REACH

防護等級

IP50 面板, 外殼與端子座IP20, 皆適用於室內

EMC

EN61326

資源下載

前往下載中心查看更多的文件與工具。    前往

常見問題

C22 是否支援 RS-485 Modbus 通訊?

C22 可選配 RS-485 通訊模組,支援 Modbus RTU 協定,方便整合至 PLC 或 SCADA 系統中。

C22 支援熱電偶(J/K/T/E 等)、白金電阻(PT100),亦支援 0–10V 電壓與 4–20 mA 電流訊號輸入。

C22 可透過面板按鍵操作或使用 BC-SET Pro 設定軟體,透過內建的 USB 設定埠快速完成參數設定。

C22 是否具備感測器斷線偵測功能?

有的,C22 可自動偵測感測器開路或短路狀況,並顯示錯誤碼,協助使用者快速排除問題。

C22 適合用於空間狹小的面板安裝嗎?

非常適合,C22 採用 48×24 mm 小型面板設計,特別適用於空間有限的控制箱或 OEM 設備整合需求。
