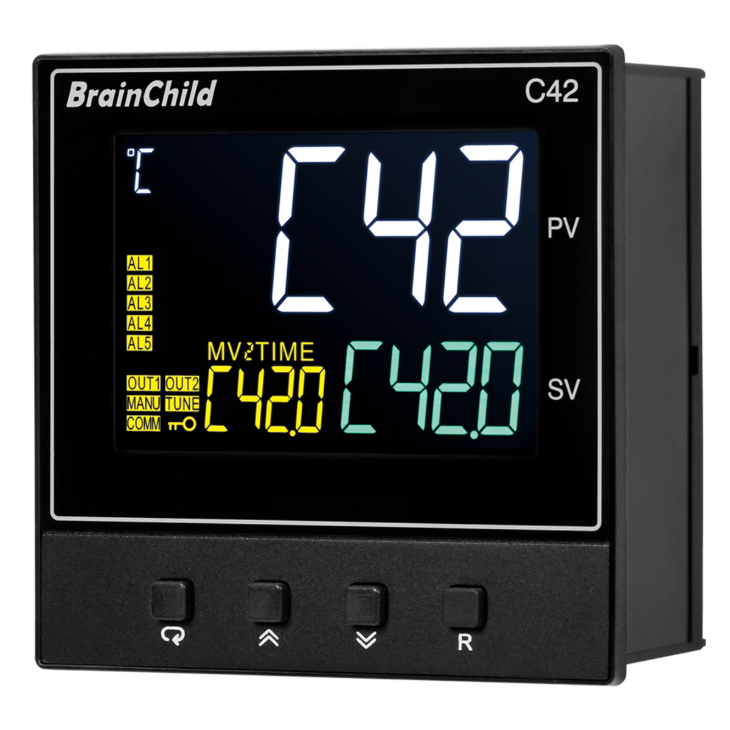

Core 系列 | 96 x 96mm

C42
https://www.brainchildtw.com/web/image/product.template/48/image_1920?unique=062c7a5

PID 溫度控制器

• 雙視窗顯示 + 四鍵操作
• 支援 T/C、RTD、mA、V 輸入
• 18 位元解析度、200ms 採樣
• Fuzzy + PID 控制,自動整定
• 可選 RS-485 通訊與類比輸出

此組合不存在。

特色功能

  • 96×96 mm 標準面板,清晰易讀
  • 多彩 LCD 顯示,狀態辨識迅速
  • 支援兩組繼電器或類比輸出
  • 可擴充 CT 偵測加熱器斷線異常
  • 最多支援 6 組事件輸入
  • 軟啟動與無衝擊切換功能
  • 具備感測器斷線自動偵測
  • 具備最多 16 段程式設定功能
  • 內建 USB 設定埠,快速參數調整
  • 支援 RS-485 Modbus RTU 通訊
  • 警報模式多元  (偏差、範圍、保持)
  • 類比輸出 4  ~ 20 mA / 0 ~ 10 V 可選
  • 濾波器時間常數可調整
  • 通過 UL、CE、RoHS、REACH 認證
  • 適用於電爐、乾燥機、自動化設備

C42  高精度溫度控制器

96×96 mm 面板設計,功能齊全,滿足各種工業控制需求

C42 是一款功能齊全的 PID 溫度控制器,專為進階工業應用設計。其採用 96×96 mm 大尺寸面板,具備高可視性雙數位顯示與多彩 LCD 狀態指示燈,可即時顯示運作狀態、設定值與警報資訊,提升現場操作效率與安全性。
C42 支援通用輸入類型,包括熱電偶、RTD(白金電阻)、電壓與電流訊號,並內建 18 位元高解析 A/D 轉換器,可快速且精確地回應各種感測器輸入,確保溫度控制穩定。搭載模糊邏輯 + PID 控制演算法與自動整定功能,即使在製程變動頻繁的環境中,也能自動優化參數,保持控制精度。

此外,C42 提供 RS-485 Modbus 通訊、類比訊號再傳輸功能,並可選配 Profile 多段控溫功能(具備 Ramp/Soak 段落設定),滿足 OEM 製造商、自動化系統整合商、機械設備商對彈性與高階控制的多元需求。

C42 亦支援事件輸入、CT 加熱器斷線偵測、靈活的繼電器/SSR/類比輸出模組選擇,適用於電熱爐、乾燥機、實驗設備、自動控制面板等多種應用。它以穩定性能為核心,結合操作便利性與功能彈性,是現代工業溫控應用中的高效解決方案。


高效率直覺介面設計

四鍵配置與雙視窗顯示,簡化日常操作流程

C42 採用簡潔直覺的操作介面,專為高效率與精確控溫而設計,適用於多種工業應用現場。面板上的四鍵配置可輕鬆進行參數瀏覽與設定,不需複雜操作即可快速進入進階功能。雙排四位數字顯示可同時顯示實際值與設定值,無需切換畫面,降低誤操作風險。清晰的選單邏輯與按鍵回饋設計,讓新手快速上手,技術人員亦能流暢完成各項設定。無論應用於產線設備、測試儀器或嵌入式控制系統,C42 皆能提供穩定、直覺且高效的操作體驗。

多色高亮度 LCD 螢幕

彩色顯示,快速判讀系統狀態與異常警示

Core 系列產品搭載高亮度多色 LCD 顯示螢幕,即使在強光或工業現場環境中,也能清晰呈現關鍵資訊。螢幕內建多種色彩提示機制,不同顏色分別對應正常運作、警報異常、輸出啟動等狀態,使用者可一眼辨識系統狀況,有效提升操作效率並降低誤判風險。無論近距離操作或遠端目視,皆能迅速掌握設備狀態,確保即時應對與安全運行。

通用輸入設計,相容多種感測器訊號

支援熱電偶、RTD、電壓與電流訊號輸入

Core 系列控制器支援多種輸入類型,包括熱電偶(J/K/T/E 等)、白金電阻(PT100 DIN/JIS)、電壓(0–10 V)與電流(4–20 mA)訊號,能廣泛對應工業常用感測器,提升系統整合彈性與應用廣度。

彈性輸出選擇,支援控制與警報應用

支援繼電器、固態驅動與類比輸出

Core 系列控制器提供多種輸出選擇,包括繼電器、SSR 脈波電壓與類比輸出(4–20 mA 或 0–10 V),可依需求設定控制輸出或警報功能。部分型號亦支援 CT 輸入與事件觸發輸入,使整體系統更具即時反應能力與整合彈性。

Fuzzy(模糊邏輯) PID 控制技術

聰明穩定又快速,讓控制更勝一籌

模糊邏輯與傳統 PID 控制結合,實現更智慧且具適應性的溫度調節功能。
相較於傳統 PID 控制器需針對每個應用手動微調參數,模糊 PID 能根據實際製程變化即時動態調整控制反應。其優勢在於加快系統穩定速度、降低過衝幅度,並提升對干擾的耐受性,特別適用於對「精度」與「反應速度」要求極高的應用場域。

內建設定埠,快速完成參數調整與更新

採用 Micro USB 接口,輕鬆完成設定與韌體升級

Core 系列內建 Micro USB 設定埠,搭配專用參數設定線與軟體,即可直接透過電腦進行快速參數調整與韌體更新,無須經由系統配線供電即可執行,極大提升設定效率與工程便利性。此設計讓技術人員可在現場快速設定,也可預先離線配置,大幅簡化安裝流程並提升維護彈性。

專業設定軟體 BC-SET Pro,快速完成控制器參數調整

專為 Core 系列設計,支援參數設定與韌體更新

BC-SET Pro 是 偉林電子 Core系列溫度控制器專用的參數設定軟體,操作介面簡潔直覺。透過 USB 設定線(PA98-1 與 CC98-1),使用者可快速完成控制器的參數設定與韌體升級,並能將設定內容複製至多台設備,大幅提升設定效率。軟體支援離線配置與多組設定檔儲存,特別適用於 OEM 生產、自動化整合與現場工程維護作業。

批次讀寫功能

BC-SET 可同時連接多台相同型號的控制器,僅需設定節點範圍,即可一次性批次讀取與寫入參數,有效提升量產或系統部署效率。

清晰的系統選單與操作介面

操作選單包含常用功能如重新掃描(F5)、讀取資料(F6)、寫入資料(F7)、寫入多筆(F8)與通訊參數設定(F9),搭配快捷鍵提升操作流暢度。

通訊參數設定

通訊設定畫面提供埠號、傳輸速率、奇偶校驗、資料位元與停止位元等項目,並具備「預設值」,降低設定錯誤風險。

專屬可視化編輯器

針對具備程序控制功能的溫度控制器,BC-SET提供可視化編輯器,分段管理溫控曲線參數,可直接讀取/寫入控制器資料,方便測試與驗證使用。

產業應用

產品規格

含安裝夾具尺寸


 不含安裝夾具尺寸

電源

電源

90 ~ 250 VAC, 47 ~ 63 Hz ; 11 to 40 VDC / 20 ~ 28 VAC, 47 ~ 63 Hz

消耗功率

8VA, 最大4W

訊號輸入

類別

熱電偶(J,K,T,E,B,R,S,N,L,U,P,C,D), RTD(PT100(DIN), PT100(JIS)), 電流(mA), 電壓(V)

分辨率

18 Bits

採樣速率

5 次 / 秒 (200毫秒)

額定值

最小 -2VDC , 最大 12VDC

輸入特性

 類別

範圍

精度 @ 25°C

輸入阻抗

J

-120°C ~ 1000°C( -184°F - 1,832°F)

±2°C

2.2 MΩ

K

-200°C ~ 1370°C (-328°F - 2498°F)

±2°C

2.2 MΩ

T

-250°C ~ 400°C ( -418°F - 752°F )

±2°C

2.2 MΩ

E

-100°C ~ 900°C( -148°F - 1652°F )

±2°C

2.2 MΩ

B

0°C ~ 1820°C( 32°F - 3308°F )

±2°C( 200°C ~ 1800°C )

2.2 MΩ

R

0°C ~ 1767.8°C( 32°F - 3214°F )

±2°C

2.2 MΩ

S

0°C ~ 1767.8°C( 32°F - 3214°F )

±2°C

2.2 MΩ

N

-250°C ~ 1300°C( -418°F - 2372°F)

±2°C

2.2 MΩ

L

-200°C ~ 900°C( -328°F - 1652°F )

±2°C

2.2 MΩ

U

-200°C ~ 600°C (-328°F - 1112°F)

±2°C

2.2 MΩ

P

0°C ~ 1395°C( 32°F - 2543°F )

±2°C

2.2 MΩ

C

0°C ~ 2300°C( 32°F - 4172°F )

±2°C

2.2 MΩ

D

0°C ~ 2300°C( 32°F - 4172°F )

±2°C

2.2 MΩ

PT100(DIN)

-200°C ~ 850°C( -328°F - 1562°F )

±0.4°C

1.3KΩ

PT100(JIS)

-200°C ~ 600°C( -328°F - 1112°F )

±0.4°C

1.3KΩ

mA

-3mA ~ 27mA

±0.05%

2.5Ω

V

-1.3V ~ 11.5V

±0.05%

1.5MΩ

溫度效應

mA輸入: 3.0µV /°C,其它輸入: 1.5µV /°C

傳感器導線阻抗效應

熱電偶(Thermocouple): 0.2 µV /Ω, 三線式 RTD: 兩條導線阻值差異造成 2.6°C /Ω 的誤差, 二線式 RTD: 兩條導線阻值總和造成 2.6°C /Ω 的誤差

易燃電流

200nA

共模抑制比(CMRR)

120 dB

常模抑制比(NMRR)

55dB

傳感器斷裂偵測

熱電偶與 RTD 輸入類型可偵測開路狀況, RTD 輸入亦可偵測短路。對於 4 ~ 20 mA 輸入, 當電流低於 1 mA 時視為斷線;對於 1 ~ 5 V 輸入, 當電壓低於 0.25 V 時視為斷線。

傳感器斷裂反應時間

熱電偶 與 RTD 輸入:4 秒內偵測, 4 ~ 20 mA 與 1 ~ 5 V 輸入:0.1 秒內偵測

遠程遙控值輸入

遠程遙控選項

可

類別

線性電流,線性電壓

範圍

-3mA ~ 27mA,  -1.3V ~ 11.5V

精度

±0.05 %

輸入阻抗

電流: 2.5Ω, 電壓:1.5MΩ

分辨率

18 Bits

採樣速率

1.66 次/秒

額定值

電流輸入:最大280mA , 電壓輸入:最大12VDC

溫度效應

電壓輸入:±1.5µV/°C , 電流輸入: ±3.0µV/°C

傳感器斷裂偵測

對於 4 ~ 20 mA 輸入:低於 1 mA, 對於 1 ~ 5 V 輸入:低於 0.25 V, 其他輸入類型:不支援斷線偵測功能

傳感器斷裂反應時間

0.1 秒

事件輸入

事件輸入數量

6

低邏輯位准

最小-10V , 最大0.8V

高邏輯位准

最小2V , 最大10V

功能選項

請參考操作手冊

比流器(CT) 輸入

型號

CT98-1

精度

範圍值的±2% ,大誤差±1位數

輸入阻抗

294Ω

量測範圍

0 ~ 50VAC

CT輸出

0 ~ 5VDC

CT 安裝

螺裝式

採樣速率

1 次/秒

第一組輸出 /第二組輸出

類別

繼電器, 脈衝電壓, 線性輸出 (電壓,電流)

繼電器額定值

2A, 240VAC, 使用壽命200000次

脈衝電壓

5V, 電流阻抗限制66Ω

線性輸出分辨率

15 Bits

線性輸出調節

滿載時變化少於0.02%

線性輸出設定時間

 0.1 秒 ( 穩定度達 99.9%)

隔離失效電壓

1000 VAC

溫度效應

範圍值的±0.01%/ °C

線性輸出負載能力

電流:最大500Ω, 電壓:最小10KΩ

警報

繼電器類別

A式接點

額定值

2A, 240VAC, 使用壽命200000次

警報功能

持溫計時, 偏差高/低警報, 偏差帶外/內警報, 高/低限警報

警報模式

常態警報, 栓鎖警報, 限制警報, 栓鎖限制警報

持溫計時

0.1 ~ 4553.6分鐘

通信功能

介面

RS-485

通訊協議

Modbus RTU (Slave 模式)

地址

1 - 247

傳輸速率

2.8KBPS ~ 115.2 KBPS

檢查位

無 (None), 偶數同位 (Even), 奇數同位(Odd)

停止位

1 或 2 Bits

數據位

7 或 8 Bits

通訊緩衝存儲器

160 Bytes

模擬再傳送

輸出訊號

4 ~20 mA, 0 ~ 20 mA,0 - 10V

分辨率

15 Bits

精度

範圍值的±0.05%  ± 0.0025% / °C

負載阻抗

電流輸出:0 - 500Ω, 電壓輸出: 最小10KΩ

輸出調節

滿載時變化少於0.01%

輸出設定時間

 0.1秒 (穩定度達 99.9%)

隔離失效電壓

最小1000VAC

積分線性誤差

範圍值的±0.005%

溫度效應

範圍值的±0.0025% /°C

低飽和點

0mA 或 0V

高飽和點

22.2 mA 或 5.55 V, 最小 11.1 V

線性輸出範圍

0 ~ 22.2mA (0 ~ 20mA / 4 ~ 20mA), 0 ~ 5.55V (0 ~ 5V, 1 ~ 5V),0 ~ 11.1V (0 ~ 10V)

使用接口

按鍵

4 鍵

顯示類型

4 位數 LCD 顯示

顯示數目

3

上方顯示尺吋

0.98”(25mm)

下方顯示尺吋

0.55”(14mm)

程序端口

介面

Micro USB

計算機通訊功能

自動設定, 校正和韌體升級

控制模式

第一組輸出

反向 (制熱) 或 正向 (制冷) 控

第二組輸出

PID制冷控制, 制冷比例帶 50 – 300% , 制冷分離帶 -36.0 - 36.0 %

ON-OFF控制

可設定遲滯帶之值0.1 - 90.0 (°F ) (PB要設定為0)

比例控制(P 或 PD)

可調整輸出補償量0 - 100.0 %

PID控制

模糊邏輯修正, 比例帶: 0.1 ~ 900.0°F, 積分時間: 0 – 3600 秒, 微分時間: 0 - 360.0 秒

比例周期

0.1 ~ 90.0 秒

手動控制

制熱(MV1) 和 制冷(MV2)

自動演算調整

冷啟動或熱機時均可執行

錯誤模式

傳感器斷線或A-D轉換功能故障時可自動切換到手動模式

斜率控制

0 - 900.0°F/分鐘 或  0 - 900.0°F/小時

數位濾波

功能

一階

濾波時間常數

可設定0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 秒

控制程序

功能可用性

選配

程序數量

 4 / 2 / 1

每個程序的段數

4 / 8 / 16

工作環境和物理條件

工作溫度

-10°C ~ 50°C

儲藏溫度

-40°C ~ 60°C

濕度

0 ~ 90 % RH (無凝結狀態)

高度限制

最大2000公尺

污染級數

2級

絕緣阻抗

最小20MΩ (@500VDC時)

耐壓性

一分鐘2000VAC, 50/60 Hz

抗震性

兩小時10 ~ 55 Hz, 10m/s2

抗衝擊性

200 公尺 / 秒²(20g)

外殼

耐燃級聚碳酸酯

安裝固定

盤面固定

尺寸 (W*H*D) (mm)

96*96*59

盤面後深度 (mm)

50

開孔尺寸 (mm)

92*92

重量 (grams)

290

安全規範

安規

UL61010-1, EN61010-1 (IEC1010-1), RoHS, REACH

防護等級

IP50 面板, 外殼與端子座IP20, 皆適用於室內

EMC

EN61326

資源下載

前往下載中心查看更多的文件與工具。    前往

常見問答

是的,C42 支援 RS-485 通訊,符合 Modbus RTU 協定,方便與 PLC、人機介面及 SCADA 系統整合使用。

C42 是否具備多段溫度程序控制功能?

有的,C42 內建程序控制功能,可設定最多 16 段升降溫與保溫段落,適用於烘烤爐、熱處理等應用。

C42 支援哪些感測器類型?

C42 支援熱電偶(J/K/T/E 等)、白金電阻(PT100),以及類比輸入如 4–20 mA 與 0–10 V,感測器相容性高。

C42 是否能透過電腦進行參數設定?

是的,C42 具備 USB 設定埠,可搭配 BC-SET Pro 軟體進行快速設定與韌體升級。

C42 提供哪些輸出模式?

C42 提供繼電器輸出、SSR 脈波輸出及類比輸出(4–20 mA 或 0–10 V),最多可設定兩組輸出通道。
