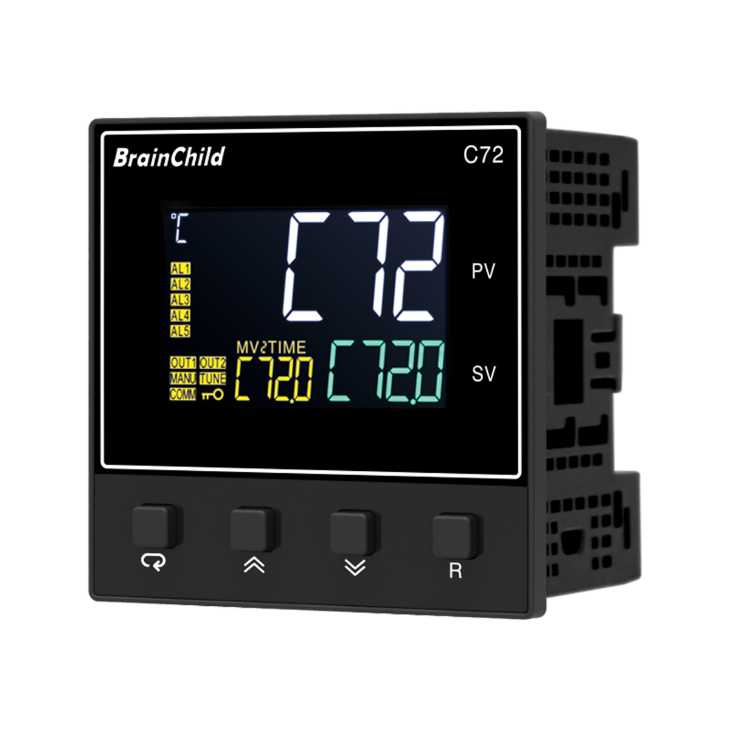

Core 系列 | 72 x 72mm

C72
https://www.brainchildtw.com/web/image/product.template/50/image_1920?unique=062c7a5

• 標準 72×72 mm DIN 面板尺寸
• Fuzzy + PID 控制,自動整定功能
• 支援熱電偶、RTD、電壓與電流輸入
• 雙排數位顯示與多彩狀態指示燈
• 可選配 RS-485 與類比輸出功能

此組合不存在。

特色功能

  • 高對比 LCD 顯示,清晰易讀
  • 支援 16 段升降溫程序控制
  • 最多支援 2 組事件輸入
  • 提供繼電器、SSR、類比輸出選項
  • 具感測器斷線與加熱器異常偵測
  • 支援軟啟動與無衝擊切換功能
  • 18-bit 精度與 200ms 快速取樣
  • 支援 USB + BC-SET Pro 軟體設定
  • 內建多樣警報條件與控制邏輯
  • 兩組輸出可獨立設定不同模式
  • 通過 CE、RoHS、REACH 等安規認證
  • 適用於烘烤爐、熱處理等應用系統
  • 類比再傳輸支援連接至 PLC 輸入端
  • 支援橫向與縱向面板安裝方式
  • 可透過事件輸入進行邏輯控制觸發

C72 內建強大製程控制功能

72×72 mm 外型,具備智慧調整與多樣化輸出配置

C72 是一款高效能 PID 溫度控制器,採用 72×72 mm 標準面板設計,適用於要求穩定反應與靈活調整的工業控制場域。內建模糊邏輯與傳統 PID 控制演算法,搭配自動整定功能,即使在製程條件變化頻繁時,也能快速達成溫度穩定與精準控制。

WC72 支援熱電偶、RTD、電壓與電流等輸入,並提供繼電器、SSR 與類比輸出等多種輸出形式,可對應多元應用。亦可選配 RS-485 Modbus RTU 通訊、事件輸入與程序控制(Ramp/Soak)功能,擴充性強。搭配雙數位顯示、多彩狀態指示與堅固面板結構,C72 是滿足進階控溫需求的穩定可靠之選。


簡潔面板配置,操作直觀高效

72×72 mm 外型搭配符合人體工學的按鍵介面

C72 採用直覺化的操作面板設計,結合精巧尺寸與清晰有序的控制介面。72×72 mm 的外型尺寸符合工業面板安裝標準,配備四鍵操作按鈕,具備良好的按壓回饋與邏輯排列,讓使用者能快速切換模式與設定參數。整體介面強調操作效率與使用簡易性,有助於縮短學習曲線並降低誤操作風險。雖然具備 LCD 顯示功能,但此區段重點著重於鍵控導向的使用體驗,特別適合生產現場與 OEM 系統整合需求。

多色高亮度 LCD 螢幕

彩色顯示,快速判讀系統狀態與異常警示

Core 系列產品搭載高亮度多色 LCD 顯示螢幕,即使在強光或工業現場環境中,也能清晰呈現關鍵資訊。螢幕內建多種色彩提示機制,不同顏色分別對應正常運作、警報異常、輸出啟動等狀態,使用者可一眼辨識系統狀況,有效提升操作效率並降低誤判風險。無論近距離操作或遠端目視,皆能迅速掌握設備狀態,確保即時應對與安全運行。

通用輸入設計,相容多種感測器訊號

支援熱電偶、RTD、電壓與電流訊號輸入

Core 系列控制器支援多種輸入類型,包括熱電偶(J/K/T/E 等)、白金電阻(PT100 DIN/JIS)、電壓(0–10 V)與電流(4–20 mA)訊號,能廣泛對應工業常用感測器,提升系統整合彈性與應用廣度。

彈性輸出選擇,支援控制與警報應用

支援繼電器、固態驅動與類比輸出

Core 系列控制器提供多種輸出選擇,包括繼電器、SSR 脈波電壓與類比輸出(4–20 mA 或 0–10 V),可依需求設定控制輸出或警報功能。部分型號亦支援 CT 輸入與事件觸發輸入,使整體系統更具即時反應能力與整合彈性。

Fuzzy(模糊邏輯) PID 控制技術

聰明穩定又快速,讓控制更勝一籌

模糊邏輯與傳統 PID 控制結合,實現更智慧且具適應性的溫度調節功能。
相較於傳統 PID 控制器需針對每個應用手動微調參數,模糊 PID 能根據實際製程變化即時動態調整控制反應。其優勢在於加快系統穩定速度、降低過衝幅度,並提升對干擾的耐受性,特別適用於對「精度」與「反應速度」要求極高的應用場域。

支援外部系統控制的遠端設定輸入

Accepts analog signals for dynamic setpoint change

C72 溫度控制器支援 Remote Setpoint(RSP,遠端設定值)功能,可透過來自 PLC、類比控制器或感測器等外部類比訊號,即時調整溫度設定點。此功能支援標準 4–20 mA 或 0–10 V 類比輸入,特別適用於多區段同步控制、自動化製程整合等應用。透過 RSP 模式,Core 系列控制器在面對變動製程條件時展現更高彈性與適應力,確保溫度控制精準穩定。

內建設定埠,快速完成參數調整與更新

採用 Micro USB 接口,輕鬆完成設定與韌體升級

Core 系列內建 Micro USB 設定埠,搭配專用參數設定線與軟體,即可直接透過電腦進行快速參數調整與韌體更新,無須經由系統配線供電即可執行,極大提升設定效率與工程便利性。此設計讓技術人員可在現場快速設定,也可預先離線配置,大幅簡化安裝流程並提升維護彈性。

專業設定軟體 BC-SET Pro,快速完成控制器參數調整

專為 Core 系列設計,支援參數設定與韌體更新

BC-SET Pro 是 偉林電子 Core系列溫度控制器專用的參數設定軟體,操作介面簡潔直覺。透過 USB 設定線(PA98-1 與 CC98-1),使用者可快速完成控制器的參數設定與韌體升級,並能將設定內容複製至多台設備,大幅提升設定效率。軟體支援離線配置與多組設定檔儲存,特別適用於 OEM 生產、自動化整合與現場工程維護作業。

批次讀寫功能

BC-SET 可同時連接多台相同型號的控制器,僅需設定節點範圍,即可一次性批次讀取與寫入參數,有效提升量產或系統部署效率。

清晰的系統選單與操作介面

操作選單包含常用功能如重新掃描(F5)、讀取資料(F6)、寫入資料(F7)、寫入多筆(F8)與通訊參數設定(F9),搭配快捷鍵提升操作流暢度。

通訊參數設定

通訊設定畫面提供埠號、傳輸速率、奇偶校驗、資料位元與停止位元等項目,並具備「預設值」,降低設定錯誤風險。

專屬可視化編輯器

針對具備程序控制功能的溫度控制器,BC-SET提供可視化編輯器,分段管理溫控曲線參數,可直接讀取/寫入控制器資料,方便測試與驗證使用。

產業應用

產品規格

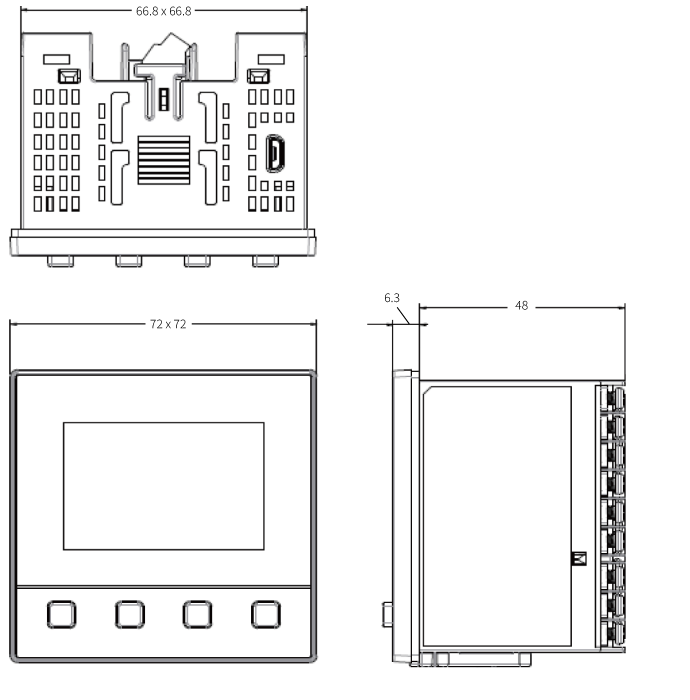

含安裝夾具尺寸


不含安裝夾具尺寸

電源

電源

90 ~ 250 VAC, 47 ~ 63 Hz ; 11 to 40 VDC / 20 ~ 28 VAC, 47 ~ 63 Hz

消耗功率

12VA, 最大6W

訊號輸入

類別

熱電偶(J,K,T,E,B,R,S,N,L,U,P,C,D), RTD(PT100(DIN), PT100(JIS)), 電流(mA), 電壓(V)

分辨率

18 Bits

採樣速率

5 次 / 秒 (200毫秒)

額定值

最小 -2VDC , 最大 12VDC

輸入特性

 類別

範圍

精度 @ 25°C

輸入阻抗

J

-120°C ~ 1000°C( -184°F - 1,832°F)

±2°C

2.2 MΩ

K

-200°C ~ 1370°C (-328°F - 2498°F)

±2°C

2.2 MΩ

T

-250°C ~ 400°C ( -418°F - 752°F )

±2°C

2.2 MΩ

E

-100°C ~ 900°C( -148°F - 1652°F )

±2°C

2.2 MΩ

B

0°C ~ 1820°C( 32°F - 3308°F )

±2°C( 200°C ~ 1800°C )

2.2 MΩ

R

0°C ~ 1767.8°C( 32°F - 3214°F )

±2°C

2.2 MΩ

S

0°C ~ 1767.8°C( 32°F - 3214°F )

±2°C

2.2 MΩ

N

-250°C ~ 1300°C( -418°F - 2372°F)

±2°C

2.2 MΩ

L

-200°C ~ 900°C( -328°F - 1652°F )

±2°C

2.2 MΩ

U

-200°C ~ 600°C (-328°F - 1112°F)

±2°C

2.2 MΩ

P

0°C ~ 1395°C( 32°F - 2543°F )

±2°C

2.2 MΩ

C

0°C ~ 2300°C( 32°F - 4172°F )

±2°C

2.2 MΩ

D

0°C ~ 2300°C( 32°F - 4172°F )

±2°C

2.2 MΩ

PT100(DIN)

-200°C ~ 850°C( -328°F - 1562°F )

±0.4°C

1.3KΩ

PT100(JIS)

-200°C ~ 600°C( -328°F - 1112°F )

±0.4°C

1.3KΩ

mA

-3mA ~ 27mA

±0.05%

2.5Ω

V

-1.3V ~ 11.5V

±0.05%

1.5MΩ

溫度效應

mA輸入: 3.0µV /°C,其它輸入: 1.5µV /°C

傳感器導線阻抗效應

熱電偶(Thermocouple): 0.2 µV /Ω, 三線式 RTD: 兩條導線阻值差異造成 2.6°C /Ω 的誤差, 二線式 RTD: 兩條導線阻值總和造成 2.6°C /Ω 的誤差

易燃電流

200nA

共模抑制比(CMRR)

120 dB

常模抑制比(NMRR)

55dB

傳感器斷裂偵測

電偶與 RTD 輸入類型可偵測開路狀況, RTD 輸入亦可偵測短路。對於 4 ~ 20 mA 輸入, 當電流低於 1 mA 時視為斷線;對於 1 ~ 5 V 輸入, 當電壓低於 0.25 V 時視為斷線

傳感器斷裂反應時間

熱電偶 與 RTD 輸入:4 秒內偵測, 4 ~ 20 mA 與 1 ~ 5 V 輸入:0.1 秒內偵測

遠程遙控值輸入

遠程遙控選項

支援

類別

線性電流,線性電壓

範圍

-3mA ~ 27mA,  -1.3V ~ 11.5V

精度

±0.05 %

輸入阻抗

電流: 2.5Ω, 電壓:1.5MΩ

分辨率

18 Bits

採樣速率

1.66 次/秒

額定值

電流輸入:最大280mA , 電壓輸入:最大12VDC

溫度效應

電壓輸入:±1.5µV/°C , 電流輸入: ±3.0µV/°C

傳感器斷裂偵測

對於 4 ~ 20 mA 輸入:低於 1 mA, 對於 1 ~ 5 V 輸入:低於 0.25 V, 其他輸入類型:不支援斷線偵測功能

傳感器斷裂反應時間

0.1 秒

事件輸入

事件輸入數量

2

低邏輯位准

最小-10V , 最大0.8V

高邏輯位准

最小2V , 最大10V

功能選項

請參考操作手冊

比流器(CT) 輸入

型號

CT98-1

精度

範圍值的±2% ,大誤差±1位數

輸入阻抗

294Ω

量測範圍

0 ~ 50VAC

CT輸出

0 ~ 5VDC

CT 安裝

螺裝式

採樣速率

1 次/秒

第一組輸出 /第二組輸出

類別

繼電器, 脈衝電壓, 線性輸出 (電壓,電流)

繼電器額定值

2A, 240VAC, 使用壽命200000次

脈衝電壓

 5V, 電流阻抗限制66Ω

線性輸出分辨率

15 Bits

線性輸出調節

滿載時變化少於0.02%

線性輸出設定時間

0.1 秒 ( 穩定度達 99.9%)

隔離失效電壓

1000 VAC

溫度效應

範圍值的±0.01%/ °C

線性輸出負載能力

電流:最大500Ω, 電壓:最小10KΩ

警報

繼電器類別

A式接點

額定值

2A, 240VAC, 使用壽命200000次

警報功能

持溫計時, 偏差高/低警報, 偏差帶外/內警報, 高/低限警報

警報模式

常態警報, 栓鎖警報, 限制警報, 栓鎖限制警報

持溫計時

0.1 ~ 4553.6分鐘

通信功能

介面

RS-485

通訊協議

Modbus RTU (Slave 模式)

地址

1 - 247

傳輸速率

2.8KBPS ~ 115.2 KBPS

檢查位

無 (None), 偶數同位 (Even), 奇數同位(Odd)

停止位

1 或 2 Bits

數據位

7 或 8 Bits

通訊緩衝存儲器

160 Bytes

模擬再傳送

輸出訊號

4 ~ 20 mA, 0 ~ 20 mA, 0 ~ 10V

分辨率

15 Bits

精度

範圍值的±0.05%  ± 0.0025% / °C

負載阻抗

電流輸出:0 - 500Ω, 電壓輸出: 最小10KΩ

輸出調節

滿載時變化少於0.01%

輸出設定時間

0.1秒 (穩定度達 99.9%)

隔離失效電壓

最小1000VAC

積分線性誤差

範圍值的±0.005%

溫度效應

範圍值的±0.0025% /°C

低飽和點

0mA 或 0V

高飽和點

22.2 mA 或 5.55 V, 最小 11.1 V

線性輸出範圍

0 ~ 22.2mA (0 ~ 20mA / 4 ~ 20mA), 0 ~ 5.55V (0 ~ 5V, 1 ~ 5V),0 ~ 11.1V (0 ~ 10V)

使用接口

按鍵

4 鍵

顯示類型

4 位數 LCD 顯示

顯示數目

2

上方顯示尺吋

0.98”(25mm)

下方顯示尺吋

0.32”(8.3mm)

程序端口

介面

Micro USB

計算機通訊功能

自動設定, 校正和韌體升級

控制模式

第一組輸出

反向 (制熱) 或 正向 (制冷) 控

第二組輸出

PID制冷控制, 制冷比例帶 50 – 300% , 制冷分離帶 -36.0 - 36.0 %

ON-OFF控制

可設定遲滯帶之值0.1 - 90.0 (°F ) (PB要設定為0)

比例控制(P 或 PD)

可調整輸出補償量0 - 100.0 %

PID控制

模糊邏輯修正, 比例帶: 0.1 ~ 900.0°F, 積分時間: 0 – 3600 秒, 微分時間: 0 - 360.0 秒

比例周期

0.1 ~ 90.0 秒

手動控制

制熱(MV1) 和 制冷(MV2)

自動演算調整

冷啟動或熱機時均可執行

錯誤模式

傳感器斷線或A-D轉換功能故障時可自動切換到手動模式

斜率控制

0 - 900.0°F/分鐘 或  0 - 900.0°F/小時

數位濾波

功能

一階

濾波時間常數

可設定0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 秒

控制程序

功能可用性

選配

程序數量

4 / 2 / 1

每個程序的段數

4 / 8 / 16

工作環境和物理條件

工作溫度

-10°C ~ 50°C

儲藏溫度

-40°C ~ 60°C

濕度

0 ~ 90 % RH (無凝結狀態)

高度限制

最大2000公尺

污染級數

2級

絕緣阻抗

最小20MΩ (@500VDC時)

耐壓性

一分鐘2000VAC, 50/60 Hz

抗震性

兩小時10 ~ 55 Hz, 10m/s2

抗衝擊性

200 公尺 / 秒²(20g)

外殼

耐燃級聚碳酸酯

安裝固定

盤面固定

尺寸 (W*H*D) (mm)

72*72*59

盤面後深度 (mm)

50

開孔尺寸 (mm)

68*68

重量 (grams)

190

安全規範

安規

UL61010-1, EN61010-1 (IEC1010-1), RoHS, REACH

防護等級

IP50 面板, 外殼與端子座IP20, 皆適用於室內

EMC

EN61326

資源下載

前往下載中心查看更多的文件與工具。     前往

常見問題

C72 溫度控制器的面板尺寸是多少?

C72 採用 72×72 mm 標準 DIN 面板尺寸,適合應用於工業控制箱與 OEM 系統整合。

C72 支援熱電偶(J/K/T/E 等)、白金電阻 PT100,以及 4–20 mA、0–10 V 等類比訊號輸入。

有的,C72 支援最多 16 段程序控制(Ramp/Soak),適用於需階段性控溫的製程應用。

是的,C72 可選配 RS-485 Modbus RTU 通訊介面,方便與 PLC 或 SCADA 系統整合。

可透過面板按鍵設定參數,亦可使用 USB 連接 BC-SET Pro 軟體快速完成設定與韌體更新。

訂購代碼

單獨的電子郵件地址用逗號區分.

Features



PRMesh

Wireless Expansion Module for PR Paperless Recorders

PR Mesh works with SenseNode wireless sensor nodes to extend the wireless measurement capabilities of existing PR Paperless Recorders.

SenseNode
Signal Acquisition & Transmission

PRMesh
Wireless Reception & Integratione

PR Paperless Recorders
Monitoring & Data Logging

Wireless  Measurement Expansion

Extend the wireless measurement capabilities of existing PR Paperless Recorders with PR Mesh, without replacing the entire recording system.

Distributed Signal Acquisition

Deploy SensNode near measurement points to acquire up to two analog inputs per unit, reducing long-distance sensor wiring to the recorder.

BrainChild Mesh
Connectivity

Powered by BrainChild Mesh wireless technology, SensNode transmits field measurement data to PR Mesh, connecting distributed measurement points with the PR recorder.

Seamless PR Integration

Installed inside a compatible PR recorder, PR Mesh integrates wireless measurement data into the existing system while preserving its familiar interface and operation.

Centralized Monitoring & Recording

Consolidate measurement data from distributed points in the PR recorder, retaining real-time displays, trend monitoring, alarm management, and historical data logging.

Scalable Monitoring Expansion

Add SensNode units as monitoring needs grow, extending measurement coverage while reducing wiring and installation work when expanding existing systems.

The PR30 includes an easy-to-use tree layout configuration, convenient handwriting message input, a circular display for better visibility, and both standard and plus firmware versions for enhanced flexibility and performance across various applications.

Configuration in tree layout is easy for operation

The tree layout configuration simplifies operation, allowing users to easily navigate and manage settings on the recorder.

Handwriting messages are handy users

Handwriting messages offer users a convenient and quick way to input notes directly on the recorder.

Circular display

Handwriting messages offer users a convenient and quick way to input notes directly on the recorder.

Standard version of Firmware
  • Al:  Analog input is offered various log speed in 1 00ms, 1, 2, 5, 10, 20, 30 Sec, 1, 2 Min/Dot.
  • DI:  Digital input is offered either normal Logic or high frequency Pulse.
  • AO:  In analog output, mA or V and its Expression can be defined.
  • DO:  Digital output/relay output can be enabled. Each DO card has 6 relays.
  • Display:  Various display speeds are available in 1 00ms, 1, 2, 5, 10, 20, 30 Sec/Dot, or 1, 2, 10, 30 Min/Page, 1, 2, 4, 8, 12 Hour/Page, or 1 Day/Page.
  • Timer:  Timer in Countdown, Repeat Countdown, Daily, Weekly or Monthly base, and various jobs can be defined.
  • Clock:  Date Style of MM/dd/yy or dd/MM/yy, Time Synchronize via Internet, and Summer Saving Time can be defined.
  • Communication:  Web Server and Email functions are available in Communication in Stan­dard firmware.
  • Instrument:  Brightness adjustment and Screen Saver are available in Instrument.
  • Password:  If Normal Security is chosen, then only one password is offered. If high Security of CFR-21 is chosen, then 9 levels of password can  be defined.
  • Demo:  Enable or disable the demonstration.
  • Auto-output:  Automatic output can be set to specify the printer, to print Historical data & Report data in specified period of time.
  • System information:  It gives Firmware version number, Internal & External memory status, IP address, and 10 card status of each Slot.
  • Calibrate:  Sometimes the field calibration is required for high accuracy. In this case, a qualified engineer can do the necessary calibration.
  • Math:  Standard version includes mathematics.
Math: It includes Math, Counter & Totalizer.
Math Expression is keyed in an easy way.
Power Calculation: Calculating and recording the power usage,Formulas are ready for P1W2, P1W3, P3W3, P3W4*.
  • P1W2:single-phase two wires
  • P1W3:single-phase three wires
  • P3W3:three-phase three wires
  • P3W4:three-phase four wires

Marker:  Adding notifications on Real-Time View.Marker can be added by events like alarm or triggered by Operation

 Standard version of Firmware

Plus versions offer more features of External Channels, Custom Display, Batch, FDA 21 CFR part 11.

External Channels:

Besides Al & DI inputs, PR recorders accept inputs through communication called External Channels. PR10, PR20 & PR30 can work External Channels maximum up to 24, 48 & 96 respectively.

External Channels:

Besides Al & DI inputs, PR recorders accept inputs through communication called External Channels. PR10, PR20 & PR30 can work External Channels maximum up to 24, 48 & 96 respectively.

Batch:

Batch production record is constantly required for more strict production, for example food and drugs.

 FDA 21 CFR part 11:

This feature is complied with U.S. Food and Drug Administration with human health concern. All data should be avoided from manipulating after recording.

Powerful functions in PC Software

The PR series PC software offers powerful functions, including easy recorder configuration and historical trend analysis. It also provides features like real-time monitoring and custom display editing, giving users the flexibility to tailor displays and monitor live data as needed.

Free basic software

It consists of two parts, which are Configuration and Historical Viewer.

I. Configuration

It is Then, easy send to do the recorder configuration on PC. Then, send the configuration files from PC to recorder.

II. Historical Viewer

It can display historical trends, historical alarms, events, and then print it. It can search data by time, time period, tag, alarm, events and remarks. It also can export data in CSV format.

Extensive software Data Acquisition Studio

It consists of two parts, which are Configuration and Historical Viewer.

Ill. Real-time Viewer

Besides Configuration & Histor­ical Viewer, it offers additional software Real-time Viewer for real-time monitoring.

IV. Panel Studio

If Plus version 2 or 3 of Firmware is purchased, additional software Panel Studio is offered for editing custom display. The users can use it to edit specific displays on PC first, and then download it onto recorders. The custom edited displays will be additional pages to standard ones.

Edit it on PC

Download it onto Recorders

Applications

Specification


Product position

Big size and high-end one, good for sophisticated applications, for example power industry

Input numbers

6, 12, 18, 24, 30, 36, 42, 48 channels

True universal inputs

Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV

The fastest sampling rate

o reach 100 msec / dot, default setting at 1 sec / dot

Math, External channels, Batch,
Custom display, FDA 21 CFR part 11

Math in standard version, others in Plus versions

Display

12.1" TFT touch screen

Resolution

1024 x 768

MTBF backlight at 25°C

30,000 hrs

Backlight

LED

Screen saver, Email

Yes

A faster CPU

ARM Cortex-A8, 1Ghz

Internal flash memory

256 MB

RAM

256 MB

Ethernet

Modbus TCP/IP

RS-232/422/485

Optional RS-232 or RS-422/485 Modbus RTU

SD card slot, USB host x 2

Standard, one USB in the front, another USB in the back

Pulse input

Optional DI card offering either logic or high frequency pulse counter

START / STOP key

To start / stop record and to turn off the display only, not recorder itself so that a quick start possible

Calibration correction

On-site calibration possible, or using handy features of Offset and Gain for correction

Multilingual

Convenient for local users by offering 19 languages including English, Japanese,Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable

PC software Historical Viewer+ Configuration

Standard

Extensive software Data Acquisition Studio

Optional real-time monitoring

Power supply

90-250VAC or 11-36VDC

Outer dimensions (W x H x L mm)

288 x 288 x 189

Shorter mounting depth (mm)

171

DIN panel cutout (W x H mm)

 281 x 281

Protection

IP65 front, IP20 rear

Operating temperature

0°C to 50°C

Storage temperature

-30°C to 70°C

Safety standards

RoHS

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

Ordering Code

PR3006(6 analog inputs)
PR3012(12 analog inputs)
PR3018(18 analog inputs)
PR3024(24 analog inputs)
PR3030(30 analog inputs)
PR3036(36 analog inputs)
PR3042(42 analog inputs)
PR3048(48 analog inputs)
none
6 relays
12 relays
18 relays
24 relays
Digital inputs
6 channels
12 channels
18 channels
none
6 channels
12 channels
90-25 VAC,50/60 Hz
11-36 VDC
12 channels
standard Ethernet
Ethernet + RS232
Ethernet + RS-422/486
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
free basic software of Historical Viewer & Configuration
extensive software Data Acquisition Studio (RealTime Viewer + Historical Viewer + Configuration)
panel mount, no power cord, no power switch
panel mount, no power cord, power switch
portable, UL & CSA power cord, power switch
portable, VDE power cord, power switch
portable, SAA power cord, power switch
portable, BS power cord, power switch
portable, no power cord, power switch
panel mount, UL & CSA power cord, power switch
panel mount, VDE power cord, power switch
panel mount, SAA power cord, power switch
panel mount, BS power cord, power switch
Protected by reCAPTCHA, Privacy Policy & Terms of Service apply.
將其替換為您自己的 HTML 代碼
