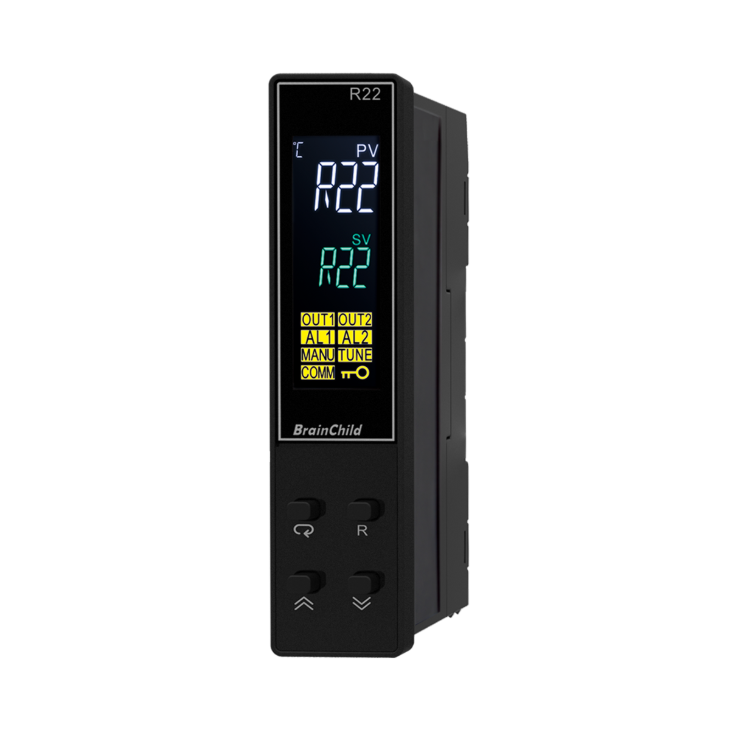

Core 系列 | 22.5 x 96mm

R22
https://www.brainchildtw.com/web/image/product.template/53/image_1920?unique=062c7a5

• DIN 導軌安裝,僅 22.5 mm 寬
• Fuzzy + PID 自動調整控制
• 通用輸入支援,18 位解析度
• 雙輸出設定(繼電器 / 類比)
• 內建 USB 設定埠,快速配置

此組合不存在。

特色功能

  • 支援熱電偶、RTD、電壓與電流輸入
  • 每秒 5 次取樣,反應快速穩定
  • 最多兩組警報輸出,支援 13 種模式
  • 模擬輸出支援 4–20mA / 0–10V 訊號
  • 可選 RS-485 Modbus RTU 通訊模組
  • 支援軟啟動與感測器斷線自動切換平均應輸出量輸出
  • 高明度雙列 4 位 LCD 顯示介面
  • 數位濾波功能穩定顯示值波動
  • 自動 / 手動切換,具安全保護機制
  • 控制箱適用,機體深度精簡
  • CT 感測器檢測加熱器斷線與短路
  • 電源範圍廣泛:90–250VAC 或 11–40VDC
  • 最多兩組事件輸入,支援外部觸發
  • 一體式 DIN 導軌安裝,快速安裝

R22 PID 溫度控制器

窄型導軌設計,實力不凡

通用輸入、雙輸出、USB 設定,支援 RS-485 通訊整合

R22 為一款專為狹小控制箱空間設計的經濟型 PID 溫控器,具備 22.5 mm 窄型 DIN 導軌安裝方式。支援熱電偶、RTD、電壓與電流輸入,搭配高速 200ms 取樣率與 18 位解析度,提供穩定精準的製程控制。內建雙輸出設計,並可選配 RS-485 通訊與 USB 設定埠,R22 適用於 OEM 系統、實驗室設備與工業機械等多種應用場景。無論是獨立運作或系統整合,R22 都能以最小體積實現高效控制。


精簡操作介面,簡單直覺易上手

四鍵邏輯佈局,設定快速,操作效率佳

R22 採用窄型前面板設計,搭配清晰排列的四鍵操作介面,特別針對狹小 DIN 導軌空間優化操作體驗。按鍵具備邏輯導向的功能佈局,能快速完成參數設定、模式切換與警報清除。雖然外觀僅寬 22.5 mm,但整體操作感受仍然順暢直覺,能有效縮短學習與上手時間。面板上設有輸出與警報狀態指示燈,讓使用者在現場調整與安裝過程中更加安心。

多色高亮度 LCD 螢幕

彩色顯示,快速判讀系統狀態與異常警示

Core 系列產品搭載高亮度多色 LCD 顯示螢幕,即使在強光或工業現場環境中,也能清晰呈現關鍵資訊。螢幕內建多種色彩提示機制,不同顏色分別對應正常運作、警報異常、輸出啟動等狀態,使用者可一眼辨識系統狀況,有效提升操作效率並降低誤判風險。無論近距離操作或遠端目視,皆能迅速掌握設備狀態,確保即時應對與安全運行。

通用輸入設計,相容多種感測器訊號

支援熱電偶、RTD、電壓與電流訊號輸入

Core 系列控制器支援多種輸入類型,包括熱電偶(J/K/T/E 等)、白金電阻(PT100 DIN/JIS)、電壓(0–10 V)與電流(4–20 mA)訊號,能廣泛對應工業常用感測器,提升系統整合彈性與應用廣度。

彈性輸出選擇,支援控制與警報應用

支援繼電器、固態驅動與類比輸出

Core 系列控制器提供多種輸出選擇,包括繼電器、SSR 脈波電壓與類比輸出(4–20 mA 或 0–10 V),可依需求設定控制輸出或警報功能。部分型號亦支援 CT 輸入與事件觸發輸入,使整體系統更具即時反應能力與整合彈性。

Fuzzy(模糊邏輯) PID 控制技術

聰明穩定又快速,讓控制更勝一籌

模糊邏輯與傳統 PID 控制結合,實現更智慧且具適應性的溫度調節功能。
相較於傳統 PID 控制器需針對每個應用手動微調參數,模糊 PID 能根據實際製程變化即時動態調整控制反應。其優勢在於加快系統穩定速度、降低過衝幅度,並提升對干擾的耐受性,特別適用於對「精度」與「反應速度」要求極高的應用場域。

內建設定埠,快速完成參數調整與更新

採用 Micro USB 接口,輕鬆完成設定與韌體升級

Core 系列內建 Micro USB 設定埠,搭配專用參數設定線與軟體,即可直接透過電腦進行快速參數調整與韌體更新,無須經由系統配線供電即可執行,極大提升設定效率與工程便利性。此設計讓技術人員可在現場快速設定,也可預先離線配置,大幅簡化安裝流程並提升維護彈性。

專業設定軟體 BC-SET Pro,快速完成控制器參數調整

專為 Core 系列設計,支援參數設定與韌體更新

BC-SET Pro 是 偉林電子 Core系列溫度控制器專用的參數設定軟體,操作介面簡潔直覺。透過 USB 設定線(PA98-1 與 CC98-1),使用者可快速完成控制器的參數設定與韌體升級,並能將設定內容複製至多台設備,大幅提升設定效率。軟體支援離線配置與多組設定檔儲存,特別適用於 OEM 生產、自動化整合與現場工程維護作業。

批次讀寫功能

BC-SET 可同時連接多台相同型號的控制器,僅需設定節點範圍,即可一次性批次讀取與寫入參數,有效提升量產或系統部署效率。

清晰的系統選單與操作介面

操作選單包含常用功能如重新掃描(F5)、讀取資料(F6)、寫入資料(F7)、寫入多筆(F8)與通訊參數設定(F9),搭配快捷鍵提升操作流暢度。

通訊參數設定

通訊設定畫面提供埠號、傳輸速率、奇偶校驗、資料位元與停止位元等項目,並具備「預設值」,降低設定錯誤風險。

專屬可視化編輯器

針對具備程序控制功能的溫度控制器,BC-SET提供可視化編輯器,分段管理溫控曲線參數,可直接讀取/寫入控制器資料,方便測試與驗證使用。

產業應用

產品規格



電源

電源

90 ~ 250 VAC, 47 ~ 63 Hz ; 11 to 40 VDC / 20 ~ 28 VAC, 47 ~ 63 Hz

消耗功率

8VA, 4W maximum

訊號輸入

類別

熱電偶(J,K,T,E,B,R,S,N,L,U,P,C,D), RTD(PT100(DIN), PT100(JIS)), 電流(mA), 電壓(V)

分辨率

18 Bits

採樣速率

5 次 / 秒 (200毫秒)

額定值

最小 -2VDC , 最大 12VDC

輸入特性

 類別

範圍

精度 @ 25°C

輸入阻抗

J

-120°C ~ 1000°C( -184°F - 1,832°F)

±2°C

2.2 MΩ

K

-200°C ~ 1370°C (-328°F - 2498°F)

±2°C

2.2 MΩ

T

-250°C ~ 400°C ( -418°F - 752°F )

±2°C

2.2 MΩ

E

-100°C ~ 900°C( -148°F - 1652°F )

±2°C

2.2 MΩ

B

0°C ~ 1820°C( 32°F - 3308°F )

±2°C( 200°C ~ 1800°C )

2.2 MΩ

R

0°C ~ 1767.8°C( 32°F - 3214°F )

±2°C

2.2 MΩ

S

0°C ~ 1767.8°C( 32°F - 3214°F )

±2°C

2.2 MΩ

N

-250°C ~ 1300°C( -418°F - 2372°F)

±2°C

2.2 MΩ

L

-200°C ~ 900°C( -328°F - 1652°F )

±2°C

2.2 MΩ

U

-200°C ~ 600°C (-328°F - 1112°F)

±2°C

2.2 MΩ

P

0°C ~ 1395°C( 32°F - 2543°F )

±2°C

2.2 MΩ

C

0°C ~ 2300°C( 32°F - 4172°F )

±2°C

2.2 MΩ

D

0°C ~ 2300°C( 32°F - 4172°F )

±2°C

2.2 MΩ

PT100(DIN)

-200°C ~ 850°C( -328°F - 1562°F )

±0.4°C

1.3KΩ

PT100(JIS)

-200°C ~ 600°C( -328°F - 1112°F )

±0.4°C

1.3KΩ

mA

-3mA ~ 27mA

±0.05%

2.5Ω

V

-1.3V ~ 11.5V

±0.05%

1.5MΩ

溫度效應

mA輸入: 3.0µV /°C,其它輸入: 1.5µV /°C

傳感器導線阻抗效應

熱電偶(Thermocouple): 0.2 µV /Ω, 三線式 RTD: 兩條導線阻值差異造成 2.6°C /Ω 的誤差, 二線式 RTD: 兩條導線阻值總和造成 2.6°C /Ω 的誤差

易燃電流

200nA

共模抑制比(CMRR)

120 dB

常模抑制比(NMRR)

55dB

傳感器斷裂偵測

電偶與 RTD 輸入類型可偵測開路狀況, RTD 輸入亦可偵測短路。對於 4 ~ 20 mA 輸入, 當電流低於 1 mA 時視為斷線;對於 1 ~ 5 V 輸入, 當電壓低於 0.25 V 時視為斷線

傳感器斷裂反應時間

熱電偶 與 RTD 輸入:4 秒內偵測, 4 ~ 20 mA 與 1 ~ 5 V 輸入:0.1 秒內偵測

遠程遙控值輸入

遠程遙控選項

Not Available

事件輸入

事件輸入數量

1

低邏輯位准

最小-10V , 最大0.8V

高邏輯位准

最小2V , 最大10V

功能選項

請參考操作手冊

比流器(CT) 輸入

型號

CT98-1

精度

範圍值的±2% ,大誤差±1位數

輸入阻抗

294Ω

量測範圍

0 ~ 50VAC

CT輸出

0 ~ 5VDC

CT 安裝

螺裝式

採樣速率

1 次/秒

第一組輸出 /第二組輸出

類別

繼電器, 脈衝電壓, 線性輸出 (電壓,電流)

繼電器額定值

2A, 240VAC, 使用壽命200000次

脈衝電壓

 5V, 電流阻抗限制66Ω

線性輸出分辨率

15 Bits

線性輸出調節

滿載時變化少於0.02%

線性輸出設定時間

0.1 秒 ( 穩定度達 99.9%)

隔離失效電壓

1000 VAC

溫度效應

範圍值的±0.01%/ °C

線性輸出負載能力

電流:最大500Ω, 電壓:最小10KΩ

警報

繼電器類別

A式接點

額定值

2A, 240VAC, 使用壽命200000次

警報功能

持溫計時, 偏差高/低警報, 偏差帶外/內警報, 高/低限警報

警報模式

常態警報, 栓鎖警報, 限制警報, 栓鎖限制警報

持溫計時

0.1 ~ 4553.6分鐘

通信功能

介面

RS-485

通訊協議

Modbus RTU (Slave 模式)

地址

1 - 247

傳輸速率

2.8KBPS ~ 115.2 KBPS

檢查位

無 (None), 偶數同位 (Even), 奇數同位(Odd)

停止位

1 或 2 Bits

數據位

7 或 8 Bits

通訊緩衝存儲器

160 Bytes

模擬再傳送

輸出訊號

4 ~ 20 mA, 0 ~ 20 mA, 0 ~ 10V

分辨率

15 Bits

精度

範圍值的±0.05%  ± 0.0025% / °C

負載阻抗

電流輸出:0 - 500Ω, 電壓輸出: 最小10KΩ

輸出調節

滿載時變化少於0.01%

輸出設定時間

0.1秒 (穩定度達 99.9%)

隔離失效電壓

最小1000VAC

積分線性誤差

範圍值的±0.005%

溫度效應

範圍值的±0.0025% /°C

低飽和點

0mA 或 0V

高飽和點

22.2 mA 或 5.55 V, 最小 11.1 V

線性輸出範圍

0 ~ 22.2mA (0 ~ 20mA / 4 ~ 20mA), 0 ~ 5.55V (0 ~ 5V, 1 ~ 5V),0 ~ 11.1V (0 ~ 10V)

使用接口

按鍵

4 鍵

顯示類型

4 位數 LCD 顯示

顯示數目

2

上方顯示尺吋

0.31”(8mm)

下方顯示尺吋

0.25”(6.5mm)

程序端口

介面

Micro USB

計算機通訊功能

自動設定, 校正和韌體升級

控制模式

第一組輸出

反向 (制熱) 或 正向 (制冷) 控

第二組輸出

PID制冷控制, 制冷比例帶 50 – 300% , 制冷分離帶 -36.0 - 36.0 %

ON-OFF控制

可設定遲滯帶之值0.1 - 90.0 (°F ) (PB要設定為0)

比例控制(P 或 PD)

可調整輸出補償量0 - 100.0 %

PID控制

模糊邏輯修正, 比例帶: 0.1 ~ 900.0°F, 積分時間: 0 – 3600 秒, 微分時間: 0 - 360.0 秒

比例周期

0.1 ~ 90.0 秒

手動控制

制熱(MV1) 和 制冷(MV2)

自動演算調整

冷啟動或熱機時均可執行

錯誤模式

傳感器斷線或A-D轉換功能故障時可自動切換到手動模式

斜率控制

0 - 900.0°F/分鐘 或  0 - 900.0°F/小時

數位濾波

功能

一階

濾波時間常數

可設定0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 秒

控制程序

功能可用性

No

程序數量

N / A

每個程序的段數

N / A

工作環境和物理條件

工作溫度

-10°C ~ 50°C

儲藏溫度

-40°C ~ 60°C

濕度

0 ~ 90 % RH (無凝結狀態)

高度限制

最大2000公尺

污染級數

2級

絕緣阻抗

最小20MΩ (@500VDC時)

耐壓性

一分鐘2000VAC, 50/60 Hz

抗震性

兩小時10 ~ 55 Hz, 10m/s2

抗衝擊性

200 公尺 / 秒²(20g)

外殼

耐燃級聚碳酸酯

安裝固定

DIN Rail

尺寸 (W*H*D) (mm)

22.5*96*83

盤面後深度 (mm)

-

開孔尺寸 (mm)

-

重量 (grams)

160

安全規範

安規

UL61010-1, EN61010-1 (IEC1010-1), RoHS, REACH

防護等級

IP50 面板, 外殼與端子座IP20, 皆適用於室內

EMC

EN61326

資源下載

Visit Download Center to See More Documents & Tools of This Product.     Visit

常見問題

R22 為 22.5 mm 超薄型控制器,設計用於 DIN 導軌安裝,特別適合空間有限的控制盤。

R22 支援 熱電偶、RTD(Pt100)、電流輸入(4–20 mA) 以及 電壓輸入(0–10 V)。

不,R22 不含 程序控制功能(Ramp/Soak) 。其設計專注於 標準設定點式 PID 溫度控制。

是的,R22 內建 Micro USB 連接埠,可搭配 BC-SET Pro 軟體,快速完成參數設定與韌體升級。

是的,R22 可選配 RS-485 Modbus RTU 通訊,方便與 PLC 或 SCADA 系統整合。
