Select 系列 | 單板

B41
https://www.brainchildtw.com/web/image/product.template/54/image_1920?unique=062c7a5

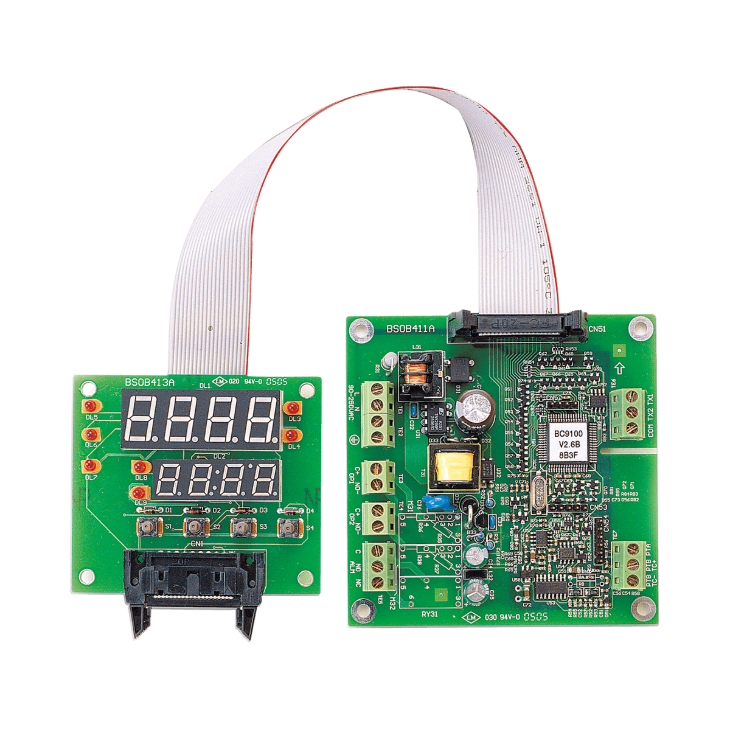

B41 單板PID溫度控制器

• 模糊邏輯PID控制,反應更迅速
• 雙輸出設計,支援加熱/冷卻或警報
• 自動整定功能,簡化控制參數設定
• 提供RS-485/RS-232 Modbus通訊
• 精巧單板設計,適用嵌入式系統整合

此組合不存在。

特色功能

  • 18位元ADC提供高精度輸入解析
  • 15位元DAC實現精準類比輸出控制
  • 支援多種熱電偶與PT100感測器
  • 電源輸入廣,支援AC/DC雙模式
  • 輸出形式多元,支援繼電器/線性輸出
  • 具備升降速與保溫定時功能
  • 數位濾波器穩定顯示數值
  • 感測器異常時無衝擊自動切換控制
  • 緊急狀況下可切換為手動控制
  • 使用者可自定義常用參數顯示順序
  • 內建錯誤代碼提示,便於維護檢修
  • 熱電偶冷端補償機能提升準確性
  • 每秒5次取樣,快速反應製程變化
  • 前端介面支援手持/電腦快速設定
  • 通過ISO 9001品質管理系統認證

精準控制從B41單板PID開始

高速反應 × 多元輸出 × 穩定通訊,工業控制的理想選擇

B41單板型PID溫度控制器結合模糊邏輯、雙輸出設計與Modbus RTU通訊,為各類工業嵌入式控制提供快速穩定的智慧化解決方案。其支援多種熱電偶與RTD感測器,具備自動整定、升降速與保溫計時、數位濾波等功能。雙輸出可獨立設定為加熱、冷卻或警報用途,斷訊時支援無衝擊轉移,保障系統穩定性。高精度18位輸入與15位類比輸出讓B41成為OEM業者與系統整合商的絕佳選擇,適用於塑膠射出、實驗爐控、乾燥箱、冷卻系統等領域。


高精度感測器輸入支援,靈活應用整合

多樣化輸入訊號類型,確保穩定量測效果

B41 單板PID溫度控制器具備多樣化輸入支援能力,包括熱電偶(J、K、T、E、R、S、B、N、L)、RTD(PT100 DIN/JIS)及線性電壓/電流訊號(如 0–60mV、0–10V、4–20mA)。內建18位元高解析度ADC可提供極細緻的製程讀值,並搭配可調式數位濾波器,提升訊號穩定度,適用於各類對溫度與製程數據精度有高度要求的應用。

靈活輸出控制組態,應用更具彈性

單板整合繼電器、固態、類比與警報輸出選擇

B41 控制器提供靈活的輸出組態,涵蓋繼電器接點、固態繼電器驅動(SSR)以及隔離類比輸出(電壓/電流)。其雙獨立輸出可設定為加熱/冷卻或警報用途,第三輸出亦可作為保溫定時器或輔助警報使用。內建15位元DAC,能精準輸出控制信號,讓B41輕鬆整合各類執行元件、PLC控制器或外部系統,滿足溫控場域的高可靠性需求。

Fuzzy(模糊邏輯) PID 控制技術

聰明穩定又快速,讓控制更勝一籌

模糊邏輯與傳統 PID 控制結合,實現更智慧且具適應性的溫度調節功能。
相較於傳統 PID 控制器需針對每個應用手動微調參數,模糊 PID 能根據實際製程變化即時動態調整控制反應。其優勢在於加快系統穩定速度、降低過衝幅度,並提升對干擾的耐受性,特別適用於對「精度」與「反應速度」要求極高的應用場域。

BC-SET Configuration Software

Easy parameter setup and firmware upgrades for B41

BC-SET 是 BrainChild 溫度控制器的專屬設定軟體。其操作介面簡單易用,可讓工程師與技術人員設定參數、複製裝置間設定,並透過 USB 介面進行韌體升級。該軟體支援離線設定,並可儲存多組組態檔案,非常適合 OEM 生產線、系統整合商與現場服務工程師使用。

批次讀寫功能

BC-SET 可同時連接多台相同型號的控制器,僅需設定節點範圍,即可一次性批次讀取與寫入參數,有效提升量產或系統部署效率。

清晰的系統選單與操作介面

操作選單包含常用功能如重新掃描(F5)、讀取資料(F6)、寫入資料(F7)、寫入多筆(F8)與通訊參數設定(F9),搭配快捷鍵提升操作流暢度。

通訊參數設定

通訊設定畫面提供埠號、傳輸速率、奇偶校驗、資料位元與停止位元等項目,並具備「預設值」,降低設定錯誤風險。

專屬可視化編輯器

針對具備程序控制功能的溫度控制器,BC-SET提供可視化編輯器,分段管理溫控曲線參數,可直接讀取/寫入控制器資料,方便測試與驗證使用。

產業應用

產品規格

 控制板安裝尺寸圖

 顯示板安裝尺寸圖

電源

90 ~ 250 VAC, 47  ~  63 Hz, 12VA, 5W maximum

11 ~ 26 VAC / VDC, SELV(安全特低電壓電路), Limited Energy, 最高功耗12VA, 5W

訊號輸入

分辨率

18 Bits

採樣速率

5 次 / 秒

額定值

-2 VDC ~ 12 VDC(mA輸入1分鐘)

溫度效應

除了 mA 輸入外, 所有其他皆為 ±1.5u V/BC, mA 輸入為 ±1 3.0u V/BC

傳感器導線阻抗效應

T / C:0.2μV / ohm
3線RTD: 2.6℃ / 兩根導線阻抗歐姆值的差
2線RTD: 2.6℃ / 兩根導線阻抗歐姆值的和

易燃電流

200nA

共模抑制比(CMRR)

120 dB

常模抑制比(NMRR)

55dB

傳感器斷裂偵測

TC、RTD 與mV 輸入:感溫線呈開路時, 4 ~ 20 mA 輸入低於1 mA時, 1 ~ 5 V 輸入低於0.25V時, 其它輸入則不適用

傳感器斷裂反應時間

TC、RTD 與 mV 輸入4秒內, 4 ~ 20 mA與 1 ~ 5 V 輸入-0.1秒

輸入特性

類別

範圍

 Accuracy@ 25 °C

J

-120 ~ 1000 °C (-184 ~ 1832 °F)

±2 °C

K

-200 ~ 1370 °C (-328 ~ 2498°F)

±2 °C

T

-250 ~ 400°C (-418 ~ 752°F)

±2 °C

E

-100 ~ 900 °C (-148 ~ 1652 °F)

±2 °C

B

0 ~ 1820 °C (32 ~ 3308 °F)

±2 °C (200°C ~ 1820°C)

R

0 ~ 1767.8 °C (32 ~ 3214 °F)

±2 °C

S

0 ~ 1767.8 °C (32 ~ 3214 °F)

±2 °C

N

-250 ~ 1300 °C (-418 ~ 2372 °F)

±2 °C

L

-200 ~ 900 °C (-328 ~ 1652 °F)

±2 °C

PT100 (DIN)

-210 ~ 700 °C (-346 ~ 1292 °F)

±0.4°C

PT100 (JIS)

-200 ~ 600 °C (-328 ~ 1112 °F)

±0.4°C

mV

-8 ~ 70mV

±0.05%

mA

-3 ~ 27mA

±0.05%

V

-1.3 ~ 11.5V

±0.05%

第一組輸出 /第二組輸出

繼電器額定值

2A / 240 VAC, 電阻負載壽命週期為 200,000 次

脈衝電壓

電壓5V, 電流阻抗限制66Ω

線性輸出特性

類別

零位偏差

範圍值偏差

負載能力

4-20 mA

3.6 ~ 4 mA

20  ~  21 mA

500Ω max.

0-20 mA

0 mA

20  ~  21 mA

500Ω max.

0-5 V

0 V

5  ~  5.25 V

10KΩ min.

1-5 V

0.9 ~ 1 V

5  ~  5.25 V

10KΩ min.

0-10 V

0 V

10-10.5 V

10KΩ min.

線性輸出

分辨率

15 bits

輸出調節

滿載時的變化0.02 %

輸出設定時間

0.1秒(穩定度達 99.9%)

隔離失效電壓

1000VAC

溫度效應

±0.01 %的範圍值 / °C

Triac(SSR)輸出

額定值

1A / 240 VAC

突入(啟動)電流(Inrush Current)

1個週期 20A

最小負載電流

50 mA rms

最大關斷漏電流

3 mA rms

最大開啟狀態電壓

1.5V rms

絕緣阻抗

最小1000Mohms (以500 VDC 測定)

耐壓性

2500 VAC, 一分鐘

警報

警報繼電器

C式接點, 最大負載為 2A / 240VAC ( 阻性負載 ), 使用壽命達 200,000 次

警報功能

保溫定時器 ( Dwell Timer ) , 偏差上限 / 下限警報 ( Deviation High / Low Alarm ) , 偏差區間內 / 區間外警報 ( Deviation Band High / Low Alarm ) , 製程值上限 / 下限警報 ( Process High / Low Alarm )

警報模式

一般模式 ( Normal ), 保持模式 ( Latching ), 保留模式 ( Hold ), 保持+保留模式 ( Latching / Hold )

持溫計時

 0.1 ~ 4553.6 分鐘

通信功能

介面

RS-232 ( 1 站), RS-485 ( up to 247 站)

通訊協議

Modbus Protocol RTU 模式

地址

1 ~ 247

鮑率(Baud Rate)

2.4 ~ 38.4 Kbits/sec

數據位元

7 或 8 bits

檢查位

無 (None), 偶數同位 (Even), 奇數同位(Odd)

停止位

1 或 2 bits

通訊緩衝存儲器

160 bytes

類比再傳送

輸出訊號

4 ~ 20 mA, 0 ~ 20 mA, 0 ~ 1V, 0 ~ 5V, 1 ~ 5V, 0 ~ 10V

分辨率

15 bits

精度

±0.05 %的範圍值±0.0025 %/ °C

負載阻抗

0 to 500Ω 電流輸出 , 10KΩ 電壓輸出

輸出調節

滿載時的變化0.01 %

輸出設定時間

0.1秒(穩定度達 99.9%)

隔離失效電壓

最小 1000VAC

積分線性誤差

±0.005%的範圍值

溫度效應

範圍值±0.0025% / ° C

低飽和點

0mA 或 0VDC

高飽和點

22.2 mA 或 5.55 V, 最小 11.1 V

線性輸出範圍

0 ~ 22.2mA (0 ~ 20mA / 4 ~ 20mA), 0 ~ 5.55V (0 ~ 5V / 1 ~ 5 V), 0 ~ 11.1V (0 ~ 10V)

使用者介面

按鍵

4 鍵

顯示類型

4個數位LED顯示器

顯示數量

2

上方顯示尺吋

0.55" ( 14mm )

下方顯示尺吋

0.4" ( 10 mm )

電腦連接埠

可用PC設定參數,快速校正與測試

通訊埠

與電腦連線可由電腦控制

控制模式

第一組輸出

反向( heating ) 或 正向( cooling )控制動作

第二組輸出

冷卻比例帶 ( Cooling P Band ) 可設定為主比例帶 ( PB ) 的 50% ~ 300%;加熱與冷卻之間的死區 ( Dead Band ) 可設定範圍為 -36.0% ~ 36.0%。

ON-OFF控制

當比例帶 ( P Band ) 設為 0 時, 啟用 ON / OFF 控制模式, 遲滯控制範圍可設定為 0.1 ~ 90.0°F

比例控制(P 或 PD)

偏移值 ( Offset ) 可調整範圍為 0 ~ 100.0%

PID控制

採用模糊邏輯強化的 PID 控制演算法:比例帶 ( Proportional Band ) 可設定範圍為 0.1 ~ 900.0°F, 積分時間 ( Integral Time ) 可設定範圍為 0 ~ 3600 秒, 微分時間 ( Derivative Time ) 可設定範圍為 0 ~ 360.0 秒

比例周期

0.1 ~ 90.0 秒

手動控制

支援加熱 ( MV1 ) 與 冷卻 ( MV2 ) 雙輸出控制

自動演算調整

具備冷啟動 ( Cold Start ) 與熱啟動 ( Warm Start ) 自動整定功能

錯誤模式

當感測器斷線或 A / D 轉換器故障時, 系統可自動切換至手動控制模式, 確保製程不中斷並維持安全運作

斜率控制

0 ~ 900.0 ℉ / 分鐘 或 0 ~ 900.0 ℉ / 小時的斜率控制

數值濾波

功能

第一階(First order)

濾波時間常數

可設定0, 0.2, 0.5, 1, 2, 5, 10, 20, 30, 60秒

工作環境和物理條件

工作溫度

-10°C ~ 50°C

儲藏溫度

-40°C ~ 60°C

濕度

0 ~ 90 % RH (無凝結狀態)

高度限制

最大2000公尺

污染級數

2級

絕緣阻抗

最小20MΩ (@500VDC時)

耐壓性

一分鐘2000VAC, 50/60 Hz

抗震性

兩小時10 ~ 55 Hz, 10m/s2

抗衝擊性

200 公尺 / 秒²(20g)

安全規範

安規

UL61010C-1, CSA C22.2 No.24-93, EN61010-1 (IEC1010-1)

EMC

EN61326

資源下載

前往下載中心查看更多的文件與工具。   前往

常見問題

B41 支援熱電偶(J、K、T、E、R、S、B、N、L)、RTD(PT100 DIN/JIS),以及線性類比輸入(mV、V、mA),可兼容多種工業感測器。

您可以透過前面板按鍵,或使用 BC-SET Pro 軟體經由程式連接埠進行參數設定。系統亦提供 參數鎖定 與 使用者自訂選單 功能,確保操作安全並滿足個人化需求。

是的,B41 支援 Modbus RTU 協定,可透過 RS-485 或 RS-232 連接埠,實現與 SCADA、PLC 及遠端監控系統的無縫整合。

B41 提供 最多 2 組警報繼電器輸出,並具備多種警報模式,包括 偏差高/低、製程高/低、區間內/外 設定。

B41 是否適用於超溫保護用途?

B41 專為 高可靠性超限控制器設計,非常適合 過溫保護與安全關鍵製程控制,具備 快速響應 與 雙顯示螢幕,即時監測製程狀態。

訂購代碼
