B41
https://www.brainchildtw.com/web/image/product.template/54/image_1920?unique=062c7a5

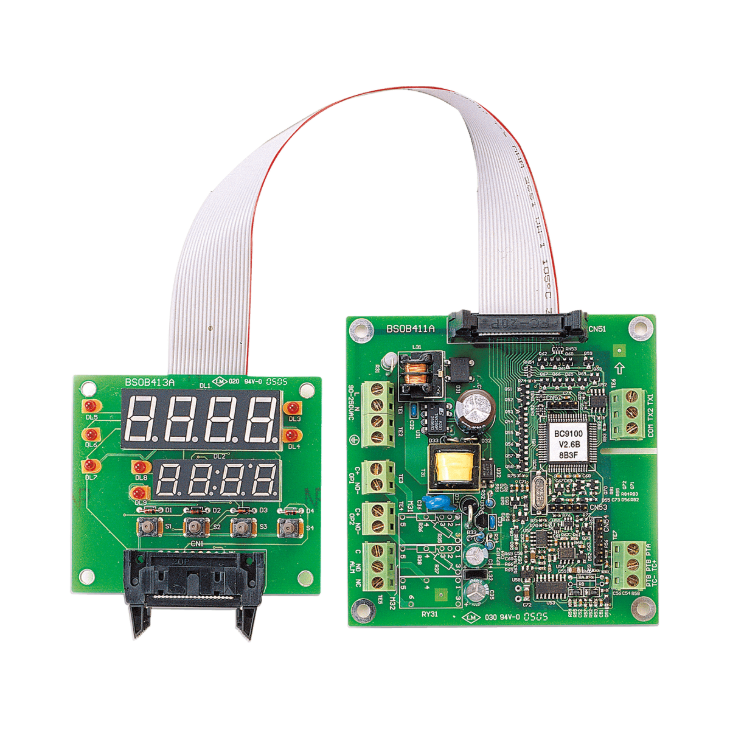

Board PID Temperature Controller

• Fuzzy PID control for fast response
• Dual output for heat/cool or alarm
• Auto-tuning for easy setup
• RS-485/RS-232 Modbus RTU
• Compact board for embedded use

This combination does not exist.

Features

  • 18-bit ADC ensures high-resolution input
  • 15-bit DAC for accurate linear output
  • Supports TC (J/K/T/E/R/S/N/B/L) & RTD
  • Power input: 11–26VDC or 90–250VAC
  • Relay, SSR, voltage or current outputs
  • Built-in ramp & dwell timer
  • Digital filter stabilizes signal display
  • Bumpless transfer during sensor fault
  • Manual mode for emergency control
  • User menu customization (SEL1–8)
  • Error code diagnostics & display
  • Cold junction compensation for TC
  • 5Hz sampling for fast process response
  • Front port for programming & ATE
  • ISO 9001 certified production

Precision Control Starts with the B41

Fast response, flexible outputs, reliable communication

The B41 Board PID Temperature Controller combines fuzzy logic, dual outputs, and Modbus RTU to deliver fast, stable, and intelligent process control. Designed for embedded systems, it supports multiple sensor types, auto-tuning, ramp/dwell timers, and digital filtering. Dual outputs can be configured independently for heating, cooling, or alarms, while bumpless transfer ensures seamless operation during sensor faults. With 18-bit input resolution and 15-bit output accuracy, the B41 is the compact powerhouse for OEMs and system integrators.


High-Precision Sensor Input Compatibility

Supports multiple signal types for reliable measurement

The B41 Board PID Temperature Controller offers broad input signal support, including thermocouples (J, K, T, E, R, S, B, N, L), RTDs (PT100 DIN/JIS), and linear inputs such as 0–60mV, 0–10V, and 4–20mA. Its 18-bit ADC delivers high-resolution process value acquisition, while programmable filtering ensures signal stability. This makes the B41 ideal for applications requiring precise and consistent temperature or process monitoring across different sensor systems.

Flexible Output Control Options

Relay, SSR, analog, and alarm output in one compact board

The B41 controller supports versatile output configurations, including relay contact, solid-state relay drive (SSR), and isolated analog output (voltage or current). Dual independent outputs allow for heat/cool control or alarm functions, while a third output can be configured as a dwell timer or additional alarm. With a 15-bit DAC for accurate analog signal generation, B41 ensures seamless integration with actuators, PLCs, and external systems in temperature-critical environments.

Fuzzy PID Technology

Smarter Control with Less Overshoot and Faster Response

Fuzzy logic is combined with traditional PID control to deliver smarter and more adaptive temperature regulation. Unlike standard PID controllers that require manual fine-tuning for each application, fuzzy PID dynamically adjusts control responses based on real-time process behavior. The result is faster stabilization, reduced overshoot, and improved resilience to disturbances—ideal for processes where precision and speed are critical.

BC-SET Configuration Software

Easy parameter setup and firmware upgrades for B41

BC-SET is the official configuration software for BrainChild’s temperature controllers.With its user-friendly interface, it enables engineers and technicians to configure parameters, copy settings between devices, and perform firmware upgrades via USB connection.The software supports offline setup and can store multiple configuration files,making it ideal for OEM production lines, system integrators, and field engineers.

Batch Read/Write for Multiple Controllers

BC-SET allows users to connect multiple controllers of the same model and perform batch parameter read/write by defining a node address range. This feature significantly streamlines configuration in OEM or multi-device environments.

Clear and Accessible System Menu

The system menu offers quick access to key operations like Rescan (F5), Read Data (F6), Write Data (F7), Write Multiple (F8), and Communication Settings (F9). Built-in hotkeys support fast, efficient navigation.

Intuitive Communication Setup Interface

The communication settings window lets users define COM port, baud rate, parity, data bits, and stop bits — with a “Default” button for quick reset and “Save and Exit” to finalize setup. Designed to reduce setup errors.

Visual Profile Editor for Programmable Controllers

For controllers with profile functionality, BC-SET provides a graphical editor to configure temperature ramp/soak segments. Users can easily read, modify, and write profile parameters for precise thermal process control.

Applications

Specification

 Dimension of Control Board

 Dimension of Display Board

 Power

90 ~ 250 VAC, 47  ~  63 Hz, 12VA, 5W maximum

11 ~ 26 VAC / VDC, SELV, Limited Energy, 12VA, 5W maximum

 Signal Input

Resolution

18 Bits

Sampling Rate

5 Times / Second

Maximum Rating

-2 VDC minimum, 12 VDC maximum( 1 minute for mA input )

Temperature Effect

±1.5 uV / °C for all inputs except mA, input ±3.0 uV / °C for mA input

Sensor Lead Resistance Effect

T/C: 0.2uV/ohm
3-wire RTD: 2.6 °C / ohm of resistance difference of two leads
2-wire RTD: 2.6 °C / ohm of resistance sum of two leads 200nA

Burn-out Current

200nA

Common Mode Rejection Ratio(CMRR)

120 dB

Normal Mode Rejection Ratio (NMRR)

55dB

Sensor Break Detection

Sensor open for TC, RTD and mV inputs, below 1 mA for 4 ~ 20 mA input, below 0.25V for 1 ~ 5 V input, unavailable for other inputs.

Sensor Break Responding Time

Within 4 seconds for TC, RTD and mV inputs,
0.1 second for 4 ~ 20 mA and 1 ~ 5 V inputs.

Characteristics

Type

Range

 Accuracy@ 25 °C

J

-120 ~ 1000 °C (-184 ~ 1832 °F)

±2 °C

K

-200 ~ 1370 °C (-328 ~ 2498°F)

±2 °C

T

-250 ~ 400°C (-418 ~ 752°F)

±2 °C

E

-100 ~ 900 °C (-148 ~ 1652 °F)

±2 °C

B

0 ~ 1820 °C (32 ~ 3308 °F)

±2 °C (200°C ~ 1820°C)

R

0 ~ 1767.8 °C (32 ~ 3214 °F)

±2 °C

S

0 ~ 1767.8 °C (32 ~ 3214 °F)

±2 °C

N

-250 ~ 1300 °C (-418 ~ 2372 °F)

±2 °C

L

-200 ~ 900 °C (-328 ~ 1652 °F)

±2 °C

PT100 (DIN)

-210 ~ 700 °C (-346 ~ 1292 °F)

±0.4°C

PT100 (JIS)

-200 ~ 600 °C (-328 ~ 1112 °F)

±0.4°C

mV

-8 ~ 70mV

±0.05%

mA

-3 ~ 27mA

±0.05%

V

-1.3 ~ 11.5V

±0.05%

Output 1  / Output 2

Relay Rating

2A / 240 VAC, life cycles 200,000 for resistive load

Pulsed Voltage

Source Voltage 5V, current limiting resistance 66 Ω

Linear Output Characteristics

Type

Zero Tolerance

Span Tolerance

Load Capacity

4-20 mA

3.6 ~ 4 mA

20  ~  21 mA

500Ω max.

0-20 mA

0 mA

20  ~  21 mA

500Ω max.

0-5 V

0 V

5  ~  5.25 V

10KΩ min.

1-5 V

0.9 ~ 1 V

5  ~  5.25 V

10KΩ min.

0-10 V

0 V

10-10.5 V

10KΩ min.

Linear Output

Resolution

15 bits

Output Regulation

0.02 % for full load change

Output Settling Time

0.1 sec. ( stable to 99.9 % )

Isolation Breakdown Voltage

1000VAC

Temperature Effect

±0.01 % of SPAN / °C

Triac ( SSR ) Output

Rating

1A / 240 VAC

Inrush Current

20A for 1 cycle

Min. Load Current

50 mA rms

Max. Off-state Leakage

3 mA rms

Max. On-state Voltage

1.5V rms

Insulation Resistance

1000 Mohms min. at 500 VDC

Dielectric Strength

2500 VAC for 1 minute

Alarm

Alarm Relay

Form C, Max. rating 2A/240VAC, life cycles 200,000 for resistive load.

Alarm Functions

Dwell timer, Deviation High / Low Alarm, Deviation Band High / Low Alarm, PV High / Low Alarm

Alarm Mode

Normal, Latching, Hold, Latching / Hold.

Dwell Timer

 0.1~ 4553.6 minutes

Data Communication

Interface

RS-232 ( 1 unit ), RS-485 ( up to 247 units )

Protocol

Modbus Protocol RTU mode

Address

1 ~ 247

Baud Rate

2.4 ~ 38.4 Kbits/sec

Data Bits

7 or 8 bits

Parity Bit

None, Even or Odd

Stop Bit

1 or 2 bits

Communication Buffer

160 bytes

Analog Retransmission

Output Signal

4 ~ 20 mA, 0 ~ 20 mA, 0 ~ 1V, 0 ~ 5V, 1 ~ 5V, 0 ~ 10V

Resolution

15 bits

Accuracy

±0.05 % of span ±0.0025 %/ °C

Load Resistance

0 to 500Ω for current output, 10KΩ minimum for Voltage Output

Output Regulation

0.01 % for full load change

Output Setting Time

0.1 second (stable to 99.9%)

Isolation Breakdown

1000VAC min

Integral Linearity Error

± 0.005% of span

Temperature Effect

± 0.0025% of span / ° C

Saturation Low

0mA or 0VDC

Saturation High

22.2mA or 5.55V, 11.1V min

Linear Output Ranges

0 ~ 22.2mA (0 ~ 20mA / 4 ~ 20mA), 0 ~ 5.55V (0 ~ 5V / 1 ~ 5 V), 0 ~ 11.1V (0 ~ 10V)

User Interface

Keypad

4 keys

Display Type

Dual 4-digit LED Displays

No of Display

2

Upper Display Size

0.55" ( 14mm )

Lower Display Size

0.4" ( 10 mm )

Programming Port

For automatic setup, calibration and testing

Communication Port

Connection to PC for supervisory control

Control Mode

Output 1

Reverse ( heating ) or direct ( cooling )action

Output 2

PID cooling control, cooling P band 50 ~ 300% of PB, dead band -36.0 ~ 36.0% of PB

ON-OFF

0.1 ~ 90.0 ( °F ) hysteresis control ( P band = 0 )

P or PD

0 ~ 100.0 % offset adjustment

PID

Fuzzy logic modified, Proportional band 0.1 ~ 900.0°F ,
Integral time 0 ~ 3600 seconds, Derivative time 0 ~ 360.0 seconds

Cycle Time

0.1 ~ 90.0 seconds

Manual Control

Heat (MV1) and Cool (MV2)

Auto-tuning

Cold start and warm start

Failure Mode

Auto-transfer to manual mode while sensor break or A-D converter damage

Ramping Control

0 ~ 900.0°F/minute or 0 ~ 900.0 °F/hour ramp rate

Digital Filter

Function

First order

Time Constant

0, 0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 seconds programmable

 Environmental and Physical Specifications

Operating Temperature

-10°C ~ 50°C

Storage Temperature

-40°C ~ 60°C

Humidity

0 ~ 90 % RH (Non-Condensing)

Altitude

2000 Meters maximum

Pollution

Degree II

Insulation Resistance

20MΩ minimum(@500VDC)

Dielectric Strength

2000VAC,50/60 Hz for 1 Minute

Vibration Resistance

10 to 55 Hz , 10m/s2 for 2 Hours

Shock Resistance

200 m/s2(20g)

Approval Standards

Safety

UL61010C-1, CSA C22.2 No.24-93, EN61010-1 (IEC1010-1)

EMC

EN61326

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

The B41 supports thermocouples (J, K, T, E, R, S, B, N, L), RTDs (PT100 DIN/JIS), and linear analog inputs (mV, V, mA), providing compatibility with a wide range of industrial sensors.

You can configure parameters using the front panel keys or via BC-SET Pro software through the programming port. Parameter lock and user-defined menu settings are also available for secure and customized operation. .

Yes, the B41 supports Modbus RTU protocol via RS-485 or RS-232 ports, allowing seamless integration with SCADA, PLCs, and remote monitoring systems.

The B41 provides up to 2 alarm relay outputs with multiple alarm modes, including deviation high/low, process high/low, in-band, and out-of-band settings.

Is the B41 suitable for over-temperature protection?

Absolutely. The B41 is designed as a high-reliability limit controller ideal for over-temperature and safety-critical process control, featuring fast response and dual display for real-time monitoring.
