Select 系列 | 48mm x 48mm

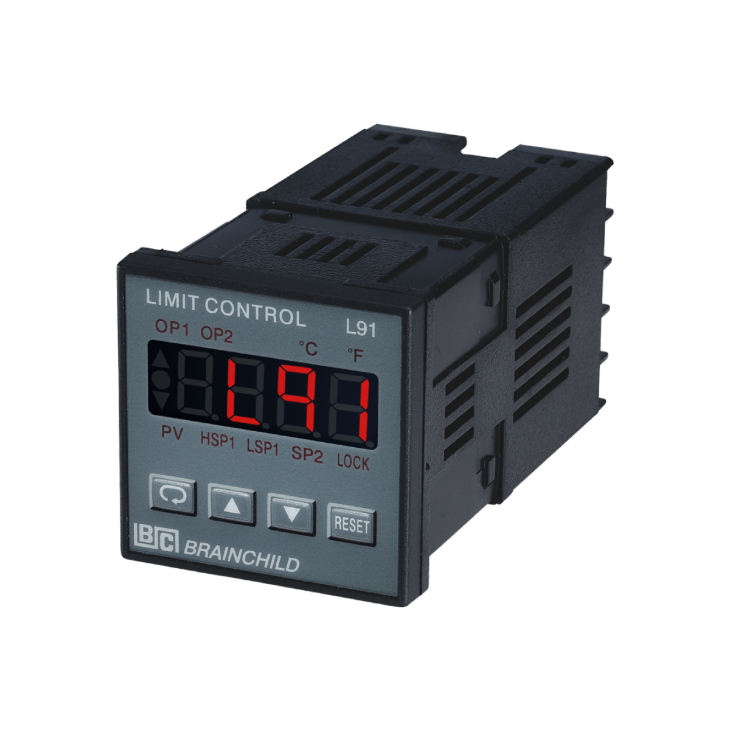

L91
https://www.brainchildtw.com/web/image/product.template/56/image_1920?unique=062c7a5

超限保護控制器

• 支援熱電偶、RTD、電壓電流輸入
• 鎖定型輸出繼電器,強化安全保護
• 雙列顯示介面,清晰呈現運作狀態
• 支援 RS-485 通訊與信號再傳輸
• 可透過 USB 編程埠進行參數設定

此組合不存在。

特色功能

  • 1/16 DIN 面板安裝,小巧節省空間
  • 4 位數 LED 顯示,附狀態標示圖示
  • 輸出狀態 OP1/OP2、°C/°F 單位顯示
  • 四鍵操作介面:滾動、上下、重設
  • 支援手動復歸與遠端復歸功能
  • 鎖定模式保護,防止誤操作設定
  • 可選限位聲光警報與事件輸入模組
  • 輸出2 可用於警報、RS-485、DC供電或再傳
  • 每秒5次高速取樣,應對變化快速製程
  • 18位元高解析 A/D 轉換精準測量
  • 顯示偏移(PV Shift)與數位濾波功能
  • 可選配感測器用外部直流電源模組
  • 編程埠可進行韌體升級與複製設定
  • 通過 CE、UL61010 與 EN61326 認證
  • 支援 RS-485 Modbus RTU 通訊協議

 L91 超限保護控制器
 精巧溫控防護解決方案

專為工業製程過溫監控與警報安全應用設計

BrainChild L91 是一款以微處理器為核心的超限保護控制器,專為工業設備的過溫保護設計,具備熱電偶、RTD、電壓/電流等多樣輸入相容性,並提供鎖定式繼電器輸出與雙列顯示介面,反應迅速且可靠。其輸出模組具備繼電器、SSR 或 TRIAC 選項,第二輸出可擴充警報、Modbus 通訊或類比信號再傳輸功能。用戶可透過面板按鍵、RS-485 或 USB 編程埠搭配 BC-SET Pro 軟體進行設定。L91 通過 CE、UL 與 EN 國際認證,適用於工業爐溫監控、熱處理設備、塑膠成型與自動化配電箱等需要精準穩定溫控的應用場域。

即時顯示與多功能按鍵設計

同時顯示 PV、輸出、警報與鎖定狀態

L91 採用簡潔高效的前面板設計,搭載紅色高亮度四位數 LED 顯示幕,可即時呈現製程值(PV)與警示狀態。輸出狀態 OP1 / OP2 指示燈與溫度單位符號(°C/°F)清楚顯示控制器目前輸出與顯示單位設定,方便操作人員快速辨識。面板並印有「PV」、「SP1」、「SP2」、「MAN」、「AT」等標示,用以區分不同的設定與調整狀態。操作區域提供四個按鍵,包括滾動(Scroll)、上調(Up)、下調(Down)與重設(R)鍵,支援快速進入設定選單、修改參數與執行限位重設。重設鍵亦具備長按解鎖與進階確認功能,強化安全操作流程。LOCK 指示燈可即時顯示面板是否處於鎖定狀態,防止未授權人員更改參數。整體介面設計兼顧實用性與操作安全性,特別適合應用於現場佈署、OEM 面板整合或工業控制箱之中。

多元感測器輸入,精準監控無死角

支援熱電偶、RTD、電壓、電流與毫伏訊號

L91 採用高精度 18-bit 類比數位轉換器,全面支援多種訊號輸入,包括 J、K、T、E、B、R、S、N、L 類熱電偶,PT100(DIN 與 JIS)RTD,毫伏訊號(0–60mV)、標準電壓(0–1V、0–10V)與電流(0–20mA)。內建每秒五次(200ms)取樣頻率,確保即時且穩定的資料反應。可設定小數點位置、PV 偏移與顯示解析度。內建感測器斷線偵測與數位濾波器設定,強化系統穩定性與量測準確性。

雙輸出通道設計,整合超限、警報與訊號重送

繼電器、SSR、TRIAC 輸出,可選 RS-485 與感測器供電

L91 提供兩組輸出通道,OUT1 用於主要超限控制,可選配繼電器(2A/240VAC)、SSR 驅動(5V/30mA 或 14V/40mA)或 TRIAC(持續 1A,瞬間 20A)。OUT2 可選作為警報輸出、RS-485 / RS-232 通訊、類比訊號重送(4–20mA、0–10V 等)、事件輸入或感測器電源供應(5V、12V、20V)。內建高/低限控制邏輯與多種警報模式(一般、鎖定),並支援彈性邏輯設定,滿足工業安全與自動化應用需求。

透過專用線材進行離線設定作業

可透過電腦進行參數複製、韌體更新與校正

L91 內建專用程式連接埠,提供離線設定、系統校正與韌體升級等操作功能,專為提升裝機部署效率與維護便利性而設計。使用者可透過原廠 CC91-2 通訊傳輸線連接至電腦,搭配 BrainChild 提供的設定軟體,快速複製多台控制器參數、進行系統韌體更新或執行出廠校正流程。此通訊介面特別適合 OEM 工廠、自動化整合業者或大批量部署環境,可顯著提升整體設定一致性與縮短佈署時間。值得注意的是,此通訊埠並非標準 USB 端口,而是專屬規格設計,可避免現場誤插與干擾訊號,確保設定傳輸的穩定性與可靠性。此外,連接過程中無需預先設定通訊速率、位址或停止位元等參數,能有效簡化首次設定與測試流程。

專業設定軟體 BC-SET Pro,快速完成控制器參數調整

專為 Core 系列設計,支援參數設定與韌體更新

BC-SET Pro 是 偉林電子 Core系列溫度控制器專用的參數設定軟體,操作介面簡潔直覺。透過 USB 設定線(PA98-1 與 CC98-1),使用者可快速完成控制器的參數設定與韌體升級,並能將設定內容複製至多台設備,大幅提升設定效率。軟體支援離線配置與多組設定檔儲存,特別適用於 OEM 生產、自動化整合與現場工程維護作業。

批次讀寫功能

BC-SET 可同時連接多台相同型號的控制器,僅需設定節點範圍,即可一次性批次讀取與寫入參數,有效提升量產或系統部署效率。

清晰的系統選單與操作介面

操作選單包含常用功能如重新掃描(F5)、讀取資料(F6)、寫入資料(F7)、寫入多筆(F8)與通訊參數設定(F9),搭配快捷鍵提升操作流暢度。

通訊參數設定

通訊設定畫面提供埠號、傳輸速率、奇偶校驗、資料位元與停止位元等項目,並具備「預設值」,降低設定錯誤風險。

專屬可視化編輯器

針對具備程序控制功能的溫度控制器,BC-SET提供可視化編輯器,分段管理溫控曲線參數,可直接讀取/寫入控制器資料,方便測試與驗證使用。

產業應用

產品規格

 安裝示意圖


電源

電源

90 ~ 250 VAC, 47 ~ 63 Hz, 11 ~ 26 V AC/VDC, SELV, Limited Energy

消耗功率

10VA, 5W 最大

過電壓類別

II

訊號輸入

類別

熱電偶 ( Thermocouple ) : J、K、T、E、B、R、S、N、L類型, RTD ( 熱電阻 ) : PT100 ( DIN 標準 ) 、PT100 ( JIS 標準 ) , 毫伏訊號 ( mV ) : 0 ~ 60 mV, 電流訊號 ( Current ) : 0 ~ 20 mA, 電壓訊號 ( Voltage ) : 0 ~ 1 V、0 ~ 10 V

分辨率

18 Bits

採樣速率

5 次 / 秒 (200毫秒)

輸入特性

類別

範圍

精度 @ 25 °C

輸入阻抗

J

-120 ~ 1000 °C (-184 ~ 1832 °F)

±2 °C

2.2MΩ

K

-200 ~ 1370 °C (-328 ~ 2498°F)

±2 °C

2.2MΩ

T

-250 ~ 400°C (-418 ~ 752°F)

±2 °C

2.2MΩ

E

-100 ~ 900 °C (-148 ~ 1652 °F)

±2 °C

2.2MΩ

B

0 ~ 1820 °C (32 ~ 3272 °F)

±2 °C (200°C - 1800°C)

2.2MΩ

R

0 ~ 1767.8 °C (32 ~ 3214 °F)

±2 °C

2.2MΩ

S

0 ~ 1767.8 °C (32 ~ 3214 °F)

±2 °C

2.2MΩ

N

-250 ~ 1300 °C (-418 ~ 2372 °F)

±2 °C

2.2MΩ

L

-200 ~ 900 °C (-328 ~ 1652 °F)

±2 °C

2.2MΩ

PT100 (DIN)

-210 ~ 700 °C (-346 ~ 1292 °F)

±0.4°C

1.3KΩ

PT100 (JIS)

-200 ~ 600 °C (-328 ~ 1112 °F)

±0.4°C

1.3KΩ

mV

-8 ~ 70mV

±0.05%

2.2MΩ

mA

-3 ~ 27mA

±0.05%

100Ω

VDC

-1.3 ~ 11.5VDC

±0.05%

510KΩ

溫度效應

1.5μV /° C

傳感器導線阻抗效應

熱電偶 ( T/C ): 每 1 Ω 導線電阻可能產生約 0.2 微伏誤差, 3 線式 RTD: 導線間電阻差每增加 1 Ω,溫度誤差約為 2.6°C, 2 線式 RTD: 導線總電阻每增加 1 Ω,溫度誤差約為 2.6°C,激勵電流為 200nA

易燃電流

200nA

共模抑制比(CMRR)

120 dB

常模抑制比(NMRR)

55dB

傳感器斷裂偵測

當輸入為熱電偶(T/C) 、RTD 或毫伏訊號(mV)時,偵測方式為感測器斷線(Sensor Open), 若輸入為 4 ~ 20 mA 電流訊號,偵測條件為電流低於 1 mA, 若輸入為 1 ~ 5 V 電壓訊號,偵測條件為電壓低於 0.25V

傳感器斷裂反應時間

TC、RTD 與 mV 訊號於 4 秒內偵測完成, 4 ~ 20 mA 與 1 ~ 5 V 訊號於 0.1 秒內偵測完成。

第一組輸出 /第二組輸出

繼電器額定值

繼電器輸出額定 2A / 240 VAC,於電阻性負載下可達 20 萬次使用壽命

脈衝電壓

輸出端提供 5V 電源,並內建 66 Ω 限流電阻,用於驅動固態繼電器等負載

Triac ( SSR ) 輸出

額定值

1A / 240 VAC

侵入電流

20A ( 1 個電源週期 )

最小負載電流

50 mA rms

關斷狀態的最大漏電流

3 mA rms

通路狀態最大電壓

1.5V rms

絕緣阻抗

最小 1000Mohms ( 以500 VDC測定 )

耐壓性

2500 VAC, 一分鐘

極限控制型式

上限 ( High Limit ), 下限 ( Low Limit ), 上下限同時保護 ( High / Low Limit )

警報功能

製程值上限、製程值下限 ( PV High / PV Low  )

警報模式

一般模式 ( Normal ), 鎖定模式 ( Latching )

DC輔助電源特性 ( 安裝在第二點輸出 )

DC輔助電源特性

類別

公差

最大輸出電流

漣波(Ripple)電壓

隔離保護(Brrifer)

20V

± 1V

25mA

0.2Vp-p

500 VAC

12V

± 0.6V

40mA

0.1Vp-p

500 VAC

5V

± 0.25V

80mA

0.05Vp-p

500 VAC

數位濾波

功能

一階

濾波時間常數

可設定0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 秒

事件輸入

低邏輯位准

最小-10V , 最大0.8V

高邏輯位准

最小2V , 最大10V

功能選項

遠端重置、遠端鎖定

通信功能

介面

RS-485 or RS-232

通訊協議

Modbus RTU (Slave 模式)

地址

1 ~ 247

傳輸速率

2.8KBPS ~ 115.2 KBPS

檢查位

無 (None), 偶數同位 (Even), 奇數同位(Odd)

停止位

1 或 2 Bits

數據位

7 或 8 Bits

通訊緩衝存儲器

50 Bytes

模擬再傳送

輸出訊號

4 ~ 20mA, 0 ~ 20 mA, 0 ~ 10VDC, 0 ~ 5VDC, 1 ~ 5VDC

分辨率

15 Bits

精度

範圍值的±0.05%  ± 0.0025% / °C

負載阻抗

電流輸出:0 - 500Ω, 電壓輸出: 最小10KΩ

輸出調節

滿載時變化少於0.01%

輸出設定時間

0.1秒 (穩定度達 99.9%)

隔離失效電壓

最小 1000 VAC

積分線性誤差

範圍值的±0.005%

溫度效應

範圍值的±0.0025% /°C

低飽和點

0mA 或 0VDC

高飽和點

22.2 mA 或 5.55 V, 最小 11.1 V

線性輸出範圍

0 ~ 22.2mA (0 ~ 20mA / 4 ~ 20mA), 0 ~ 5.55VDC (0 ~ 5VDC / 1 ~ 5 VDC), 0 ~ 11.1VDC (0 ~ 10VDC)

使用接口

按鍵

4 鍵

顯示類型

4 位數 LCD 顯示

顯示數目

1

上方顯示尺吋

0.4”(10mm)

下方顯示尺吋

N.A.

電腦連接埠

可用PC設定參數,快速校正與測試

通訊埠

與電腦連線可由電腦控制

工作環境和物理條件

工作溫度

-10°C ~ 50°C

儲藏溫度

-40°C ~ 60°C

濕度

0 ~ 90 % RH (無凝結狀態)

高度限制

最大2000公尺

污染級數

2級

絕緣阻抗

最小 20 MΩ  (@500 VDC)

耐壓性

2000 VAC, 50 / 60 Hz, 一分鐘

抗震性

10 ~ 55 Hz , 10m / s², 一分鐘

抗衝擊性

200 m / s² (20g)

外殼

耐燃級聚碳酸酯

安裝固定

面板安裝

DIN 尺寸
1/16

尺寸 (W*H*D) (mm)

48*48*94

盤面後深度 (mm)

86

開孔尺寸 (mm)

45*45

重量 (grams)

150

安全規範

安規

FM, UL, cUL, CE, R oHS, REACH

防護等級

IP30 front panel, indoor use, IP20 housing and terminals (with protective cover).

EMC

EN61326

資源下載

前往下載中心查看更多的文件與工具。  前往

常見問題

L91 支援多種輸入訊號,包括熱電偶(J、K、T、E、B、R、S、N、L)、RTD 感測器(PT100 DIN / JIS)、低電壓(0–60mV)、標準電壓(0–1V、0–10V)與電流(0–20mA)。所有輸入類型皆可於面板或設定軟體中切換,內建 18-bit A/D 解析與每秒 5 次取樣,具備高精度與快速反應能力。

L91 配備專用程式連接埠,可透過 CC91-2 傳輸線連接電腦,搭配 BC-Set PRO 軟體進行參數複製、韌體升級與裝置校正作業。此功能有助於提升 OEM 佈署效率與設定一致性。

是的,L91 可選配 CM96-1 通訊模組支援 RS-485 通訊,採用 Modbus RTU 協定,可與 SCADA 或上位監控系統整合,並支援遠端參數讀寫與設定。

L91 提供高限、低限、偏差與鎖定型警報,並支援遠端復歸與鎖定控制。警報可觸發繼電器輸出,並可透過面板或通訊介面監控。

L91 擁有哪些國際認證與防護能力?

L91 通過 UL61010、CE、RoHS 與 REACH 認證,前面板具 IP30 等級防護,端子區搭配防護蓋可達 IP20,適合安裝於工業控制盤中使用。
