Specialty 系列 | 22.5 x 96mm

RSC
https://www.brainchildtw.com/web/image/product.template/63/image_1920?unique=9a129f5

訊號調節器

• 萬用輸入,支援多種訊號類型
• 三路類比訊號重傳輸出
• 18-bit 高解析度 A/D 輸入
• RS-485 Modbus RTU 數位通訊
• 開根號與濾波穩定功能


此組合不存在。

特色功能​

  • 每組輸出可獨立設定比例範圍
  • 15-bit D/A 類比輸出解析度,誤差僅 ±0.05%
  • 200ms 高速取樣,反應迅速
  • 可編程一階低通濾波功能
  • 支援熱電偶、RTD、電流與電壓輸入
  • 雙色 LCD 顯示幕,清晰易讀
  • 內建可設定的數位輸入端子
  • 提供 Micro USB 端口,方便電腦設定與更新
  • 三點輸出校正,可進行零點與增益調整
  • 手動控制模式,適用測試環境
  • 多層級安全鎖定,保護設定值
  • DIN 導軌安裝設計,節省空間
  • 寬電壓供電範圍,彈性應用
  • 通過 UL、CE 與 EN61010-1 安規認證

RSC 訊號調節器 — 工業自動化訊號處理首選

萬用輸入、三路輸出與 RS-485 數位通訊,功能完備

TBrainChild RSC 訊號調節器是一款適用於工業現場的高精度訊號轉換與隔離模組,具備DIN 導軌安裝設計。支援萬用輸入,可接收多種訊號來源,包括熱電偶(Thermocouple)、RTD(熱電阻)、電流(mA)與電壓(V)等。透過18-bit 高解析度 A/D 轉換器,能快速且精確地處理輸入訊號,並可提供最多三組獨立的類比重傳輸出,輸出解析度達15-bit。此外,RSC 具備RS-485 Modbus RTU 數位通訊功能、PV 開根號運算與可編程數位濾波器,是理想的工業自動化訊號調節解決方案,廣泛應用於製程控制與資料擷取系統中。

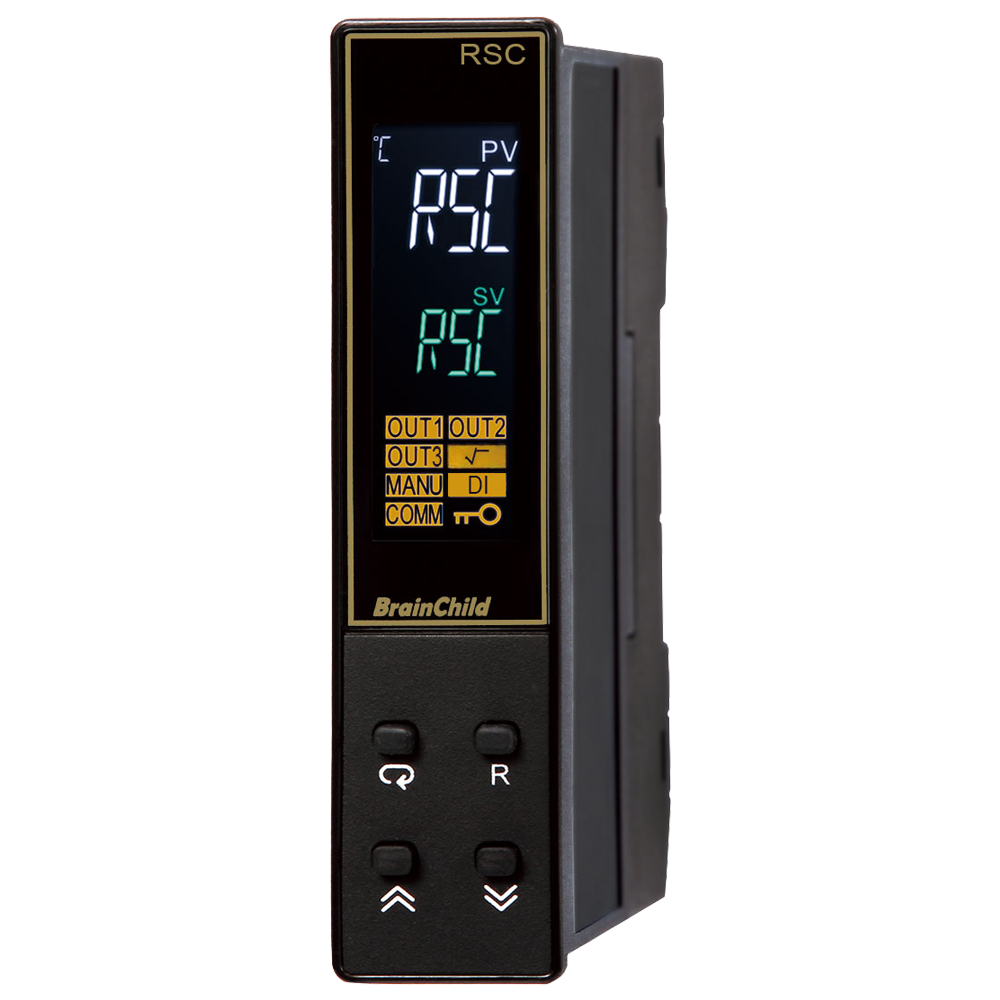

RSC 操作面板|清晰雙顯示與操作鍵設計

雙行 LCD 顯示、四鍵控制、狀態指示一目了然

BrainChild RSC 訊號調節器搭載一套直覺且穩定的操作面板介面,方便用戶進行快速設定與日常監控。面板核心是雙行高亮度 LCD 顯示器,能即時呈現量測值(PV)與使用者選定的參數內容或設定值(SV),讓現場工程人員能不依賴額外設備就能即時判讀並調整運轉條件。

操作介面整合了四個實體功能鍵:選擇/確認鍵(Scroll/Enter)、遞增鍵(Up)、遞減鍵(Down)與重置鍵(Reset),可順暢操作多層次選單結構。Scroll/Enter 鍵負責進入與確認參數選項,Up/Down 鍵提供細部數值微調,而Reset 鍵則可快速恢復主畫面或離開設定模式,提升使用效率。

此外,為了提升操控辨識度,面板配有多組圖示型狀態指示燈號,分別用於顯示輸出通道狀態(OUT1~OUT3)、手動模式啟動狀態、數位輸入觸發(DI)、開根號運算啟用(SQRT)與參數鎖定保護(LOCK)等。使用者可透過這些清晰圖示即時掌握系統動態,大幅降低誤操作風險。

為了提升維護與設定便利性,面板另整合一組Micro USB 編程介面,可供進行離線參數配置、韌體升級與自動化校正作業,無需拆卸外殼或透過面板繁瑣操作,即可完成設定工作。整體面板設計兼具現場即時性與維修靈活性,非常適合部署於多種工業自動化與製程控制應用場景中。

高亮度設計,工業現場清晰可讀

防眩光高對比顯示,雙行介面確保清楚辨識

RSC 訊號調節器的 LCD 顯示幕採用高亮度、高對比設計,即使在強光或戶外照明下的工業現場,仍能維持清晰可讀的視覺效果。螢幕具備防眩光塗層與優化字體顯示,可從多角度閱讀,避免反光與模糊。

不論安裝於配電箱內部或設備面板前端,其白色背光與分明的數字段式顯示可幫助操作人員迅速辨認數值與訊息。畫面排版經設計優化,兼顧閱讀舒適性與長時間工作的視覺穩定性,有效降低誤讀風險。

透過結合清晰度、耐用性與抗反光性,RSC 的 LCD 顯示模組可在各種製程監控應用中,提供穩定可靠、易於辨識的操作介面。


RSC 輸入類型|支援熱電偶、RTD、電流與電壓

18-bit 高解析 A/D,萬用輸入全兼容設計

RSC 訊號調節器具備萬用輸入設計,可對應多種工業訊號類型,包含熱電偶(J、K、T、E、B、R、S、N、L、U、P、C、D)、RTD 熱電阻(PT100 DIN / JIS)、線性電流(4–20 mA、0–20 mA)與線性電壓(0–5V、1–5V、0–10V)等。所有輸入訊號皆透過18-bit 高解析度 A/D 轉換器處理,提供高精度穩定測量效能。

對於線性輸入類型,使用者可依應用情境自訂輸入量測範圍(INLO / INHI),並透過數位濾波器與SQRT 開根號運算功能,優化輸入訊號品質,特別適用於流量類感測器等需求。

RSC 輸出選項|三路類比重傳與數位輸入

15-bit 精度輸出,支援電流/電壓多種格式

RSC 訊號調節器最多可支援三組類比重傳輸出通道,依模組搭配選擇對應輸出格式。每一組輸出可設定為4–20 mA、0–20 mA、0–10V、1–5V 或 0–5V等常用格式,並具備15-bit D/A 精密輸出解析度與±0.05% 全量程精度。所有輸出具備電氣隔離,並可透過ANL/ANH 參數個別設定輸出比例範圍。

此外,RSC 亦可選配一組數位輸入(DI),支援外部開關或邏輯訊號觸發模式轉換或功能控制。所有輸出支援零點/滿刻度修正(Zero/Span Calibration),反應時間快至0.1 秒內穩定,確保訊號傳遞準確即時。

程式連接埠|Micro USB 輕鬆設定調校

支援韌體升級、自動化設定與系統測試功能

RSC 訊號調節器前面板配有一組Micro USB 程式連接埠,可進行電腦端設定、韌體升級以及自動化校正與測試作業。透過此介面,工程師可在不操作面板按鍵的情況下快速完成參數設定,大幅提升現場安裝與維護效率。

搭配選購的PA98-1 USB 編程轉接器與CC98-1 編程接線(1.5 公尺),使用者可將 RSC 控制器連接至電腦,使用 BC-Set 設定軟體進行參數上傳/下載、韌體更新與診斷檢查等作業,特別適合大量部署或 OEM 系統整合使用。

程式連接埠與控制器主回路間具備電氣隔離保護,在連接期間確保使用安全與資料完整。此接埠僅適用於離線作業,不建議在控制器執行中使用,以避免干擾現場控制流程。

BC-SET Pro 設定軟體

快速完成參數設定、備份與韌體升級操作

BC-SET Pro 是 BrainChild 推出的官方參數設定軟體,專為超限保護控制器應用設計,具備直覺化的操作介面與高效的設定流程。使用者可透過 USB 程式連接線將裝置連接至電腦,快速完成參數調整與設定。此軟體支援設定複製功能,可將一台設備的參數套用至多台控制器,並提供韌體升級功能,確保設備運作穩定、功能保持最新狀態。BC-SET Pro 同時支援離線編輯,允許儲存多組設定檔,方便用於工廠設定、生產部署或現場維護等情境。無論是全新裝機或既有系統調整,都能透過此工具有效簡化流程、縮短設定時間,提升多設備管理的一致性與效率。

批次讀寫功能

BC-SET 可同時連接多台相同型號的控制器,僅需設定節點範圍,即可一次性批次讀取與寫入參數,有效提升量產或系統部署效率。

清晰的系統選單與操作介面

操作選單包含常用功能如重新掃描(F5)、讀取資料(F6)、寫入資料(F7)、寫入多筆(F8)與通訊參數設定(F9),搭配快捷鍵提升操作流暢度。

Intuitive Communication Setup Interface

The communication settings window lets users define COM port, baud rate, parity, data bits, and stop bits — with a “Default” button for quick reset and “Save and Exit” to finalize setup. Designed to reduce setup errors.

專屬可視化編輯器

針對具備程序控制功能的溫度控制器,BC-SET提供可視化編輯器,分段管理溫控曲線參數,可直接讀取/寫入控制器資料,方便測試與驗證使用。

產業應用

產品規格


電源​

電源供應

90 ~ 250 VAC, 47 ~ 63 Hz, 20 ~ 28 VAC, 47 ~ 63 Hz / 11 ~ 40 VDC

消耗功率

12VA,6W 最大

過電壓類別II
訊號輸入 1

類別

熱電偶(J、K、T、E、B、R、S、N、L、U、P、C、D)、RTD 熱電阻(PT100 DIN、PT100 JIS)、電流訊號(mA)、電壓訊號(V、mV)

解析度

18 Bits

採樣速率

5 次/秒(200 毫秒更新一次)

採樣速度

最小-2VDC, 最大12VDC

輸入特性

類別

範圍

精度 @25℃

輸入阻抗

J

-120℃ ~ 1000℃ (-184℉ ~ 1832℉)

±2℃

2.2 MΩ

K

-200℃ ~ 1370℃ (-328℉ ~ 2498℉)

±2℃

2.2 MΩ

T

-250℃ ~ 400℃ (-418℉ ~ 752℉)

±2℃

2.2 MΩ

E

-100℃ ~ 900℃ (-148℉ ~ 1652℉)

±2℃

2.2 MΩ

B

0℃ ~ 1820℃ (32℉ ~ 3308℉)

±2℃(200℃ ~ 1800℃)

2.2 MΩ

R

0℃ ~ 1767.8℃ (32℉ ~ 3214℉)

±2℃

2.2 MΩ

S

0℃ ~ 1767.8℃ (32℉ ~ 3214℉)

±2℃

2.2 MΩ

N

-250℃ ~ 1300℃ (-418℉ ~ 2372℉)

±2℃

2.2 MΩ

L

-200℃ ~ 900℃ (-328℉ ~ 1652℉)

±2℃

2.2 MΩ

U

-200℃ ~ 600℃ (-328℉ ~ 1112℉)

±2℃

2.2 MΩ

P

0℃ ~ 1395℃ (32℉ ~ 2543℉)

±2℃

2.2 MΩ

C

0℃ ~ 2300℃ (32℉ ~ 4172℉)

±2℃

2.2 MΩ

D

0℃ ~ 2300℃ (32℉ ~ 4172℉)

±2℃

2.2 MΩ

PT100(DIN)

-210℃ ~ 700℃ (-346℉ ~ 1292℉)

±0.4℃

1.3KΩ

PT100(JIS)

-200℃ ~ 600℃ (-328℉ ~ 1112℉)

±0.4℃

1.3KΩ

mA

-3mA ~ 27mA

±0.05%

2.5Ω

VDC

-1.3VDC ~ 11.5VDC

±0.05%

1.5MΩ

mV

0 ~ 50mV

±0.05%

2.2 MΩ

溫度效應

除 mA 輸入外,所有輸入通道之溫度影響為:1.5μV / °C, mA 輸入通道之溫度影響為:3.0μV / °C

傳感器導線阻抗效應

熱電偶(TC):0.2μV / Ω
三線式 RTD:2.6°C / Ω(取兩導線電阻差)
二線式 RTD:2.6°C / Ω(取兩導線電阻總和)

易燃電流

200nA

共模抑制比(CMRR)

120 dB

常模抑制比(NMRR)

55 dB

傳感器斷裂偵測

當輸入為熱電偶(T/C) 、RTD 或毫伏訊號(mV)時,偵測方式為感測器斷線(Sensor Open), 若輸入為 4 ~ 20 mA 電流訊號,偵測條件為電流低於 1 mA, 若輸入為 1 ~ 5 V 電壓訊號,偵測條件為電壓低於 0.25V

傳感器斷裂反應時間

TC、RTD 與 mV 訊號於 4 秒內偵測完成, 4 ~ 20 mA 與 1 ~ 5 V 訊號於 0.1 秒內偵測完成

數位輸入 (DI1 or DI2)

事件輸入數量

1

高邏輯位准

最小-10V , 最大0.8V

低邏輯位准

最小2V , 最大10V

功能

詳見可用性表

類比再傳送 輸出 1 / 輸出 2 / 輸出 3

輸出數量

3

輸出訊號

4-20 mA, 0-20 mA,0 - 10VDC

解析度

15 Bits

精度

範圍值的±0.05%  ± 0.0025% / °C

負載電阻

電流輸出:0 - 500Ω,電壓輸出: 最小10KΩ

輸出調節能力

負載全範圍變動時誤差 0.01%

輸出設定時間

0.1秒(穩定度達 99.9%)

隔離耐壓

1000VAC 最小

整體線性誤差

±0.005% 的範圍值

溫度效應

±0.0025% 範圍值的 / ℃

低飽和點

0 mA 或 0 VDC

高飽和點

22.2 mA 或 5.55 VDC, 11.1 VDC 最小

線性輸出範圍

0 - 22.2mA (0 - 20mA/4 - 20mA), 0 - 5.55VDC (0 - 5VDC, 1 - 5VDC),0 - 11.1VDC (0 - 10VDC)

通信功能

介面

RS-485

通訊協議

Modbus RTU (Slave 模式)

地址

1 ~ 247

傳輸速率

2.4KBPS ~ 115.2KBPS

檢查位

None(無), Even(偶數), Odd(奇數)

停止位

1 或 2 Bits

數據位

7 或 8 Bits

通訊暫存區

160 Bytes

使用者介面

按鍵

4 鍵

顯示類型

4位數數位LCD顯示

顯示數量

2

上顯示器尺寸

0.58”(15 mm)

下顯示器尺寸

0.3”(7.8 mm)

程式連接埠

介面

Micro USB

通訊功能

韌體升級

數位濾波

功能

一階

濾波時間常數

可設定0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 秒

工作環境和物理條件

工作溫度

-10℃ to 50℃

儲藏溫度

-40℃ to 60℃

濕度

0 ~ 90 % RH (無凝結狀態

高度限制

最大2000公尺

污染級數

2級

絕緣阻抗

最小 20 MΩ  (@500 VDC)

耐壓性

10 ~ 55 Hz , 10m / s², 一分鐘

抗震性

10~55Hz,10m/s², 兩 小時

抗衝擊性

200 m/s2(20g)

外殼

耐燃級聚碳酸酯

安裝固定

Rail Mount

尺寸 (W*H*D) (mm)

22.5*96*83

盤面後深度 (mm)

-

開孔尺寸 (mm)

-

重量 (grams)

160

安全規範

安規

CE, RoHS, REACH, WEEE

防護等級

IP50 面板, 外殼與端子座IP20, 皆適用於室內

EMC

EN61326

資源下載

前往下載中心查看更多的文件與工具。  前往

常見問答

RSC 支援哪些輸入訊號類型?

RSC 支援萬用輸入訊號,包含 熱電偶(共 13 種)、RTD(PT100 DIN/JIS)、電流(4–20 mA / 0–20 mA) 與 電壓(0–5V / 1–5V / 0–10V),亦支援訊號比例轉換、濾波與開根號運算。

RSC 最多可輸出幾組類比訊號?

RSC 最多可提供 三組獨立類比重傳輸出,每組可設定為 電流或電壓格式,輸出選項包括 4–20 mA、0–20 mA、0–10V、1–5V 或 0–5V,具備 15-bit 精密輸出解析度 與 ±0.05% 精度。

是否提供 RSC 的電腦端設定軟體?

是的。搭配選購的 PA98-1 USB 編程轉接器 及 BC-Set 設定軟體,可透過 Micro USB 程式連接埠 進行參數設定、韌體更新與設備診斷作業。

RSC 的防護等級為何?適合戶外使用嗎?

正確安裝後,產品前面板的防護等級為 IP50,而外殼及接線端子的防護等級為 IP20。本產品僅適用於室內環境,並應安裝於控制箱內。

RSC 是否支援數位輸入控制功能?

是的,RSC 可選配 一組數位輸入 DI(DI1 或 DI2),可用於觸發如 模式切換、手動輸出啟用 或 參數重置 等功能,依設定而定。
