Specialty Series | 22.5 x 96mm

RSC
https://www.brainchildtw.com/web/image/product.template/63/image_1920?unique=9a129f5

Signal Conditioner

• Universal input for multiple signal types
• 3 analog retransmission outputs
• 18-bit high-resolution A/D input
• RS-485 Modbus RTU communication
• Square root & filter functions


This combination does not exist.

Features

  • Individual scaling for each output channel
  • 15-bit D/A conversion with ±0.05% accuracy
  • 200ms fast sampling rate
  • Programmable low-pass digital filter
  • Supports thermocouples, RTD, current, voltage
  • Dual LCD display with high brightness
  • One configurable digital input (DI)
  • Micro USB port for PC setup & firmware update
  • 3-point output calibration and adjustment
  • Manual control mode for testing
  • Lockout protection with multi-level security
  • DIN rail mounting design
  • Wide power supply range (11–40VDC / 90–250VAC)
  • Conforms to UL, CE, EN61010-1 standards

RSC Signal Conditioner for Industrial Automation

Universal input, 3-way retransmission, RS-485 communication

The BrainChild RSC signal conditioner is a compact, DIN-rail mountable module designed for precise signal conversion and isolation. It supports universal input for various signal types including thermocouples, RTDs, current (mA), and voltage (V). With its 18-bit high-resolution A/D converter, the RSC ensures fast and accurate signal processing. It provides up to three independent analog retransmission outputs with 15-bit D/A resolution, ideal for complex industrial control systems. Additional features such as RS-485 Modbus RTU communication, square root calculation, and programmable digital filtering make it a powerful solution for industrial automation and process signal conditioning.

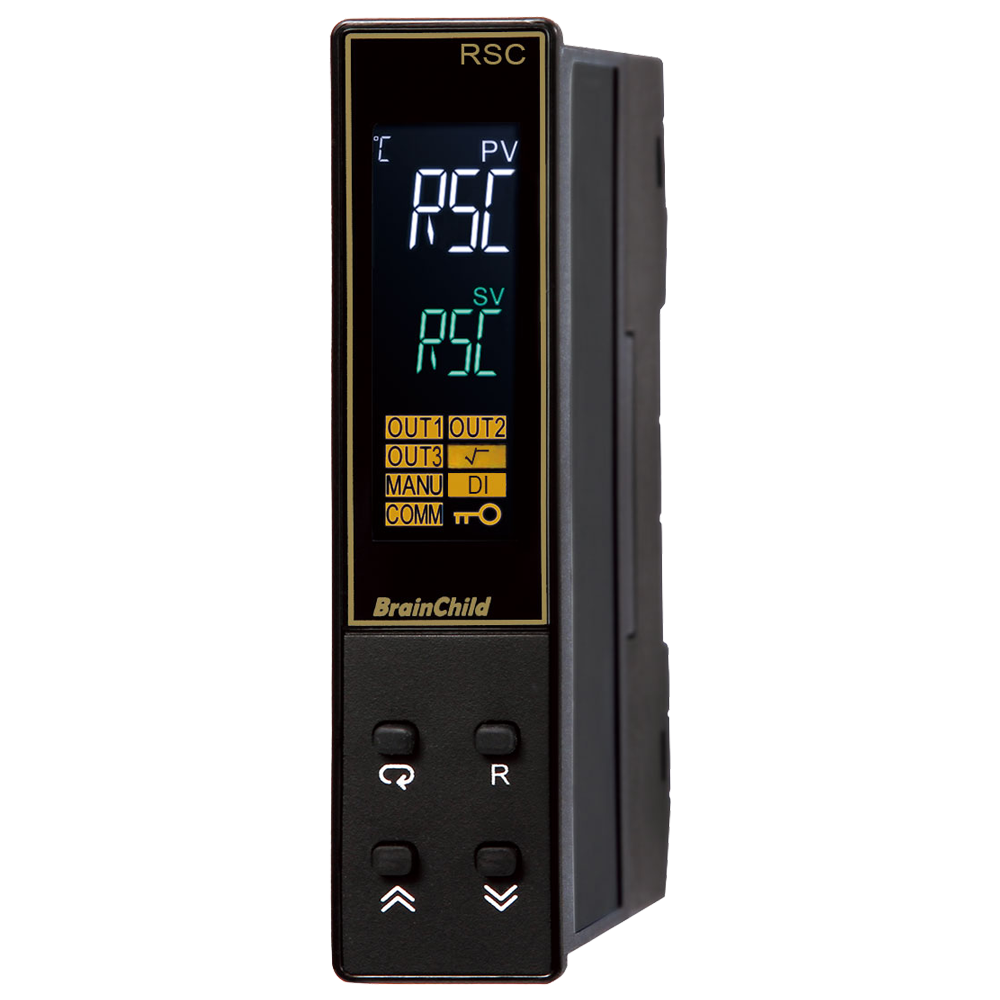

RSC Panel Interface | Clear Dual Display & Keys

Dual-line LCD, four-key control, status indicators

The BrainChild RSC signal conditioner features an intuitive and reliable panel interface designed for fast configuration and daily monitoring. At the core is a dual-line high-brightness LCD display, which provides crisp, real-time visibility of the process value (PV) and user-selected menu parameters or set values (SV). This enables engineers and technicians to check live readings and adjust settings without external tools.

The interface includes four tactile control keys: Scroll/Enter, Up, Down, and Reset, making it easy to navigate the multi-layer menu structure, perform fine-tuned adjustments, and quickly return to the home screen. The Scroll/Enter key allows seamless parameter selection and confirmation, while Up and Down keys offer precise control during setup. The Reset key is essential for restoring normal operation or exiting configuration mode.

To enhance usability, the panel is equipped with multiple visual status indicators, including icons for output channels (OUT1~OUT3), manual mode activation, digital input activity (DI), square root calculation (SQRT), and parameter lock status (LOCK). These symbols give operators immediate visual feedback on system status, minimizing operational errors.

For added convenience, a micro USB port is integrated discreetly on the front panel, allowing offline configuration, firmware upgrades, and automated calibration via PC, without requiring disassembly or front-panel input. This modern interface design supports both on-site usability and maintenance flexibility, making the RSC suitable for diverse industrial automation environments.

LCD Display | High-Brightness for Industrial Use

Anti-glare, high-contrast dual display for clear visibility

The LCD display on the RSC signal conditioner is engineered for high brightness and optical clarity, ensuring reliable visibility even in brightly lit industrial environments. Built with anti-glare coating and high-contrast segments, the display remains sharp and legible from various angles and lighting conditions.

Whether mounted inside a control cabinet or used on an exposed panel, the screen’s white backlight and crisp segmented characters help technicians and operators quickly recognize displayed values and messages. The layout emphasizes readability and eye comfort, reducing misinterpretation during long operation hours.

By combining clarity, durability, and minimal reflection, the RSC’s LCD is optimized for industrial process monitoring, offering an interface that remains dependable and easy to read across all applications


RSC Input Types | Thermocouple, RTD, mA, V

18-bit A/D conversion, universal input compatibility

The RSC signal conditioner features a universal input interface, supporting a wide range of industrial signal types. It accepts thermocouples (J, K, T, E, B, R, S, N, L, U, P, C, D), RTDs (PT100 DIN/JIS), as well as linear current (4–20 mA, 0–20 mA) and linear voltage (0–5V, 1–5V, 0–10V) signals. The input signal is processed by an 18-bit high-resolution A/D converter, ensuring accurate and stable measurement across applications.

For linear signals, users can define custom input scaling ranges (INLO/INHI) to match specific process sensors. Input readings are further stabilized by a programmable digital filter, and enhanced with square root transformation for flow-type inputs.

RSC Output Options | 3 Analog Channels & DI

15-bit D/A resolution, 4–20 mA / 0–10 V selectable

The RSC conditioner supports up to three analog retransmission outputs, configurable via modular options. Each output channel supports 4–20 mA, 0–20 mA, 0–10V, 1–5V, or 0–5V ranges, with a resolution of 15-bit D/A conversion and ±0.05% of span accuracy. All outputs are electrically isolated and can be scaled independently using parameters ANL/ANH for each channel.

In addition, the RSC offers one configurable digital input (DI) as an option, allowing logic-level triggering for external control actions or mode switching. All output types are programmable and stabilized with zero/span calibration and fast response time (0.1 sec).

RSC Programming Port | USB for Easy Setup

Support firmware upgrade, auto config & testing

The RSC signal conditioner is equipped with a micro USB programming port on the front panel, designed for convenient PC-based configuration, firmware upgrades, and automated calibration or testing procedures. This interface enables fast, accurate setup without the need to navigate the device's front-panel buttons, greatly enhancing efficiency during installation or maintenance.

Using the optional PA98-1 USB programming adapter and CC98-1 programming cable, users can connect the RSC unit to a PC running the BC-Set configuration software. This allows engineers to download or upload settings, update the firmware, and perform full diagnostic checks—especially valuable for high-volume deployments or OEM integration.

The programming port is electrically isolated from the I/O circuitry, ensuring safety and reliability during connection. It is intended for offline use, meaning users should not access the port while the device is actively operating in the control loop.

BC-SET Pro Configuration Software

Easy parameter setup, backup and firmware upgrade

BC-SET Pro is the official configuration software developed by BrainChild for its over-temperature protection controllers. With a streamlined and intuitive interface, the software allows users to connect via USB programming cable and quickly configure control parameters. It supports efficient parameter editing, setting duplication between devices, and firmware upgrades to maintain device performance and stability. BC-SET Pro also enables offline configuration with the ability to save and manage multiple profiles, making it ideal for production environments, system deployment, and ongoing maintenance. Whether for new setup or existing system adjustment, this tool helps engineers and technicians simplify workflow, reduce setup time, and ensure consistent configuration across all devices.

Batch Read/Write for Multiple Controllers

BC-SET allows users to connect multiple controllers of the same model and perform batch parameter read/write by defining a node address range. This feature significantly streamlines configuration in OEM or multi-device environments.

Clear and Accessible System Menu

The system menu offers quick access to key operations like Rescan (F5), Read Data (F6), Write Data (F7), Write Multiple (F8), and Communication Settings (F9). Built-in hotkeys support fast, efficient navigation.

Intuitive Communication Setup Interface

The communication settings window lets users define COM port, baud rate, parity, data bits, and stop bits — with a “Default” button for quick reset and “Save and Exit” to finalize setup. Designed to reduce setup errors.

Visual Profile Editor for Programmable Controllers

For controllers with profile functionality, BC-SET provides a graphical editor to configure temperature ramp/soak segments. Users can easily read, modify, and write profile parameters for precise thermal process control.

Applications

Specification


Power

Power supply

90 ~ 250 VAC, 47 ~ 63 Hz, 20 ~ 28 VAC, 47 ~ 63 Hz / 11 ~ 40 VDC

Power consumption

12VA,6W Maximum

Over Voltage Category
II
Signal Input 1

Type

Thermocouple (J,K,T,E,B,R,S,N,L,U,P,C,D), RTD(PT100(DIN),PT100(JIS)), Current(mA), Voltage(V,mV)

Resolution

18 Bits

Sampling Rate

5 Times / Second (200msec)

Maximum Rating

-2VDC minimum, 12VDC maximum

Input Characteristics

Type

Range

Accuracy @25℃

Input Impedance

J

-120℃ ~ 1000℃ (-184℉ ~ 1832℉)

±2℃

2.2 MΩ

K

-200℃ ~ 1370℃ (-328℉ ~ 2498℉)

±2℃

2.2 MΩ

T

-250℃ ~ 400℃ (-418℉ ~ 752℉)

±2℃

2.2 MΩ

E

-100℃ ~ 900℃ (-148℉ ~ 1652℉)

±2℃

2.2 MΩ

B

0℃ ~ 1820℃ (32℉ ~ 3308℉)

±2℃(200℃ ~ 1800℃)

2.2 MΩ

R

0℃ ~ 1767.8℃ (32℉ ~ 3214℉)

±2℃

2.2 MΩ

S

0℃ ~ 1767.8℃ (32℉ ~ 3214℉)

±2℃

2.2 MΩ

N

-250℃ ~ 1300℃ (-418℉ ~ 2372℉)

±2℃

2.2 MΩ

L

-200℃ ~ 900℃ (-328℉ ~ 1652℉)

±2℃

2.2 MΩ

U

-200℃ ~ 600℃ (-328℉ ~ 1112℉)

±2℃

2.2 MΩ

P

0℃ ~ 1395℃ (32℉ ~ 2543℉)

±2℃

2.2 MΩ

C

0℃ ~ 2300℃ (32℉ ~ 4172℉)

±2℃

2.2 MΩ

D

0℃ ~ 2300℃ (32℉ ~ 4172℉)

±2℃

2.2 MΩ

PT100(DIN)

-210℃ ~ 700℃ (-346℉ ~ 1292℉)

±0.4℃

1.3KΩ

PT100(JIS)

-200℃ ~ 600℃ (-328℉ ~ 1112℉)

±0.4℃

1.3KΩ

mA

-3mA ~ 27mA

±0.05%

2.5Ω

VDC

-1.3VDC ~ 11.5VDC

±0.05%

1.5MΩ

mV

0 ~ 50mV

±0.05%

2.2 MΩ

Temperature Effect

1.5uV/℃ for all inputs except mA input, 3.0uV/℃ for mA

Sensor Lead Resistance Effect

TC: 0.2uV/Ω
3-wire RTD: 2.6℃/Ω of Difference of Resistance of two leads.
2-wire RTD: 2.6℃/Ω of Sum of Resistance of two leads.

Burn-out Current

200nA

CMRR

120 dB

NMRR

55 dB

Sensor Break Detection

Sensor open for TC, RTD and mV inputs, Sensor short for RTD input
Below 1mA for 4 ~ 20mA input, Below 0.25VDC for 1 ~ 5VDC input

Sensor Break Response Time

Within 4 seconds for TC, RTD and mV inputs, 0.1 second for 4 ~ 20mA and 1 ~ 5VDC inputs

Digital Input (DI1 or DI2)

No. of Event Inputs

1

Logic High

-10V minimum, 0.8V maximum.

Logic Low

2V minimum, 10V maximum

Functions

Refer to user manual

Analog Retransmission Output 1 /Output 2 / Output 3

Number of Outputs

3

Output Signal

4-20 mA, 0-20 mA,0 - 10VDC

Resolution

15 Bits

Accuracy

±0.05% of Span ± 0.0025% / °C

Load Resistance

0 to 500Ω for Current Output , 10KΩ minimum for Voltage Output

Output Regulation

0.01% for full load change

Output Setting Time

0.1 Second (Stable to 99.9%)

Isolation Breakdown

1000VAC minimum

Integral Linearity Error

±0.005% of Span

Temperature Effect

±0.0025% of Span /°C

Saturation Low

0 mA or 0 VDC

Saturation High

22.2mA or 5.55VDC, 11.1VDC min

Linear Output Ranges

0 - 22.2mA (0 - 20mA/4 - 20mA), 0 - 5.55VDC (0 - 5VDC, 1 - 5VDC),0 - 11.1VDC (0 - 10VDC)

Data Communication

Interface

RS-485

Protocol

Modbus RTU (Slave Mode)

Address

1 ~ 247

Baud Rate

2.4KBPS ~ 115.2KBPS

Parity Bit

None, Even or Odd

Stop Bit

1 or 2 Bits

Data Length

7 or 8 Bits

Communication Buffer

160 Bytes

User Interface

Keypad

4 Keys

Display Type

4 Digit LCD Display

No. of Display

2

Upper Display Size

0.58”(15 mm)

Lower Display Size

0.3”(7.8 mm)

Programming Port

Interface

Micro USB

Communication Function

Firmware upgrade

Digital Filter

Function

First order

Time constant

0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 seconds programmable

Environmental and Physical Specifications

Operating Temperature

-10℃ to 50℃

Storage Temperature

-40℃ to 60℃

Humidity

0 to 90 % RH (Non-Condensing)

Altitude

2000 Meters Maximum

Pollution

Degree II

Insulattion Resistance

20MΩ Minimum (@500VDC)

Dielectric Strength

2000VAC,50/60 Hz for 1 Minute

Vibration Resistance

10 to 55 Hz, 10m/s2 for 2 Hours

Shock Resistance

200 m/s2(20g)

Housing

Flame Retardant Polycarbonate

Mounting

Rail Mount

Dimensions (W*H*D)(mm)

22.5*96*83

Depth Behind Panel (mm)

-

Cut Out Dimensions (mm)

-

Weight (grams)

160

Approval Standards

Certificate

CE, RoHS, REACH, WEEE

Protective class

IP50 for Panel,IP20 for terminals and housing, all indoor use

EMC

EN61326

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

What types of input signals are supported by the RSC?

The RSC supports universal input signals, including thermocouples (13 types), RTDs (PT100 DIN/JIS), current signals (4–20 mA, 0–20 mA), and voltage signals (0–5V, 1–5V, 0–10V). Signal scaling, filtering, and square root transformation are also supported.

How many analog outputs does the RSC provide?

The RSC provides up to three independent analog retransmission outputs, each configurable as current or voltage output. Users can select from 4–20 mA, 0–20 mA, 0–10V, 1–5V, or 0–5V, all with 15-bit D/A resolution and ±0.05% accuracy.

Is there software available for configuring the RSC?

Yes. With the optional PA98-1 USB programming adapter and BC-Set software, users can configure parameters, update firmware, and perform diagnostics via the micro USB programming port.

What is the protection rating of the RSC?

The front panel is rated IP50 when properly mounted, while the housing and terminals are rated IP20. The device is designed for indoor use only and should be installed inside a control cabinet.

Does the RSC support digital input (DI) control?

Yes. The RSC offers an optional digital input (DI1 or DI2) that can be used to trigger events such as mode switching, manual control, or parameter reset, depending on configuration.

Ordering Code

單獨的電子郵件地址用逗號區分.

Features



PRMesh

Wireless Expansion Module for PR Paperless Recorders

PR Mesh works with SenseNode wireless sensor nodes to extend the wireless measurement capabilities of existing PR Paperless Recorders.

SenseNode
Signal Acquisition & Transmission

PRMesh
Wireless Reception & Integratione

PR Paperless Recorders
Monitoring & Data Logging

Wireless  Measurement Expansion

Extend the wireless measurement capabilities of existing PR Paperless Recorders with PR Mesh, without replacing the entire recording system.

Distributed Signal Acquisition

Deploy SensNode near measurement points to acquire up to two analog inputs per unit, reducing long-distance sensor wiring to the recorder.

BrainChild Mesh
Connectivity

Powered by BrainChild Mesh wireless technology, SensNode transmits field measurement data to PR Mesh, connecting distributed measurement points with the PR recorder.

Seamless PR Integration

Installed inside a compatible PR recorder, PR Mesh integrates wireless measurement data into the existing system while preserving its familiar interface and operation.

Centralized Monitoring & Recording

Consolidate measurement data from distributed points in the PR recorder, retaining real-time displays, trend monitoring, alarm management, and historical data logging.

Scalable Monitoring Expansion

Add SensNode units as monitoring needs grow, extending measurement coverage while reducing wiring and installation work when expanding existing systems.

The PR30 includes an easy-to-use tree layout configuration, convenient handwriting message input, a circular display for better visibility, and both standard and plus firmware versions for enhanced flexibility and performance across various applications.

Configuration in tree layout is easy for operation

The tree layout configuration simplifies operation, allowing users to easily navigate and manage settings on the recorder.

Handwriting messages are handy users

Handwriting messages offer users a convenient and quick way to input notes directly on the recorder.

Circular display

Handwriting messages offer users a convenient and quick way to input notes directly on the recorder.

Standard version of Firmware
  • Al:  Analog input is offered various log speed in 1 00ms, 1, 2, 5, 10, 20, 30 Sec, 1, 2 Min/Dot.
  • DI:  Digital input is offered either normal Logic or high frequency Pulse.
  • AO:  In analog output, mA or V and its Expression can be defined.
  • DO:  Digital output/relay output can be enabled. Each DO card has 6 relays.
  • Display:  Various display speeds are available in 1 00ms, 1, 2, 5, 10, 20, 30 Sec/Dot, or 1, 2, 10, 30 Min/Page, 1, 2, 4, 8, 12 Hour/Page, or 1 Day/Page.
  • Timer:  Timer in Countdown, Repeat Countdown, Daily, Weekly or Monthly base, and various jobs can be defined.
  • Clock:  Date Style of MM/dd/yy or dd/MM/yy, Time Synchronize via Internet, and Summer Saving Time can be defined.
  • Communication:  Web Server and Email functions are available in Communication in Stan­dard firmware.
  • Instrument:  Brightness adjustment and Screen Saver are available in Instrument.
  • Password:  If Normal Security is chosen, then only one password is offered. If high Security of CFR-21 is chosen, then 9 levels of password can  be defined.
  • Demo:  Enable or disable the demonstration.
  • Auto-output:  Automatic output can be set to specify the printer, to print Historical data & Report data in specified period of time.
  • System information:  It gives Firmware version number, Internal & External memory status, IP address, and 10 card status of each Slot.
  • Calibrate:  Sometimes the field calibration is required for high accuracy. In this case, a qualified engineer can do the necessary calibration.
  • Math:  Standard version includes mathematics.
Math: It includes Math, Counter & Totalizer.
Math Expression is keyed in an easy way.
Power Calculation: Calculating and recording the power usage,Formulas are ready for P1W2, P1W3, P3W3, P3W4*.
  • P1W2:single-phase two wires
  • P1W3:single-phase three wires
  • P3W3:three-phase three wires
  • P3W4:three-phase four wires

Marker:  Adding notifications on Real-Time View.Marker can be added by events like alarm or triggered by Operation

 Standard version of Firmware

Plus versions offer more features of External Channels, Custom Display, Batch, FDA 21 CFR part 11.

External Channels:

Besides Al & DI inputs, PR recorders accept inputs through communication called External Channels. PR10, PR20 & PR30 can work External Channels maximum up to 24, 48 & 96 respectively.

External Channels:

Besides Al & DI inputs, PR recorders accept inputs through communication called External Channels. PR10, PR20 & PR30 can work External Channels maximum up to 24, 48 & 96 respectively.

Batch:

Batch production record is constantly required for more strict production, for example food and drugs.

 FDA 21 CFR part 11:

This feature is complied with U.S. Food and Drug Administration with human health concern. All data should be avoided from manipulating after recording.

Powerful functions in PC Software

The PR series PC software offers powerful functions, including easy recorder configuration and historical trend analysis. It also provides features like real-time monitoring and custom display editing, giving users the flexibility to tailor displays and monitor live data as needed.

Free basic software

It consists of two parts, which are Configuration and Historical Viewer.

I. Configuration

It is Then, easy send to do the recorder configuration on PC. Then, send the configuration files from PC to recorder.

II. Historical Viewer

It can display historical trends, historical alarms, events, and then print it. It can search data by time, time period, tag, alarm, events and remarks. It also can export data in CSV format.

Extensive software Data Acquisition Studio

It consists of two parts, which are Configuration and Historical Viewer.

Ill. Real-time Viewer

Besides Configuration & Histor­ical Viewer, it offers additional software Real-time Viewer for real-time monitoring.

IV. Panel Studio

If Plus version 2 or 3 of Firmware is purchased, additional software Panel Studio is offered for editing custom display. The users can use it to edit specific displays on PC first, and then download it onto recorders. The custom edited displays will be additional pages to standard ones.

Edit it on PC

Download it onto Recorders

Applications

Specification


Product position

Big size and high-end one, good for sophisticated applications, for example power industry

Input numbers

6, 12, 18, 24, 30, 36, 42, 48 channels

True universal inputs

Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV

The fastest sampling rate

o reach 100 msec / dot, default setting at 1 sec / dot

Math, External channels, Batch,
Custom display, FDA 21 CFR part 11

Math in standard version, others in Plus versions

Display

12.1" TFT touch screen

Resolution

1024 x 768

MTBF backlight at 25°C

30,000 hrs

Backlight

LED

Screen saver, Email

Yes

A faster CPU

ARM Cortex-A8, 1Ghz

Internal flash memory

256 MB

RAM

256 MB

Ethernet

Modbus TCP/IP

RS-232/422/485

Optional RS-232 or RS-422/485 Modbus RTU

SD card slot, USB host x 2

Standard, one USB in the front, another USB in the back

Pulse input

Optional DI card offering either logic or high frequency pulse counter

START / STOP key

To start / stop record and to turn off the display only, not recorder itself so that a quick start possible

Calibration correction

On-site calibration possible, or using handy features of Offset and Gain for correction

Multilingual

Convenient for local users by offering 19 languages including English, Japanese,Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable

PC software Historical Viewer+ Configuration

Standard

Extensive software Data Acquisition Studio

Optional real-time monitoring

Power supply

90-250VAC or 11-36VDC

Outer dimensions (W x H x L mm)

288 x 288 x 189

Shorter mounting depth (mm)

171

DIN panel cutout (W x H mm)

 281 x 281

Protection

IP65 front, IP20 rear

Operating temperature

0°C to 50°C

Storage temperature

-30°C to 70°C

Safety standards

RoHS

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

Ordering Code

PR3006(6 analog inputs)
PR3012(12 analog inputs)
PR3018(18 analog inputs)
PR3024(24 analog inputs)
PR3030(30 analog inputs)
PR3036(36 analog inputs)
PR3042(42 analog inputs)
PR3048(48 analog inputs)
none
6 relays
12 relays
18 relays
24 relays
Digital inputs
6 channels
12 channels
18 channels
none
6 channels
12 channels
90-25 VAC,50/60 Hz
11-36 VDC
12 channels
standard Ethernet
Ethernet + RS232
Ethernet + RS-422/486
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
free basic software of Historical Viewer & Configuration
extensive software Data Acquisition Studio (RealTime Viewer + Historical Viewer + Configuration)
panel mount, no power cord, no power switch
panel mount, no power cord, power switch
portable, UL & CSA power cord, power switch
portable, VDE power cord, power switch
portable, SAA power cord, power switch
portable, BS power cord, power switch
portable, no power cord, power switch
panel mount, UL & CSA power cord, power switch
panel mount, VDE power cord, power switch
panel mount, SAA power cord, power switch
panel mount, BS power cord, power switch
Protected by reCAPTCHA, Privacy Policy & Terms of Service apply.
將其替換為您自己的 HTML 代碼
