Features
- 48×48mm compact panel mount size
- DIN panel mount with rear terminal access
- 3-digit DIP switch for precise setpoint
- Easy jumper-based output mode setup
- Thermocouple or RTD input selectable
- Selectable relay, SSR or analog output
- ON/OFF or time proportional control logic
- LED indicator for control output status
- Built-in deviation alarm relay output
- Sensor break protection shuts output off
- 100–240VAC universal power input
- Simple design with fast deployment
- Durable and stable for industrial use
- Ideal for OEM and compact control systems
- CE certified for global market compliance
BTC-905 1/16 DIN Digital Setting Temperature Controller
Precise DIP switch setting with relay or SSR output

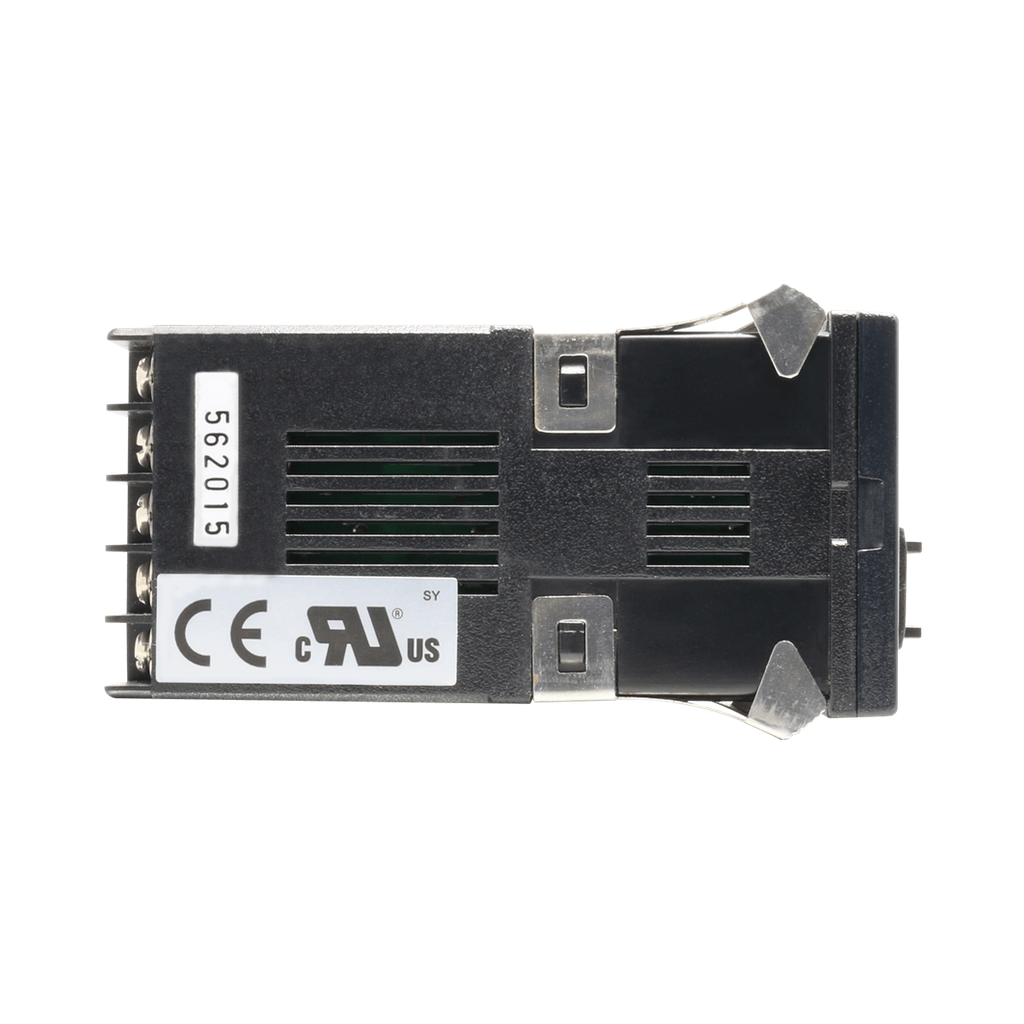

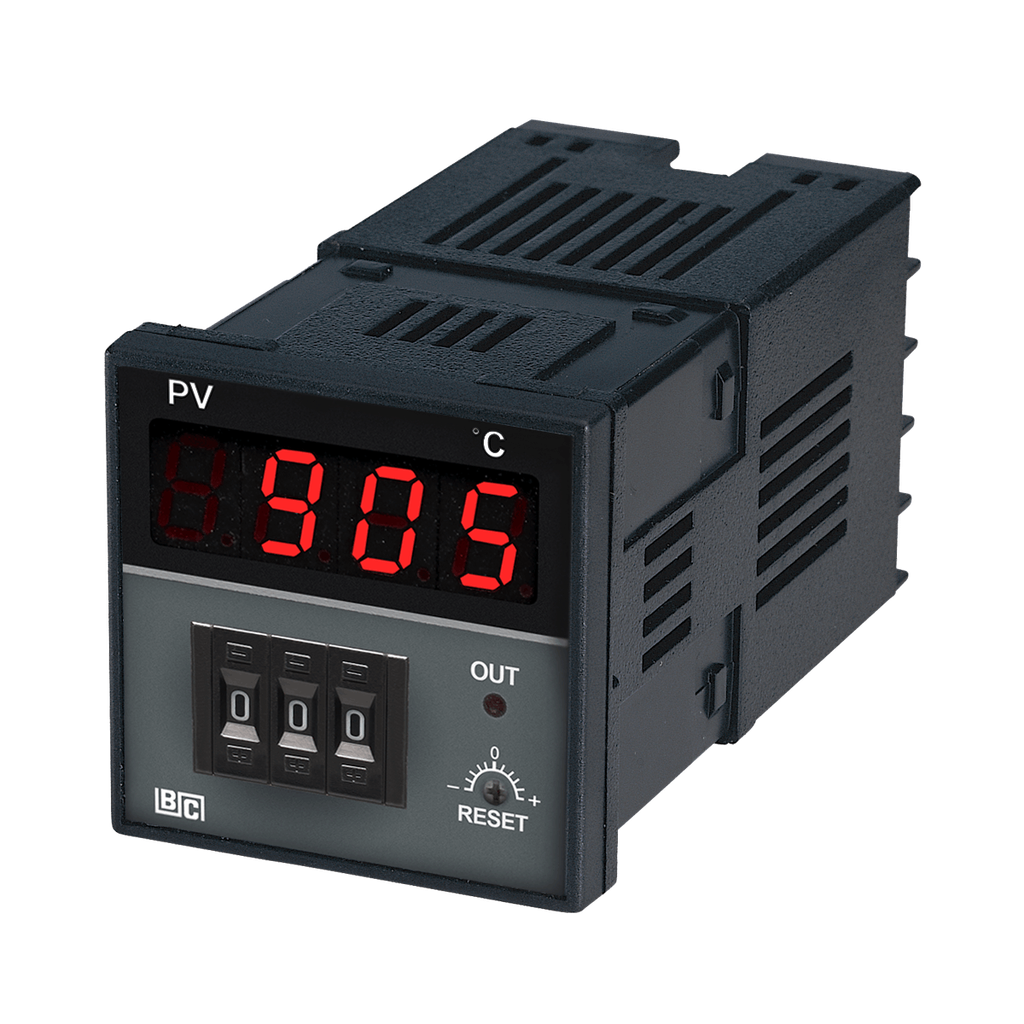

The BTC-905 is a compact 1/16 DIN digital temperature controller designed for applications that require stable control with a simple setup. It features a 3-digit DIP switch for direct setpoint configuration, eliminating the need for menu navigation. Compatible with J/K thermocouples and PT100 RTD sensors, the BTC-905 supports ON/OFF or time proportional control, with selectable relay, SSR, or analog output. Its robust housing, deviation alarm output, and universal 100–240VAC input make it ideal for OEM integration and space-constrained industrial systems.
Panel Display and Indicators
Clear red LED readout with status indicators

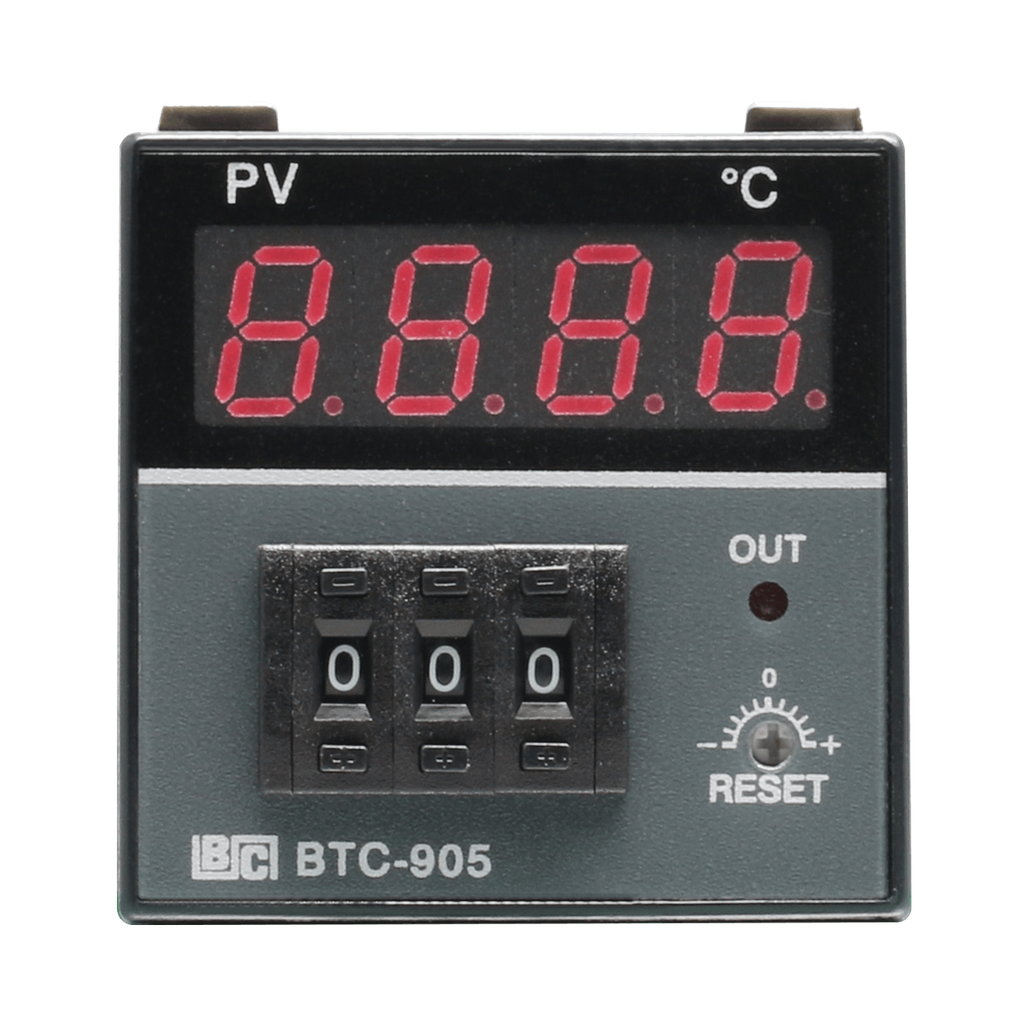

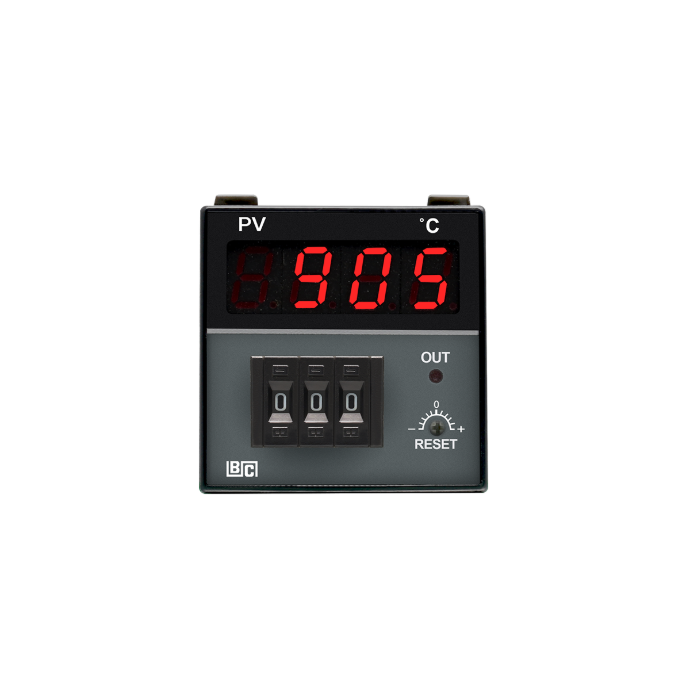

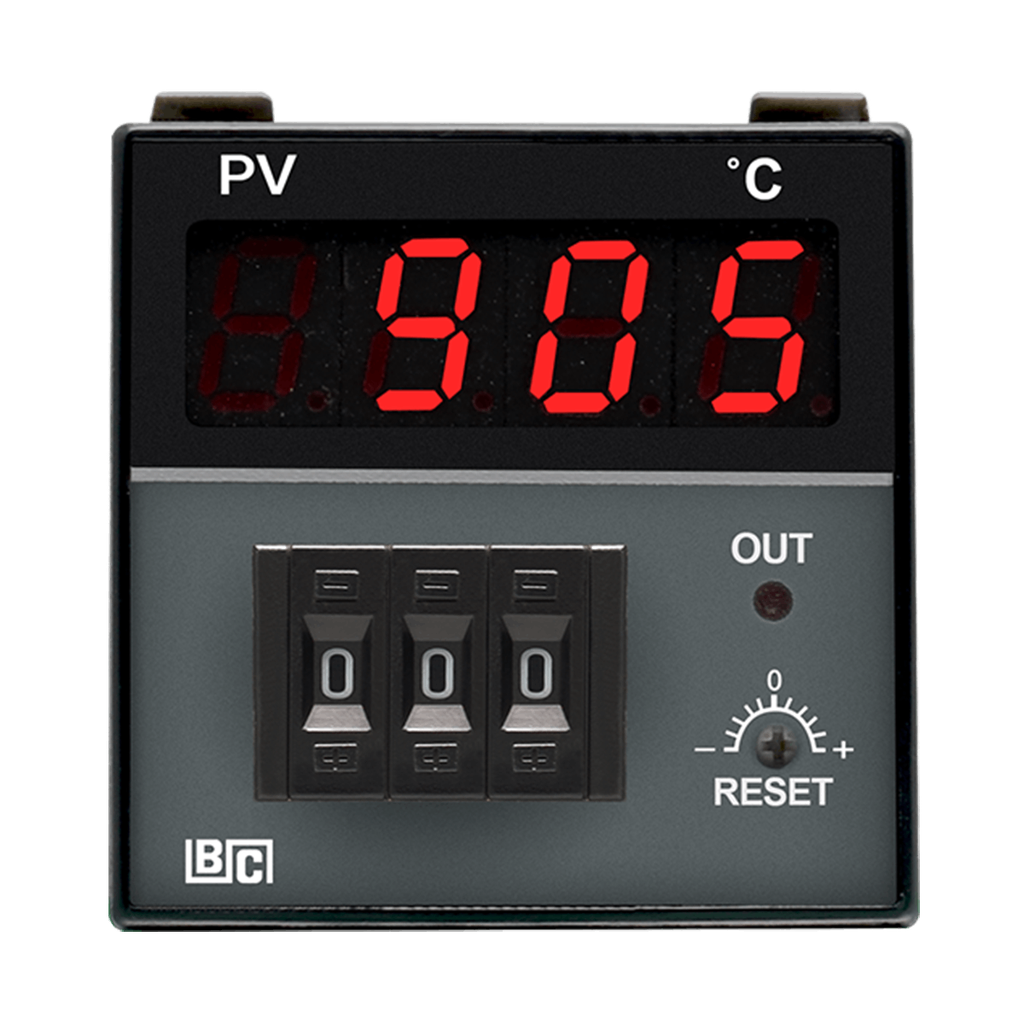

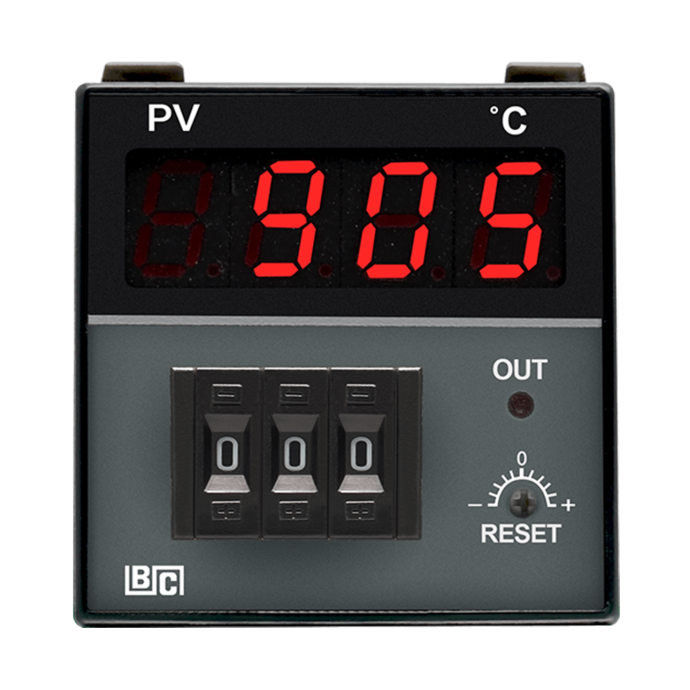

The BTC-905 control panel is designed for simple and efficient monitoring of temperature status. It features a 3-1/2 digit, 0.4-inch red LED display, providing clear readout of process values. A red status LED indicates output activity, allowing users to instantly identify control status at a glance. The panel also includes a DIP switch setting interface, which is accessed internally for numeric setpoint configuration. Its compact layout supports DIN panel mounting, ideal for limited space environments.
Supports J/K thermocouples and PT100 RTD input
The BTC-905 supports universal sensor input for temperature monitoring and control. It is compatible with J-type and K-type thermocouples, as well as PT100 RTD sensors. This wide input compatibility allows the controller to be deployed in a variety of industrial heating or cooling systems. The input signal is processed with high stability to ensure accurate readings over time.
Selectable relay, SSR voltage, or analog output
The BTC-905 offers flexible output configuration to match various control strategies. Users can select from relay contact output, voltage output for SSR drive (5V/30mA), or optional analog output for precise control. Output mode can be configured via jumper settings. The unit supports ON/OFF or time proportional control logic, making it adaptable to resistive or proportional heating applications
Applications
Specification
Power
Input
Control
Output
Adjustment
Indication
Environmental and Physical Specifications
Approval Standards
Download
Visit Download Center to See More Documents & Tools of This Product. Visit
FAQ
BTC-905 supports J-type, K-type thermocouples and PT100 RTD sensors, making it suitable for a wide range of temperature monitoring applications.
The temperature setpoint is configured via a 3-digit DIP switch, located inside the panel. This allows direct numeric input without using buttons or menus.
BTC-905 offers relay contact output, SSR voltage output (5V/30mA), or optional analog output, configurable through internal jumper settings.
Yes, it includes a deviation alarm relay output, which activates when the process value deviates beyond the preset range.
The controller supports a universal power input of 100–240VAC, making it suitable for global industrial power systems.
