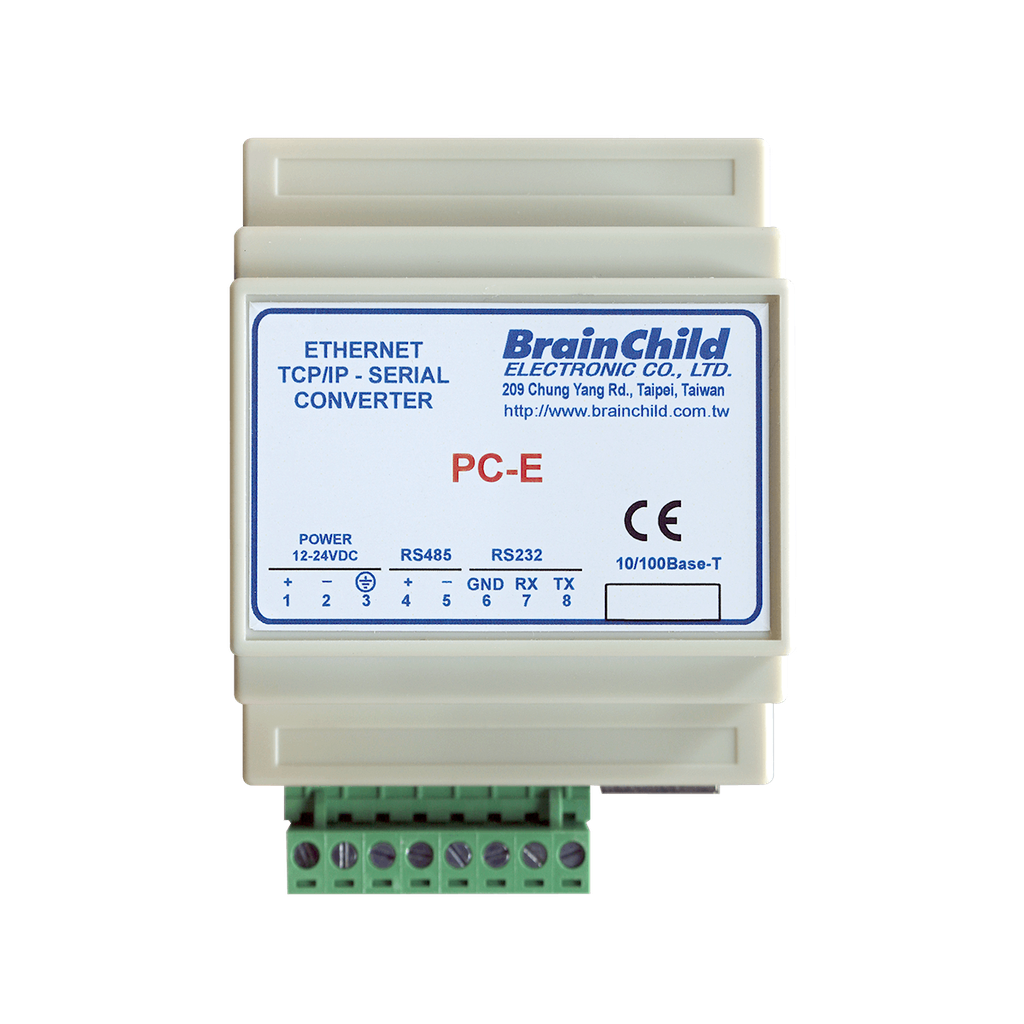

Converters | Ethernet converter

PC-E

Ethernet Converter

• Modbus RTU to TCP/IP Protocol Gateway
• RS232/RS485 to Ethernet Communication
• Supports 4 Concurrent Socket Connections
• Web-Based Configuration Interface
• Compact DIN Rail Mount Design

Features

Supports Modbus RTU to Modbus TCP/IP conversion
RS232 and RS485 ports for legacy device support
Enables Ethernet integration for serial equipment
Compatible with PLCs, HMIs, and data loggers
Supports 4 TCP client/server socket connections

Built-in web server for configuration and monitoring
Password protection for configuration access
Firmware upgradeable via web interface
LED indicators for power, link, and data status
DIN rail mountable for industrial control cabinets

Compact size ideal for limited installation space
Operates in -10°C to 60°C wide temperature range
DC 12–24V wide power input range
Fanless design ideal for harsh environments
Certified for FCC, CE, NCC wireless compliance

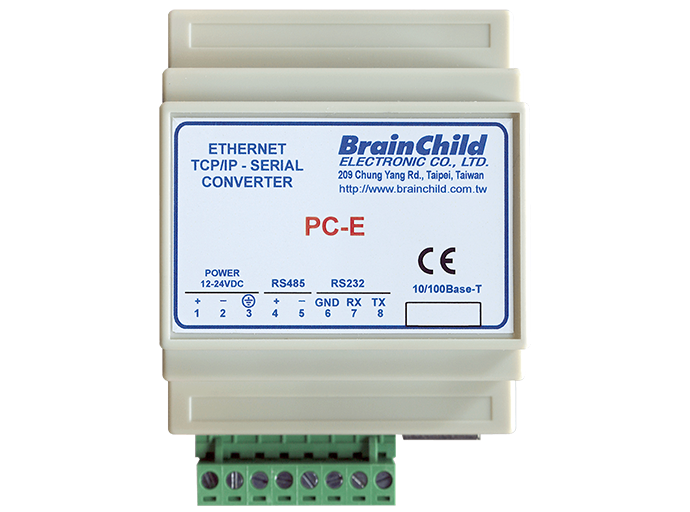

PC-E Ethernet Serial Converter for Modbus

Seamlessly bridge RS232/485 to Modbus TCP/IP

PC-E is a compact and powerful Modbus Ethernet converter designed to integrate traditional serial devices into modern industrial networks. It supports RS232 and RS485 communication and seamlessly bridges Modbus RTU to Modbus TCP/IP protocols. Ideal for automation systems requiring reliable and secure data exchange, PC-E is equipped with user-friendly web configuration, DIN rail mounting, and wide operating temperature support.

PC-E Connection & LED Status Overview

Clear installation with power, Ethernet, and LED indicators

The PC-E converter is designed for easy DIN rail installation. Connect power to terminal 1 (+12/24VDC) and terminal 2 (0V) to activate the device. The power LED will light up to confirm operation, while other LED indicators will remain off initially.

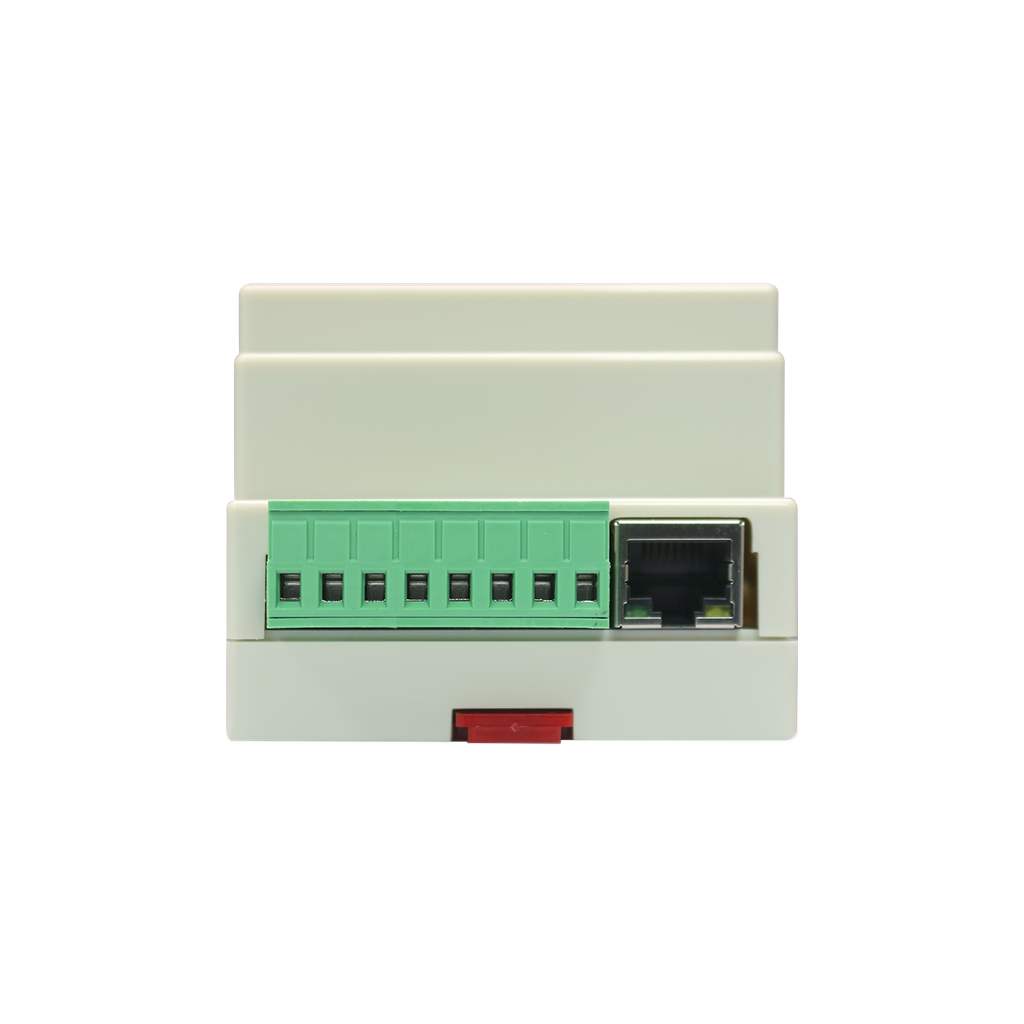

For Ethernet communication, use a standard RJ45 connector to link the PC-E to a network or directly to a PC. The Ethernet port ensures stable Modbus TCP/IP communication with Modbus RTU devices.

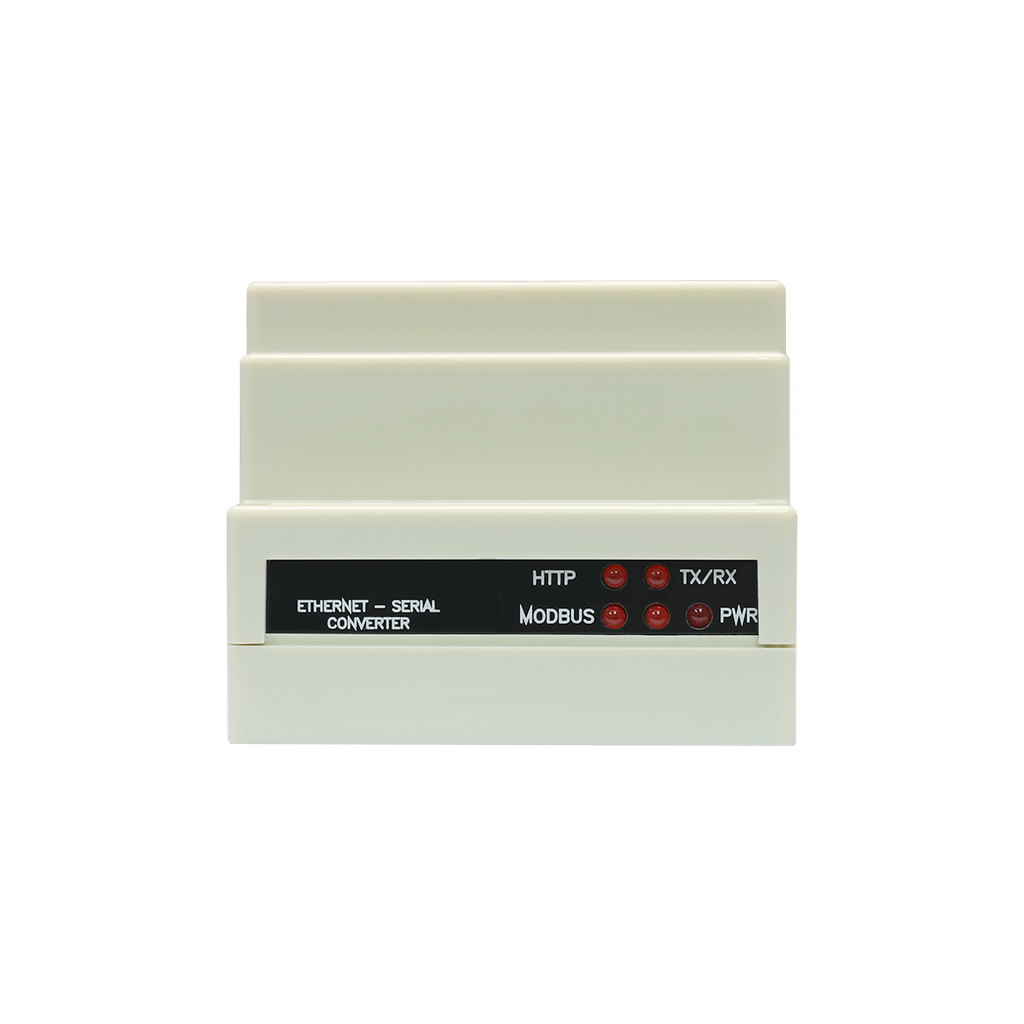

Multiple LED indicators on the PC-E front panel clearly reflect operational status, aiding in diagnostics and ensuring reliable system integration.

Applications

Pharmaceutical

Plastics & Rubber

Water

Electronics

Food

Specification

Power Supply	90mA @ 10VDC / 40mA @ 26VDC
Ethernet	Communication Speed	10/100Base-TX
Serial	RS232	3 Wire , TX,RX,GND
	RS485	2 Wire Multi drop twisted pair
	Baud Rate	2400, 4800, 9600, 19200, 38400, 57600, 115200 BPS
	Data Bit	5, 6, 7, 8
	Parity	None, Even, Odd
	Stop Bit	1 or 2
Protection	Input fault protection to 70 VDC, 16 KV HBM protection
*Dimensions (LWH)*	70 * 59.5 * 106 mm
Connector	8 Way Screw Connector
Application	Connect RS-485 IO modules to the PC via Ethernet, 10/100 Base-T Modbus RTU to Modbus TCP, UDP, Transparent Mode
Sockets	Multisocket, Share date to maximum 4 masters on the Ethernet side
