Classic Premium Series | 48 x 48 mm

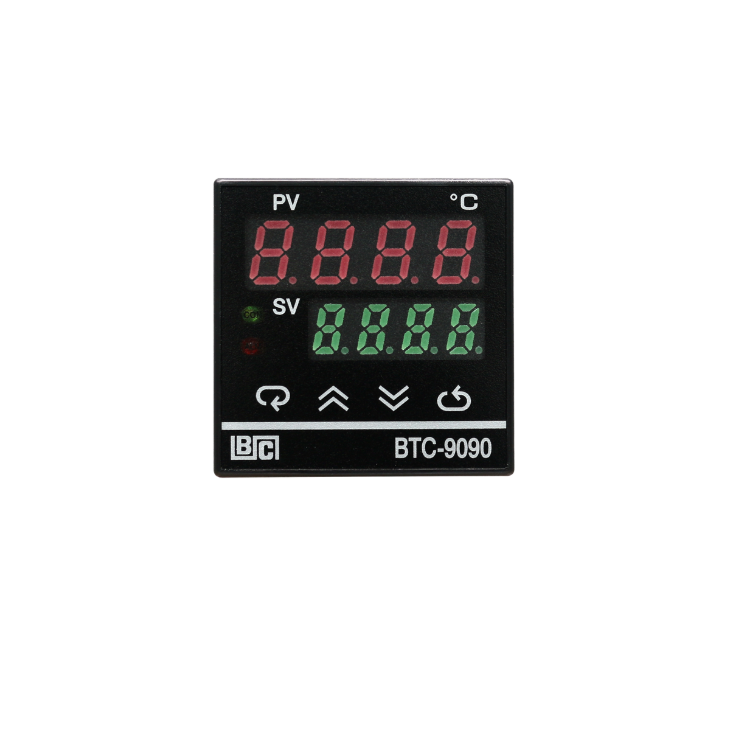

BTC-9090
https://www.brainchildtw.com/web/image/product.template/71/image_1920?unique=062c7a5

PID Temperature controller

• Compact 1/16 DIN panel design
• Fuzzy logic + PID auto-tuning
• Ramp & dwell soft-start control
• Single-loop precision control
• Easy front keypad configuration

This combination does not exist.

Features

  • Compact 48x48mm DIN panel mount design
  • High-accuracy universal input for T/C, RTD, mV
  • Supports 18-bit resolution and 3Hz sampling rate
  • Auto-tuning and manual PID adjustment supported
  • Single-stage ramp and dwell timer function
  • Configurable control output: Relay, SSR, Analog
  • Selectable linear current or voltage output
  • Alarm output with flexible logic options
  • Sensor break detection and safety protection
  • Intuitive 4-key interface for easy setup
  • Dual LED display for PV and SV monitoring
  • Supports heating/cooling or ON-OFF control
  • Optional RS-485/RS-232 for communication
  • User-configurable parameters and hysteresis
  • Wide power range: 90–264VAC or 20–32VDC

BTC-9090 Fuzzy PID Controller for Compact Installations

The BTC-9090 is a microprocessor-based temperature controller designed for compact panel applications. Featuring fuzzy logic-enhanced PID control, the BTC-9090 ensures rapid set point attainment with minimal overshoot. It supports a wide range of thermocouples, RTDs, and linear signals, and offers both automatic and manual tuning modes for optimal flexibility. Ideal for applications requiring ramp/soak cycles, soft-start control, and precise process stabilization.

LED Display & 4-Key Compact Panel Control

Easy navigation with dual-display and intuitive keypad

The BTC-9090 features a compact 48×48mm front panel with a clear dual 4-digit LED display. The top line shows the process value (PV) and the bottom line shows the setpoint value (SV), allowing for quick reference during operation.

The front panel is equipped with four tactile keys:

  • UP / DOWN for value adjustment

  • SCROLL for parameter navigation

  • RETURN / ENTER to confirm or cancel entries

This layout enables easy setup and quick parameter access, even in tight installation spaces. The bright display ensures visibility under various lighting conditions.

Universal Input for T/C, RTD, mV & Voltage

High-accuracy A/D with wide signal compatibility

BTC-9090 accepts a broad range of universal input types, including:

  • Thermocouple: J, K, T, E, N, R, S

  • RTD: Pt100 DIN / JIS

  • Linear: 0–50 mV, 0–5 V, 1–5 V

The unit uses a high-resolution 18-bit A/D converter with a sampling rate of 3Hz, delivering stable readings and precise process control. Cold junction compensation and digital filtering ensure input signal integrity even under industrial conditions.


Flexible Output Choices for Any Control Need

Relay, SSR, and analog output types are selectable

The controller offers multiple output options for control and alarm use:

  • Relay contact: 250 VAC / 2A

  • SSR voltage drive: 12 VDC ±15%, 30 mA max

  • Analog output: 0–20 mA, 4–20 mA, 0–10 V, 1–5 V

Analog outputs are generated via a 15-bit D/A converter, ensuring high-resolution retransmission and smooth signal control. Each output channel can be independently configured for PID control, alarm logic, or dwell timer functions, providing great flexibility in system integration.

Fuzzy PID Technology

Smarter Control with Less Overshoot and Faster Response

Fuzzy logic is combined with traditional PID control to deliver smarter and more adaptive temperature regulation. Unlike standard PID controllers that require manual fine-tuning for each application, fuzzy PID dynamically adjusts control responses based on real-time process behavior. The result is faster stabilization, reduced overshoot, and improved resilience to disturbances—ideal for processes where precision and speed are critical.

Applications

Specification


 Power

90 ~ 264VAC, 50 / 60Hz 10VA

20 ~ 32VDC / VAC, 50 / 60Hz 10VA

 Signal Input

Resolution

18 Bits

Sampling Rate

5 times / second

Maximum Rating

-2 VDC minimum, 12 VDC maximum( 1 minute for mA input )

Temperature Effect

±1.5uV/ BC for all inputs except mA input
±3.0uV/ BC for mA input

Sensor Lead Resistance Effect

T/C: 0.2uV/ohm
3-wire RTD: 2.6 °C/ohm of resistance difference of two leads
2-wire RTD: 2.6 °C/ohm of resistance sum of two leads

Burn-out Current

200nA

Common Mode Rejection Ratio(CMRR)

120 dB

Normal Mode Rejection Ratio (NMRR)

55dB

Sensor Break Detection

Sensor open for TC, RTD and mV inputs, Sensor short for RTD input, below 1 mA for 4 ~ 20 mA input, below 0.25V for 1 ~ 5 V input, unavailable for other inputs.

Sensor Break Responding Time

Within 4 seconds for TC, RTD and mV inputs, 0.1 second for 4 ~ 20 mA and 1 ~ 5 V inputs.

Input characteristics

 Type

Range

Accuracy @ 25°C

Input Impedance

J

-120°C  ~ 1000°C( -184°F ~ 1,832°F)

±2°C

2.2 MΩ

K

-200°C ~ 1370°C (-328°F ~ 2498°F)

±2°C

2.2 MΩ

T

-250°C ~ 400°C ( -418°F ~  752°F )

±2°C

2.2 MΩ

E

-100°C ~ 900°C( -148°F ~ 1652°F )

±2°C

2.2 MΩ

B

0°C ~ 1800°C( 32°F ~  3272°F )

±2°C( 200°C ~ 1800°C )

2.2 MΩ

R

0°C ~ 1767.8°C( 32°F ~ 3214°F )

±2°C

2.2 MΩ

S

0°C ~ 1767.8°C( 32°F ~ 3214°F )

±2°C

2.2 MΩ

N

-250°C ~ 1300°C( -418°F ~ 2372°F)

±2°C

2.2 MΩ

L

 -200°C ~ 900°C( -328°F ~ 1652°F )

±2°C

2.2 MΩ

PT100(DIN)

-210°C ~ 700°C( -346°F ~ 1292°F )

±0.4°C

1.3KΩ

PT100(JIS)

-200°C ~ 600°C( -328°F ~ 1112°F )

±0.4°C

1.3KΩ

mV

-8mA  ~ 70mA

±0.05%

2.2MΩ

mA

-3mA  ~ 27mA

±0.05%

70.5Ω

V

-1.3V  ~ 11.5V

±0.05%

650KΩ

Output 1  / Output 2

Relay Rating

2A,240V AC,200000 Life Cycles for Resistive Load

Pulsed Voltage

Source Voltage 5V, Current Limiting Resistance 66Ω

Linear Output Characteristics

Type

Zero Tolerance

Span Tolerance

Load Capacity

4 ~ 20 mA

3.6 ~ 4 mA

20 ~ 21 mA

500Ω max.

0 ~ 20 mA

0 mA

20 ~ 21 mA

500Ω max.

0 ~ 5 V

0 V

5 ~ 5.25 V

10 KΩ min.

1 ~ 5 V

0.9 ~ 1 V

5 ~ 5.25 V

10 KΩ min.

0 ~ 10 V

0 V

10 ~10.5 V

10 KΩ min.

Linear Output

Resolution

15 Bits

Output Regulation

0.02% for full load change

Output Settling Time

0.1 Second ( Stable to 99.9%)

Isolation Breakdown Voltage

1000 VAC

Temperature Effect

±0.01% of  Span/ °C

Triac ( SSR ) Output

Rating

1A / 240 VAC

Inrush Current

20A for a cycle

Min. Load Current

50 mA rms

Max. Off-state Leakage

3 mA rms

Max. On-state Voltage

1.5V rms

Insulation Resistance

1000 Mohms min. at 500 VDC

Dielectric Strength

2500 VAC for 1 minute

 Alarm

Relay Type

Form C

Maximum Rating

2A, 240VAC, 200000 Life Cycles for Resistive Load

Alarm Functions

Dwell Timer, Deviation Low, Deviation High, Deviation Band Low, Deviation Band High, Process High, Process Low

Alarm Mode

Latching, Hold, Normal, Latching/Hold

Dwell Timer

0.1 ~ 4553.6 Minutes

 Data Communication

Interface

RS-232 ( 1 unit ), RS-485 ( up to 247 units )

Protocol

Modbus RTU (Slave Mode)

Address

1 ~ 247

Baudrate

2.4KBPS ~ 38.4 KBPS

Data Bits

7 or 8 Bits

Parity Bit

None, Even or Odd

Stop Bit

1 or 2 Bits

Communication Buffer

160 Bytes

Analog Retransmission

Output Signal

4 ~20 mA, 0 ~ 20 mA, 0 ~ 5V, 1 ~ 5V, 0 ~ 10V

Resolution

15 Bits

Accuracy

±0.05% of Span ± 0.0025% / °C

Load Resistance

0 to 500Ω for Current Output , 10KΩ minimum for Voltage Output

Output Regulation

0.01% for full load change

User Interface

Keypad

4 Keys

Display Type

4 Digit LCD Display

No. of Display

2

Upper Display Size

0.4" (10mm)

Lower Display Size

0.31"(8mm)

Failure Mode

Auto transfer to manual mode while sensor break or A-D Converter damage

Ramping Control

Connection to PC for supervisory control

Control Mode

Output 1

Reverse (Heating) or Direct (Cooling) Action

Output 2

PID cooling control, Cooling P band 50~300% of PB, Dead band -36.0 ~ 36.0 % of PB

ON-OFF

0.1 ~ 90.0 (°F ) hysteresis control ( P band = 0)

P or PD

0 ~ 100.0 % offset adjustment

PID

Fuzzy logic modified Proportional band 0.1 ~ 900.0°F, Integral time 0 ~ 3600 Seconds,Derivative time 0 ~ 360.0 Seconds

Cycle Time

0.1 ~ 90.0 Seconds

Manual Control

Heat(MV1) and Cool(MV2)

Auto-tuning

Cold Start and Warm Start

Failure Mode

Auto transfer to manual mode while sensor break or A-D Converter damage

Ramping Control

0 to 900.0°F/Minute or 0 to 900.0°F/Hour Ramp Rate

Digital Filter

Function

First Order

Time Constant

0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 Seconds Programmable

 Environmental and Physical Specifications

Operating Temperature

-10°C ~ 50°C

Storage Temperature

-40°C ~ 60°C

Humidity

0 ~ 90 % RH (Non-Condensing)

Altitude

2000 Meters maximum

Pollution

Degree II

Insulation Resistance

20MΩ minimum(@500VDC)

Dielectric Strength

2000VAC,50/60 Hz for 1 Minute

Vibration Resistance

10 to 55 Hz , 10m/s2 for 2 Hours

Shock Resistance

200 m/s2(20g)

Moldings

Flame Retardant Polycarbonate

Mounting

Panel / DIN Rail mount

Dimensions (W*H*D) (mm)

48*48*116

Depth Behind Panel (mm)

105

Cut Out Dimensions (mm)

45*45

Weight (grams)

150

Approval Standards

Safety

UL61010C-1, CSA C22.2 No.24-93, EN61010-1 ( IEC1010-1 )

Protective Class

IP65 for panel with additional option, IP50 for panel without additional option, IP20 for terminals and housing with protective cover.
All indoor use.

EMC

EN61326

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

What types of input signals are supported?

The controller supports thermocouple (J, K, T, E, N, R, S), RTD (Pt100 DIN/JIS), and analog signals such as mV, mA, and voltage (0–5V, 1–5V).

Is the IP65 front panel standard or optional?

The standard panel is IP50. IP65 protection is available as an optional accessory by installing a water-resistant rubber gasket.

Can the programming port be used during operation?

No. The programming port is for offline setup and testing only. It must be disconnected during normal operation.

What communication options are available?

The controller supports RS-232 or RS-485 Modbus RTU communication as optional configurations.

Can the controller perform ramp/soak profile control?

Yes. It supports multi-segment ramp/soak profile programming with dwell timer for precision process control.

Ordering Code



PRMesh

Wireless Expansion Module for PR Paperless Recorders

PR Mesh works with SenseNode wireless sensor nodes to extend the wireless measurement capabilities of existing PR Paperless Recorders.

Features



Wireless  Measurement Expansion

Extend the wireless measurement capabilities of existing PR Paperless Recorders with PR Mesh, without replacing the entire recording system.

Distributed Signal Acquisition

Deploy SensNode near measurement points to acquire up to two analog inputs per unit, reducing long-distance sensor wiring to the recorder.

BrainChild Mesh
Connectivity

Powered by BrainChild Mesh wireless technology, SensNode transmits field measurement data to PR Mesh, connecting distributed measurement points with the PR recorder.

Seamless PR Integration

Installed inside a compatible PR recorder, PR Mesh integrates wireless measurement data into the existing system while preserving its familiar interface and operation.

Centralized Monitoring & Recording

Consolidate measurement data from distributed points in the PR recorder, retaining real-time displays, trend monitoring, alarm management, and historical data logging.

Scalable Monitoring Expansion

Add SensNode units as monitoring needs grow, extending measurement coverage while reducing wiring and installation work when expanding existing systems.


​

How it work

Extend Your PR with Flexible Wireless Measuremen





➊ Field Signal Acquisition

SenseNode acquires sensor signals near measurement points and wirelessly transmits the data using BrainChild Mesh technology.

➋ Wireless Data Reception & Integration

PR Mesh receives measurement data from SenseNode and integrates it into the existing PR recording system.

➌ Centralized Monitoring & Data Logging

The PR recorder provides centralized access to real-time measurements, historical trends, alarm information, and data logging.

Less Wiring. Greater Flexibility.

Traditional Wired Monitoring


Traditional wired monitoring systems require sensor signals to be connected directly to centralized recording equipment. When measurement points are widely distributed, located far from the recorder, or added to existing production lines, additional wiring and installation work can make system expansion and maintenance more complex.

Traditional Wired Monitoring


Traditional wired monitoring systems require sensor signals to be connected directly to centralized recording equipment. When measurement points are widely distributed, located far from the recorder, or added to existing production lines, additional wiring and installation work can make system expansion and maintenance more complex.

IV. Panel Studio

If Plus version 2 or 3 of Firmware is purchased, additional software Panel Studio is offered for editing custom display. The users can use it to edit specific displays on PC first, and then download it onto recorders. The custom edited displays will be additional pages to standard ones.

Edit it on PC

Download it onto Recorders

Applications

Specification


Product position

Big size and high-end one, good for sophisticated applications, for example power industry

Input numbers

6, 12, 18, 24, 30, 36, 42, 48 channels

True universal inputs

Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV

The fastest sampling rate

o reach 100 msec / dot, default setting at 1 sec / dot

Math, External channels, Batch,
Custom display, FDA 21 CFR part 11

Math in standard version, others in Plus versions

Display

12.1" TFT touch screen

Resolution

1024 x 768

MTBF backlight at 25°C

30,000 hrs

Backlight

LED

Screen saver, Email

Yes

A faster CPU

ARM Cortex-A8, 1Ghz

Internal flash memory

256 MB

RAM

256 MB

Ethernet

Modbus TCP/IP

RS-232/422/485

Optional RS-232 or RS-422/485 Modbus RTU

SD card slot, USB host x 2

Standard, one USB in the front, another USB in the back

Pulse input

Optional DI card offering either logic or high frequency pulse counter

START / STOP key

To start / stop record and to turn off the display only, not recorder itself so that a quick start possible

Calibration correction

On-site calibration possible, or using handy features of Offset and Gain for correction

Multilingual

Convenient for local users by offering 19 languages including English, Japanese,Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable

PC software Historical Viewer+ Configuration

Standard

Extensive software Data Acquisition Studio

Optional real-time monitoring

Power supply

90-250VAC or 11-36VDC

Outer dimensions (W x H x L mm)

288 x 288 x 189

Shorter mounting depth (mm)

171

DIN panel cutout (W x H mm)

 281 x 281

Protection

IP65 front, IP20 rear

Operating temperature

0°C to 50°C

Storage temperature

-30°C to 70°C

Safety standards

RoHS

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

Ordering Code

PR3006(6 analog inputs)
PR3012(12 analog inputs)
PR3018(18 analog inputs)
PR3024(24 analog inputs)
PR3030(30 analog inputs)
PR3036(36 analog inputs)
PR3042(42 analog inputs)
PR3048(48 analog inputs)
none
6 relays
12 relays
18 relays
24 relays
Digital inputs
6 channels
12 channels
18 channels
none
6 channels
12 channels
90-25 VAC,50/60 Hz
11-36 VDC
12 channels
standard Ethernet
Ethernet + RS232
Ethernet + RS-422/486
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
free basic software of Historical Viewer & Configuration
extensive software Data Acquisition Studio (RealTime Viewer + Historical Viewer + Configuration)
panel mount, no power cord, no power switch
panel mount, no power cord, power switch
portable, UL & CSA power cord, power switch
portable, VDE power cord, power switch
portable, SAA power cord, power switch
portable, BS power cord, power switch
portable, no power cord, power switch
panel mount, UL & CSA power cord, power switch
panel mount, VDE power cord, power switch
panel mount, SAA power cord, power switch
panel mount, BS power cord, power switch
Protected by reCAPTCHA, Privacy Policy & Terms of Service apply.
將其替換為您自己的 HTML 代碼
