Features
- 96 × 96 mm panel for standard cutouts
- Multi-color LCD for status clarity
- Supports 2 relay or analog outputs
- Built-in CT input for heater break detection
- Supports up to 6 event inputs
- Bumpless transfer and soft-start support
- Sensor break detection with quick response
- Profile function with up to 16 segments
- USB port for setup and firmware update
- Modbus RTU over RS-485 interface
- Alarm modes include dwell, deviation, range
- Linear output: 4 ~ 20 mA / 0 ～10 V
- Input filter with adjustable time constant
- Certified with UL, CE, RoHS, REACH
- Ideal for ovens, dryers, and automation panels

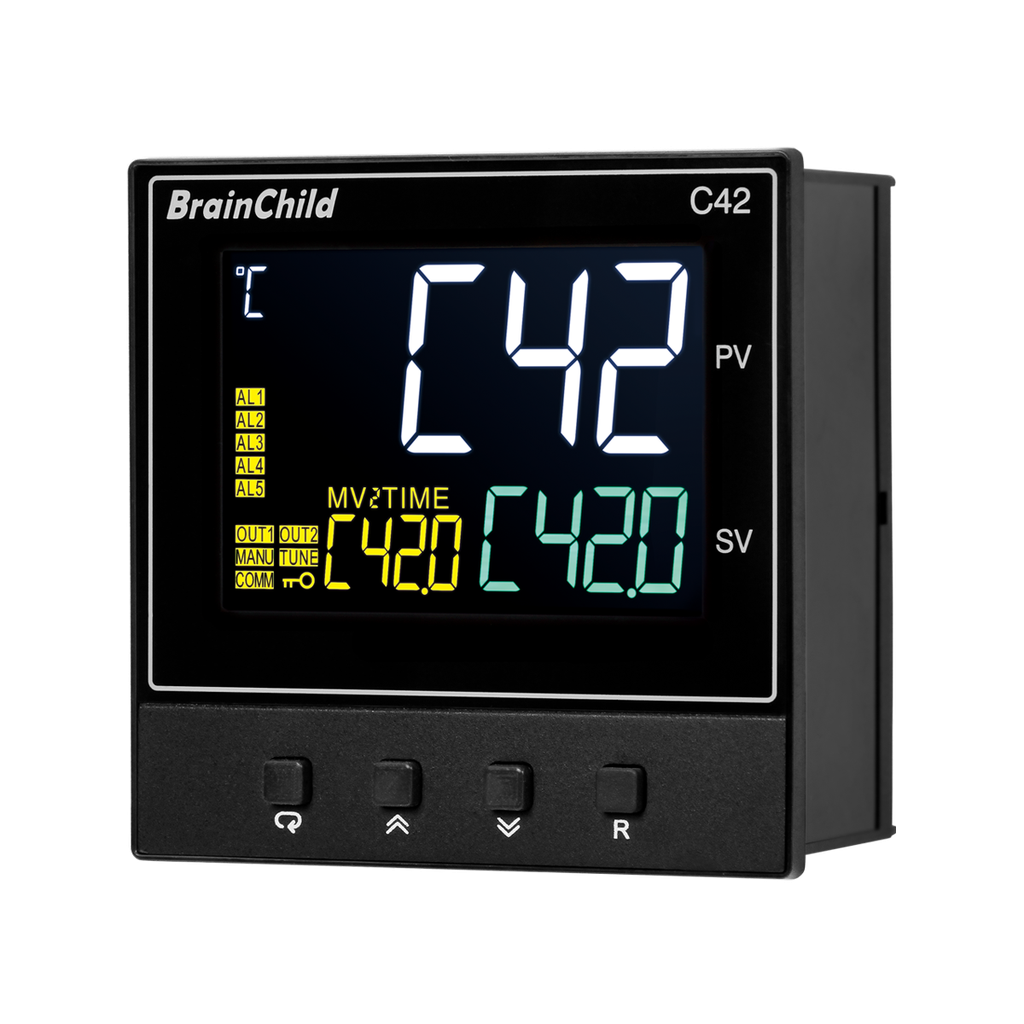

C42

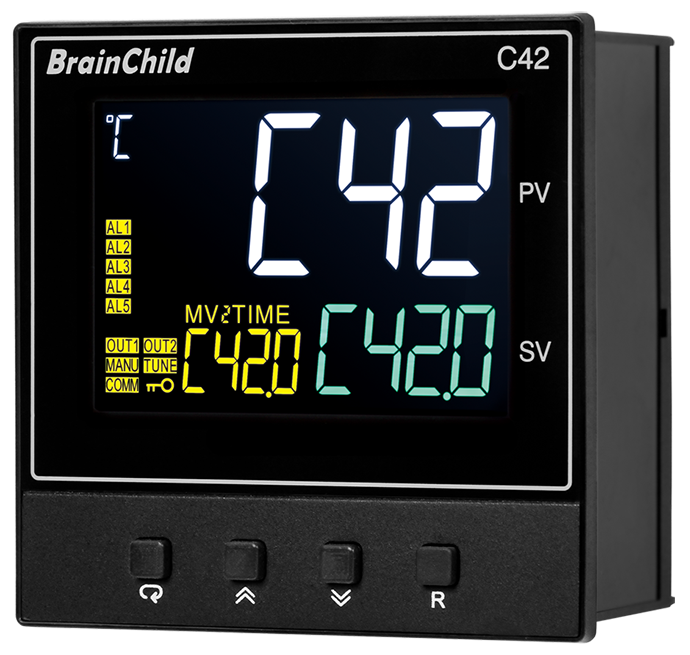

High-Precision PID Temperature Controller
96×96 mm display, powerful features, ready for industrial demands
The C42 is a full-featured PID temperature controller designed for advanced industrial applications. With a large 96×96 mm panel, it offers high visibility, multi-color LCD status indicators, and dual digital displays for real-time monitoring. Featuring universal input support and 18-bit resolution, the C42 ensures fast, accurate response across various sensor types including thermocouples, RTDs, voltage, and current inputs.
It supports precise fuzzy + PID control with auto-tuning, enabling stable operation even under fluctuating process conditions. With RS-485 Modbus communication, analog retransmission, and optional profile control (multi-segment ramp/soak functionality), it meets the complex needs of OEMs, machine builders, and automation system integrators.
The C42 is also equipped with event inputs, alarm logic, CT input for heater break detection, and flexible output options—relay, SSR, or analog—making it an adaptable solution for a wide range of applications such as ovens, dryers, laboratory systems, and embedded control panels. Built for performance, designed for usability, the C42 brings reliable precision to modern industrial temperature control.

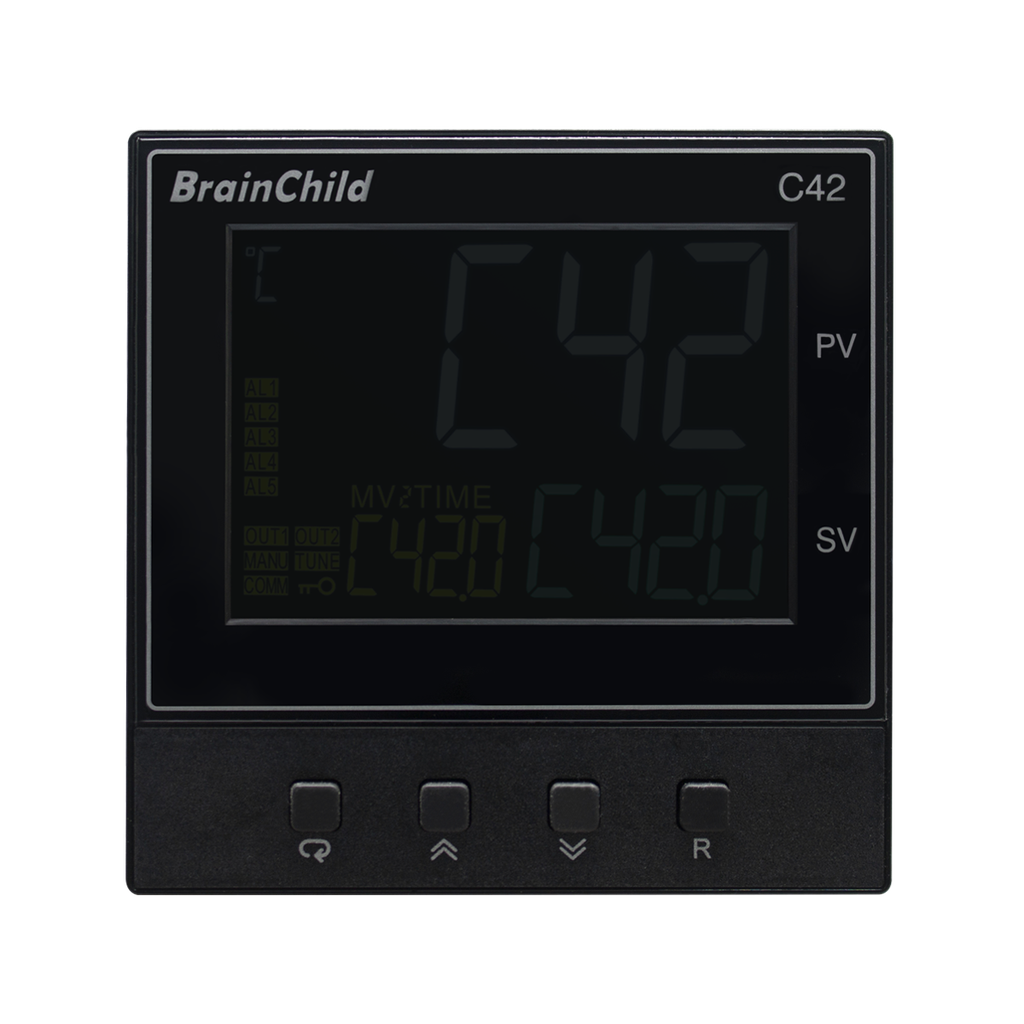

Intuitive Interface Designed for Efficiency

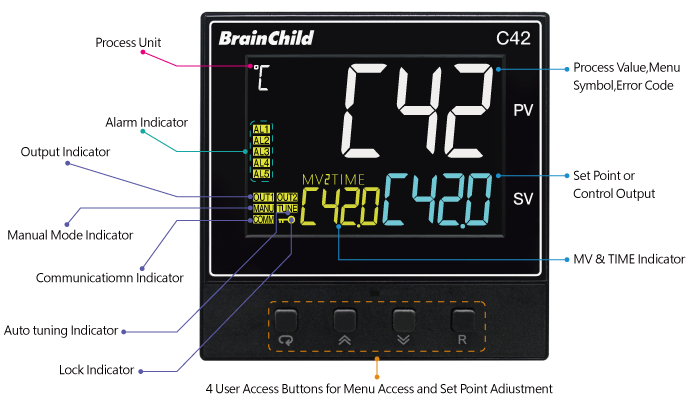

4-key keypad and dual display streamline operation
The C42 simplifies operation with a clean, intuitive interface designed for fast and accurate control in demanding industrial environments. Its 4-key keypad allows operators to navigate settings, change parameters, and access advanced functions with minimal effort. The dual 4-digit displays show both process value and setpoint simultaneously, eliminating the need to switch screens and reducing the chance of human error. Clear menu logic and tactile feedback help new users get up to speed quickly, while experienced technicians can complete adjustments with speed and confidence. Whether used on production lines, in testing labs, or embedded in OEM machinery, the interface ensures reliable, efficient daily operation.

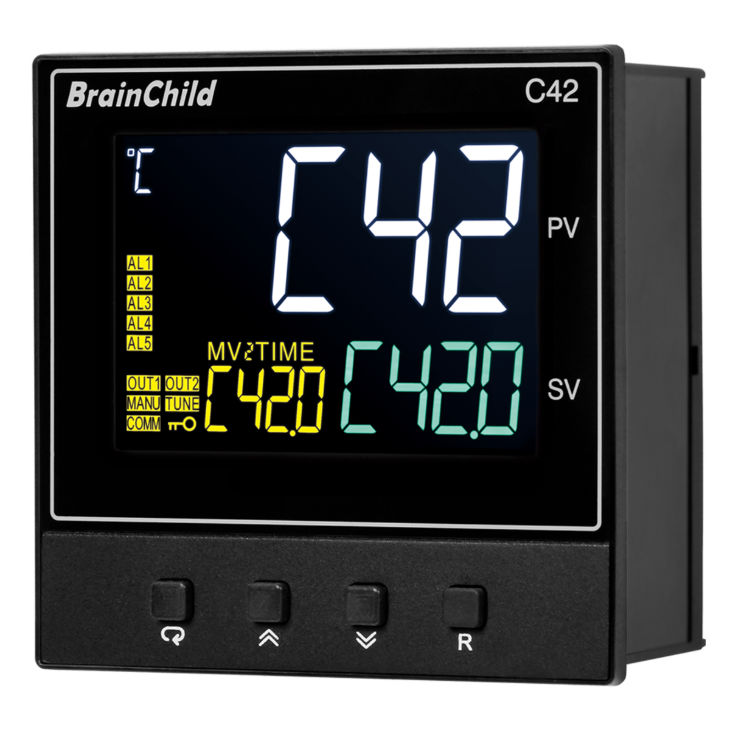

High-Brightness Multi-Color LCD Display
Color-coded visual alerts for clear and safe operation

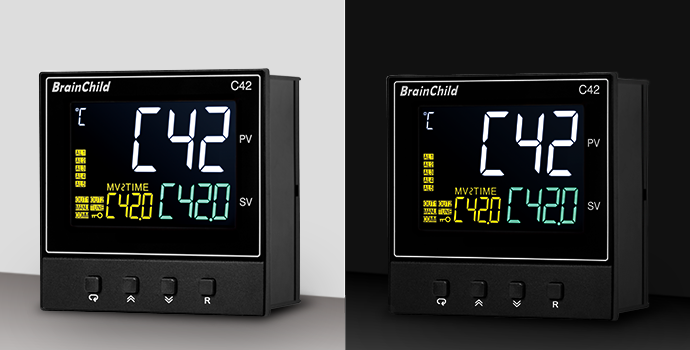

The Core Series features a high-brightness LCD screen with multiple color indicators, enhancing visibility in various lighting conditions — even under harsh industrial environments. Each color is intelligently assigned to represent key system statuses such as normal operation, alarm, or output activity, allowing operators to identify conditions at a glance. Whether viewed on-site or from a distance, the display ensures quick recognition, reduced errors, and improved response time.

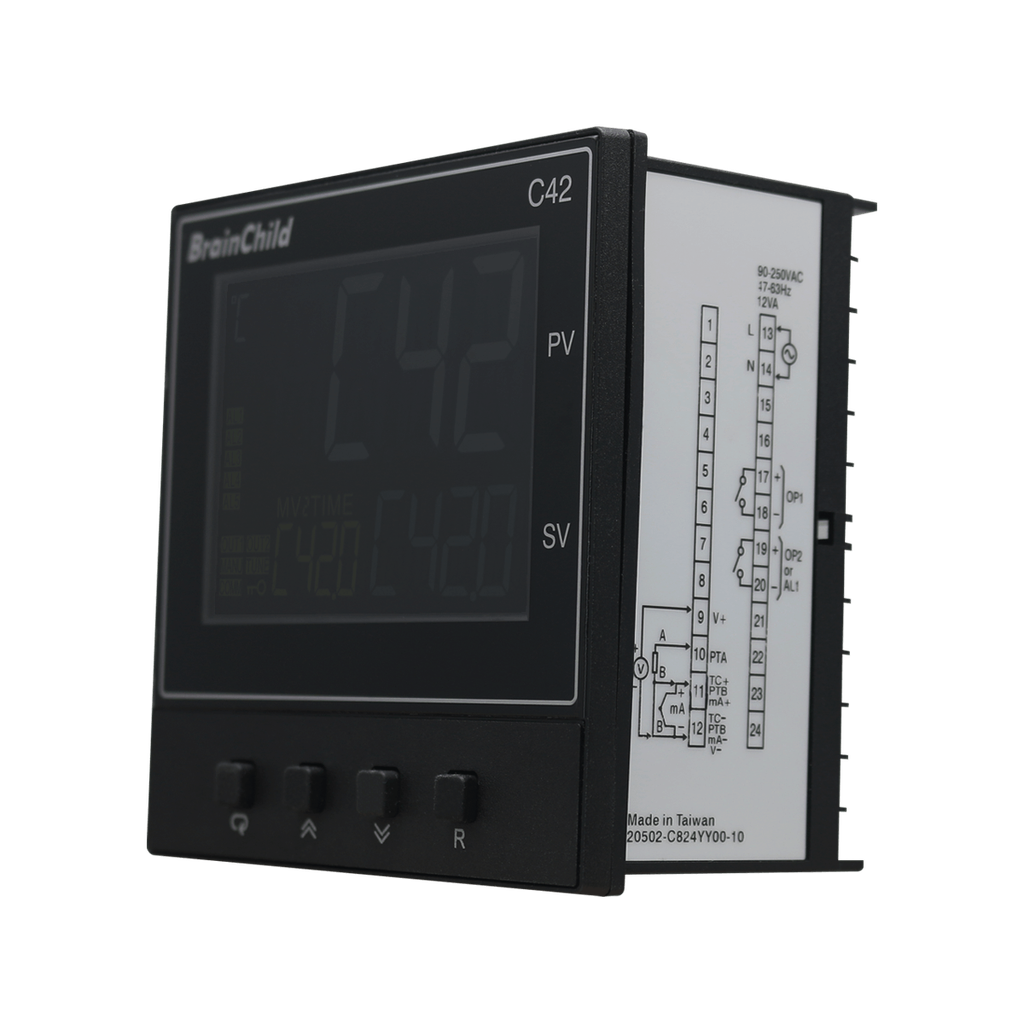

Universal Input for Various Sensor Types
Supports thermocouple, RTD, voltage, and current inputs

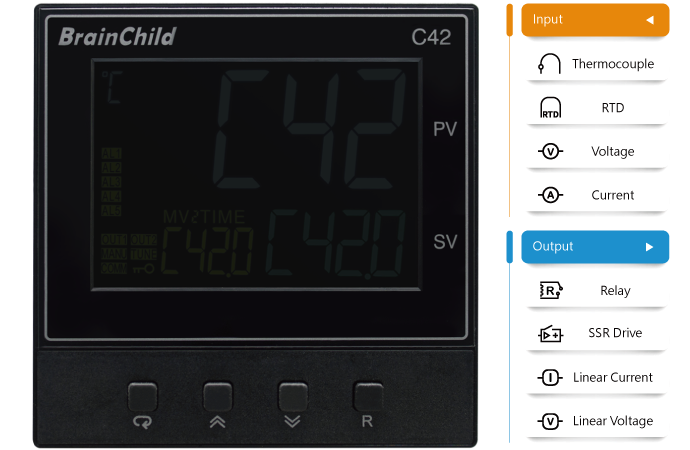

The Core Series controllers support a wide range of input types, including thermocouples (J, K, T, E, etc.), RTDs (PT100 DIN/JIS), voltage (0–10 V), and current (4–20 mA) signals. This universal input design makes them compatible with most industrial temperature sensors, ensuring flexible integration across different applications.

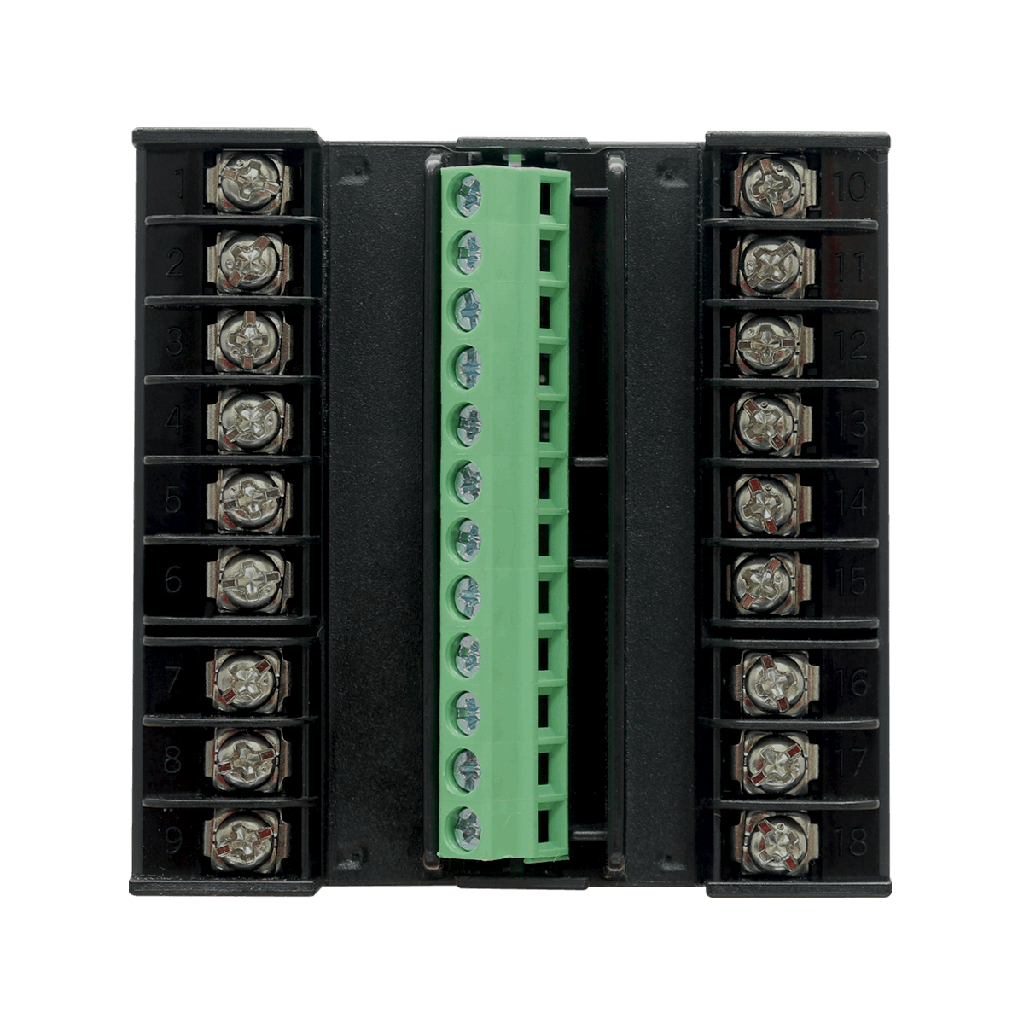

Flexible Output Options for Control and Alarms
Relay, SSR, and analog output available
Core
Series models offer versatile output options, including relay contact, SSR drive (pulsed voltage), and analog output (4–20 mA or 0–10 V). Depending on the model, up to two output channels can be configured for control or alarm functions. Optional features like CT input and event input further enhance system responsiveness and integration.
Fuzzy PID Technology
Smarter Control with Less Overshoot and Faster Response
Fuzzy logic is combined with traditional PID control to deliver smarter and more adaptive temperature regulation. Unlike standard PID controllers that require manual fine-tuning for each application, fuzzy PID dynamically adjusts control responses based on real-time process behavior. The result is faster stabilization, reduced overshoot, and improved resilience to disturbances—ideal for processes where precision and speed are critical.
Built-in Programming Port for Fast Configuration

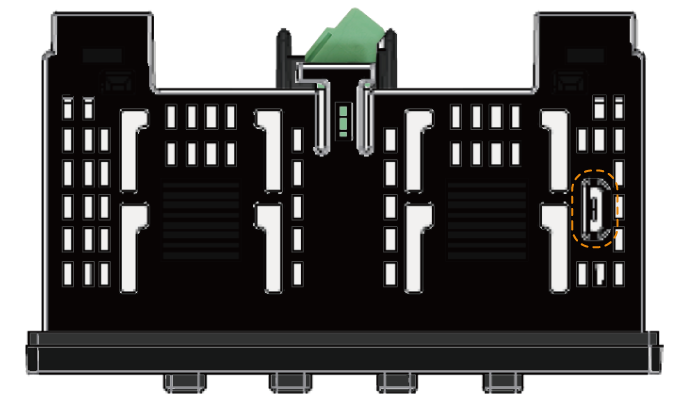

Micro USB interface streamlines setup and firmware upgrades
The Core Series is equipped with a built-in micro USB programming port that allows users to configure parameters and update firmware directly from a PC. With the optional USB configuration cable and dedicated software, engineers can complete setup in minutes—without powering the device through system wiring. This feature greatly reduces installation time, simplifies maintenance, and ensures flexible deployment across various projects.
BC-SET Pro Configuration Software
Easy parameter setup and firmware upgrade for Core Series controllers
BC-SET Pro is the official configuration software for BrainChild’s Core Series temperature controllers. With a user-friendly interface, it allows engineers and technicians to configure parameters, copy settings between devices, and perform firmware upgrades via USB connection. The software supports offline setup and can store multiple configuration files, making it ideal for OEM production lines, system integrators, and field engineers.
Batch Read/Write for Multiple Controllers
BC-SET allows users to connect multiple controllers of the same model and perform batch parameter read/write by defining a node address range. This feature significantly streamlines configuration in OEM or multi-device environments.
Clear and Accessible System Menu
The system menu offers quick access to key operations like Rescan (F5), Read Data (F6), Write Data (F7), Write Multiple (F8), and Communication Settings (F9). Built-in hotkeys support fast, efficient navigation.
Intuitive Communication Setup Interface
The communication settings window lets users define COM port, baud rate, parity, data bits, and stop bits — with a “Default” button for quick reset and “Save and Exit” to finalize setup. Designed to reduce setup errors.
Visual Profile Editor for Programmable Controllers
For controllers with profile functionality, BC-SET provides a graphical editor to configure temperature ramp/soak segments. Users can easily read, modify, and write profile parameters for precise thermal process control.
Applications
Specification

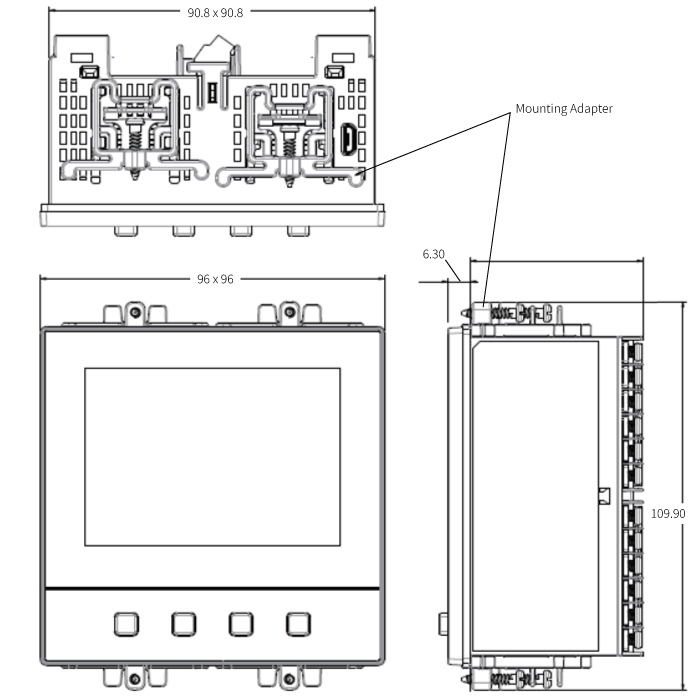

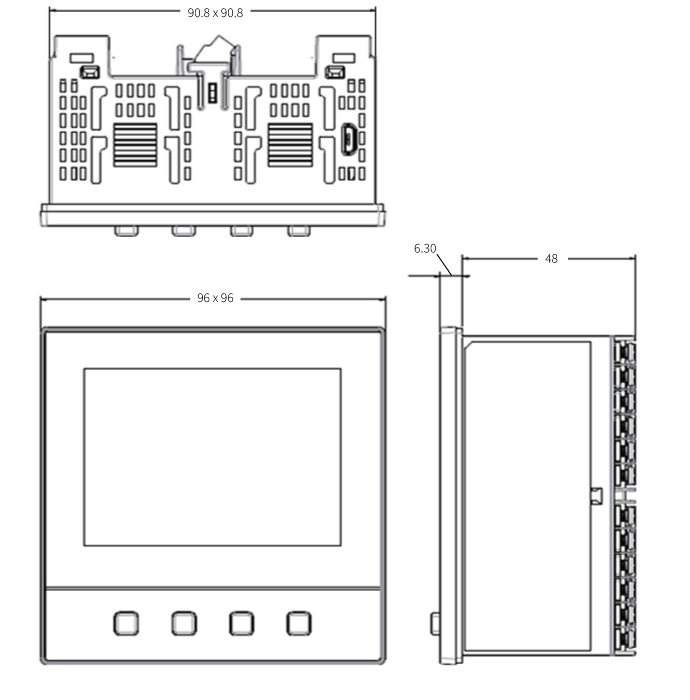

Dimensions with clamp
Dimension without Clamp
Power
Signal Input
Remote Set Point Input
Event Input
CT Input
Output 1 / Output 2
Alarm
Data Communication
Analog Retransmission
User Interface
Programming Port
Control Mode
Digital Filter
Profiler
Environmental and Physical Specifications
Approval Standards
Download
Visit Download Center to See More Documents & Tools of This Product. Visit
FAQ
Yes, the C42 supports RS-485 communication with Modbus RTU protocol, allowing seamless integration with PLCs, HMIs, and SCADA systems.
Yes, the C42 includes a built-in profile control function, allowing ramp/soak programming for up to 16 segments, ideal for ovens and heat treatment systems.
The C42 supports thermocouples (J, K, T, E, etc.), RTDs (PT100), and analog input signals like 4–20 mA and 0–10 V, ensuring wide compatibility.
.
Yes, C42 features a USB programming port and works with BC-SET Pro software for quick parameter setup and firmware updates.
The C42 offers relay output, SSR drive (pulsed voltage), and analog output (4–20 mA or 0–10 V), with up to 2 configurable output channels.
