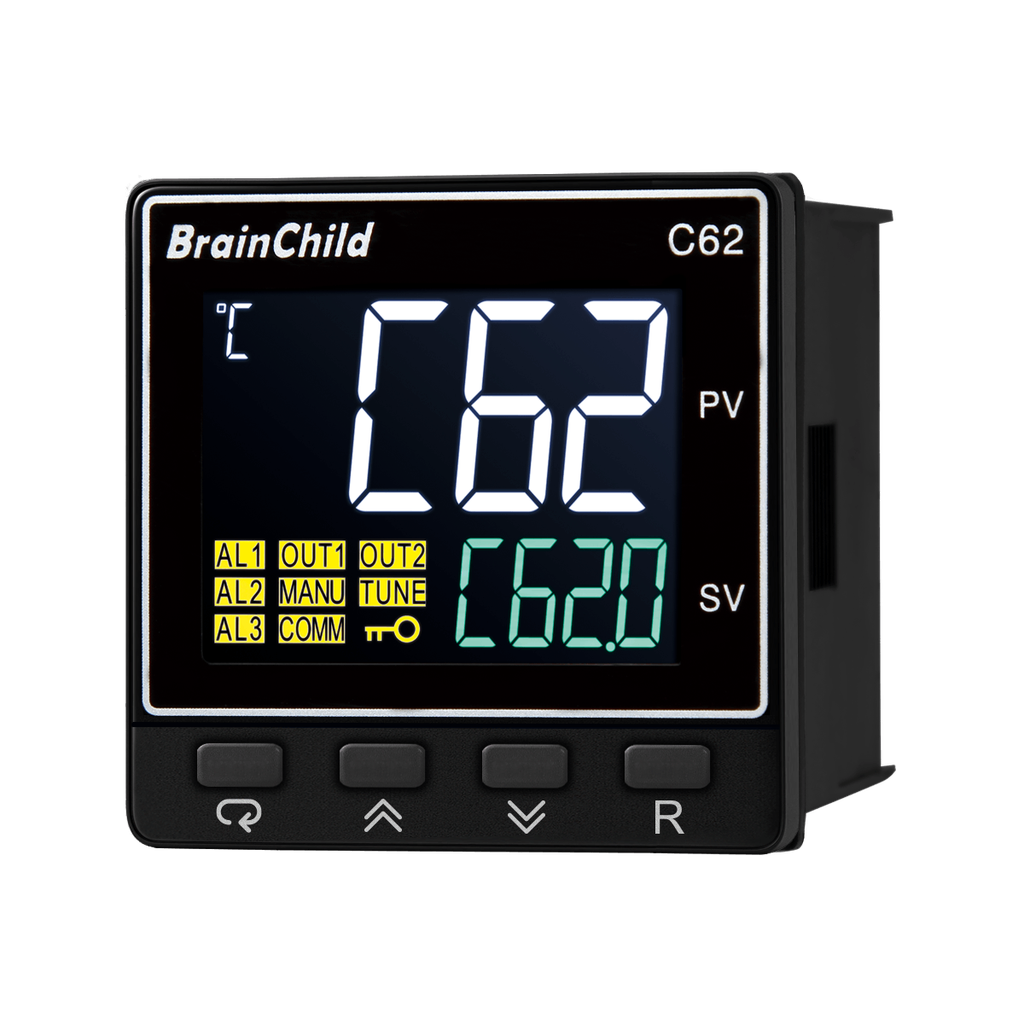

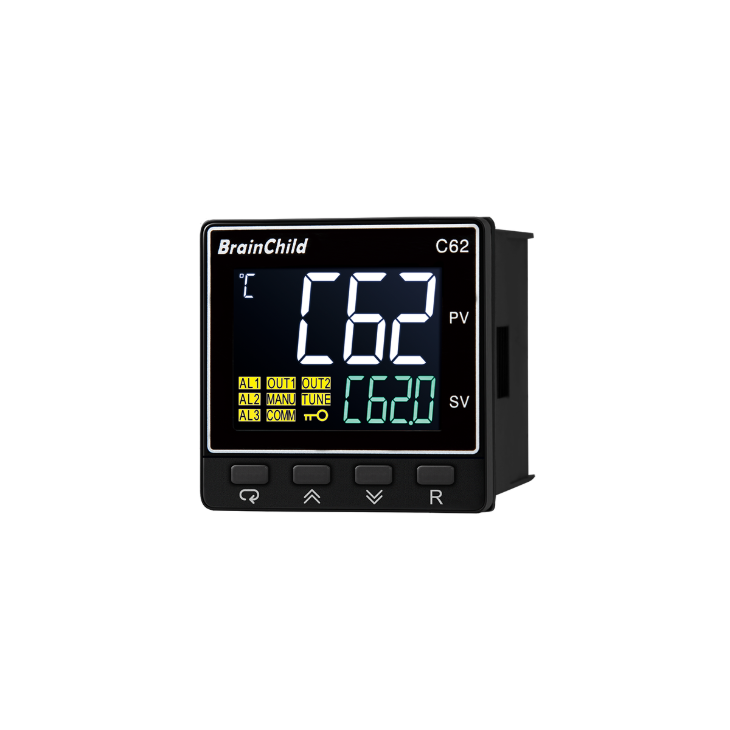

Core Series | 48 x 48mm

C62
https://www.brainchildtw.com/web/image/product.template/49/image_1920?unique=fad6a58

• Compact 48×48 mm DIN panel
• Fuzzy + PID control with auto-tuning
• Universal input: T/C, RTD, mA, V
• RS-485 & analog output available
• Optional profile control for ramp/soak

This combination does not exist.

Features Applications Specification Download FAQ Ordering Code

Features

  • Dual display for PV and SV visibility
  • 18-bit A/D input, 200ms sampling rate
  • Soft-start & bumpless transfer included
  • Up to 2 configurable outputs (Relay/SSR/Analog)
  • CT input for heater break detection (optional)
  • Event input support for external triggers
  • USB programming via BC-SET Pro
  • Profile editor with up to 16 segments
  • Alarm logic: deviation, range, dwell timers
  • Analog retransmission (4 ~ 20mA / 0 ~ 10V)
  • EMC tested, RoHS & CE certified
  • Panel IP50, terminal IP20 protection

C62  Precision Control in a Compact Format

48×48 mm panel with PID control and I/O options

The C62 is a compact, high-performance PID temperature controller designed for space-limited industrial equipment. It combines fuzzy logic with classic PID control and auto-tuning to provide faster stabilization, better accuracy, and resilience to process disturbances. The C62 supports thermocouple, RTD, voltage, and current inputs, making it widely adaptable across applications. With optional RS-485 Modbus RTU communication and analog output, it integrates easily into automation systems. The dual digital display and multi-color LCD indicators make operation intuitive, while the 48×48 mm panel size ensures compatibility with compact installations.

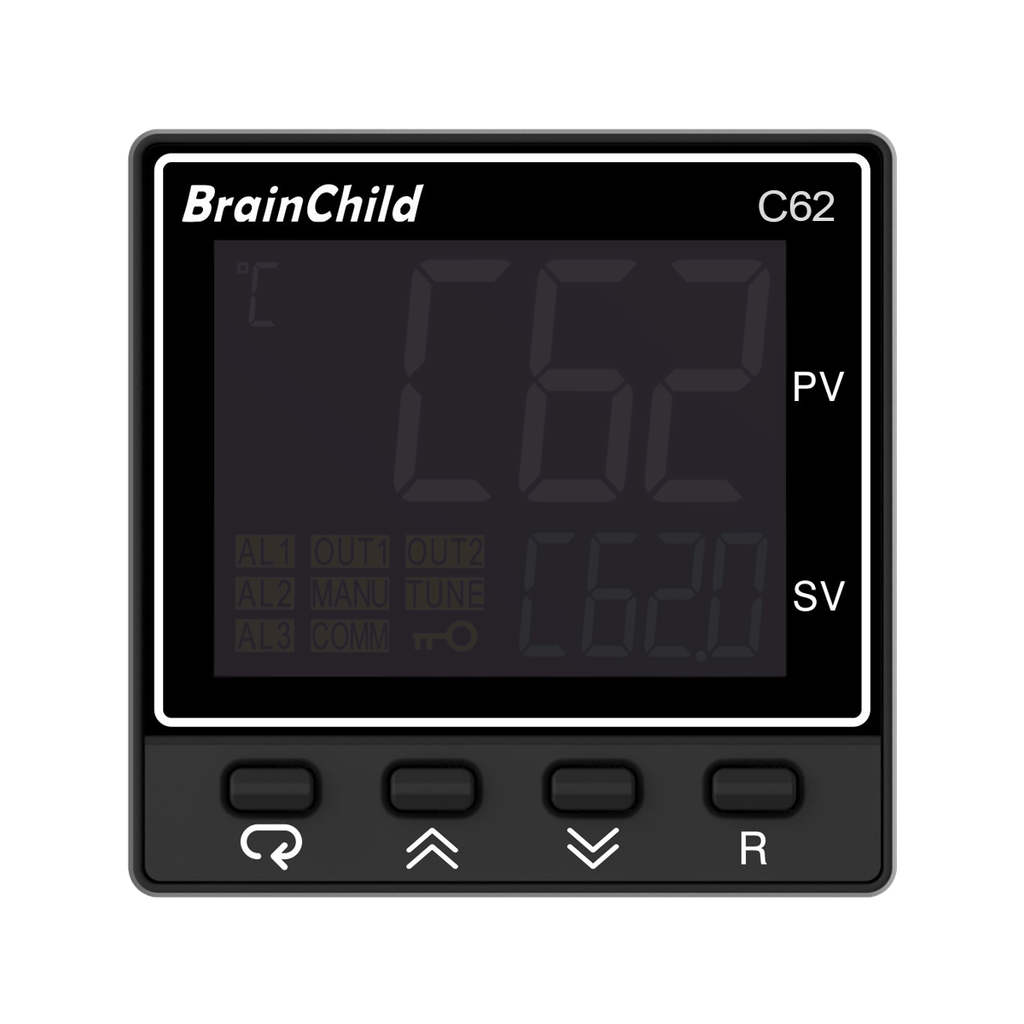

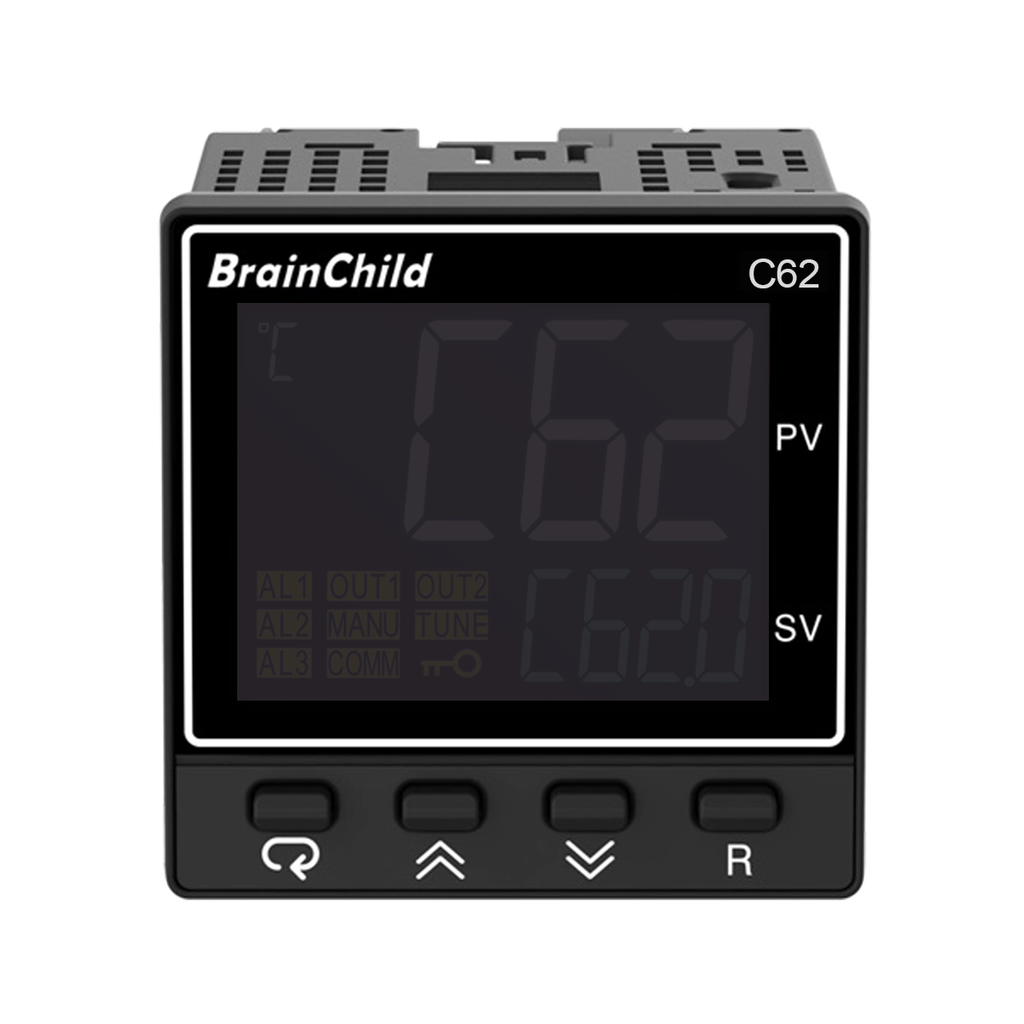

Compact 48×48 mm Panel for Temperature Controller Integration

Ergonomic 4-key keypad ensures smooth and accurate control

The C62 features a compact 48×48 mm panel mount design, making it ideal for integration into control boxes and space-limited industrial equipment. Its clean front layout includes a 4-key membrane keypad designed for fast access to parameters, consistent menu navigation, and minimal training for first-time users. The tactile response and clear labeling reduce misoperation, helping engineers and operators perform adjustments efficiently. With a focus on usability and installation flexibility, the C62 is well-suited for OEMs and system integrators looking to standardize compact PID temperature control interfaces.

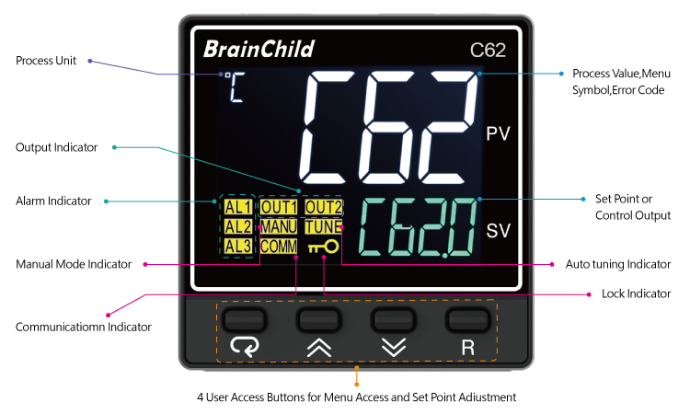

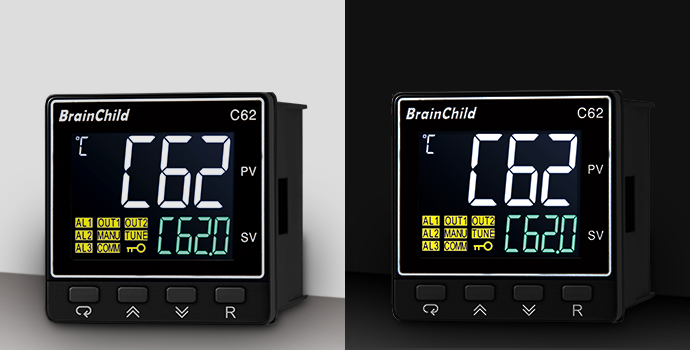

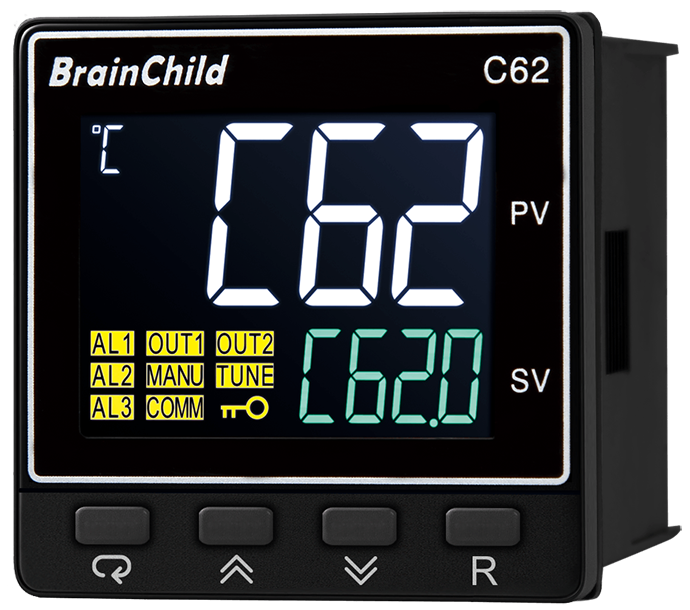

High-Brightness Multi-Color LCD Display

Color-coded visual alerts for clear and safe operation

The Core Series features a high-brightness LCD screen with multiple color indicators, enhancing visibility in various lighting conditions — even under harsh industrial environments. Each color is intelligently assigned to represent key system statuses such as normal operation, alarm, or output activity, allowing operators to identify conditions at a glance. Whether viewed on-site or from a distance, the display ensures quick recognition, reduced errors, and improved response time.

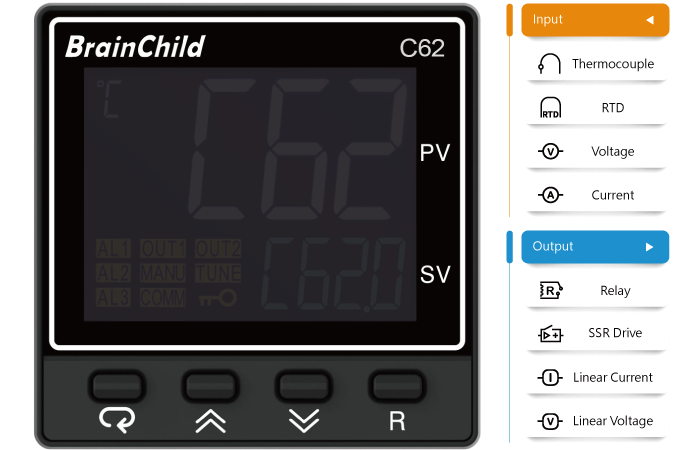

Universal Input for Various Sensor Types

Supports thermocouple, RTD, voltage, and current inputs

The Core Series  controllers support a wide range of input types, including thermocouples (J, K, T, E, etc.), RTDs (PT100 DIN/JIS), voltage (0–10 V), and current (4–20 mA) signals. This universal input design makes them compatible with most industrial temperature sensors, ensuring flexible integration across different applications.

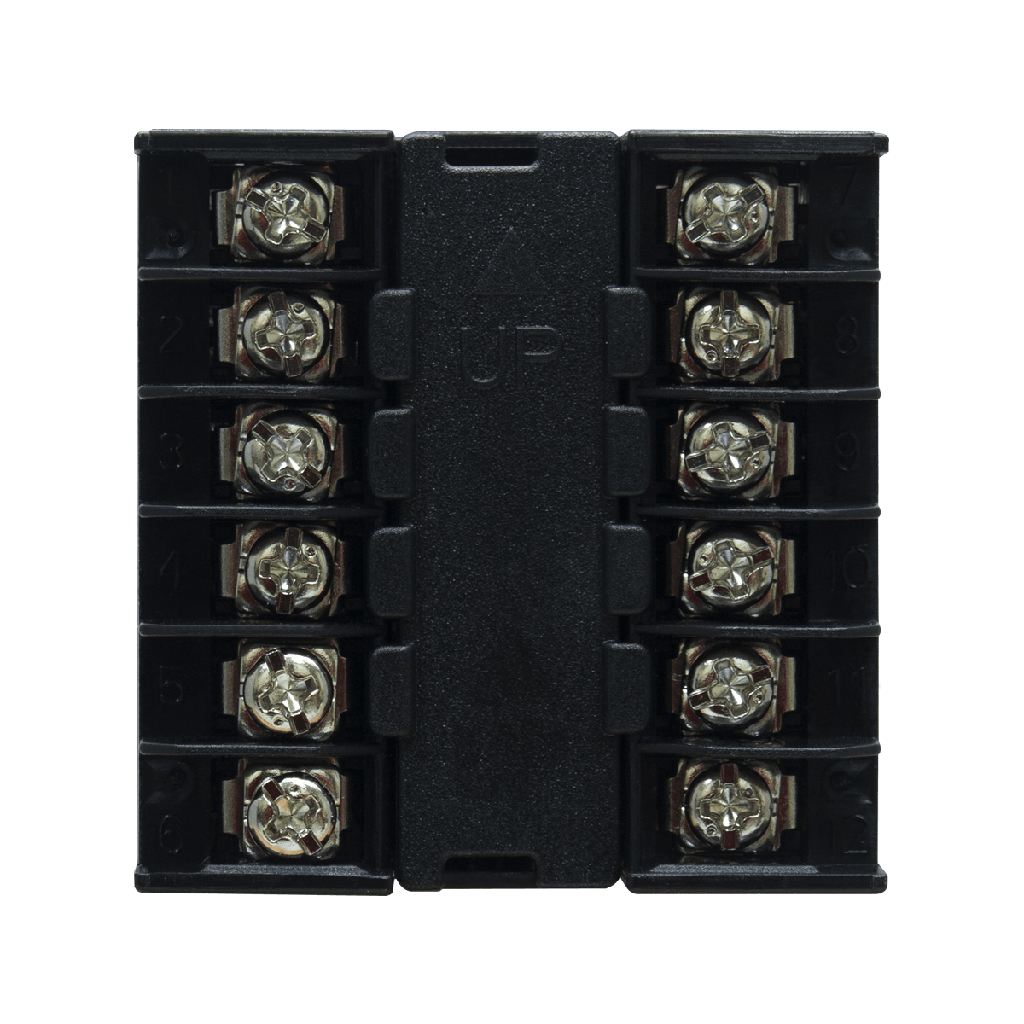

Flexible Output Options for Control and Alarms

Relay, SSR, and analog output available

Core  Series models offer versatile output options, including relay contact, SSR drive (pulsed voltage), and analog output (4–20 mA or 0–10 V). Depending on the model, up to two output channels can be configured for control or alarm functions. Optional features like CT input and event input further enhance system responsiveness and integration.

Fuzzy PID Technology

Smarter Control with Less Overshoot and Faster Response

Fuzzy logic is combined with traditional PID control to deliver smarter and more adaptive temperature regulation. Unlike standard PID controllers that require manual fine-tuning for each application, fuzzy PID dynamically adjusts control responses based on real-time process behavior. The result is faster stabilization, reduced overshoot, and improved resilience to disturbances—ideal for processes where precision and speed are critical.

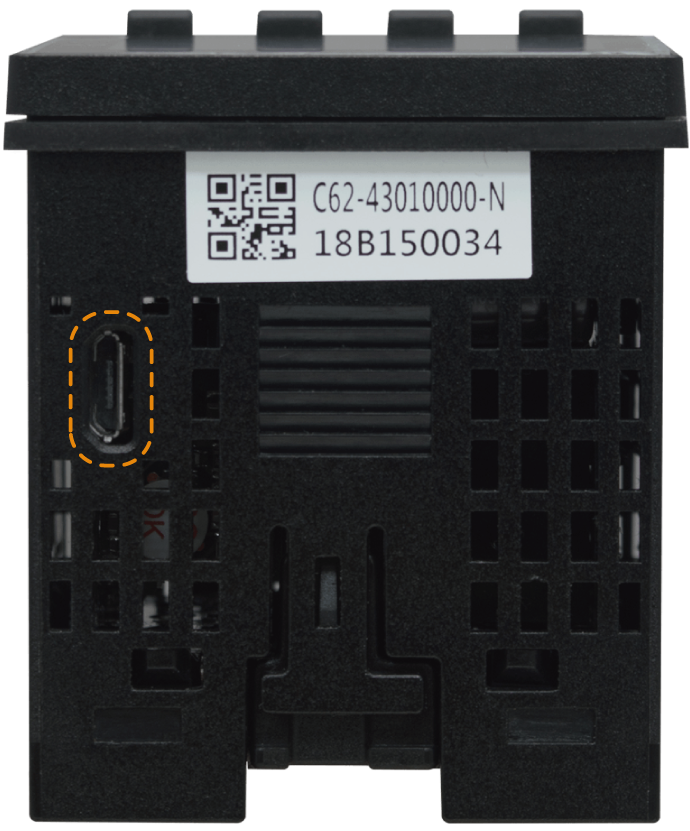

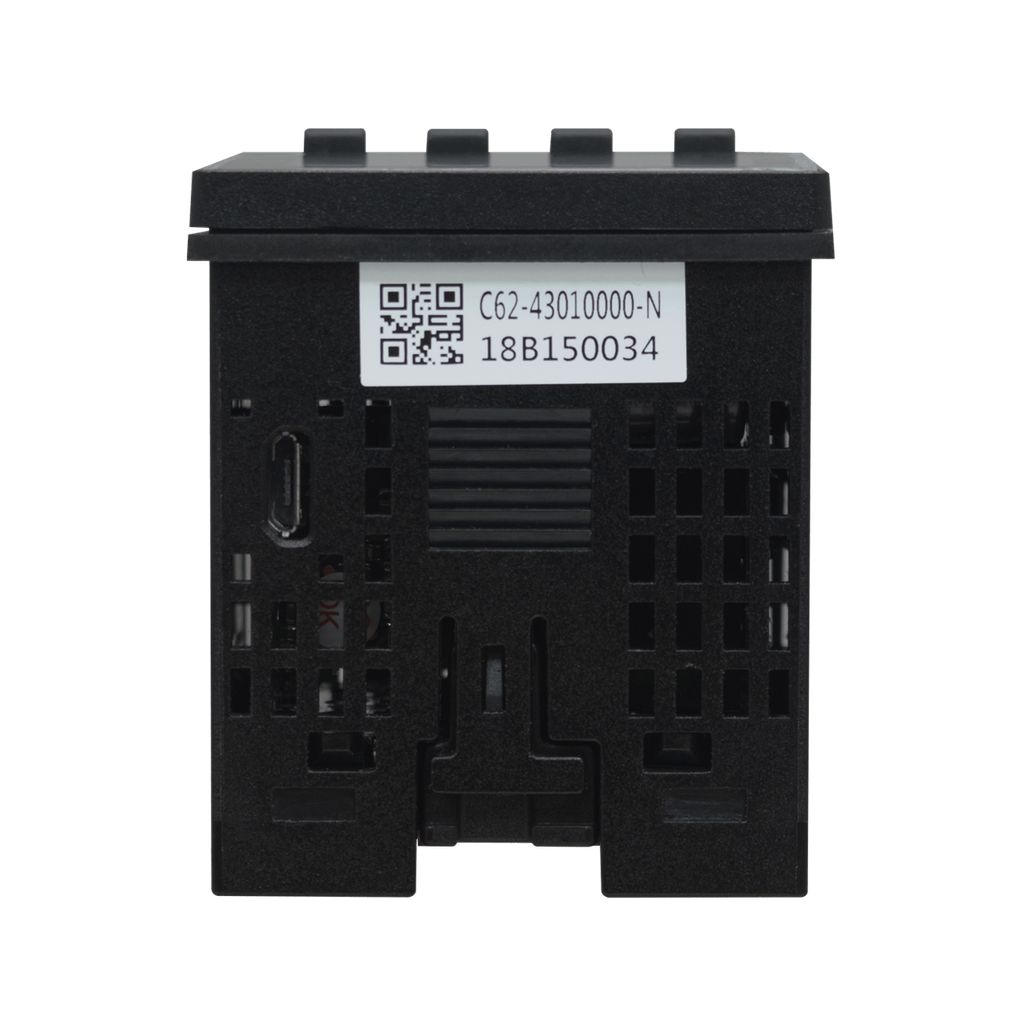

Built-in Programming Port for Fast Configuration

Micro USB interface streamlines setup and firmware upgrades

The Core Series is equipped with a built-in micro USB programming port that allows users to configure parameters and update firmware directly from a PC. With the optional USB configuration cable and dedicated software, engineers can complete setup in minutes—without powering the device through system wiring. This feature greatly reduces installation time, simplifies maintenance, and ensures flexible deployment across various projects.

BC-SET Pro Configuration Software

Easy parameter setup and firmware upgrade for Core Series controllers

BC-SET Pro is the official configuration software for BrainChild’s Core Series temperature controllers. With a user-friendly interface, it allows engineers and technicians to configure parameters, copy settings between devices, and perform firmware upgrades via USB connection. The software supports offline setup and can store multiple configuration files, making it ideal for OEM production lines, system integrators, and field engineers.

Batch Read/Write for Multiple Controllers

BC-SET allows users to connect multiple controllers of the same model and perform batch parameter read/write by defining a node address range. This feature significantly streamlines configuration in OEM or multi-device environments.

Clear and Accessible System Menu

The system menu offers quick access to key operations like Rescan (F5), Read Data (F6), Write Data (F7), Write Multiple (F8), and Communication Settings (F9). Built-in hotkeys support fast, efficient navigation.

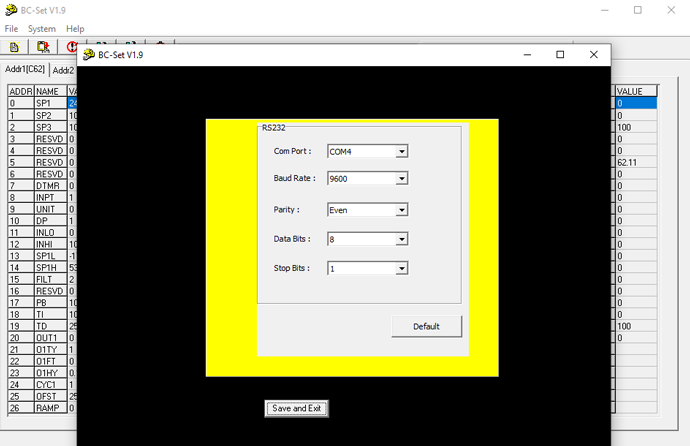

Intuitive Communication Setup Interface

The communication settings window lets users define COM port, baud rate, parity, data bits, and stop bits — with a “Default” button for quick reset and “Save and Exit” to finalize setup. Designed to reduce setup errors.

Visual Profile Editor for Programmable Controllers

For controllers with profile functionality, BC-SET provides a graphical editor to configure temperature ramp/soak segments. Users can easily read, modify, and write profile parameters for precise thermal process control.

Applications

Specification

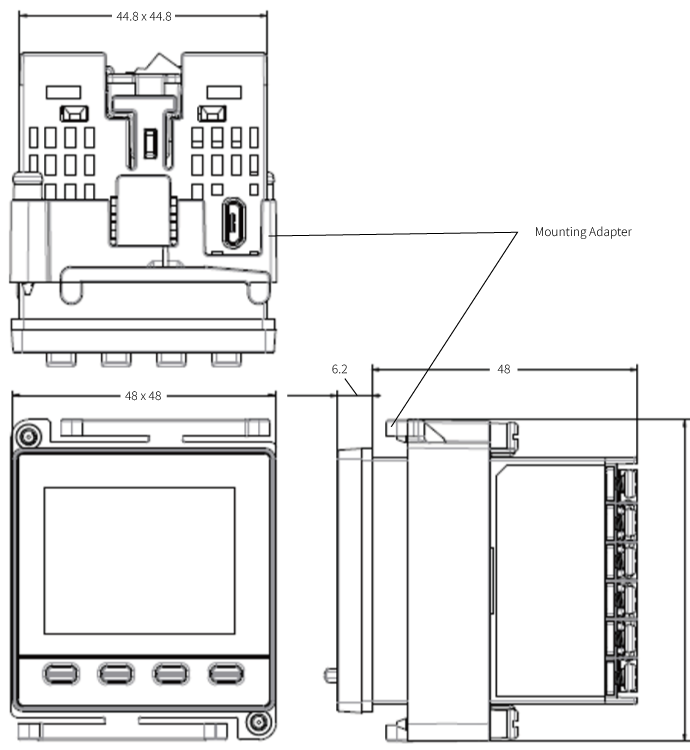

Dimensions with clamp

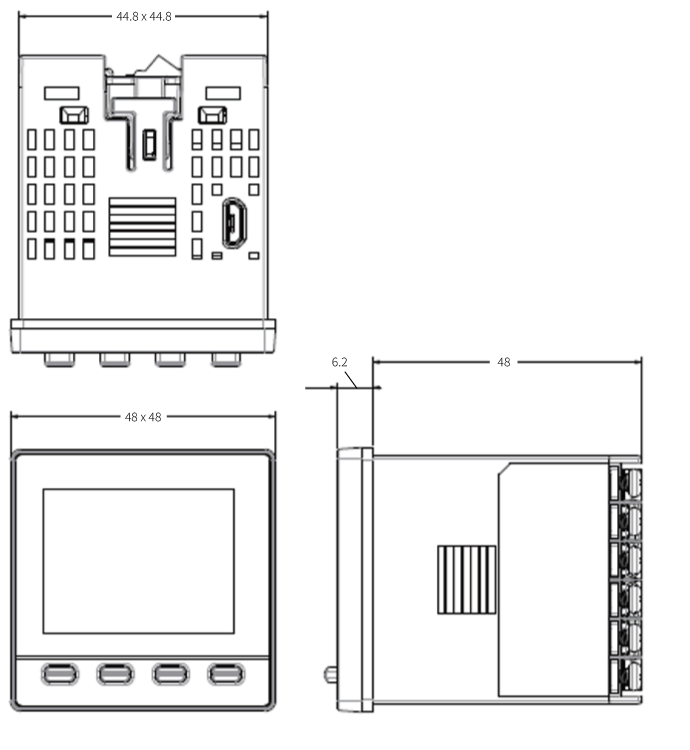

Dimension without Clamp

 Power

Power Supply

90 ~ 250 VAC, 47 ~ 63 Hz ; 11 to 40 VDC / 20 ~ 28 VAC, 47 ~ 63 Hz

Power Consumption

10VA, 5W maximum
 Signal Input

Type

Thermocouple(J,K,T,E,B,R,S,N,L,U,P,C,D), RTD(PT100(DIN), PT100(JIS)), Current(mA), Voltage(Volts)

Resolution

18 Bits

Sampling Rate

5 Times / Second (200msec)

Maximum Rating

-2VDC minimum, 12VDC maximum

Input characteristics

 Type

Range

Accuracy @ 25°C

Input Impedance

J

-120°C ~ 1000°C( -184°F - 1,832°F)

±2°C

2.2 MΩ

K

-200°C ~ 1370°C (-328°F - 2498°F)

±2°C

2.2 MΩ

T

-250°C ~ 400°C ( -418°F - 752°F )

±2°C

2.2 MΩ

E

-100°C ~ 900°C( -148°F - 1652°F )

±2°C

2.2 MΩ

B

0°C ~ 1820°C( 32°F - 3308°F )

±2°C( 200°C ~ 1800°C )

2.2 MΩ

R

0°C ~ 1767.8°C( 32°F - 3214°F )

±2°C

2.2 MΩ

S

0°C ~ 1767.8°C( 32°F - 3214°F )

±2°C

2.2 MΩ

N

-250°C ~ 1300°C( -418°F - 2372°F)

±2°C

2.2 MΩ

L

-200°C ~ 900°C( -328°F - 1652°F )

±2°C

2.2 MΩ

U

-200°C ~ 600°C (-328°F - 1112°F)

±2°C

2.2 MΩ

P

0°C ~ 1395°C( 32°F - 2543°F )

±2°C

2.2 MΩ

C

0°C ~ 2300°C( 32°F - 4172°F )

±2°C

2.2 MΩ

D

0°C ~ 2300°C( 32°F - 4172°F )

±2°C

2.2 MΩ

PT100(DIN)

-200°C ~ 850°C( -328°F - 1562°F )

±0.4°C

1.3KΩ

PT100(JIS)

-200°C ~ 600°C( -328°F - 1112°F )

±0.4°C

1.3KΩ

mA

-3mA ~ 27mA

±0.05%

2.5Ω

V

-1.3V ~ 11.5V

±0.05%

1.5MΩ

Temperature Effect

1.5µV /°C for all inputs except mA input, 3.0µV /°C for mA

Sensor Lead Resistance Effect

Thermocouple: 0.2 µV /Ω; 3-wire RTD: 2.6°C /Ω of Difference of Resistance of two leads 2-wire RTD: 2.6°C /Ω of Sum of Resistance of two leads

Burn-out Current

200nA

Common Mode Rejection Ratio(CMRR)

120 dB

Normal Mode Rejection Ratio (NMRR)

55dB

Sensor Break Detection

Sensor open for Thermocouple and RTD inputs, sensor short for RTD  input , below 1mA for 4 ~ 20mA input, below 0.25V for 1 ~ 5V input, not available for other inputs

Sensor Break Responding Time

Within 4 seconds for Thermocouple and RTD inputs, 0.1 second for 4 ~ 20mA and 1 ~ 5V inputs
Remote Set Point Input

Remote Set Point Option

Not Available

Type

Linear Current,Linear Voltage

Range

-3mA ~ 27mA,  -1.3V ~ 11.5V

Accuracy

±0.05 %

Input Impedance

Current: 2.5Ω, Voltage:1.5MΩ

Resolution

18 Bits

Sampling Rate

1.66 Times/Second

Maximum Rating

280mA maximum for Current Input, 12VDC maximum for Voltage Input

Temperature Effect

±1.5µV/°C for Voltage Input , ±3.0µV/°C for Current Input

Sensor Break Detection

Below 1mA for 4 ~ 20mA input, below 0.25V for 1 ~ 5V input, not available for other inputs

Sensor Break Responding Time

0.1 Seconds
 Event Input

No. of Event Inputs

2

Logic Low

-10V minimum, 0.8V maximum.

Logic High

2V minimum, 10V maximum

Functions

See availability table in user manual
 CT Input

CT Type

CT98-1

Accuracy

±2%of Full Scale Reading, ± 1 digit maximum

Input Impedance

294Ω

Measurement Range

0 ~ 50VAC

Output of CT

0 ~ 5VDC

CT Mounting

Screw Mounting

Sampling Rate

1 Time/Second
Output 1  / Output 2

Type

Relay, Pulsed Voltage, Linear Voltage and Linear Current

Relay Rating

2A, 240V AC, 200000 Life Cycles for Resistive Load

Pulsed Voltage

Source Voltage 5V, Current Limiting Resistance 66Ω

Linear Output Resolution

15 Bits

Linear Output Regulation

0.02% for full load change

Linear Output Settling Time

0.1 Second ( Stable to 99.9%)

Isolation Breakdown Voltage

1000 VAC

Temperature Effect

±0.01% of  Span/ °C

Load Capacity of Linear Output

Linear Current: 500Ω maximum, Linear Voltage: 10KΩ  minimum
 Alarm

Relay Type

Form A

Maximum Rating

2A, 240VAC, 200000 Life Cycles for Resistive Load

Alarm Functions

Dwell Timer, Deviation Low, Deviation High, Deviation Band Low, Deviation Band High, Process High, Process Low

Alarm Mode

Latching, Hold, Normal, Latching/Hold

Dwell Timer

0.1 ~ 4553.6 Minutes
 Data Communication

Interface

RS-485

Protocol

Modbus RTU (Slave Mode)

Address

1 - 247

Baudrate

2.8KBPS ~ 115.2 KBPS

Parity Bit

None, Even or Odd

Stop Bit

1 or 2 Bits

Data  Length

7 or 8 Bits

Communication Buffer

160 Bytes
Analog Retransmission

Output Signal

4 ~20 mA, 0 ~ 20 mA, 0 ~ 10V

Resolution

15 Bits

Accuracy

±0.05% of Span ± 0.0025% / °C

Load Resistance

0 to 500Ω for Current Output , 10KΩ minimum for Voltage Output

Output Regulation

0.01% for full load change

Output Setting Time

0.1 Second (Stable to 99.9%)

Isolation Breakdown

1000VAC minimum

Integral Linearity Error

±0.005% of Span

Temperature Effect

±0.0025% of Span /°C

Saturation Low

0mA or 0V

Saturation High

22.2mA or 5.55V, 11.1V min

Linear Output Ranges

0 ~ 22.2mA (0 ~ 20mA / 4 ~ 20mA), 0 ~ 5.55V (0 ~ 5V, 1 ~ 5V),0 ~ 11.1V (0 ~ 10V)
User Interface

Keypad

4 Keys

Display Type

4 Digit LCD Display

No. of Display

2

Upper Display Size

0.58”(15mm)

Lower Display Size

0.3”(7.8mm)
Programming Port

Interface

Micro USB

PC Communication Function

Automatic Setup, Calibration and Firmware Upgrade
Control Mode

Output 1

Reverse (Heating) or Direct (Cooling) Action

Output 2

PID cooling control, Cooling P band 50~300% of PB, Dead band -36.0 ~ 36.0 % of PB

ON-OFF

0.1 ~ 90.0 (°F ) hysteresis control ( P band = 0)

P or PD

0 ~ 100.0 % offset adjustment

PID

Fuzzy logic modified Proportional band 0.1 ~ 900.0°F, Integral time 0 ~ 3600 Seconds,Derivative time 0 ~ 360.0 Seconds

Cycle Time

0.1 ~ 90.0 Seconds

Manual Control

Heat(MV1) and Cool(MV2)

Auto-tuning

Cold Start and Warm Start

Failure Mode

Auto transfer to manual mode while sensor break or A-D Converter damage

Ramping Control

0 to 900.0°F/Minute or 0 to 900.0°F/Hour Ramp Rate
Digital Filter

Function

First Order

Time Constant

0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 Seconds Programmable
Profiler

Availabiity

No

Number of Program

N / A

Number of Segment / Program

N / A
 Environmental and Physical Specifications

Operating Temperature

-10°C ~ 50°C

Storage Temperature

-40°C ~ 60°C

Humidity

0 ~ 90 % RH (Non-Condensing)

Altitude

2000 Meters maximum

Pollution

Degree II

Insulation Resistance

20MΩ minimum(@500VDC)

Dielectric Strength

2000VAC,50/60 Hz for 1 Minute

Vibration Resistance

10 to 55 Hz , 10m/s2 for 2 Hours

Shock Resistance

200 m/s2(20g)

Moldings

Flame Retardant Polycarbonate

Mounting

Panel

Dimensions (W*H*D) (mm)

48*48*59

Depth Behind Panel (mm)

50

Cut Out Dimensions (mm)

45*45

Weight (grams)

160
Approval Standards

Safety

UL61010-1, EN61010-1 (IEC1010-1), RoHS, REACH

Protective Class

IP50 for Panel,IP20 for terminals and housing, all indoor use

EMC

EN61326

Download

Catalog_Core Series Temperature Controller_V1.04_EN

Catalog_Core Series Temperature Controller_V1.04_CH
Quick Start Guide_Core Series Temperature Controller_UMQOC621C_EN

Quick Start Guide_Core Series Temperature Controller_TCEQSC01B_v2_CH
User Manual_Core Series Temperature Controller_UM0C621N_v1.20_EN
User Manual_Core Series Temperature Controller_v2_CH

Software_BC-Set_2.0
Software_BC-Set Pro_V1.1.0.12_2.0(above V16)
Software_USB Update Tool_V2.8B1

Software_DAQ_V2.73(2501)*1-hour trial only
Training_Demo Data Acquistion Studio

Data_Logger_Firmware_XH10_v1.1.0.34​

Software_BC_Set_Pro_V1.1.0.12_2.0​
Software_DAQ_V2.73(2501)*1-hour trial only

Training_Demo_Data_Acquistion_Studio

UMEIO01A​
UMEIO01A​

IO_Brouchure_Ver.1.4/

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

The C62 features a compact 48×48 mm panel mount design, ideal for space-constrained industrial control panels.

Yes, C62 supports RS-485 communication with Modbus RTU protocol, making it easy to integrate with PLCs and SCADA systems.

The C62 accepts thermocouples (J, K, T, E, etc.), RTDs (PT100), as well as voltage and current signals like 0–10 V and 4–20 mA.

Yes, the C62 supports optional profile control with up to 16 programmable segments for ramp/soak applications.

How do I configure the C62 controller?

You can configure the C62 using the front panel keys or via USB using the BC-SET Pro software for quick parameter setup and firmware updates.
