Classic Premium Series | 48 x 96 mm

BTC-8100
https://www.brainchildtw.com/web/image/product.template/69/image_1920?unique=062c7a5

PID Temperature controller

• 48 x 96 mm panel mount
• Fuzzy PID control with auto-tuning
• Universal input: TC, RTD, mV, mA
• RS-485/232 Modbus RTU supported
• Ramp/Soak profile with dwell timer

This combination does not exist.

Features

  • 48 x 96 mm panel mount
  • Universal input: TC, RTD, mV, mA, voltage
  • Dual 4-digit LED display for PV and SV
  • 18-bit A/D converter for high resolution input
  • Fast 5 samples/sec input sampling rate
  • Auto/manual mode with bumpless transition
  • Ramping function with adjustable slope rate
  • Auto-tuning with fuzzy logic PID adjustment
  • Digital filter to stabilize fluctuating signals
  • Cold and warm start auto-tune supported
  • Sensor break detection for process safety
  • Lockout levels for parameter protection
  • Configurable alarm: high, low, band, dwell
  • Output 2 can be set as dwell timer function
  • Relay, SSR, or analog output options
  • Built-in Modbus RTU via RS-232 or RS-485
  • USB programming port for PC-based setup

Modular PID Controller for Process Automation

Fuzzy PID, multi-output, RS-485, ramp/soak profile


This compact PID controller is designed to deliver reliable and intelligent temperature or process control for a wide range of industrial applications. Featuring universal input compatibility, a high-resolution 18-bit A/D converter, and multiple output options such as relay, SSR voltage drive, or analog signal, it offers flexibility for both basic and advanced control environments.

The controller integrates fuzzy logic auto-tuning, supports RS-232 and RS-485 Modbus RTU communication, and includes a ramp/soak program with dwell timer, making it ideal for precise, automated control in OEM equipment, production lines, and control panels.

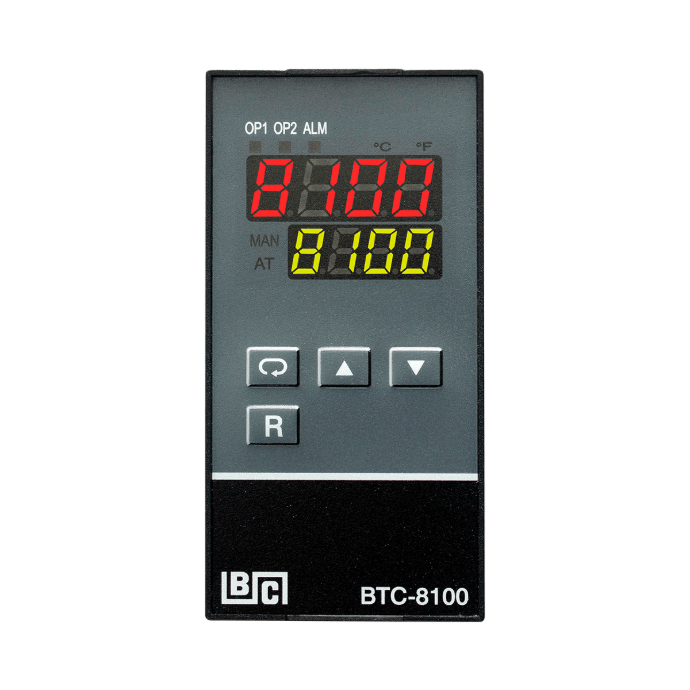

LED Display Panel with Simple Key Control

Clear indicators and tactile keypad ensure easy operation

The front panel interface features a bright dual 4-digit LED display, providing real-time feedback of process value (PV) and set value (SV) simultaneously. This high-contrast display ensures clear visibility even in low-light industrial environments.

Multiple status indicators are clearly arranged to present operating conditions at a glance, including:

  • Output activity

  • Alarm state

  • Auto-tuning (AT) status

  • Manual mode (MAN)

  • Engineering unit display (UNIT)

These indicators help users monitor the control state with minimal effort, enhancing situational awareness and reducing errors during setup or adjustments.

The controller includes a tactile keypad with four intuitive buttons: Scroll, Up, Down, and Enter. The keys provide positive feedback for each press and support smooth navigation across parameter settings. This layout makes the controller easy to operate even in space-constrained panels or time-critical applications, improving work efficiency on the shop floor.

Universal Input Support with High Accuracy

Accepts TC, RTD, mV, mA and voltage signals

The controller supports universal input signals, including:

  • Thermocouple: J, K, T, E, N, R, S

  • RTD: Pt100 DIN / JIS

  • Analog: 0–50 mV, 0–20 mA, 4–20 mA, 0–5V, 1–5V

Equipped with an 18-bit A/D converter, the input circuitry offers high accuracy, fast 5Hz sampling rate, and cold junction compensation for thermocouples. Signal stability is further enhanced by digital filtering and sensor break detection, ensuring safe, reliable operation in demanding process environments.


Flexible Output Choices for Any Control Need

Relay, SSR, and analog output types are selectable

The controller offers multiple output options for control and alarm use:

  • Relay contact: 250 VAC / 2A

  • SSR voltage drive: 12 VDC ±15%, 30 mA max

  • Analog output: 0–20 mA, 4–20 mA, 0–10 V, 1–5 V

Analog outputs are generated via a 15-bit D/A converter, ensuring high-resolution retransmission and smooth signal control. Each output channel can be independently configured for PID control, alarm logic, or dwell timer functions, providing great flexibility in system integration.

Fuzzy PID Technology

Smarter Control with Less Overshoot and Faster Response

Fuzzy logic is combined with traditional PID control to deliver smarter and more adaptive temperature regulation. Unlike standard PID controllers that require manual fine-tuning for each application, fuzzy PID dynamically adjusts control responses based on real-time process behavior. The result is faster stabilization, reduced overshoot, and improved resilience to disturbances—ideal for processes where precision and speed are critical.

Dedicated Programming Port for Easy Setup

Touch-port with special cable for offline configuration

The controller features a dedicated touch-type programming port, designed for use with the CC91-1 programming cable. This port allows fast and reliable offline parameter setup, calibration, and ATE-based testing, connecting to a PC or automated test equipment without accessing the main terminals.

To ensure system integrity, this port is intended for setup and testing only. It should be disconnected during normal operation. Optional adapters such as the SNA12A can convert this port for RS-232 communications if required.

BC-SET Pro Configuration Software

Easy parameter setup, backup and firmware upgrade

BC-SET Pro is the official configuration software developed by BrainChild for its over-temperature protection controllers. With a streamlined and intuitive interface, the software allows users to connect via USB programming cable and quickly configure control parameters. It supports efficient parameter editing, setting duplication between devices, and firmware upgrades to maintain device performance and stability. BC-SET Pro also enables offline configuration with the ability to save and manage multiple profiles, making it ideal for production environments, system deployment, and ongoing maintenance. Whether for new setup or existing system adjustment, this tool helps engineers and technicians simplify workflow, reduce setup time, and ensure consistent configuration across all devices.

Batch Read/Write for Multiple Controllers

BC-SET allows users to connect multiple controllers of the same model and perform batch parameter read/write by defining a node address range. This feature significantly streamlines configuration in OEM or multi-device environments.

Clear and Accessible System Menu

The system menu offers quick access to key operations like Rescan (F5), Read Data (F6), Write Data (F7), Write Multiple (F8), and Communication Settings (F9). Built-in hotkeys support fast, efficient navigation.

Intuitive Communication Setup Interface

The communication settings window lets users define COM port, baud rate, parity, data bits, and stop bits — with a “Default” button for quick reset and “Save and Exit” to finalize setup. Designed to reduce setup errors.

Visual Profile Editor for Programmable Controllers

For controllers with profile functionality, BC-SET provides a graphical editor to configure temperature ramp/soak segments. Users can easily read, modify, and write profile parameters for precise thermal process control.

Applications

Specification


 Power

90 ~ 250 VAC, 47 ~ 63 Hz, 12VA, 5W maximum

11 ~ 26 VAC / VDC, 12VA, 5W maximum

 Signal Input

Resolution

18 Bits

Sampling Rate

5 times / second

Maximum Rating

-2 VDC minimum, 12 VDC maximum( 1 minute for mA input )

Temperature Effect

±1.5uV/ BC for all inputs except mA input
±3.0uV/ BC for mA input

Sensor Lead Resistance Effect

T/C: 0.2uV/ohm
3-wire RTD: 2.6 °C/ohm of resistance difference of two leads
2-wire RTD: 2.6 °C/ohm of resistance sum of two leads

Burn-out Current

200nA

Common Mode Rejection Ratio(CMRR)

120 dB

Normal Mode Rejection Ratio (NMRR)

55dB

Sensor Break Detection

Sensor open for TC, RTD and mV inputs, Sensor short for RTD input, below 1 mA for 4 ~ 20 mA input, below 0.25V for 1 ~ 5 V input, unavailable for other inputs.

Sensor Break Responding Time

Within 4 seconds for TC, RTD and mV inputs, 0.1 second for 4 ~ 20 mA and 1 ~ 5 V inputs.

Input characteristics

 Type

Range

Accuracy @ 25°C

Input Impedance

J

-120°C  ~ 1000°C( -184°F ~ 1,832°F)

±2°C

2.2 MΩ

K

-200°C ~ 1370°C (-328°F ~ 2498°F)

±2°C

2.2 MΩ

T

-250°C ~ 400°C ( -418°F ~  752°F )

±2°C

2.2 MΩ

E

-100°C ~ 900°C( -148°F ~ 1652°F )

±2°C

2.2 MΩ

B

0°C ~ 1800°C( 32°F ~  3272°F )

±2°C( 200°C ~ 1800°C )

2.2 MΩ

R

0°C ~ 1767.8°C( 32°F ~ 3214°F )

±2°C

2.2 MΩ

S

0°C ~ 1767.8°C( 32°F ~ 3214°F )

±2°C

2.2 MΩ

N

-250°C ~ 1300°C( -418°F ~ 2372°F)

±2°C

2.2 MΩ

L

 -200°C ~ 900°C( -328°F ~ 1652°F )

±2°C

2.2 MΩ

PT100(DIN)

-210°C ~ 700°C( -346°F ~ 1292°F )

±0.4°C

1.3KΩ

PT100(JIS)

-200°C ~ 600°C( -328°F ~ 1112°F )

±0.4°C

1.3KΩ

mV

-8mA  ~ 70mA

±0.05%

2.2MΩ

mA

-3mA  ~ 27mA

±0.05%

70.5Ω

V

-1.3V  ~ 11.5V

±0.05%

650KΩ

Output 1  / Output 2

Relay Rating

2A,240V AC,200000 Life Cycles for Resistive Load

Pulsed Voltage

Source Voltage 5V, Current Limiting Resistance 66Ω

Linear Output Characteristics

Type

Zero Tolerance

Span Tolerance

Load Capacity

4 ~ 20 mA

3.6 ~ 4 mA

20 ~ 21 mA

500Ω max.

0 ~ 20 mA

0 mA

20 ~ 21 mA

500Ω max.

0 ~ 5 V

0 V

5 ~ 5.25 V

10 KΩ min.

1 ~ 5 V

0.9 ~ 1 V

5 ~ 5.25 V

10 KΩ min.

0 ~ 10 V

0 V

10 ~10.5 V

10 KΩ min.

Linear Output

Resolution

15 Bits

Output Regulation

0.02% for full load change

Output Settling Time

0.1 Second ( Stable to 99.9%)

Isolation Breakdown Voltage

1000 VAC

Temperature Effect

±0.01% of  Span/ °C

Triac ( SSR ) Output

Rating

1A / 240 VAC

Inrush Current

20A for a cycle

Min. Load Current

50 mA rms

Max. Off-state Leakage

3 mA rms

Max. On-state Voltage

1.5V rms

Insulation Resistance

1000 Mohms min. at 500 VDC

Dielectric Strength

2500 VAC for 1 minute

 Alarm

Relay Type

Form C

Maximum Rating

2A, 240VAC, 200000 Life Cycles for Resistive Load

Alarm Functions

Dwell Timer, Deviation Low, Deviation High, Deviation Band Low, Deviation Band High, Process High, Process Low

Alarm Mode

Latching, Hold, Normal, Latching/Hold

Dwell Timer

0.1 ~ 4553.6 Minutes

 Data Communication

Interface

RS-232 ( 1 unit ), RS-485 ( up to 247 units )

Protocol

Modbus RTU (Slave Mode)

Address

1 ~ 247

Baudrate

2.4KBPS ~ 38.4 KBPS

Data Bits

7 or 8 Bits

Parity Bit

None, Even or Odd

Stop Bit

1 or 2 Bits

Communication Buffer

160 Bytes

Analog Retransmission

Output Signal

4 ~20 mA, 0 ~ 20 mA, 0 ~ 5V, 1 ~ 5V, 0 ~ 10V

Resolution

15 Bits

Accuracy

±0.05% of Span ± 0.0025% / °C

Load Resistance

0 to 500Ω for Current Output , 10KΩ minimum for Voltage Output

Output Regulation

0.01% for full load change

User Interface

Keypad

4 Keys

Display Type

4 Digit LCD Display

No. of Display

2

Upper Display Size

0.4" (10mm)

Lower Display Size

0.31"(8mm)

Failure Mode

Auto transfer to manual mode while sensor break or A-D Converter damage

Ramping Control

Connection to PC for supervisory control

Control Mode

Output 1

Reverse (Heating) or Direct (Cooling) Action

Output 2

PID cooling control, Cooling P band 50~300% of PB, Dead band -36.0 ~ 36.0 % of PB

ON-OFF

0.1 ~ 90.0 (°F ) hysteresis control ( P band = 0)

P or PD

0 ~ 100.0 % offset adjustment

PID

Fuzzy logic modified Proportional band 0.1 ~ 900.0°F, Integral time 0 ~ 3600 Seconds,Derivative time 0 ~ 360.0 Seconds

Cycle Time

0.1 ~ 90.0 Seconds

Manual Control

Heat(MV1) and Cool(MV2)

Auto-tuning

Cold Start and Warm Start

Failure Mode

Auto transfer to manual mode while sensor break or A-D Converter damage

Ramping Control

0 to 900.0°F/Minute or 0 to 900.0°F/Hour Ramp Rate

Digital Filter

Function

First Order

Time Constant

0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 Seconds Programmable

 Environmental and Physical Specifications

Operating Temperature

-10°C ~ 50°C

Storage Temperature

-40°C ~ 60°C

Humidity

0 ~ 90 % RH (Non-Condensing)

Altitude

2000 Meters maximum

Pollution

Degree II

Insulation Resistance

20MΩ minimum(@500VDC)

Dielectric Strength

2000VAC,50/60 Hz for 1 Minute

Vibration Resistance

10 to 55 Hz , 10m/s2 for 2 Hours

Shock Resistance

200 m/s2(20g)

Moldings

Flame Retardant Polycarbonate

Mounting

Panel

Dimensions (W*H*D) (mm)

48*96*80

Depth Behind Panel (mm)

65

Cut Out Dimensions (mm)

45*92

Weight (grams)

210

Approval Standards

Safety

UL61010C-1, CSA C22.2 No.24-93, EN61010-1 ( IEC1010-1 )

Protective Class

IP65 for panel with additional option, IP50 for panel without additional option, IP20 for terminals and housing with protective cover.
All indoor use.

EMC

EN61326

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

What types of input signals are supported?

The controller supports thermocouple (J, K, T, E, N, R, S), RTD (Pt100 DIN/JIS), and analog signals such as mV, mA, and voltage (0–5V, 1–5V).

Is the IP65 front panel standard or optional?

The standard panel is IP50. IP65 protection is available as an optional accessory by installing a water-resistant rubber gasket.

Can the programming port be used during operation?

No. The programming port is for offline setup and testing only. It must be disconnected during normal operation.

What communication options are available?

The controller supports RS-232 or RS-485 Modbus RTU communication as optional configurations.

Can the controller perform ramp/soak profile control?

Yes. It supports multi-segment ramp/soak profile programming with dwell timer for precision process control.

Ordering Code

Features



PRMesh

Wireless Expansion Module for PR Paperless Recorders

PR Mesh works with SenseNode wireless sensor nodes to extend the wireless measurement capabilities of existing PR Paperless Recorders.

SenseNode
Signal Acquisition & Transmission

PRMesh
Wireless Reception & Integratione

PR Paperless Recorders
Monitoring & Data Logging

Wireless  Measurement Expansion

Extend the wireless measurement capabilities of existing PR Paperless Recorders with PR Mesh, without replacing the entire recording system.

Distributed Signal Acquisition

Deploy SensNode near measurement points to acquire up to two analog inputs per unit, reducing long-distance sensor wiring to the recorder.

BrainChild Mesh
Connectivity

Powered by BrainChild Mesh wireless technology, SensNode transmits field measurement data to PR Mesh, connecting distributed measurement points with the PR recorder.

Seamless PR Integration

Installed inside a compatible PR recorder, PR Mesh integrates wireless measurement data into the existing system while preserving its familiar interface and operation.

Centralized Monitoring & Recording

Consolidate measurement data from distributed points in the PR recorder, retaining real-time displays, trend monitoring, alarm management, and historical data logging.

Scalable Monitoring Expansion

Add SensNode units as monitoring needs grow, extending measurement coverage while reducing wiring and installation work when expanding existing systems.

The PR30 includes an easy-to-use tree layout configuration, convenient handwriting message input, a circular display for better visibility, and both standard and plus firmware versions for enhanced flexibility and performance across various applications.

Configuration in tree layout is easy for operation

The tree layout configuration simplifies operation, allowing users to easily navigate and manage settings on the recorder.

Handwriting messages are handy users

Handwriting messages offer users a convenient and quick way to input notes directly on the recorder.

Circular display

Handwriting messages offer users a convenient and quick way to input notes directly on the recorder.

Standard version of Firmware
  • Al:  Analog input is offered various log speed in 1 00ms, 1, 2, 5, 10, 20, 30 Sec, 1, 2 Min/Dot.
  • DI:  Digital input is offered either normal Logic or high frequency Pulse.
  • AO:  In analog output, mA or V and its Expression can be defined.
  • DO:  Digital output/relay output can be enabled. Each DO card has 6 relays.
  • Display:  Various display speeds are available in 1 00ms, 1, 2, 5, 10, 20, 30 Sec/Dot, or 1, 2, 10, 30 Min/Page, 1, 2, 4, 8, 12 Hour/Page, or 1 Day/Page.
  • Timer:  Timer in Countdown, Repeat Countdown, Daily, Weekly or Monthly base, and various jobs can be defined.
  • Clock:  Date Style of MM/dd/yy or dd/MM/yy, Time Synchronize via Internet, and Summer Saving Time can be defined.
  • Communication:  Web Server and Email functions are available in Communication in Stan­dard firmware.
  • Instrument:  Brightness adjustment and Screen Saver are available in Instrument.
  • Password:  If Normal Security is chosen, then only one password is offered. If high Security of CFR-21 is chosen, then 9 levels of password can  be defined.
  • Demo:  Enable or disable the demonstration.
  • Auto-output:  Automatic output can be set to specify the printer, to print Historical data & Report data in specified period of time.
  • System information:  It gives Firmware version number, Internal & External memory status, IP address, and 10 card status of each Slot.
  • Calibrate:  Sometimes the field calibration is required for high accuracy. In this case, a qualified engineer can do the necessary calibration.
  • Math:  Standard version includes mathematics.
Math: It includes Math, Counter & Totalizer.
Math Expression is keyed in an easy way.
Power Calculation: Calculating and recording the power usage,Formulas are ready for P1W2, P1W3, P3W3, P3W4*.
  • P1W2:single-phase two wires
  • P1W3:single-phase three wires
  • P3W3:three-phase three wires
  • P3W4:three-phase four wires

Marker:  Adding notifications on Real-Time View.Marker can be added by events like alarm or triggered by Operation

 Standard version of Firmware

Plus versions offer more features of External Channels, Custom Display, Batch, FDA 21 CFR part 11.

External Channels:

Besides Al & DI inputs, PR recorders accept inputs through communication called External Channels. PR10, PR20 & PR30 can work External Channels maximum up to 24, 48 & 96 respectively.

External Channels:

Besides Al & DI inputs, PR recorders accept inputs through communication called External Channels. PR10, PR20 & PR30 can work External Channels maximum up to 24, 48 & 96 respectively.

Batch:

Batch production record is constantly required for more strict production, for example food and drugs.

 FDA 21 CFR part 11:

This feature is complied with U.S. Food and Drug Administration with human health concern. All data should be avoided from manipulating after recording.

Powerful functions in PC Software

The PR series PC software offers powerful functions, including easy recorder configuration and historical trend analysis. It also provides features like real-time monitoring and custom display editing, giving users the flexibility to tailor displays and monitor live data as needed.

Free basic software

It consists of two parts, which are Configuration and Historical Viewer.

I. Configuration

It is Then, easy send to do the recorder configuration on PC. Then, send the configuration files from PC to recorder.

II. Historical Viewer

It can display historical trends, historical alarms, events, and then print it. It can search data by time, time period, tag, alarm, events and remarks. It also can export data in CSV format.

Extensive software Data Acquisition Studio

It consists of two parts, which are Configuration and Historical Viewer.

Ill. Real-time Viewer

Besides Configuration & Histor­ical Viewer, it offers additional software Real-time Viewer for real-time monitoring.

IV. Panel Studio

If Plus version 2 or 3 of Firmware is purchased, additional software Panel Studio is offered for editing custom display. The users can use it to edit specific displays on PC first, and then download it onto recorders. The custom edited displays will be additional pages to standard ones.

Edit it on PC

Download it onto Recorders

Applications

Specification


Product position

Big size and high-end one, good for sophisticated applications, for example power industry

Input numbers

6, 12, 18, 24, 30, 36, 42, 48 channels

True universal inputs

Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Ni100, Ni200, Ni500,JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV

The fastest sampling rate

o reach 100 msec / dot, default setting at 1 sec / dot

Math, External channels, Batch,
Custom display, FDA 21 CFR part 11

Math in standard version, others in Plus versions

Display

12.1" TFT touch screen

Resolution

1024 x 768

MTBF backlight at 25°C

30,000 hrs

Backlight

LED

Screen saver, Email

Yes

A faster CPU

ARM Cortex-A8, 1Ghz

Internal flash memory

256 MB

RAM

256 MB

Ethernet

Modbus TCP/IP

RS-232/422/485

Optional RS-232 or RS-422/485 Modbus RTU

SD card slot, USB host x 2

Standard, one USB in the front, another USB in the back

Pulse input

Optional DI card offering either logic or high frequency pulse counter

START / STOP key

To start / stop record and to turn off the display only, not recorder itself so that a quick start possible

Calibration correction

On-site calibration possible, or using handy features of Offset and Gain for correction

Multilingual

Convenient for local users by offering 19 languages including English, Japanese,Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese(simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable

PC software Historical Viewer+ Configuration

Standard

Extensive software Data Acquisition Studio

Optional real-time monitoring

Power supply

90-250VAC or 11-36VDC

Outer dimensions (W x H x L mm)

288 x 288 x 189

Shorter mounting depth (mm)

171

DIN panel cutout (W x H mm)

 281 x 281

Protection

IP65 front, IP20 rear

Operating temperature

0°C to 50°C

Storage temperature

-30°C to 70°C

Safety standards

RoHS

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

Ordering Code

PR3006(6 analog inputs)
PR3012(12 analog inputs)
PR3018(18 analog inputs)
PR3024(24 analog inputs)
PR3030(30 analog inputs)
PR3036(36 analog inputs)
PR3042(42 analog inputs)
PR3048(48 analog inputs)
none
6 relays
12 relays
18 relays
24 relays
Digital inputs
6 channels
12 channels
18 channels
none
6 channels
12 channels
90-25 VAC,50/60 Hz
11-36 VDC
12 channels
standard Ethernet
Ethernet + RS232
Ethernet + RS-422/486
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
standard version with mathematics
Plus version 1 with external channels, batch & FDA 21 CFR part 11
Plus version 2 with custom edited display, an editing software Panel Studio to be supplied
Plus version 3 including Plus version 1 +2 above
free basic software of Historical Viewer & Configuration
extensive software Data Acquisition Studio (RealTime Viewer + Historical Viewer + Configuration)
panel mount, no power cord, no power switch
panel mount, no power cord, power switch
portable, UL & CSA power cord, power switch
portable, VDE power cord, power switch
portable, SAA power cord, power switch
portable, BS power cord, power switch
portable, no power cord, power switch
panel mount, UL & CSA power cord, power switch
panel mount, VDE power cord, power switch
panel mount, SAA power cord, power switch
panel mount, BS power cord, power switch
Protected by reCAPTCHA, Privacy Policy & Terms of Service apply.
將其替換為您自己的 HTML 代碼
