Features
- Supports up to 6-channel multipoint data recording
- Multi-color print shows channel data clearly
- Accepts TC, RTD, voltage, and current inputs
- Adjustable chart speed: 0–1500 mm/h
- Digital print includes live and alarm values
- Alarm judgment with relay output (optional)
- LED indicators for RUN and ALM status
- RS-232C standard; RS-485 optional
- Ideal for field monitoring and data logging
- DI-triggered manual print supported (optional)
- IP65 compliant with proper gasket setup
- Easy setup via front panel keypad

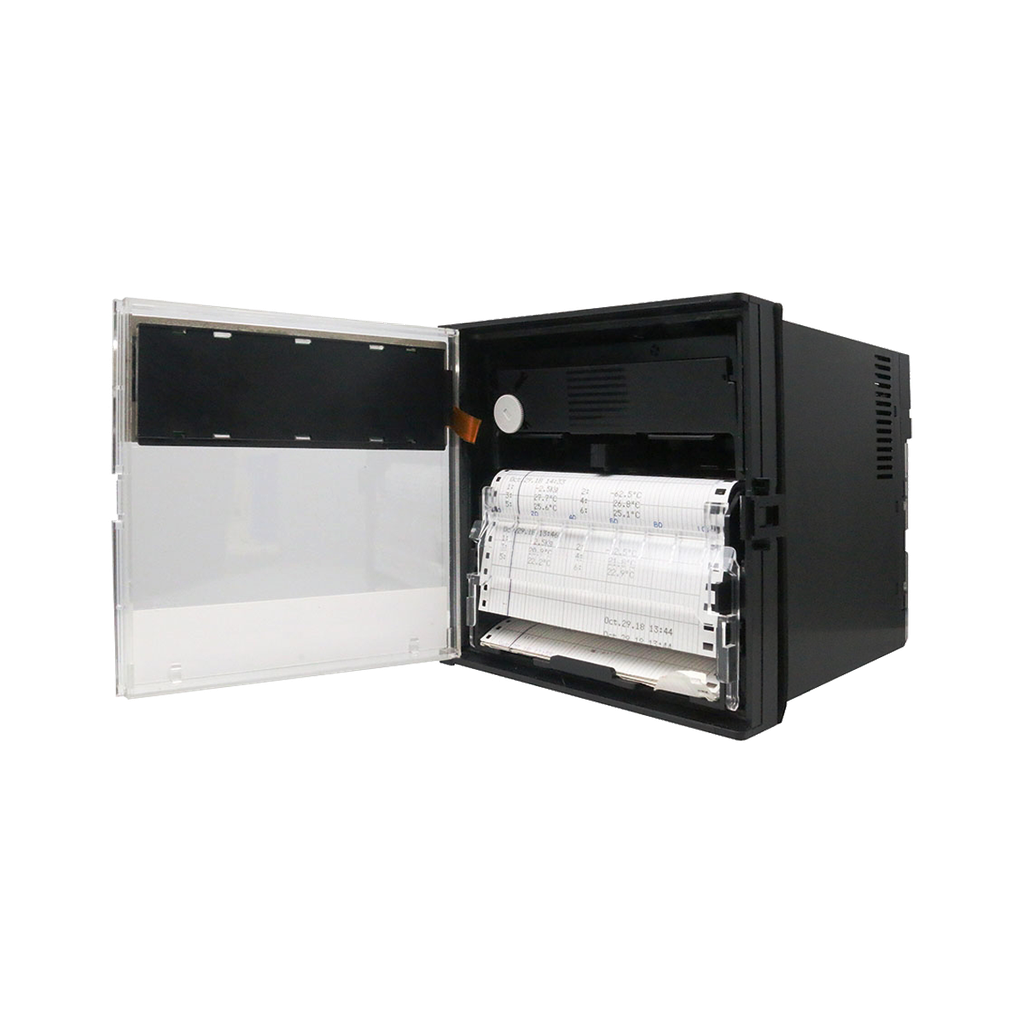

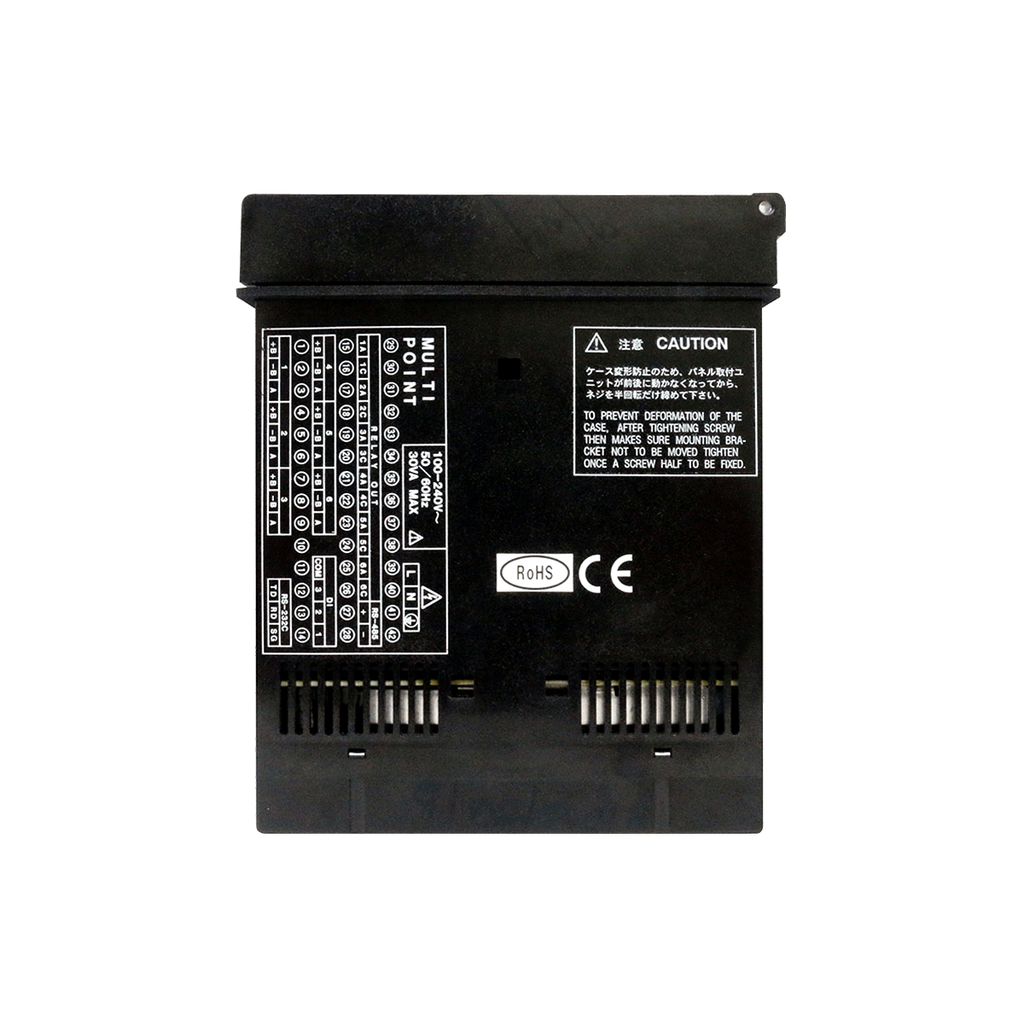

CR06 Chart Recorder
Precision Logging for Every Critical Data Point
From temperature and pressure to current and voltage, the CR06 handles it all with confidence. Supporting up to six input channels and multi-color dotting, it clearly distinguishes each channel’s data at a glance. Compatible with thermocouples, RTDs, and analog signals, CR06 adapts effortlessly to diverse industrial measurement needs—delivering accurate records and real-time insights you can rely on.
Intuitive Operation, Fast Setup
A User-Friendly Interface Built for the Field

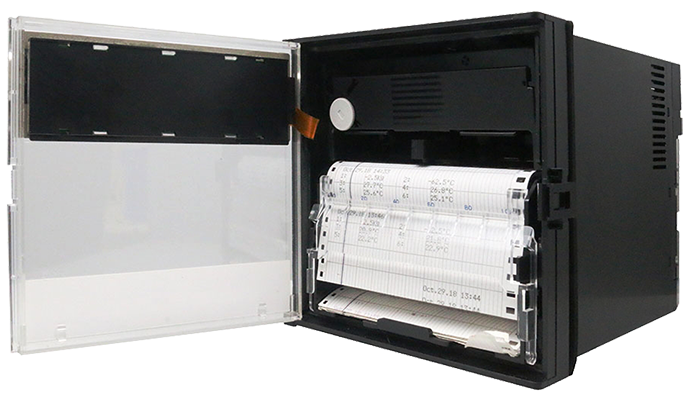

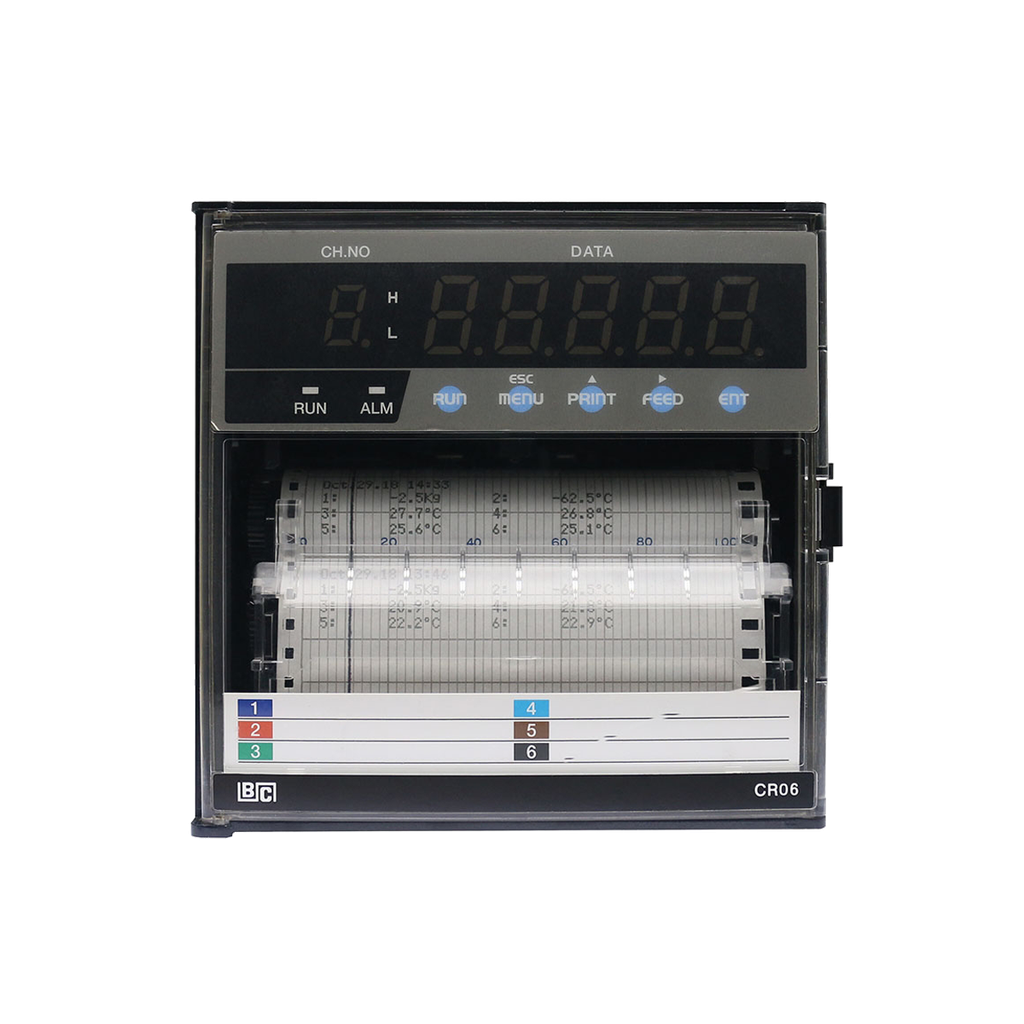

The CR06 features an intuitive control panel with clear status indicators, enabling quick setup and real-time monitoring—even in demanding environments. Users can easily adjust parameters and control printing directly from the front panel—no complex steps required.

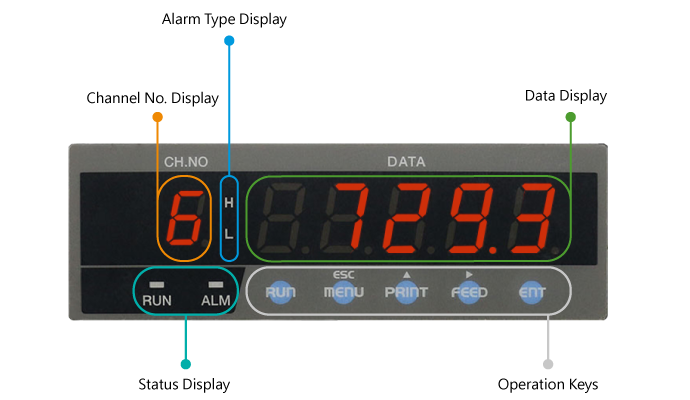

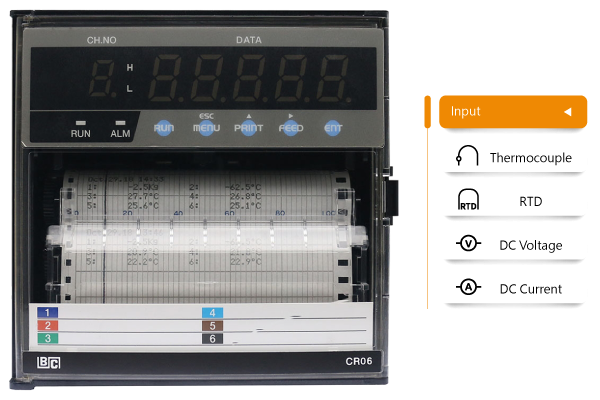

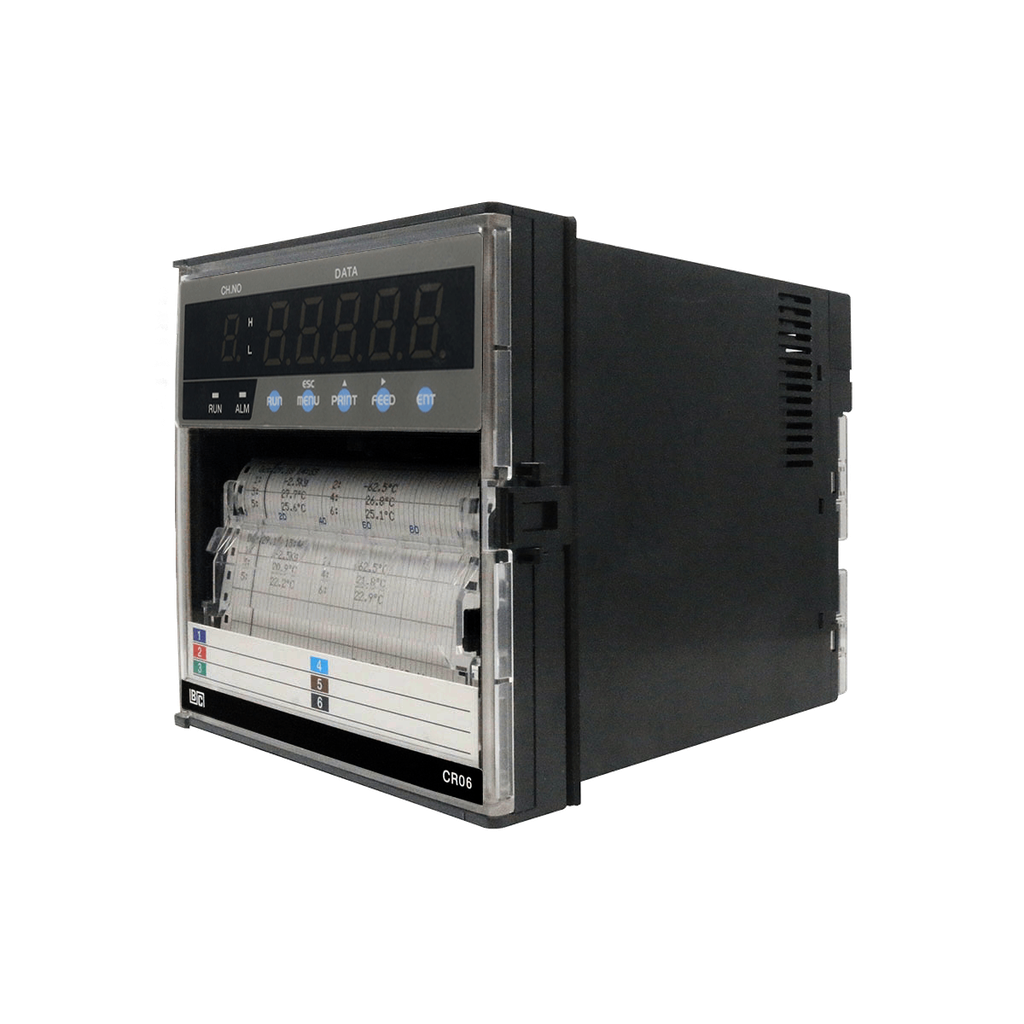

Channel No. Display
Indicates a channel
number in orange
Alarm Type Display
Red indicator shows alarm status: "H" for High, "L" for Low. Off when no alarm.
Data Display
Indicates the process
variable, time, setting
screen, etc. in orange.
Operation Keys
Use these keys for setting and
other operations.
Status Display
"RUN" (orange) lights up when recording, blinks during calibration; "ALM" (red) lights up when alarm is active.
Versatile Input Compatibility
Thermocouples, RTDs, Voltage & Current—All in One
The CR06 supports thermocouples, RTDs, DC voltage and current inputs with flexible mixed-channel configuration. Up to 6 inputs are available, each independently settable by type and range. Advanced functions like scaling, square root, summation, and differential ensure accurate handling of diverse industrial applications.
IP65 Protection Rating
Dustproof & Water-Resistant—Built for Harsh Environments
The CR06 features a splash-resistant front panel and sealing gasket that deliver IP65-level protection. It effectively blocks dust and moisture, making it ideal for factories, high-humidity areas, and dusty environments. With proper panel mounting and use of the included gasket, full enclosure protection is ensured.
Applications
Specification

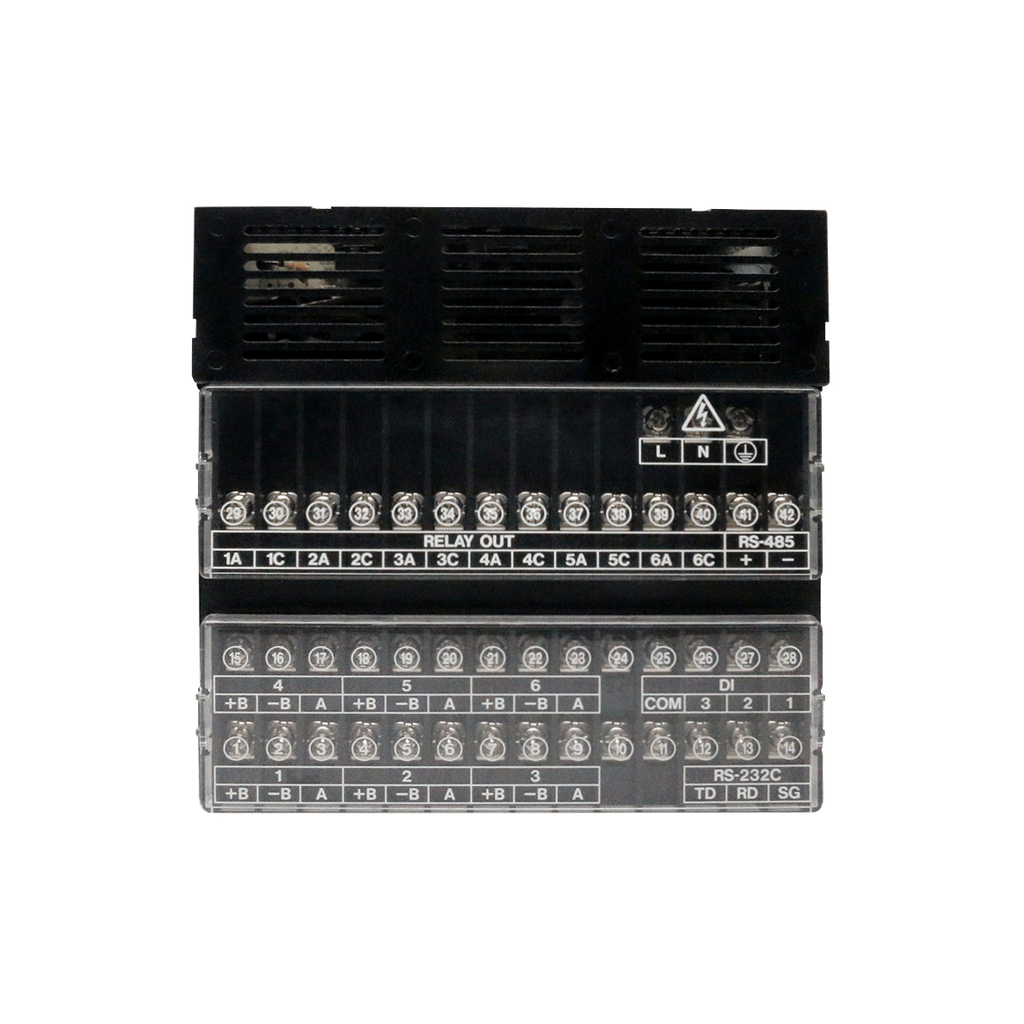

Input
Performance
Alarm
Communication
Power Supply

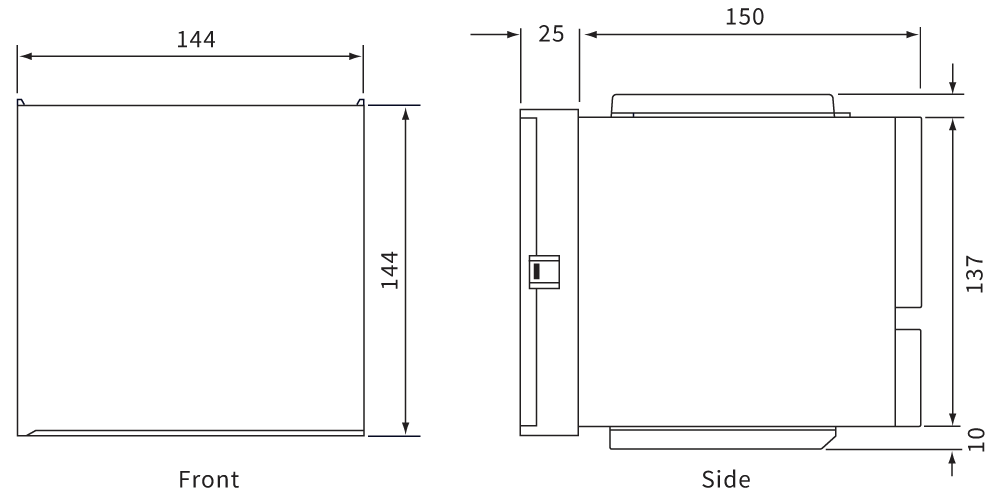

Structure
Operation Condition
Recording / Printing Performance
Download
Visit the Download Center to view more documents and tools.
Visit
FAQ
The CR06 supports thermocouples, RTDs, DC voltage, and DC current inputs. Channels can be configured independently and mixed as needed for flexible measurement applications.
The CR06 supports up to 6 input channels, each individually configurable by type and measurement range.
Yes. The CR06 provides manual printing, scheduled printing, list printing, and engineering print functions for outputting both live data and configuration settings.
The CR06 is ideal for process monitoring, environmental logging, cold chain storage, and lab data recording—especially where paper records or alarm tracking are essential.
Yes. It comes with RS-232C as standard and offers optional RS-485 with Modbus RTU protocol for integration into SCADA or data acquisition systems.
