Features
- 48×48mm compact panel mount size
- Analog dial for quick temperature setting
- Supports ON/OFF or time proportional control
- Input: Thermocouple (J/K) or RTD (PT100)
- Deviation alarm relay output included
- Red and green LED status indicators
- Sensor break protection with relay off
- Jumper-based control mode configuration
- Power supply: 100–240VAC, 50/60Hz
- Low power consumption for panel integration
- Reliable solid-state output options
- Ideal for cost-effective temperature control

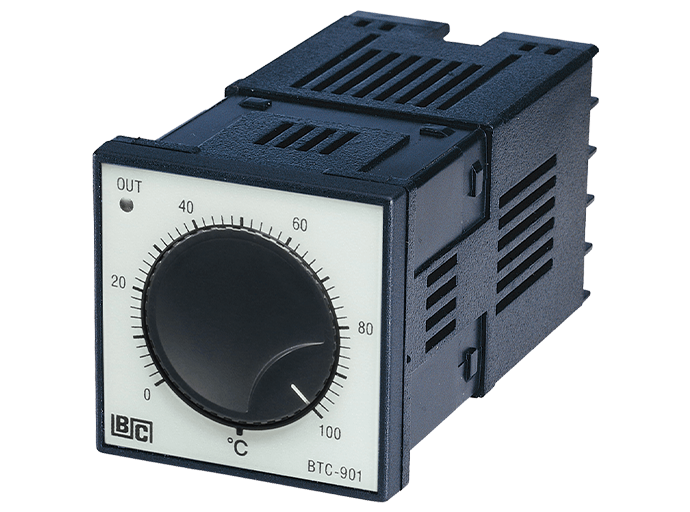

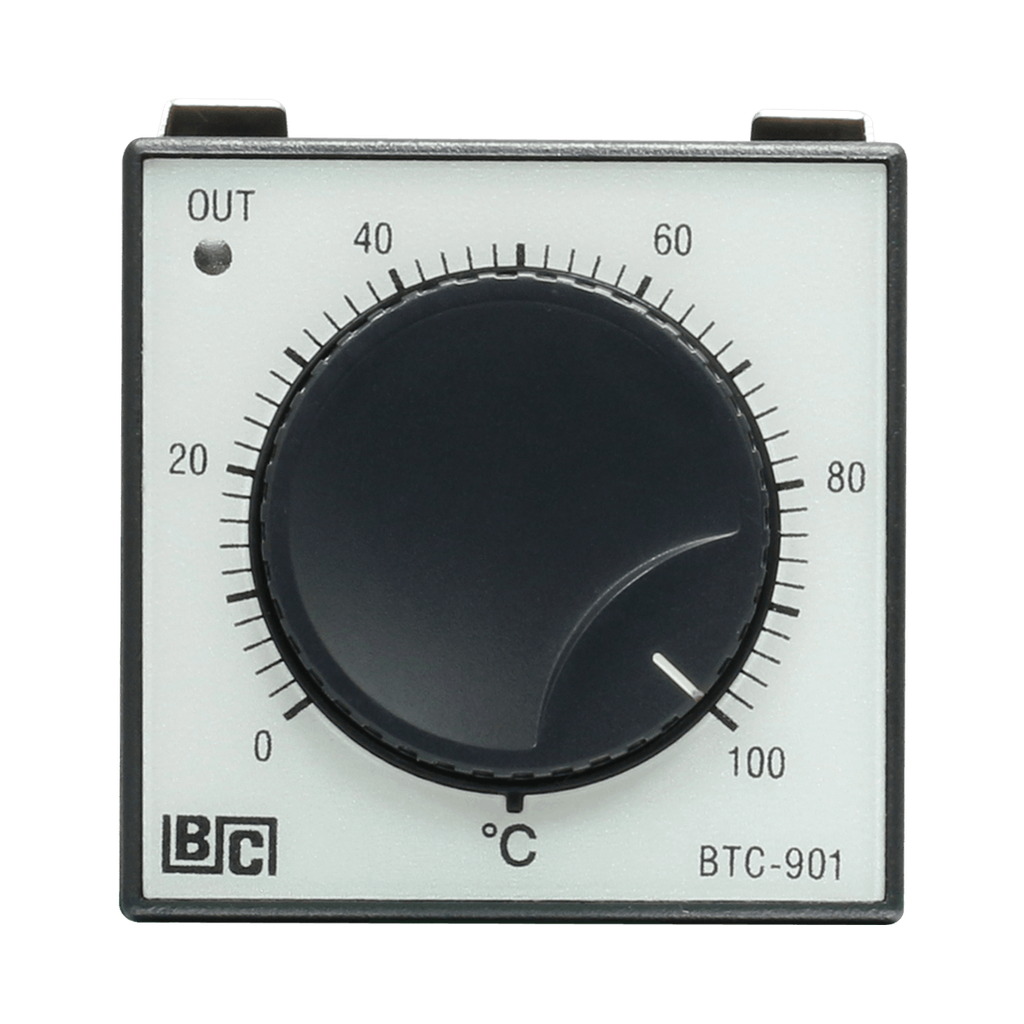

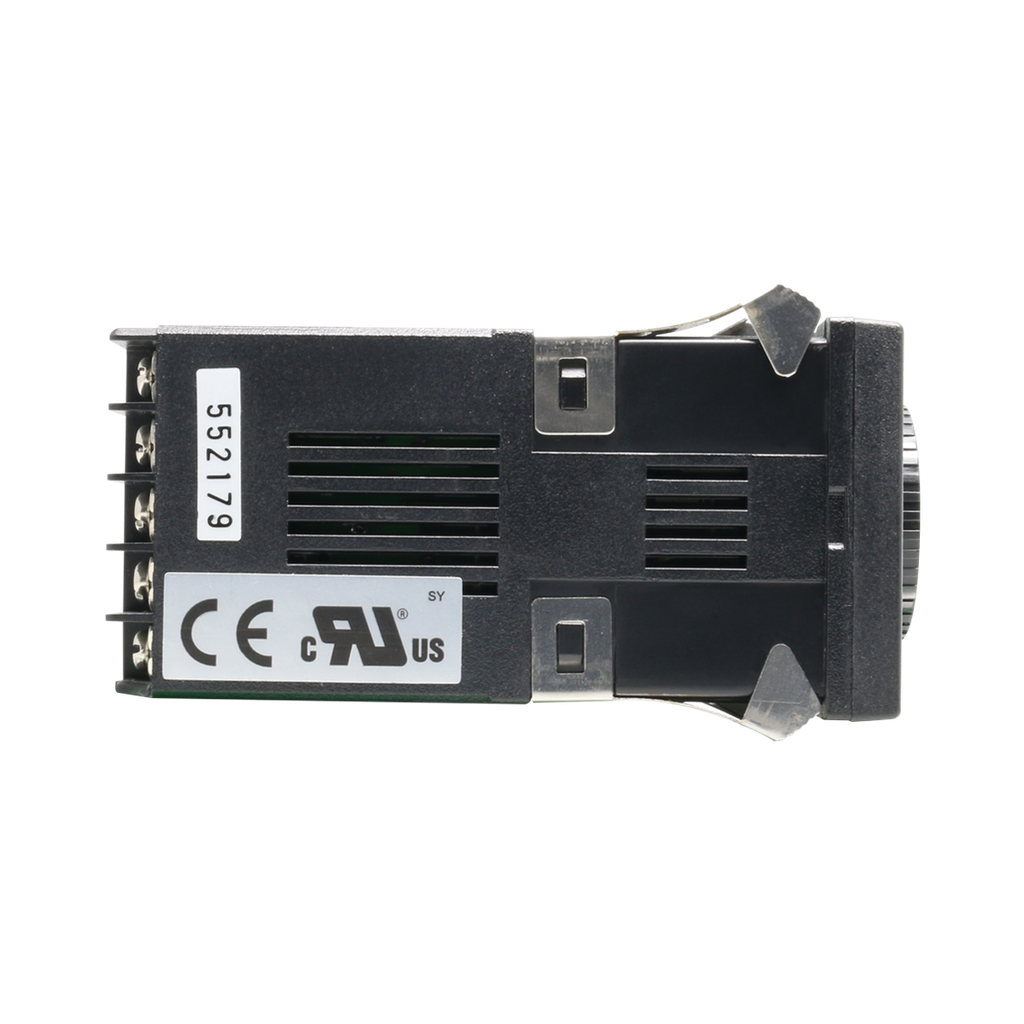

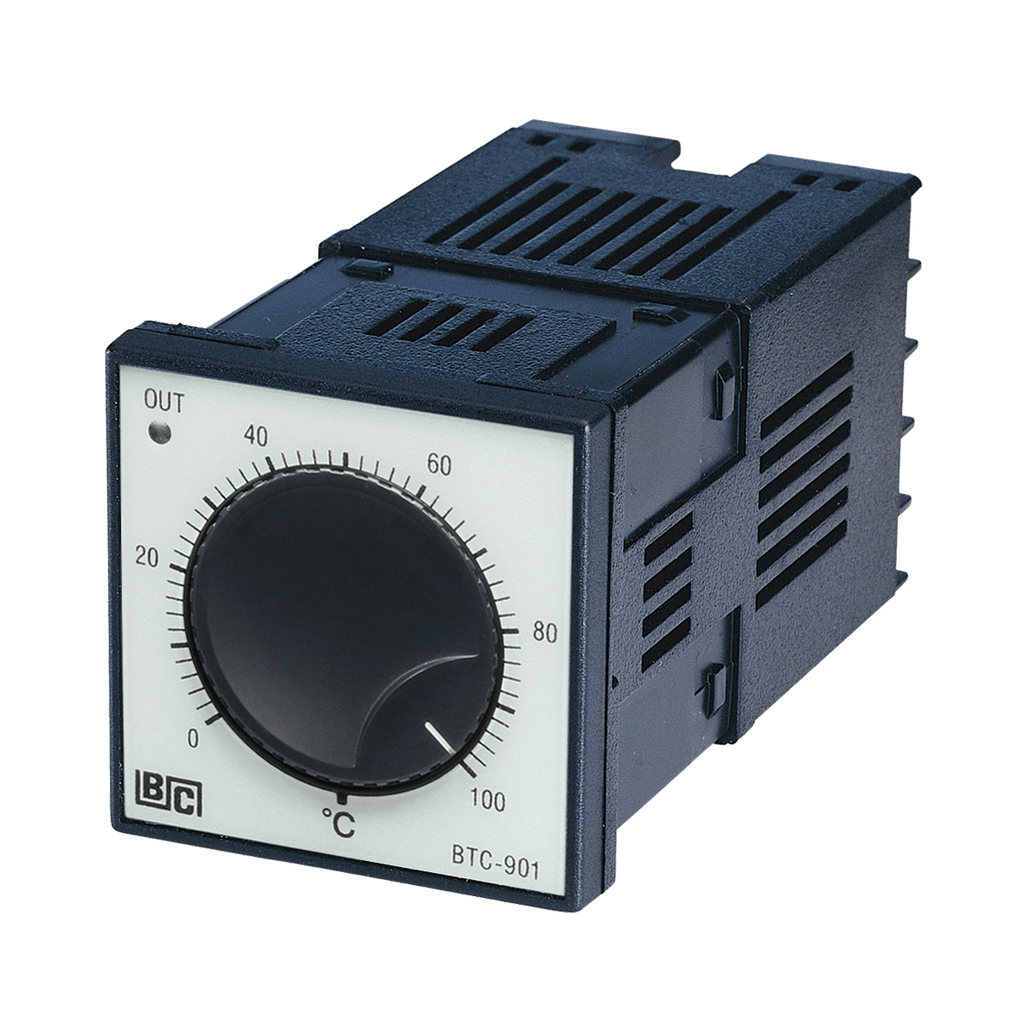

BTC-901 Analog Temperature Controller
Compact 1/16 DIN control with relay alarm output
BTC-901 is a cost-effective analog temperature controller in a 1/16 DIN (48×48mm) compact housing. Designed for simple and reliable control, it features an easy-to-use analog dial, ON/OFF or time proportional control, and relay alarm output. With support for thermocouple or RTD input, BTC-901 is ideal for applications requiring stable, low-cost temperature regulation in compact panels.

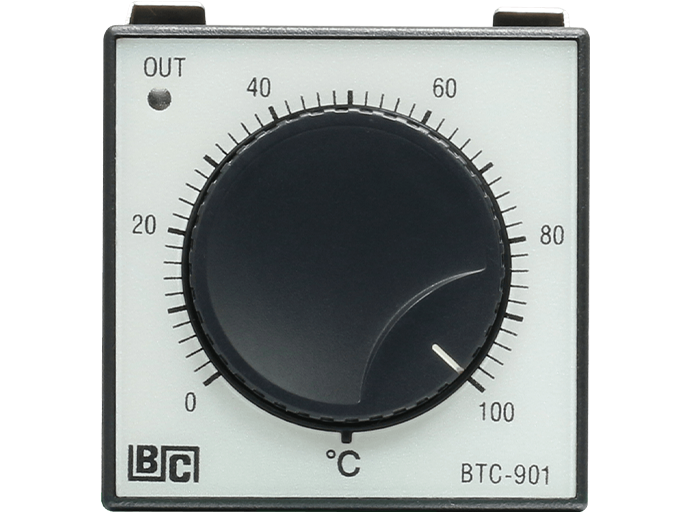

BTC-901 Front Panel and LED Indicators
Clear LED status indicators with analog dial control
The BTC-901 features a compact 48×48mm panel with a front-mounted analog potentiometer dial for setpoint adjustment. Two LED status indicators provide instant feedback: red for output ON and green for output OFF. This simple interface enables users to quickly monitor control status and adjust the temperature without complex menus or digital setup. It’s ideal for operators who prefer tactile controls in industrial environments.
Supports thermocouple and RTD sensors with accuracy
BTC-901 accepts inputs from thermocouple (Type J or K) or RTD PT100 (DIN or JIS) sensors. Sensor type and range are selected via internal jumper settings. The controller ensures accurate measurement performance with cold junction compensation for thermocouples and stable RTD signal processing. This flexibility makes BTC-901 suitable for various heating and temperature monitoring applications.

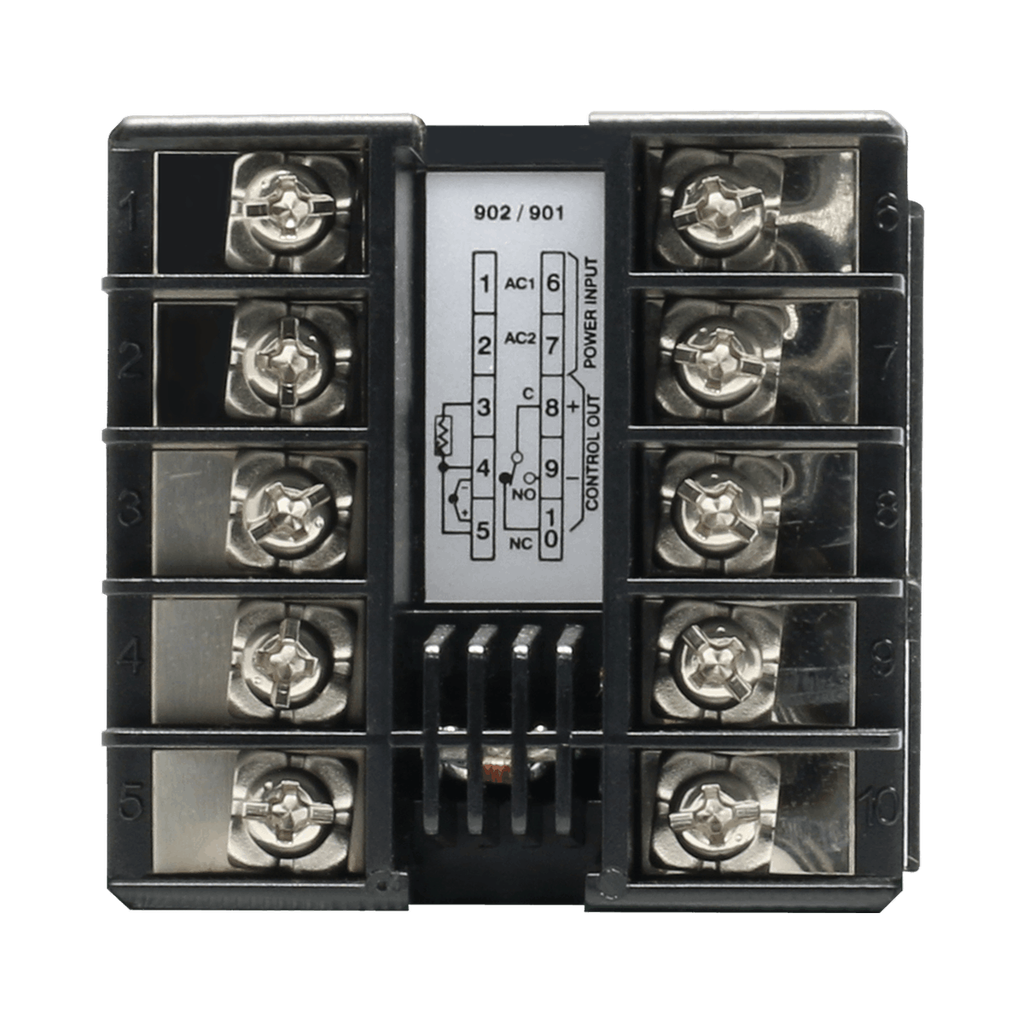

Relay or SSR output with built-in alarm relay
Relay, SSR voltage and alarm relay outputs available
BTC-901 provides multiple output formats:
-
Relay contact output (5A @ 250VAC)
-
SSR voltage drive output (12VDC, 20mA)
Users can select between ON/OFF control or time proportional control by jumper. Additionally, a deviation alarm relay output is included to provide alert signals when temperature exceeds the configured tolerance.
Applications
Specification
Power
Input
Control
Output
Adjustment
Indication

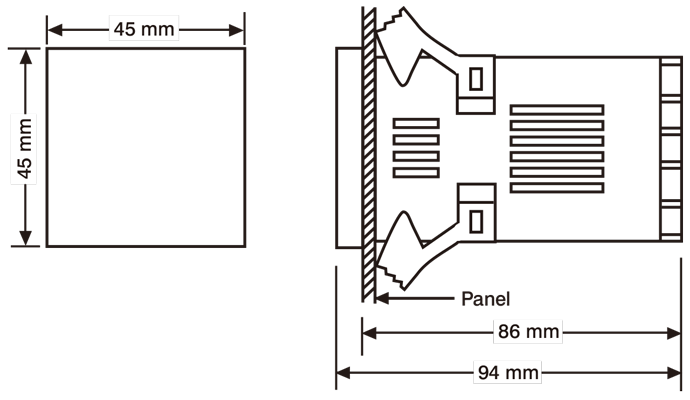

Environmental and Physical Specifications
Approval Standards
Download
Visit Download Center to See More Documents & Tools of This Product. Visit
FAQ
BTC-901 supports J/K thermocouples and 3-wire PT100 RTD sensors, compatible with both DIN and JIS standards.
Temperature setpoint is adjusted using a front panel analog dial.
You can select between ON/OFF control and time proportional control via jumper.
Yes, BTC-901 includes a deviation alarm relay output for over/under-temperature alerting.
Yes, with its 1/16 DIN (48×48mm) compact size and simple analog control, it's ideal for tight space installations.
