• Supports Modbus RTU over RS-485
• 8-channel voltage output module
• DIP switch sets address and baud rate
• LED indicators show power & I/O status
• Works with SCADA, PLC, HMI systems

This combination does not exist.

Features Applications Specification Download Ordering Code

Features

  • Reliable data acquisition via RS-485 (Modbus RTU)
  • Cost-effective modules for industrial field use
  • DIP switches for quick baud rate and address setup
  • Modular design with flexible digital/analog I/O
  • Isolation protection for safe, stable field operation
  • LEDs indicate power, communication, and I/O status
  • Compatible with SCADA, PLC, and HMI integration
  • IO Studio software for real-time setup and diagnostics
  • Optional PC tool for data viewing and testing
  • DIN rail mountable for easy installation
  • RS-485 multi-drop communication, max 32 nodes
Real-Time Visibility × Effortless Configuration

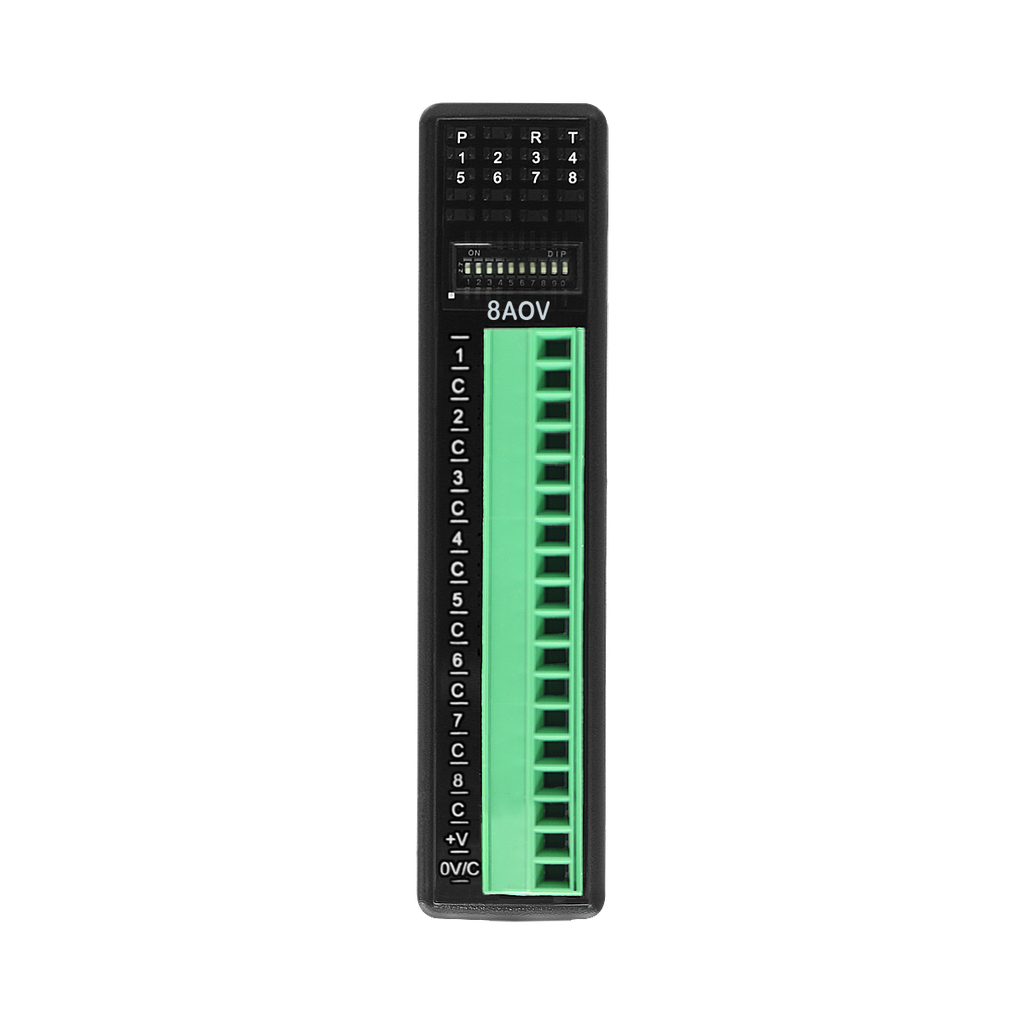

Front Panel LED Indicators & DIP Switch Setup

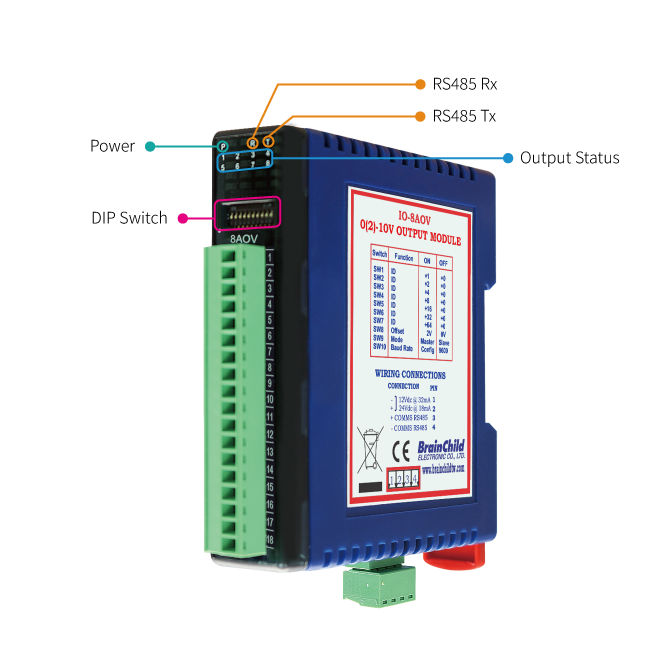

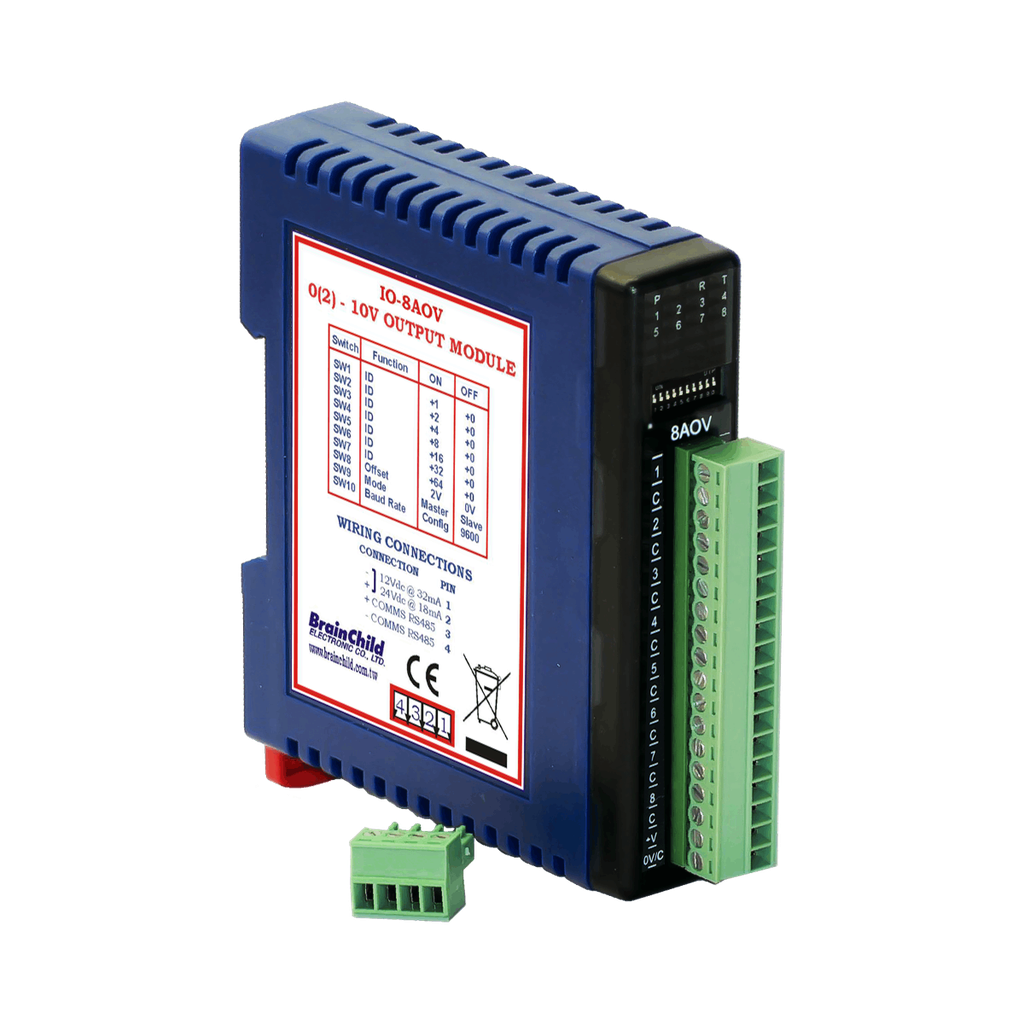

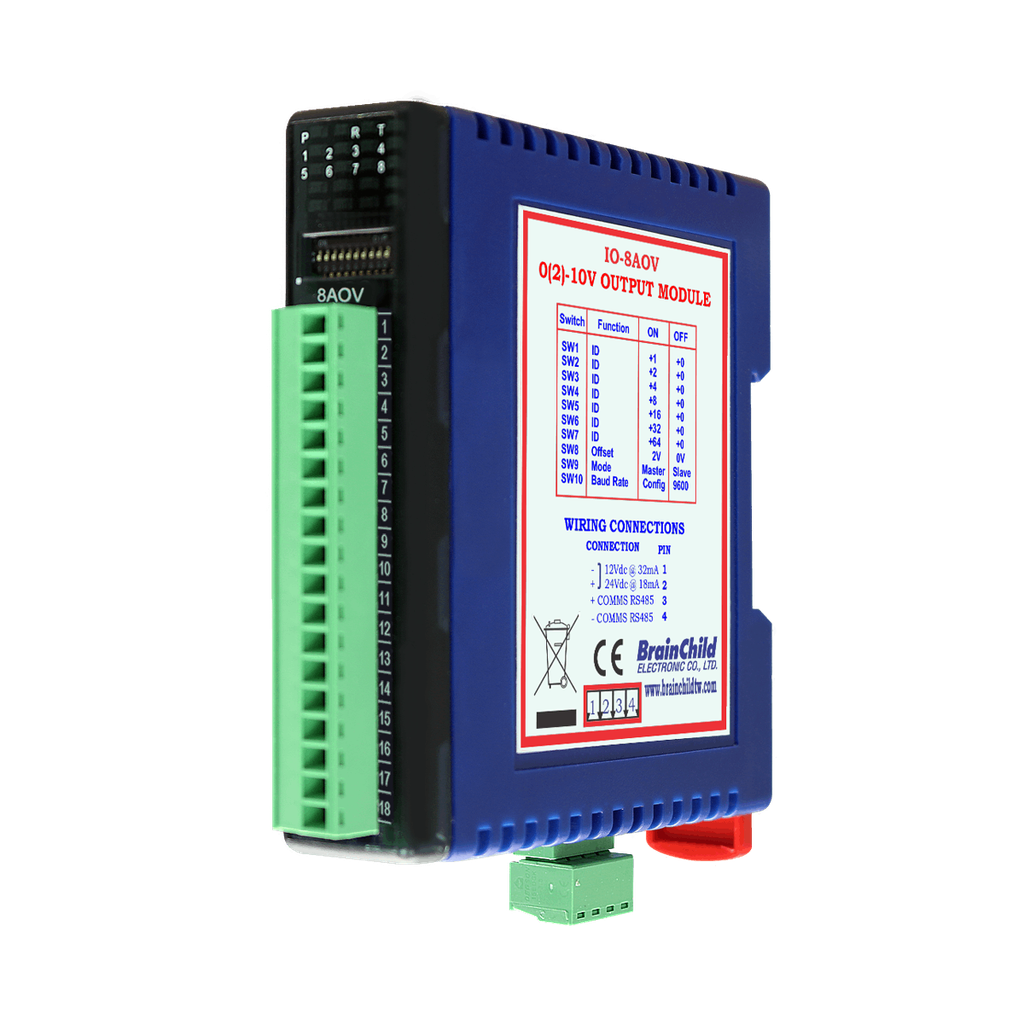

The IO-8AOV module is equipped with intuitive front panel LED indicators and built-in DIP switches for streamlined field operation.
The LED indicators provide real-time status feedback on power, communication, and relay output states, enabling users to verify system conditions at a glance.
DIP switches allow quick, tool-free configuration of communication parameters and node address directly on-site—simplifying setup and reducing installation time.
  • Power: Flashes to indicate the CPU is running.
  • RS485 Rx: Flashes to indicate the unit has received a valid Modbus message.
  • RS485 Tx: Flashes to indicate the unit has sent a Modbus message.
  • Dip Switch: Allows on-site configuration of address and baud rate.
  • Output Status: “ON” when the output is zero.
                              “OFF” when the output is between zero and full scale.
                              “Flashing” when the output is at full scale.
Flexible and Efficient System Configuration Solutions
Our modular industrial control products offer a simple and intuitive configuration experience, making it easy to build automation architectures tailored to your needs. Whether you're expanding I/O capacity or integrating with existing systems, we provide stable and flexible solutions to support your operations .
Smart Monitoring Software Suite
Comprehensive tools for real-time monitoring, historical analysis, and device configuration.
1. IO Studio

IO Studio is a Windows-based configuration software designed for setting up and troubleshooting I/O modules on the network. It allows users to connect to RS485 Modbus RTU modules via RS485 serial port, RS232 to RS485 converter, or USB to RS485 converter.

  • Real-time data monitoring and configuration

  • Easy troubleshooting interface

  • DIP switch address setting on module front panel

  • Supports Modbus RTU communication

  • User-friendly operation for quick deployment

2. Historical Viewer

Historical Viewer provides robust tools for visualizing and analyzing historical data and alarms, making it ideal for auditing, diagnostics, and performance reporting.

  • Displays trends, alarms/events, and daily/weekly/monthly reports

  • Tabular view with comment annotations

  • Search by time, tag, event, or remark

  • Zoom and pan capabilities

  • Flexible time scale resolution (100 ms/dot to 1 month/page)

  • Export to CSV; auto-import/export features

  • Print trends, event logs, reports, and tag data

3.  Data Acquisition Studio (Optional)

Data Acquisition Studio(DAQ) is an all-in-one software for acquiring and monitoring data from recorders, temperature controllers, I/O modules, HMIs, and third-party devices using Modbus protocol.

  • PC-based real-time monitoring and logging
  • Centralized data acquisition across devices
  • Intuitive interface with easy setup
  • Compatible with wide range of industrial devices


Applications

Specification


 General Specifications

Interface

RS-485 Modbus RTU

Communication Speed

2400, 4800, 9600, 19200,38400,57600, 115200, 187500 BPS

Operating Temperature

-10°C to 50°C

Storage Temperature

-40°C to 85°C

Humidity

Up to 95% Non-condensing

Mounting

DIN Rail

Weight (grams)

105

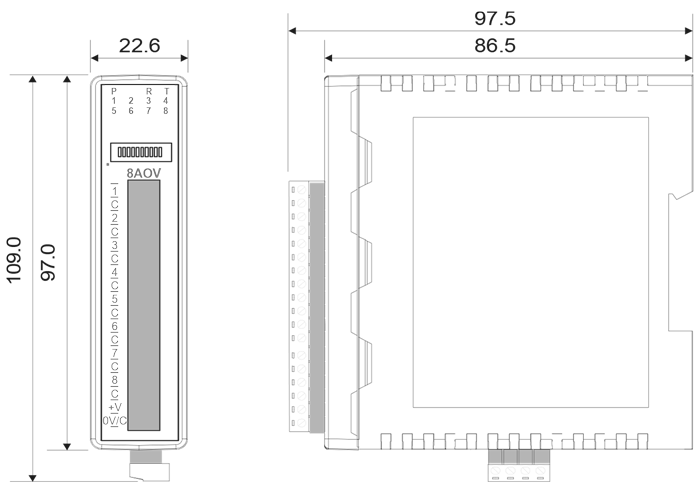

Dimensions (W x H x D mm)

23*109*98

 Connectors

Inputs

18 Way screw connector on front

Communication

RJ45 on topside of the unit

Logic Power

4 Pin Connector on bottom side of unit

 Approval Standard

Safety

IEC 950

EMC

IEC 61000-4-2-A1 Level2, IEC 61000-4-3-A1 Level2, IEC 61000-4-4 Level3, CISPR11:1997-A1, EN55011:1998 Group1 Class A

 Analog 0utput Modules

No of Channels

8

Interface

RS-485 Modbus RTU

Communication Speed

2400, 4800, 9600,19200, 38400,57600,115200, 187500 BPS

Power Supply

Logic Supply Voltage

12 -24 Vdc

Logic Supply Current

32mA @ 12V
18mA @ 24V

Field Supply Voltage

24 VDC

Field Supply Current

85 mA max

Type of Output

Voltage

Voltage Output Range

0(2)~10V

Current Output Range

N.A.

Accuracy

0.05% of Span

Resolution

12 Bit

Load

2000 Ω min

Isolation between Field and Logic

1500 VRMS

Drift

100 ppm/°C
