Select Series | 96mm x 96mm

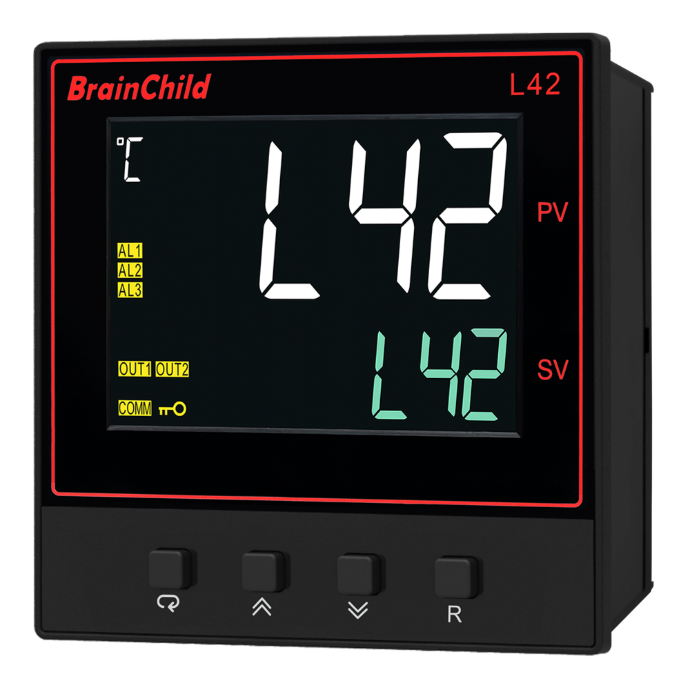

L42
https://www.brainchildtw.com/web/image/product.template/58/image_1920?unique=062c7a5

Process Limit Controller

• High-bright LCD for clear visibility
• Universal input for multiple signals
• Fast 200ms process sampling rate
• Dual output: Relay, SSR, or analog
• Micro USB for offline configuration

This combination does not exist.

Features

  • 18-bit A/D and 15-bit D/A conversion
  • Max 3 alarm outputs, multi-mode types
  • RS-485 Modbus RTU communication
  • Event input support with remote reset
  • Panel mounting for industrial panels
  • Analog retransmission (mA/V) optional
  • Multi-level parameter protection
  • Selectable °C / °F display units
  • Dual display: process + setpoint
  • User-defined menu shortcuts (SEL)
  • Sensor break and A/D failure detection
  • CE, UL, FM, RoHS, and REACH certifie
  • Output failure transfer and latch logic
  • Menu lock with password and security code

L42 Limit Controller
Built for Safety

Fast, scalable, and versatile for industrial safety

The L42 limit controller is an advanced panel-mount safety solution engineered for high-speed, precision-critical process control. With a universal input that supports a wide range of thermocouple, RTD, and analog signals, L42 adapts to nearly any sensor configuration used in temperature, pressure, or flow monitoring applications. Its dual-line LCD provides clear process value and setpoint visibility, while its intuitive menu system simplifies setup and operation for operators and integrators alike.
Designed to meet the rigorous demands of OEM and industrial automation systems, the L42 offers dual configurable outputs, support for up to three alarms, and optional analog retransmission for external recording or PLC integration. The controller also features event input for remote reset or lockout, enhancing operational safety. With built-in RS-485 communication and Modbus RTU support, it seamlessly connects to SCADA or DCS systems. Its compact and rugged panel-mount form factor ensures long-term durability and easy installation in crowded control environments.


Clear Interface, Reliable Display

Dual display and LED indicators simplify operation

The front panel of the L42 features a high-contrast LCD display that clearly presents critical process information at a glance. The dual-line display layout separates the upper and lower screens—where the upper display shows the current process value (PV), alarm codes, or menu options, and the lower display indicates the setpoint (SP), parameter values, or navigation prompts. Four tactile and responsive membrane keys enable smooth access to menu navigation, parameter configuration, and fast setpoint adjustments without requiring complex keystrokes.
In addition to the main display, the front panel includes dedicated LED indicators to show output activation (OUT1/OUT2), unit of measurement (°C or °F), alarm status, and keypad lock status. This visual feedback helps operators confirm controller state in real time. The intuitive layout ensures user-friendly operation, even in dimly lit environments or on crowded industrial panels, reducing operational errors and enhancing safety during configuration or maintenance procedures.

Universal Sensor Input Compatibility

Supports TC, RTD, linear mV, mA, and V signals

L42 accepts a wide range of industrial signal types including thermocouples (J, K, T, E, B, R, S, N, L, U, P, C, D), RTDs such as PT100 (DIN and JIS), and linear analog inputs like 0–60 mV, 0–20 mA, and 0–10 V. Each input type can be configured via keypad or software to accommodate specific sensor requirements. With 18-bit A/D resolution, the controller ensures precise signal interpretation and fast reaction to process variations. This makes the L42 ideal for multi-zone systems or installations requiring high accuracy, fast feedback, and flexible signal handling across temperature, flow, or pressure applications.

Flexible Output to Match Your Application

Relay, SSR, or analog output with alarm modes

L42 features two standard output channels that can be configured as Form A relay contacts or solid-state relay (SSR) drivers. Both 5V and 14V SSR drive voltages are supported, depending on your output requirements. In addition to Output 1 and Output 2, a third output is optionally available for additional alarms. You can choose from multiple alarm functions, including High, Low, Deviation, Latching, or Normal. Output functions are customizable via keypad or software, and are suitable for driving alarms, interlocks, or shutdown mechanisms. Optional analog retransmission (0–10 V or 4–20 mA) provides real-time process value feedback for external monitoring or PLC integration.

Easy Offline Setup via USB

Micro USB for configuration and calibration

The L42 includes a Micro USB programming port conveniently located on the front panel, designed for offline configuration and testing. When used with BrainChild’s BC-SET Pro software and the optional CC98-1 programming cable and PA98-1 adapter, the controller can be quickly configured, cloned, or calibrated without accessing internal terminals. This port also supports automatic testing (ATE integration), making it ideal for OEM production lines and system integrators who require fast setup and parameter duplication across multiple units. Note: the programming port should only be used when the controller is powered but not in active process operation.

BC-SET Pro Configuration Software

Easy parameter setup, backup and firmware upgrade

BC-SET Pro is the official configuration software developed by BrainChild for its over-temperature protection controllers. With a streamlined and intuitive interface, the software allows users to connect via USB programming cable and quickly configure control parameters. It supports efficient parameter editing, setting duplication between devices, and firmware upgrades to maintain device performance and stability. BC-SET Pro also enables offline configuration with the ability to save and manage multiple profiles, making it ideal for production environments, system deployment, and ongoing maintenance. Whether for new setup or existing system adjustment, this tool helps engineers and technicians simplify workflow, reduce setup time, and ensure consistent configuration across all devices.

Batch Read/Write for Multiple Controllers

BC-SET allows users to connect multiple controllers of the same model and perform batch parameter read/write by defining a node address range. This feature significantly streamlines configuration in OEM or multi-device environments.

Clear and Accessible System Menu

The system menu offers quick access to key operations like Rescan (F5), Read Data (F6), Write Data (F7), Write Multiple (F8), and Communication Settings (F9). Built-in hotkeys support fast, efficient navigation.

Intuitive Communication Setup Interface

The communication settings window lets users define COM port, baud rate, parity, data bits, and stop bits — with a “Default” button for quick reset and “Save and Exit” to finalize setup. Designed to reduce setup errors.

Visual Profile Editor for Programmable Controllers

For controllers with profile functionality, BC-SET provides a graphical editor to configure temperature ramp/soak segments. Users can easily read, modify, and write profile parameters for precise thermal process control.

Applications

Specification

 Dimension with Clamps


 Dimension without Clamp


 Power

Power Supply

90 ~ 250VAC, 47 ~63Hz, 20 ~ 28 VAC, 47-63Hz / 11 ~ 40 VDC

Power Consumption

12VA,6W Maximum

Over Voltage Category

II

 Signal Input

Type

Thermocouple (J, K, T, E, B, R, S, N, L, U, P, C, D), RTD(Pt100(DIN), Pt100(JIS)), Current(mA), Voltage (V, mV)

Resolution

18 Bits

Sampling Rate

5 Times / Second (200msec)

Maximum Rating

-2VDC minimum, 12VDC maximum

Input characteristics

Type

Range

 Accuracy@ 25 °C

Input Impedance

J

-120°C ~ 1000°C D115( -184°F ~ 1832°F)

±2 °C

2.2MΩ

K

200°C ~ 1370°C (-328°F ~ 2498°F)

±2 °C

2.2MΩ

T

-250°C ~ 400°C ( -418°F ~ 752°F)

±2 °C

2.2MΩ

E

-100°C ~ 900°C ( -148°F ~ 1652°F)

±2 °C

2.2MΩ

B

0°C ~ 1820°C (32°F ~ 3308°F)

±2 °C (200°C - 1800°C)

2.2MΩ

R

0°C ~ 1767.8°C (32°F ~ 3214°F)

±2 °C

2.2MΩ

S

0°C ~ 1767.8°C (32°F ~ 3214°F)

±2 °C

2.2MΩ

N

-250°C ~ 1300°C ( -418°F ~ 2372°F)

±2 °C

2.2MΩ

L

-200°C ~ 900°C ( -328°F ~ 1652°F)

±2 °C

2.2MΩ

U

-200°C ~ 600°C (-328°F ~ 1112°F)

±2 °C

2.2MΩ

P

0°C ~ 1395°C (32°F ~ 2543°F)

±2 °C

2.2MΩ

C

0°C ~ 2300°C (32°F ~ 4172°F)

±2 °C

2.2MΩ

D

0°C ~ 2300°C (32°F ~ 4172°F)

±2 °C

2.2MΩ

PT100 (DIN)

-210°C ~ 700°C ( -346°F ~ 1292°F)

±0.4°C

1.3KΩ

PT100 (JIS)

-200°C ~ 600°C ( -328°F ~ 1112°F)

±0.4°C

1.3KΩ

mA

-3mA ~ 27mA

±0.05%

2.5Ω

VDC

-1.3VDC ~ 11.5VDC

±0.05%

1.5KΩ

mV

0 ~ 50mV

±0.05%

2.2MΩ

Temperature Effect

1.5μV /°C for all inputs except mA input, 3.0μV /°C for mA

Sensor Lead Resistance Effect

Thermocouple: 0.2 μV / Ω; 2-wire RTD: 2.6°C /Ω of sum of resistance of two leads; 3-wire RTD: 2.6°C /Ω of difference of resistance of two leads

Burn-out Current

200nA

Common Mode Rejection Ratio(CMRR)

120 dB

Normal Mode Rejection Ratio (NMRR)

55dB

Sensor Break Detection

Sensor open for Thermocouple, RTD and mV inputs, Sensor short for RTD input, Below 1mA for 4 ~ 20mA input, Below 0.25VDC for 1 ~ 5VDC input, Not available for other inputs.

Sensor Break Responding Time

Within 4 seconds for Thermocouple, RTD and mV inputs, 0.1 second for 4 ~ 20mA and 1 ~ 5VDC inputs.



Digital Filter

Function

First Order

Time Constant

0,0.2, 0.5, 1, 2, 5, 10, 20, 30, 60 Seconds Programmable

 Event Input

Number of Event Inputs

2

Logic Low

-10V minimum, 0.8V maximum.

Logic High

2V minimum, 10V maximum

Functions

Remote lock, Remote reset output1, HSP2, LSP2, HLS2, HSP3, LSP3, HLS3, Reset alarm1, Reset alarm2, Reset alarm 3, Reset all alarms, Cancel latch, Reset reference data

Output 1  / Output 2

Limit Control Function

High Limit, Low Limit and High / Low Limit

Type

Relay, Pulsed Voltage

Relay Type

Form A

Relay Rating

2A, 240V AC, 200000 Life cycles for resistive load

Pulsed Voltage

Source voltage 5VDC, Current limiting resistance 66Ω

Temperature Effect

±0.01% of Span/ °C

Alarm

Relay Type

Form A

Maximum Rating

2A, 240VAC, 200000 Life cycles for resistive load

Alarm Functions

Process High, Process Low

Alarm Mode

Latching, normal, Latching reverse, Normal reverse

 Data Communication

Interface

RS-485 or RS-232

Protocol

Modbus RTU (Slave Mode)

Address

1 ~ 247

Baudrate

2.8KBPS ~ 115.2 KBPS

Parity Bit

None, Even or Odd

Stop Bit

1 or 2 Bits

Data  Length

7 or 8 Bits

Communication Buffer

160 Bytes

Analog Retransmission

Output Signal

4 ~ 20mA, 0 ~ 20 mA, 0 ~ 10VDC

Resolution

15 Bits

Accuracy

±0.05% of Span ± 0.0025% / °C

Load Resistance

0 to 500Ω for Current Output , 10KΩ minimum for Voltage Output

Output Regulation

0.01% for full load change

Output Setting Time

0.1 Second (Stable to 99.9%)

Isolation Breakdown

1000 VAC minimum

Integral Linearity Error

±0.005% of Span

Temperature Effect

±0.0025% of Span /°C

Saturation Low

0mA or 0VDC

Saturation High

22.2mA or 5.55V, 11.1V min

Linear Output Ranges

0 ~ 22.2mA (0 ~ 20mA / 4 ~ 20mA), 0 ~ 5.55VDC (0 ~ 5VDC / 1 ~ 5 VDC), 0 ~ 11.1VDC (0 ~ 10VDC)

User Interface

Keypad

4 Keys

Display Type

4 Digit LCD Display

No. of Display

2

Upper Display Size

0.98” (25mm)

Lower Display Size

0.55” (14mm)

 Environmental and Physical Specifications

Operating Temperature

-10°C ~ 50°C

Storage Temperature

-40°C ~ 60°C

Humidity

0 ~ 90 % RH (Non-Condensing)

Altitude

2000 Meters maximum

Pollution

Degree II

Insulation Resistance

20 MΩ minimum (@500 VDC)

Dielectric Strength

2000 VAC, 50 / 60 Hz for 1 Minute

Vibration Resistance

10 ~ 55 Hz , 10m / s² for 2 Hours

Shock Resistance

200 m / s² (20g)

Moldings

Flame Retardant Polycarbonate

Mounting

Panel

DIN Size
1/4

Dimensions (W*H*D) (mm)

96*96*59

Depth Behind Panel (mm)

50

Cut Out Dimensions (mm)

92*92

Weight (grams)

290

Approval Standards

Safety

FM Class 3545, UL61010-1, CSA 22.2 No.61010-1-12, EN61010-1 (IEC1010-1), ROHS, REACH

Protective Class

IP50 for the front panel, IP20 for rear terminals and housing. All indoor use.

EMC

EN61326

Download

Visit Download Center to See More Documents & Tools of This Product.     Visit

FAQ

The L42 is designed for panel-mounted over-temperature protection and process limit monitoring. It detects when process values exceed preset limits and triggers outputs to ensure system safety.

L42 supports thermocouples (J, K, T, E, B, etc.), RTDs (PT100 DIN/JIS), and analog signals including 0–60mV, 0–20mA, and 0–10V. Input configuration can be set via the keypad or PC software.

L42 includes two configurable outputs (relay or SSR drive), with an optional third alarm output. Analog retransmission (4–20mA or 0–10V) is also available for external monitoring or PLC connection.

Yes. The L42 features a Micro USB programming port for offline configuration, firmware updates, and parameter cloning using BrainChild’s BC-SET Pro software and accessories.

What is the environmental protection rating of the L42?

The L42 offers IP50 protection on the front panel and IP20 on the terminal section. It is certified by FM, UL, CSA, and meets EN61010-1 and RoHS standards for industrial panel installations.

Ordering Code
